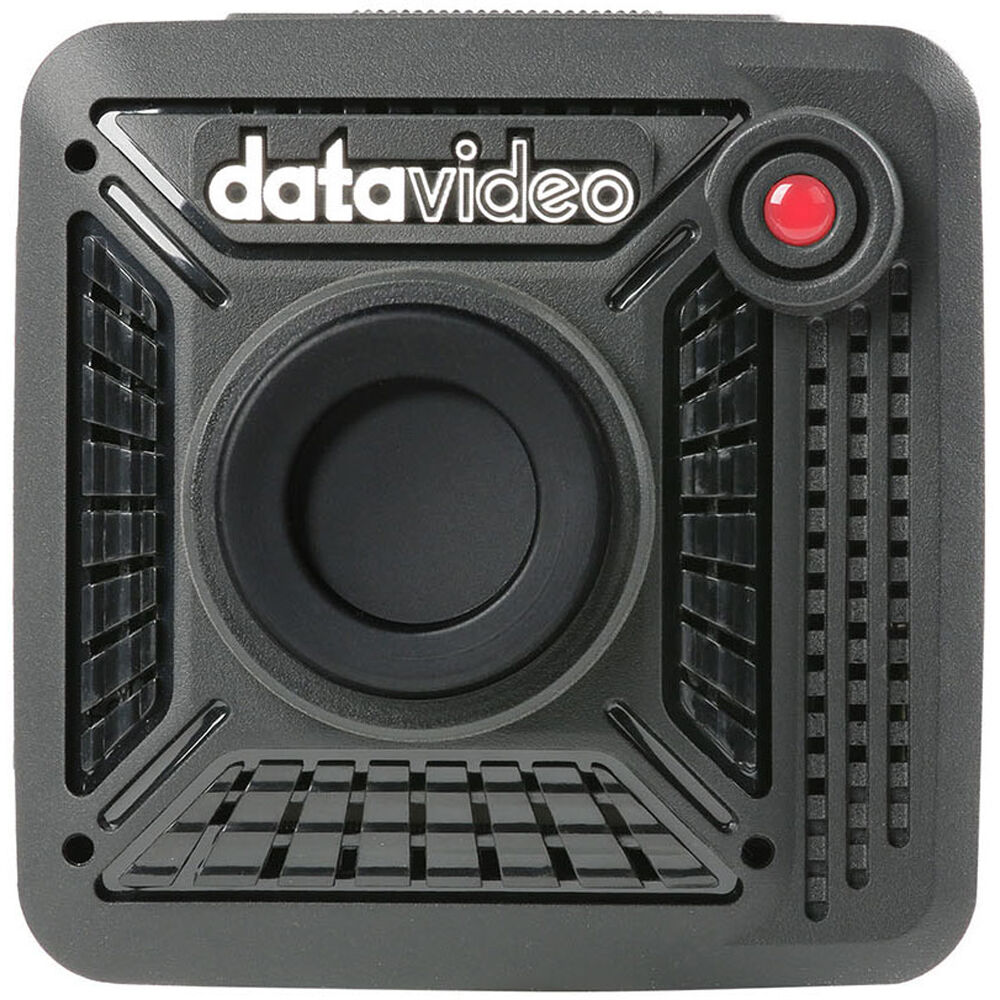

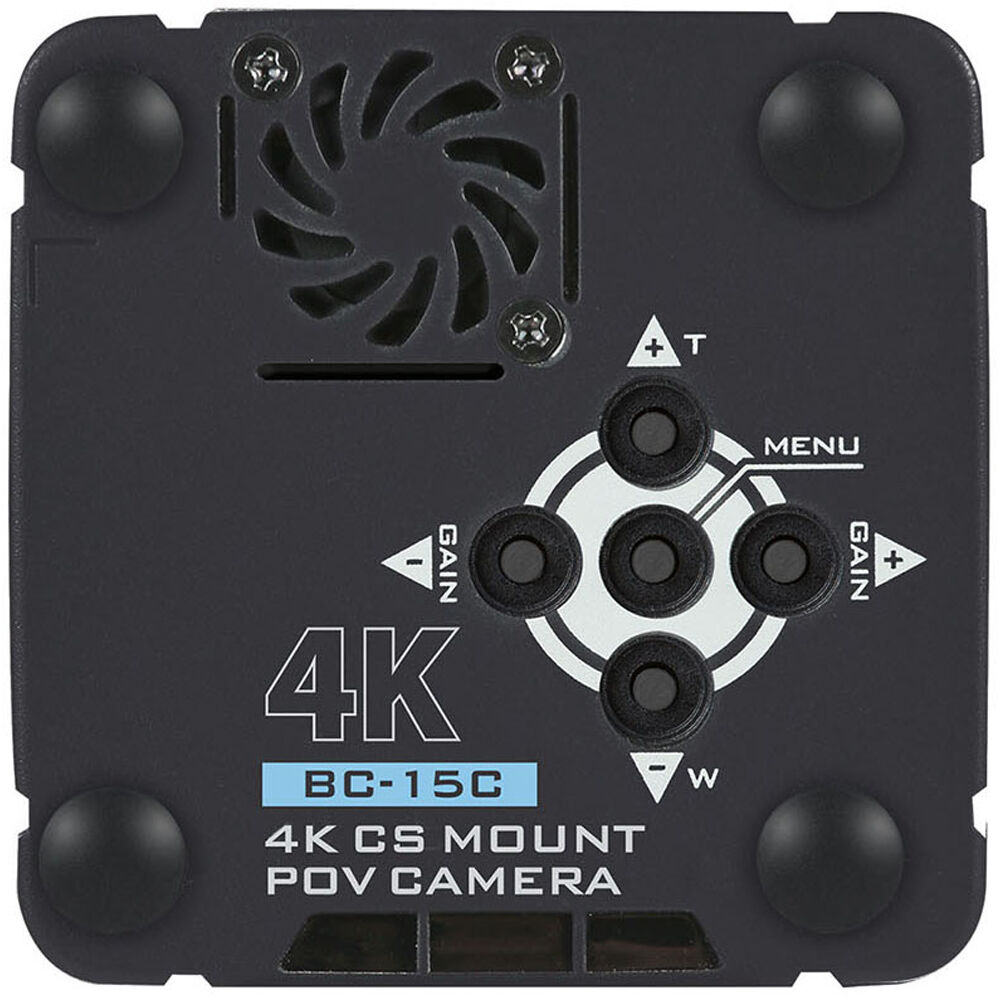

Datavideo 4K CS Mount POV Camera
- 4K CMOS Sensor, 12.3 MP
- Interchangeable CS Lens Mount
- Dual Streaming Output (HDMI & RJ45)
- Multiple Control Options
- 2x Digital Zoom
Datavideo's 4K CS Mount POV Camera is a compact yet powerful camera platform suitable for applications in live video streaming environments. This pocket-sized camera features an included CS lens mount and a 1/2.3" CMOS image sensor for capturing images at resolutions up to 4K60. A range of adjustable settings and automatic image compensation features ensure the highest quality video is transmitted over its HDMI or RJ45 outputs, all of which may be controlled via manual buttons, Datavideo's useful View Assist app, or an optional RMC controller (available separately). The tight form factor easily mounts via two 1/4-20" threads while Power over Ethernet functionality reduces cable clutter.
Technical Specifications:
|
Image Sensor |
1/2.3" CMOS |
|
Effective Pixels |
12.3 MP |
|
Signal to Noise Ratio |
50 dB |
|
Electronic Shutter |
1/25(1/30), 1/50(1/60), 1/75(1/90), 1/100(1/120), 1/125(1/150), 1/150(1/180), 1/200(1/210), 1/500(1/600), 1/1000(1/1200), 1/2000(1/2400), 1/4000(1/4800), 1/8000(1/9000) sec |
|
Lens Type |
CS Mount |
|
Digital Zoom |
2x |
|
Iris Operation |
DC IRIS Supported |
|
Noise Reduction |
2D / 3D |
|
White Balance Modes |
Auto, Indoor, Outdoor, OnePush, Color Temperature, R/B Gain, Lock |
|
Dynamic Range |
WDR |
|
Gain Control |
Auto, Manual, Lock, Follow Exposure Mode |
|

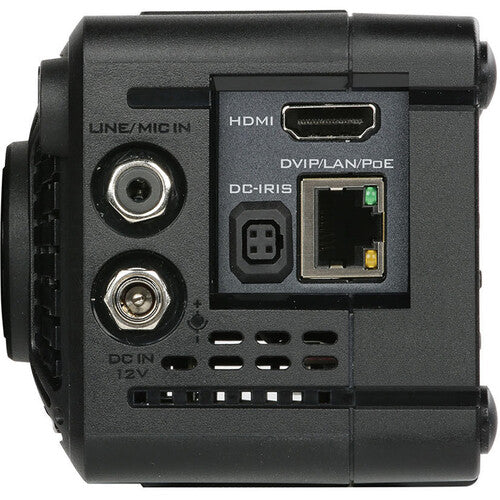

Video I/O |
1 x HDMI 2.0 Output 1 x RJ45 Output |
|
Audio I/O |
1 x 1/8" / 3.5 mm Line Input |
|
Video Resolution |
UHD 4K 60/59.94/50/30/29.97/25 1080p 60/59.94/50/30/29.97/25 |
|
Video Compression |
H.264, H.265 |
|
Audio Compression |
AAC |
|
LED Indicators |
Dual Color Tally Light |
|
Remote Control |
DVIP over RJ-45 |
|
Streaming |
RTMP(S), SRT |
|
Wireless |
Yes |
|
Wi-Fi |
Yes |
|
Bluetooth |
Yes |
|
Mobile App Compatible |
Yes: Android & iOS App Name: View Assist *As of June, 2023: Check with manufacturer for the most up-to-date compatibility |
|
Power Source |
PoE, Plug-In Power |
|
DC Input Power |
12 VDC |
|
Power Consumption |
9 W |
|
Ethernet |
IEEE 802.3af PoE Protocol |
|
Environmental Protection |
None |
|

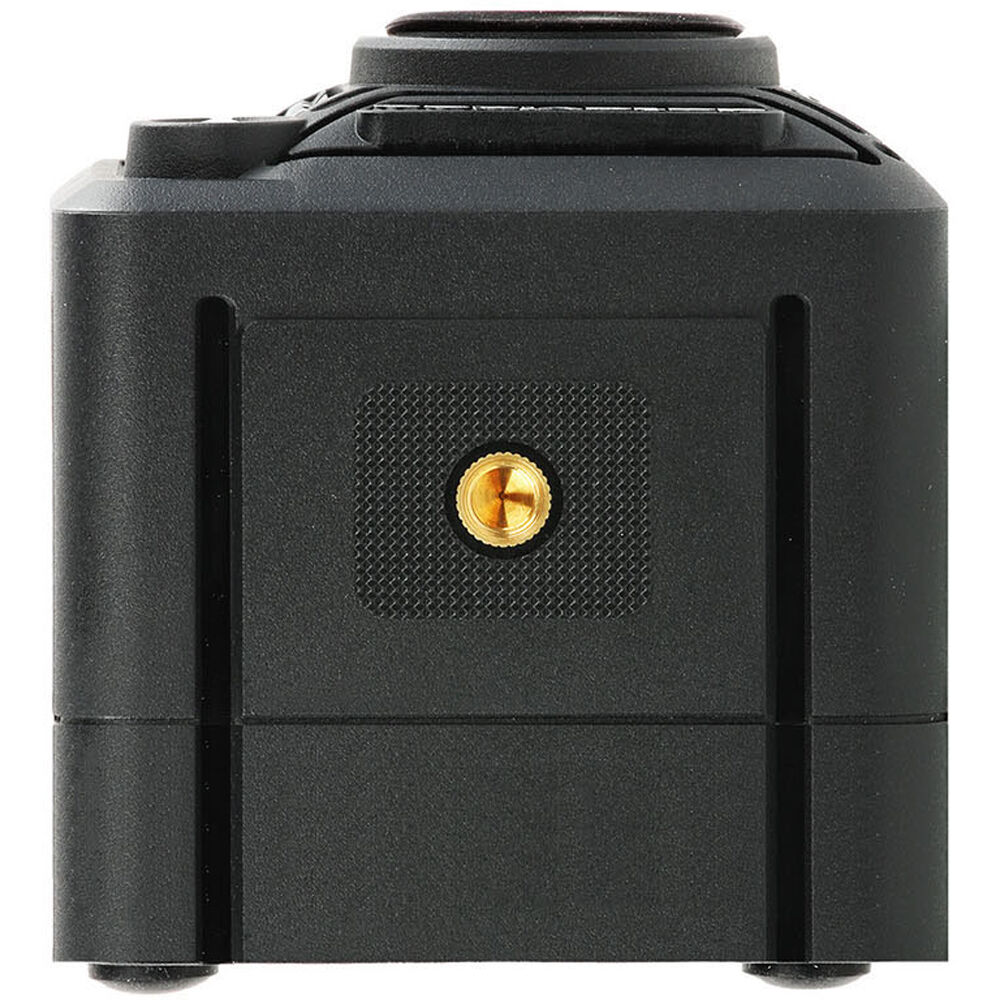

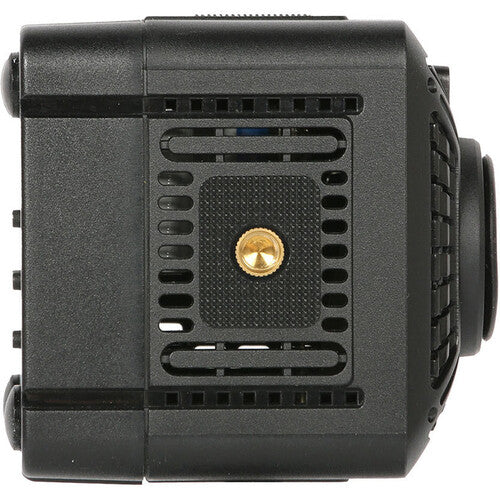

Mounting |
Top: 1 x 1/4"-20 Thread 1 x 1/4"-20 Thread |
|
Color |
Black |
|
Dimensions |
3.2 x 3.1 x 3" / 82 x 78 x 77 mm |
|
Weight |
7.2 oz / 204 g |
In the Box:
- Datavideo 4K CS Mount POV Camera
- CS-C Lens Adapter Ring
- 12 VDC Power Adapter
- Limited 1-Year Manufacturer Warranty
