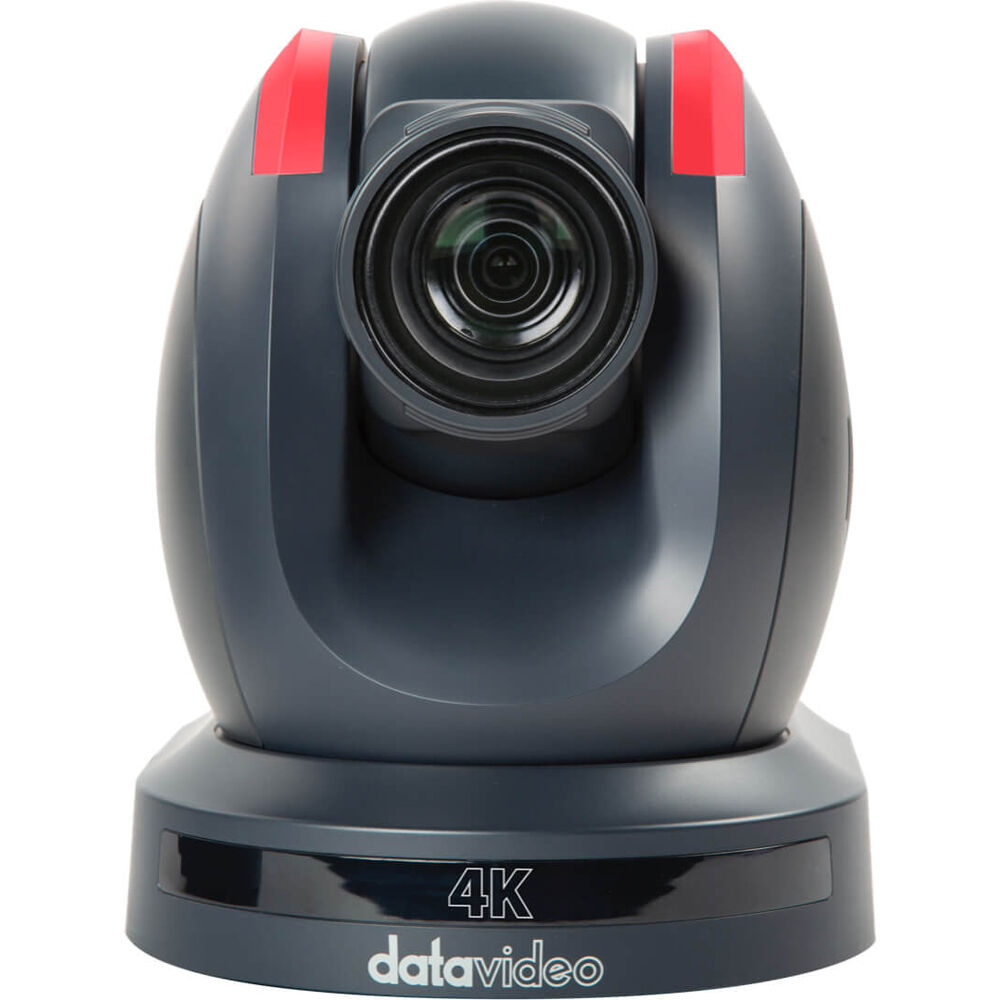

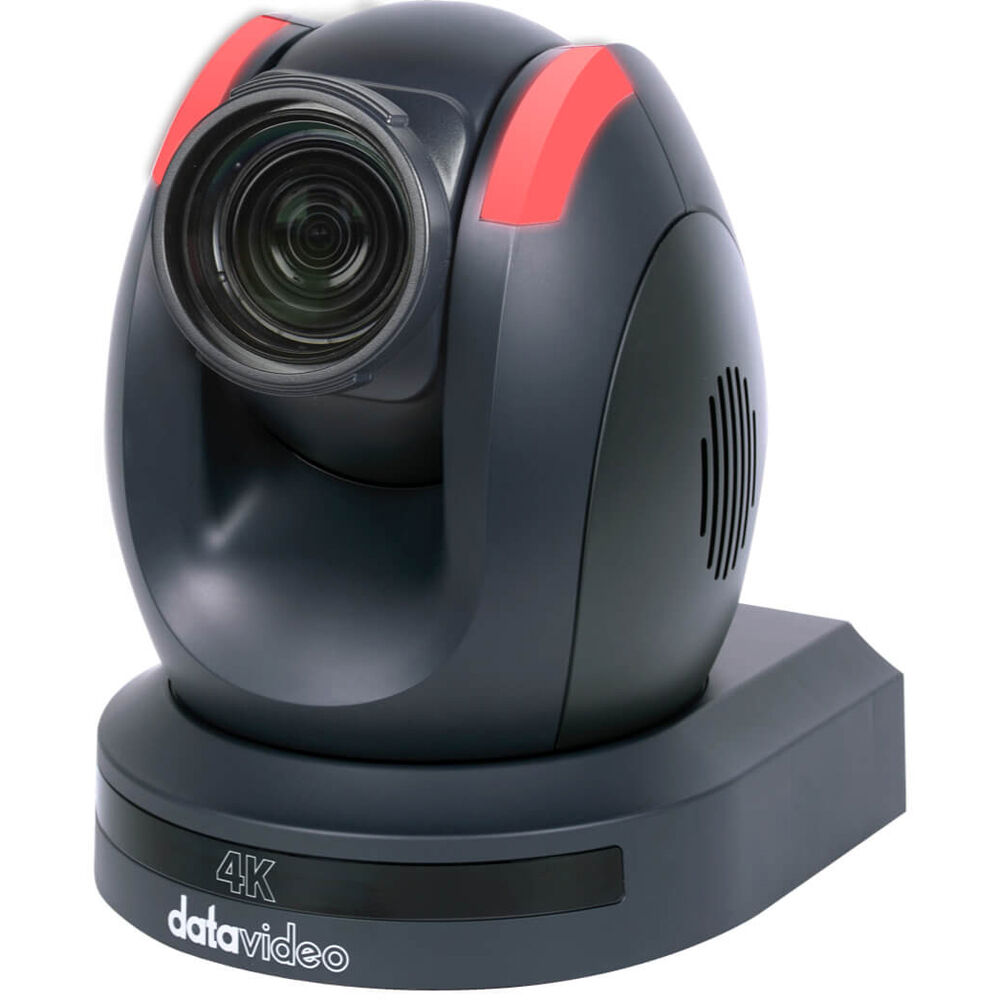

Add a high-resolution PTZ camera to your conference room, education setting, live event, house of worship, or remote video conference with this black 4K HDMI/3G-SDI Autotracking PTZ Camera with 12x Optical Zoom from Datavideo. The camera features remote pan, tilt, and zoom control via a remote control or via IP and serial protocols, and its built-in zoom lens offers an optical zoom range of 12x with a 16x digital zoom to view just about any angle in your setting. The camera also features an AI autotracking algorithm that allows you to follow the subject automatically.
Connect your PTC-285 to multiple devices in your workflow for flexibility. All the outputs are active at the same time, supporting simultaneous HDMI 2.0 and IP output up to UHD 4K 2160p60 and also 3G-SDI output up to 1080p60.
Setting up AI tracking is available via various external controllers such as the included RMC-1 remote control and DVIP controllers (RMC-300A, RMC-180 MARK II, and PTC View Assist). In addition to camera controllers, you can also easily enable AI tracking on smart switchers, which include KMU-200, SHOWCAST 100, and others, as well as complete solution systems like ZR-1 Smart Classroom.
If you are capturing multiple people, you can designate a single person for AI tracking. Once set up on the camera, only the designated person will be tracked, avoiding interferences such as the desks, people crossing back and forth, and large objects.
The integrated PID algorithm is able to detect the movement speed of the identified object and automatically adjust the camera's corresponding pan, tilt, and zoom speeds in such a way that the lens movement will be smooth, avoiding common camera lens movement problems like jerky movements or unpredicted halts.
The PTZ View Assist camera control app is tailored for the Datavideo PTZ camera series. It can monitor the live streaming video from PTC-140, PTC-280, PTC-285, and PTC-300 series. The app can control up to four cameras simultaneously via DVIP; you can intuitively set up and recall the presets, and adjust white balance, focus, and iris.
Technical Specifications:
Image Sensor
1/2.8"-Type CMOS
Sensor Resolution
Effective: 8.51 Megapixel
Built-In ND Filter
None
Focus Control
Autofocus
Manual Focus
Shutter Speed
1/10000 to 1/30 Second
Signal-to-Noise Ratio
55 dB
Minimum Illumination
0.5 Lux
Flip / Mirror Support
Image Flip, Mirror (Vertical)
White Balance
Presets: Auto, Indoors, Manual, One Push, Outdoors
Focal Length
4.4 to 52.8mm
Optical Zoom Ratio
12x
Max Digital Zoom
16x
Field of View
Horizontal: 80°
Maximum Aperture
f/1.8 to 2.6
External Recording Modes
HDMI / RJ45
3840 x 2160 at 25/29.97/30.00/50/59.94/60.00 fps
1920 x 1080p at 25/29.97/30.00/50/59.94/60.00 fps
1280 x 720 at 50/59.94/60.00 fps
SDI/BNC
Embedded Audio
HDMI
SDI
LAN (RJ45)
Broadcast Output
NTSC/PAL
IP Streaming
H.264, H.265, MJPEG
320 x 240 to 3840 x 2160 at 23.98p, 24p, 25p, 29.97p, 50p, 59.94p, 60p (50.00 Mb/s)
IP Multi-Stream Support
Simultaneous
H.264, H.265, MJPEG: 2160p, 1080p, 720p, 480p, 360p
Presets
255 via IR, RS-232, VISCA
Move Speed
Pan: 0.87 to 43°/sec
Tilt: 0.69 to 21.32°/sec
Movement Range
Pan: 300°
Tilt: 145° (-15 to 130°)
Tally Light
Yes
Supported Control Protocols
IP
IR
Pelco-D
Pelco-P
RS-232
VISCA

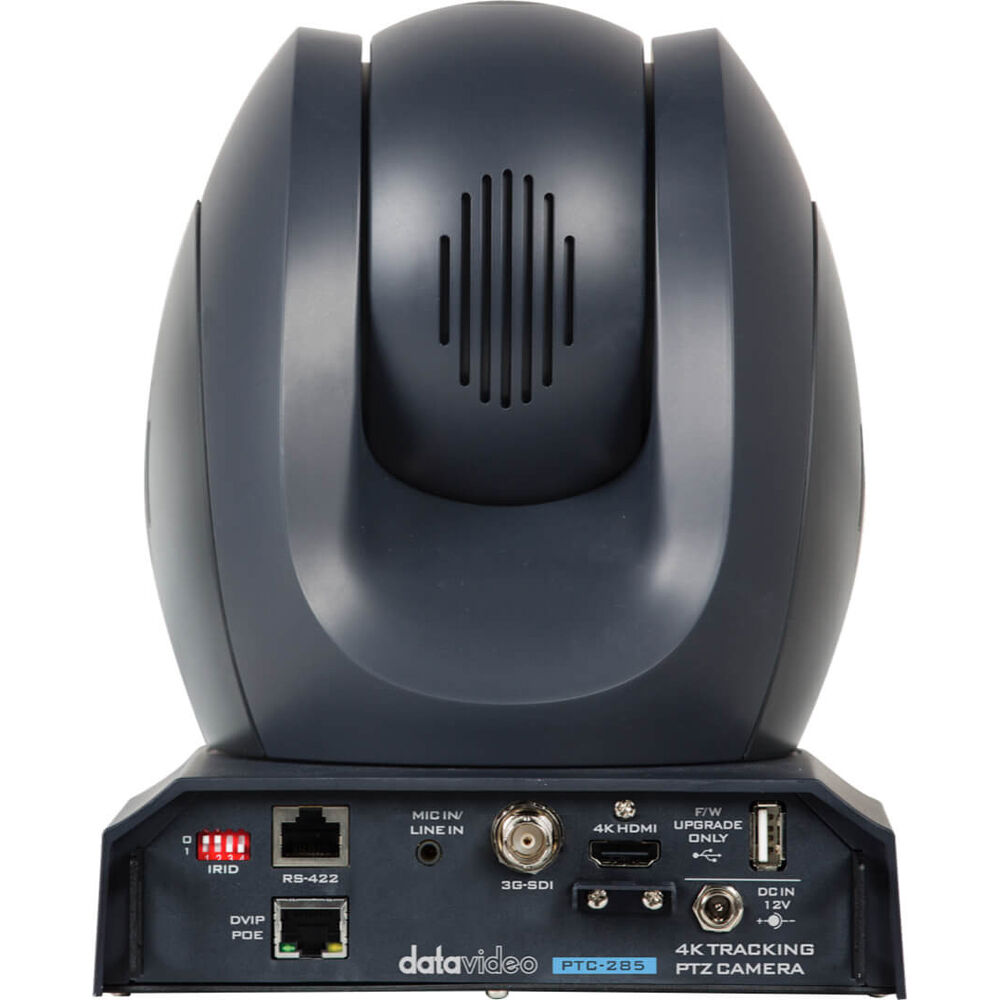

Video I/O
1 x BNC (3G-SDI) Output
1 x HDMI 2.0 Output
Audio I/O
1 x 1/8" / 3.5 mm TRS Stereo Mic/Line Input
Other I/O
1 x RJ45 (Gigabit Ethernet) Control/Data/Video Input/Output
1 x USB-A (USB 2.0) Data Input
1 x RJ45 (RS-422) Control Input/Output
Built-In Speaker
No
PoE Support
PoH 802.3at, PoE 802.3af
Power I/O
1 x DC (12VDC) Input
Power Consumption
Device: 21 W
Operating Temperature
32 to 72°F / 0 to 40°C
