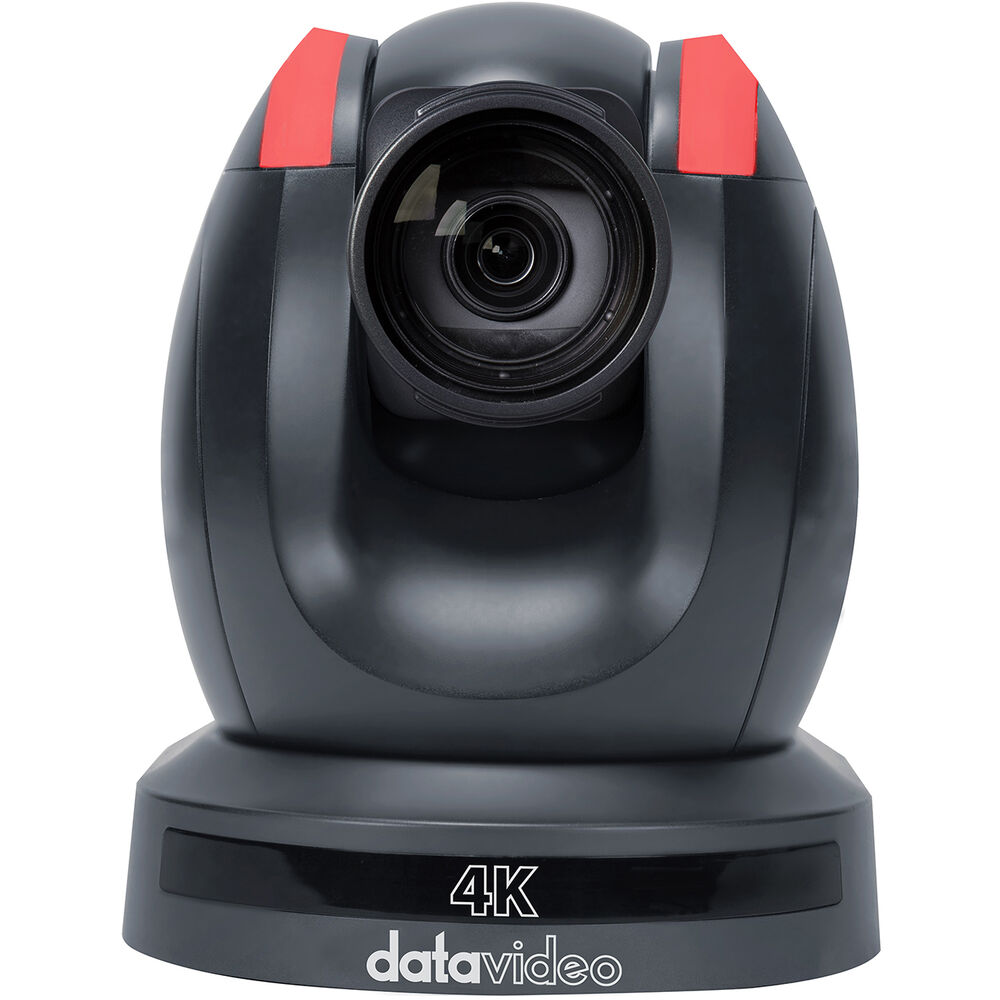

Add a high-resolution PTZ camera to your conference room, education setting, live event, house of worship, or remote video conference with this black 4K HDMI/3G-SDI PTZ Camera with 12x Optical Zoom from Datavideo. The camera features remote pan, tilt, and zoom control via a remote control or via IP and serial protocols, and its built-in zoom lens offers an optical zoom range of 12x with a 16x digital zoom to view just about any angle in your setting. The camera supports frame rates and resolutions up to 4K, allowing you to utilize high-quality video for your broadcasts and internet streams. The camera sends video over its HDMI and/or 3G-SDI ports to compatible HDMI or SDI video converters, switchers, recorders, or other devices. It can also live stream video via the LAN Ethernet port.
With 255 programmable preset positions, you can set the camera to rapidly move between positions using a variety of protocols including DVIP over your LAN, RS-422 using an optional serial controller, or IR control using the included IR remote. The camera compresses using the common, high-quality H.264 and H.265 protocols for streaming over your LAN, and you can simultaneously encode two live video streams using standard RTSP or RTMP protocols that are compatible with a variety of Internet streaming sites. The camera also supports external audio input via its 3.5mm stereo line-level input, and you can mount the camera via the 1/4"-20 threaded mounting thread. There is a red/green tally light on the camera so your room will know whether the camera is on or off.
The camera is powered by the included power adapter, and it includes a ceiling mount bracket. You can utilize the separately available WM-1, WM-10, or WM-11 wall mount kits if you prefer to mount the camera on a wall.
Technical Specifications:
Image Sensor
1/2.5"-Type CMOS
Sensor Resolution
Effective: 8.51 Megapixel
Built-In ND Filter
None
Focus Control
Autofocus
Manual Focus
Shutter Speed
1/10000 to 1/30 Second
Signal-to-Noise Ratio
55 dB
Minimum Illumination
0.5 Lux
Focal Length
6.7 to 125mm
Optical Zoom Ratio
12x
Max Digital Zoom
16x
Maximum Aperture
f/1.58 to 3.95
External Recording Modes
HDMI
3840 x 2160 at 25/29.97/29.97/50/59.94/59.94 fps
1920 x 1080p at 25/29.97/29.97/50/59.94/59.94 fps
1920 x 1080i at 50/59.94/59.94 fps
1280 x 720 at 50/59.94/59.94 fps
SDI/BNC
Broadcast Output
NTSC
IP Streaming
H.264, H.265, RTMP, RTSP
3840 x 2160
4096 x 2160
1920 x 1080
1280 x 720
720 x 480
480 x 360
Presets
255 via IR, RS-232, VISCA
Move Speed
Pan: 0.87 to 43°/sec
Tilt: 0.69 to 21.32°/sec
Movement Range
Pan: 300°
Tilt: 145° (-15 to 130°)
Tally Light
Yes
Supported Control Protocols
IP
IR
Pelco-D
Pelco-P
RS-232
VISCA

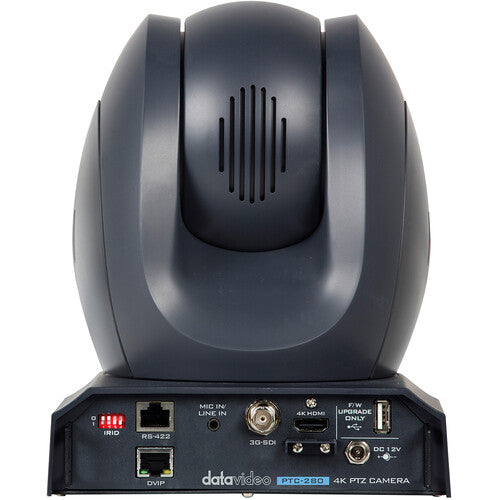

Video I/O
1 x BNC (3G-SDI) Output
1 x HDMI 2.0 Output
Audio I/O
1 x 1/8" / 3.5 mm TRS Stereo Line Input
Other I/O
1 x RJ45 (RS-422) Output
1 x RJ45 (LAN) Control Output
1 x USB-A Input
Power I/O
1 x Barrel (12VDC)
Operating Temperature
32 to 104°F / 0 to 40°C
Mounting
1 x 1/4"-20 Female for Ceiling
Dimensions (W x H x D)
6.8 x 8.6 x 7.4" / 17.3 x 21.9 x 18.91 cm
Weight
98.8 oz / 2.8 kg
