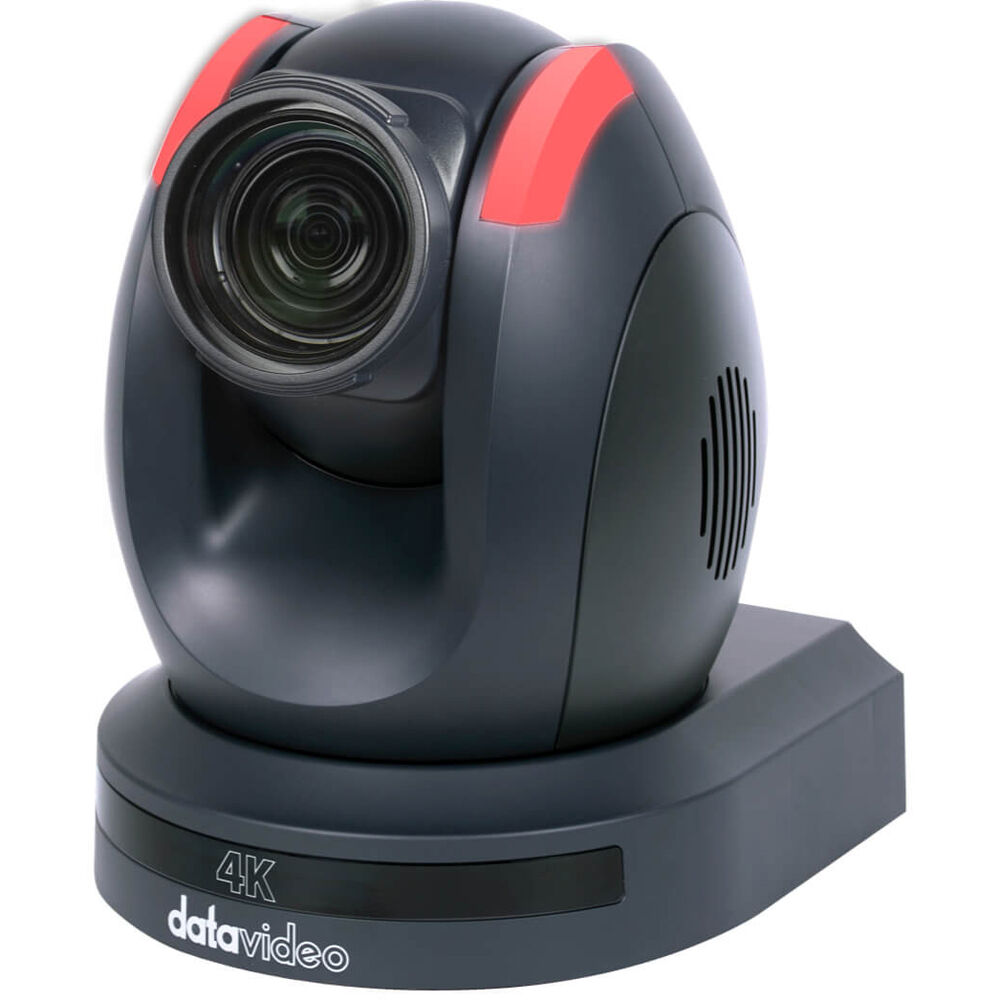

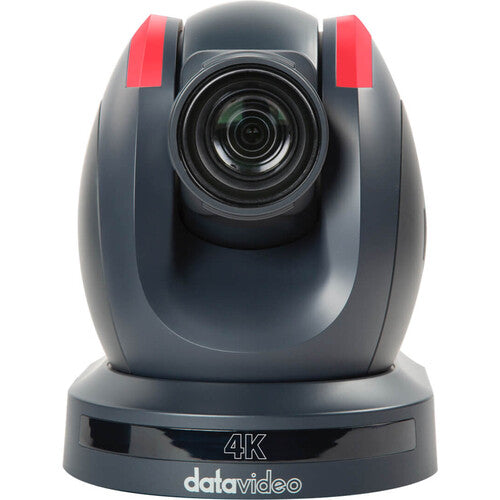

Datavideo 4K HDMI/3G-SDI Tracking PTZ Camera with HDBaseT & 12x Zoom (Black)

Rs. 332,760.00 Rs. 299,990.00
On Special Order (Expected shipping: 2-4 weeks)
Key Features:
  • AI Object-Autotracking PTZ Camera
  • 1/2.5" CMOS Sensor, 8.51MP
  • HDBaseT Support, Resolution up to UHD 4K
  • 12x Optical, 16x Digital Zoom
  • 255 Preset Positions, High SNR
  • H.264/H.265 Video Compression Support
  • AAC, MP3, and PCM Audio Compression
  • DVIP, RS-422, VISCA/Pelco-P/D Control
  • Supports RTSP, RTMP Streaming Protocols
  • 1/4"-20 Thread, Ceiling Mount
Add a high-resolution PTZ camera to your conference room, education setting, live event, house of worship, or remote video conference with this black 4K HDMI/3G-SDI Tracking PTZ Camera with HDBaseT & 12x Zoom from Datavideo. The camera features remote pan, tilt, and zoom control via a remote control or via IP, HDBaseT, and serial protocols, and its built-in zoom lens offers an optical zoom range of 12x with a 16x digital zoom to view just about any angle in your setting. The camera also features an AI autotracking algorithm that allows you to follow the subject automatically.
HDBaseT Support
The PTC-285T supports HDBaseT connections, allowing you to extend the distance of your camera from a switcher or controller.

Connect your PTC-285 to multiple devices in your workflow for flexibility. All the outputs are active at the same time, supporting simultaneous HDMI 2.0 and IP output up to UHD 4K 2160p60 and also 3G-SDI output up to 1080p60.

Setting up AI tracking is available via various external controllers such as the included RMC-1 remote control and DVIP controllers (RMC-300A, RMC-180 MARK II, and PTC View Assist). In addition to camera controllers, you can also easily enable AI tracking on smart switchers which include KMU-200, SHOWCAST 100, and others, as well as complete solution systems like ZR-1 Smart Classroom.


If you are capturing multiple people, you can designate a single person for AI tracking. Once set up on the camera, only the designated person will be tracked, avoiding interferences such as the desks, people crossing back and forth, and large objects.

The integrated PID algorithm is able to detect the movement speed of the identified object and automatically adjust the camera's corresponding pan, tilt, and zoom speeds in such a way that the lens movement will be smooth, avoiding common camera lens movement problems like jerky movements or unpredicted halts.

Low Noise in Low Light
Advanced 3D noise reduction technology is also used to further reduce the noise while ensuring image sharpness.

Streaming and Network Support
The camera supports RTSP and RTMPS protocols, making it easy to stream directly to two different CDN platforms and Datavideo dvCloud.

Power over Ethernet
The PTC-285 supports PoE for easy installation without the need to find local power outlets or hire an electrician to install outlets wherever you want to mount your camera. Simply run a single Cat 6 cable to power your PTC-285.

Tally Lights
Green and red lights tally to show the preview and program status for broadcast applications.

Wide 80° Field of View
The PTC-285 provides a wide field of view of 80°, easily capturing your entire scene.

Control the camera from a variety of controllers that support multiple network protocols, including Pelco-D, Pelco-P, VISCA, VISCA over IP, and DVIP.

Optical Zoom
The camera features 12x optical zoom and has a 16x digital zoom.

Audio Input
Input audio to insert into your output via the mic/line-level 3.5mm stereo audio input.
Power and Mounting Options

The camera is powered by the included power adapter or via PoE, and it includes a ceiling mount bracket kit. You can utilize the separately available WM-1, WM-10, or WM-11 wall mount kits if you prefer to mount the camera on a wall.

The RMC-1 PTZ remote control can set and control up to four cameras and save presets.


The PTZ View Assist camera control app is tailored for the Datavideo PTZ camera series. It can monitor the live streaming video from PTC-140, PTC-280, PTC-285, and PTC-300 series. The app can control up to four cameras simultaneously via DVIP, you can intuitively set up and recall the presets, and adjust white balance, focus, and iris.

Technical Specifications:

Image Sensor

1/2.8"-Type CMOS

Sensor Resolution

Effective: 8.51 Megapixel

Built-In ND Filter


Focus Control


Manual Focus

Shutter Speed

1/30 to 1/10000 Second

Signal-to-Noise Ratio

55 dB

Minimum Illumination

0.5 Lux

Flip / Mirror Support

Image Flip, Mirror (Vertical)

Focal Length

4.4 to 52.8mm

Optical Zoom Ratio


Max Digital Zoom


Field of View

Horizontal: 80°

Maximum Aperture

f/1.8 to 2.6

External Recording Modes


3840 x 2160 at 25/29.97/30.00/50/59.94/60.00 fps

1920 x 1080p at 25/29.97/30.00/50/59.94/60.00 fps

1280 x 720 at 50/59.94/60.00 fps

Embedded Audio



LAN (RJ45)

Broadcast Output


IP Streaming

H.264, H.265, MJPEG

320 x 240 to 3840 x 2160 at 23.98p, 24p, 25p, 29.97p, 50p, 59.94p, 60p (50.00 Mb/s)

IP Multi-Stream Support


H.264, H.265, MJPEG: 2160p, 1080p, 720p, 480p, 360p


255 via IR, RS-232, VISCA

Move Speed

Pan: 0.87 to 43°/sec

Tilt: 0.69 to 21.32°/sec

Movement Range

Pan: 300°

Tilt: 145° (-15 to 130°)

Tally Light


Supported Control Protocols

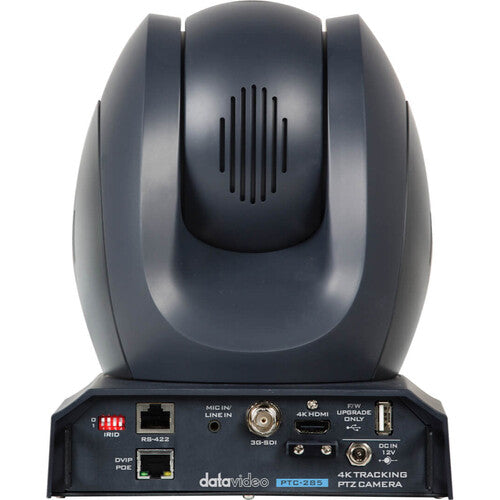

Video I/O

1 x BNC (3G-SDI) Output

1 x HDMI 2.0 Output

Audio I/O

1 x 1/8" / 3.5 mm TRS Stereo Mic/Line Input

Other I/O

1 x RJ45 (LAN) Control/Data/Video Input/Output

1 x USB-A (USB 2.0) Data Input

1 x RJ45 (RS-422) Control Input/Output

Built-In Speaker


PoE Support

PoH 802.3at, PoE 802.3af

Power I/O

1 x DC (12VDC) Input

Power Consumption

Device: 21 W

Operating Temperature

32 to 72°F / 0 to 40°C


In the Box:

  • Datavideo 4K HDMI/3G-SDI Tracking PTZ Camera with HDBaseT & 12x Zoom (Black)
  • RMC-1 IR Remote Controller
  • Ceiling Mount Bracket Kit
  • 12 VDC Power Adapter
  • Security Cable
  • Limited 1-Year Manufacturer Warranty
