Datavideo 4K SDI to HDMI Converter

Name: Datavideo 4K SDI to HDMI Converter
Brand: Datavideo
SKU: DAC8P-4K
Price: 62000 INR
Availability: InStock

Rs. 64,310.00 Rs. 62,000.00

On Special Order (Expected shipping: 2-4 weeks)

Datavideo ⁄ Datavideo 4K SDI to HDMI Converter

Key Features:

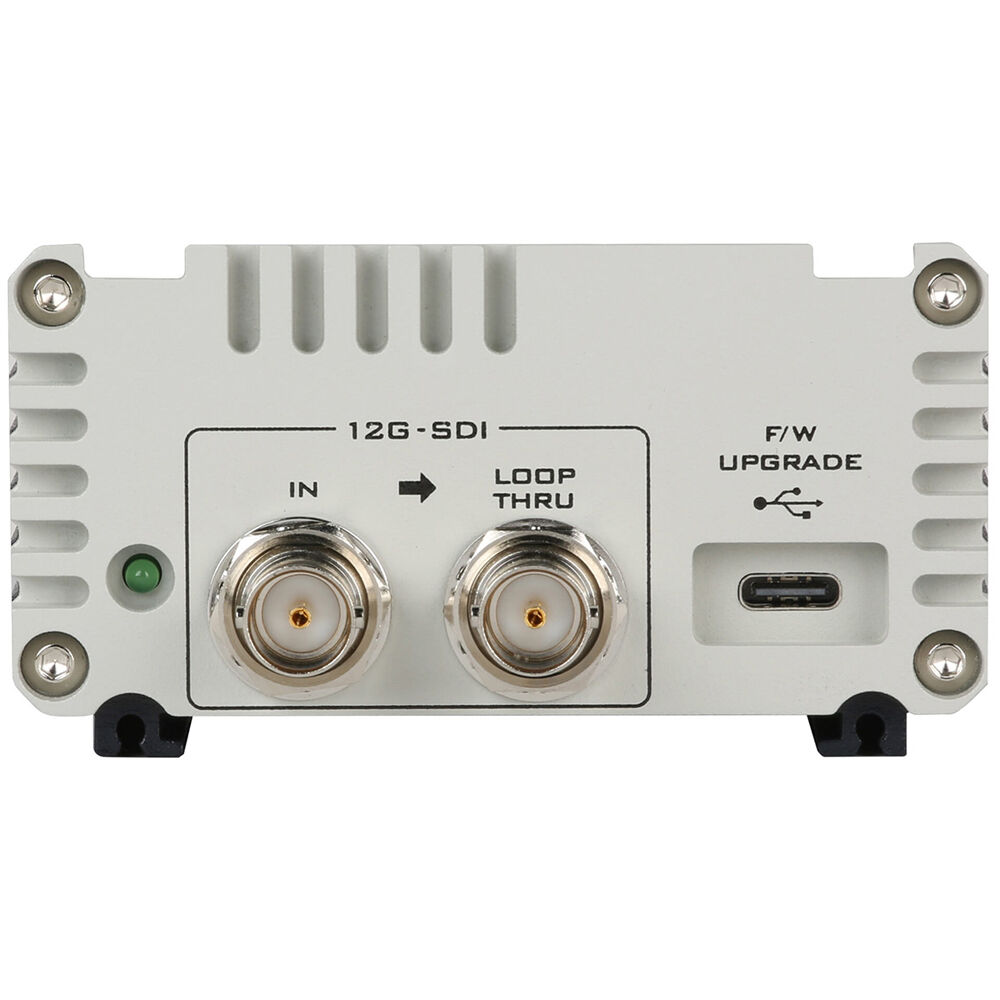

1 x 12G-SDI Input, 1 x HDMI Output
1 x 12G-SDI Loop Output
Supports up to DCI 4K60 Resolution I/O
Automatic Input Signal Detection
Compact, Rugged Design
A Power Supply Is Included
LED Video & Power Signal Indicators

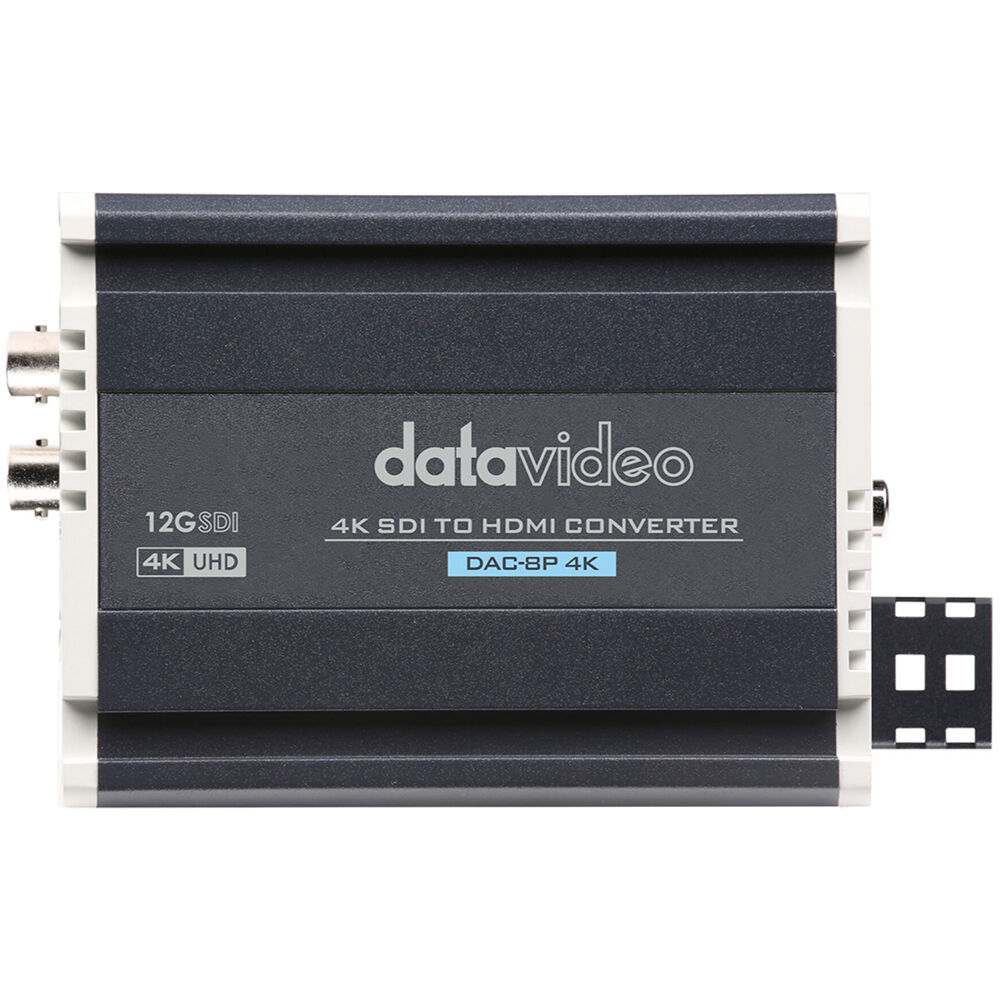

The compact and rugged 4K SDI to HDMI Converter from Datavideo enables you to link SDI cameras or computers to pro-style HDMI monitors, projectors, or displays. This compact converter has one 12G-SDI input, one 12G-SDI loop output, and one HDMI output. It auto-detects and matches your SDI input to the HDMI output and is compatible with input/output resolutions up to DCI/UHD 4K60.

The pocket-sized converter supports re-clocking for stability over long cable runs and support for a wide range of pro broadcast resolutions. The converter features a sturdy metal housing with power and signal LED status indicators and rugged connector interfaces. The USB Type-C port facilitates firmware updates. A power supply is included with the converter.

Features:

4K All the Way

The DAC-8P 4K is a broadcast-quality converter, and it supports up to DCI 4K (4096 x 2160) and UHD 4K (3840 x 2160). The DAC-8P 4K is also very easy to use. It is a plug and play converter, and there is no setting needed from your laptop.

I/O

One 12G-SDI input
One HDMI output
Loop-through 12G-SDI Output

SDI Re-Clocking

Built-in re-clocking on SDI output enables stable output over longer cable runs

Embedded Audio

The DAC-8P 4K provides a video converter from SDI to HDMI, and it also provides you an additional de-embedded 2-channel RCA analog audio output from SDI video to your live production.

LED Indicators

LED indicators for video and power signals.

Deep Color

HDMI Deep Color supports more realistic and stunning of the video. Much better video quality than the regular HDMI video.

Durable Design

The DAC series has a rugged metal housing for use in even the roughest conditions. Low heat dissipation, ideal for long hour operation in normal ventilated environment.

Technical Specifications:

Video Inputs	1 x BNC (12G-SDI) Female
Audio Inputs	None

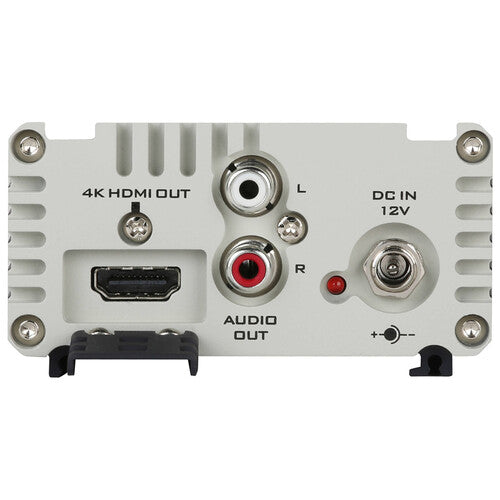

Video Outputs	1 x HDMI (HDMI 2.0) Female 1 x BNC (12G-SDI) Female (Loop Output)
Audio Outputs	1 x 2RCA
Other I/O	1 x USB-C Firmware Input
Expansion Slots	None
Input Video Format	SDI DCI 4K at 23.98/24/25/29.97/30/50/59.94/60 fps UHD 4K 24/25/29.97/30/50/59.94/60 fps 1080p 23.98/24/25/29.97/30/50/59.94/60 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps
Output Video Format	HDMI / SDI DCI 4K at 23.98/24/25/29.97/30/50/59.94/60 fps UHD 4K 23.98/24/25/29.97/30/50/59.94/60 fps 1080p 23.98/24/25/29.97/30/50/59.94/60 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps
Embedded Audio	HDMI/SDI: 8-Channel
HDR Compatibility	Not Specified by Manufacturer
Power I/O	1 x Barrel (12 VDC) Input
Power Consumption	Device: 8.64 W
Operating Temperature	32 to 72°F / 0 to 40°C
