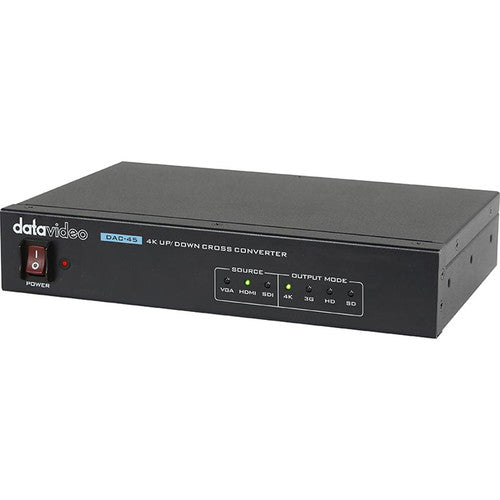

Datavideo DAC-45 4K Up/Down Cross Converter
- Successor to DAC-70 Converter
- 4K HDMI Support and Genlock
- Convert as Low as 480i to Ultra HD 4K
- Convert VGA/HDMI/SDI to 4K HDMI / 3G-SDI
- HDMI 2.0 I/O with 4:2:2 Processing
- 3G-SDI Level A/B Support
- Reference Input (Black Burst/Tri-Level)
- Settings Control DIP Switch
- Audio Lock After Conversion
- Plug-and-Play Operation
The Datavideo DAC-45 4K Up/Down Cross Converter is the successor to the popular DAC-70. It has all the same features plus 4K HDMI support and genlock. A built-in super resolution engine allows you to up-convert resolutions as low as 720 x 480 all the way up to Ultra HD 4K.
The DAC-45 lets you convert video signals from VGA, HDMI, and SDI inputs (with audio) to 4K HDMI or 3G-SDI output. It also allows instant and automatic switching between 4K, HD, and SD formats when the video input changes.
The DAC-45 Center Utility software is also provided to you as a free download from Datavideo's website. This application lets you designate various video and audio settings as well as obtain device information.
- Successor to the DAC-70 with 4K HDMI support and genlock
- Convert from as low as 720 x 480 all the way up to Ultra HD 4K
- Convert VGA, HDMI, and SDI inputs (with audio) to 4K HDMI or 3G-SDI output
- HDMI 2.0 input/output with 4:2:2 processing
- Up/down/cross convert between 4K, 3G, HD, and SD formats
- 3G-SDI Level A/B support
- Reference input (Black Burst and Tri-Level Sync)
- Built-in super resolution engine for 4K up-conversion
- Built-in resolution and frame rate up/down conversion engine
- Built-in de-interlacer and interlacer (i <-> p conversion )
- Settings control DIP switch
- Audio lock after conversion
- Cross reference
- Plug-and-play operation

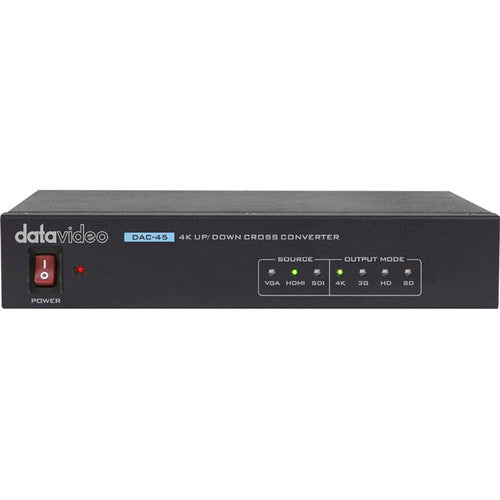

- Power LED
- Three source LEDs (SDI, HDMI, VGA)
- Four output format LEDs (4K, 3G, HD, SD)
Technical Specifications:
|

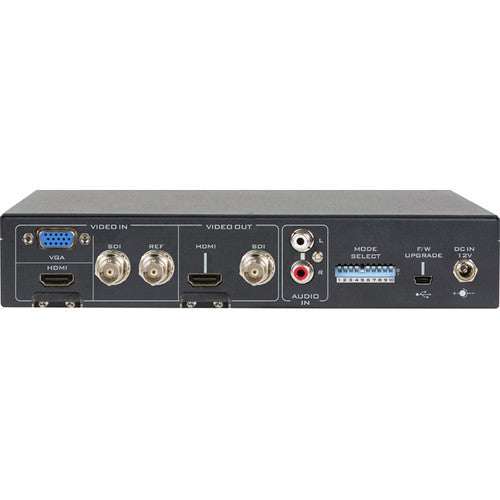

Inputs |
1 x 3G/HD/SD-SDI 1 x HDMI 1 x VGA 2 x RCA (unbalanced audio L/R) 1 x reference input |
|
Outputs |
1 x 3G/HD/SD-SDI 1 x HDMI |
|
Firmware Updates |
1 x mini-USB |
|
Power Input |
DC jack |
|
Supported Video Input Formats |
SDI (YUV) 1080p60/59.94/50 1080p30/29.97/25/24/23.98 1080psf30/29.97/25/24/23.98 1080i60/59.94/50 720p60/59.94/50 625i 525i HDMI (YUV / RGB) 3840 x 2160p60/59.94/50 3840 x 2160p30/29.97/25/24/23.98 1080p60/59.94/50 1080p30/29.97/25/24/23.98 1080psf30/29.97/25/24/23.98 1080i60/59.94/50 720p60/59.94/50 480p, 576p, 480i, 576i 1600 x 1200 at 60 Hz 1400 x 1050 at 60 Hz 1366 x 768 at 60 Hz 1280 x 1024 at 60 Hz 1024 x 768 at 60 Hz 800 x 600 at 60 Hz VGA (RGB) 1920 x 1080 at 60 Hz 1600 x 1200 at 60 Hz 1400 x 1050 at 60 Hz 1366 x 768 at 60 Hz 1280 x 1024 at 60 Hz 1280 x 720 at 60 Hz 1024 x 768 at 60 Hz 800 x 600 at 60 Hz |
|
Supported Video Output Formats |
SDI (YUV) 1080p60/59.94/50 1080p30/29.97/25/24/23.98 1080i60/59.94/50 720p60/59.94/50 625i 525i HDMI (YUV) 3840 x 2160p60/59.94/50 3840 x 2160p30/29.97/25/24/23.98 1080p60/59.94/50 1080p30/29.97/25/24/23.98 1080i60/59.94/50 720p60/59.94/50 576p 480p 576i 480i |
|
Video Processing |
SDI: YUV 4:2:2 HDMI: YUV 4:2:2, YUV 4:4:4, RGB 4:4:4, YUV 4:2:0 (4K only) |
|
Supported Audio Input Formats |
Unbalanced Audio L/R: Stereo audio SDI Embedded Audio: Up to 8-ch, 48 kHz, PCM audio HDMI Embedded Audio: Up to 8-ch, 44.1/48/96 kHz, PCM audio |
|
Supported Audio Output Formats |
SDI Embedded Audio: Up to 8-ch, 48 kHz, PCM audio HDMI Embedded Audio: Up to 8-ch, 48 kHz, PCM audio |
|
Frame Delay |
I: 2-3 fields P: 0-1 frames |
|
Power Supply |
12 VDC, 1 A (9.4 W) |
|
Operating Temperature |
32 to 104°F (0 to 40°C) |
|
Humidity |
10 to 80% |
|
Certification |
CE, FCC |
|
Dimensions |
8.6 x 5.5 x 1.6" (22 x 14 x 4 cm) |
|
Weight |
2.2 lb (1 kg) |
In the Box:
- Datavideo DAC-45 4K Up/Down Cross Converter
- 12 VDC Power Adapter
- Limited 1-Year Warranty
- Limited 3-Year Warranty with Product
