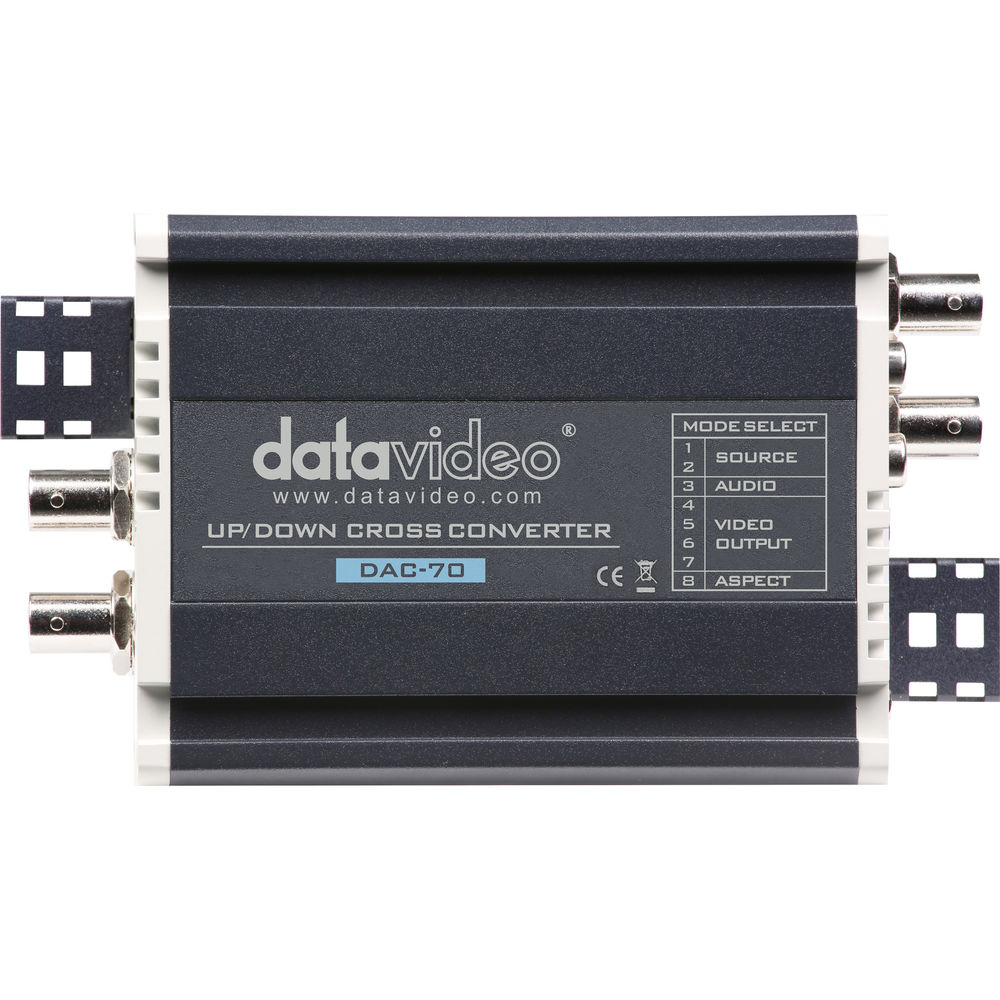

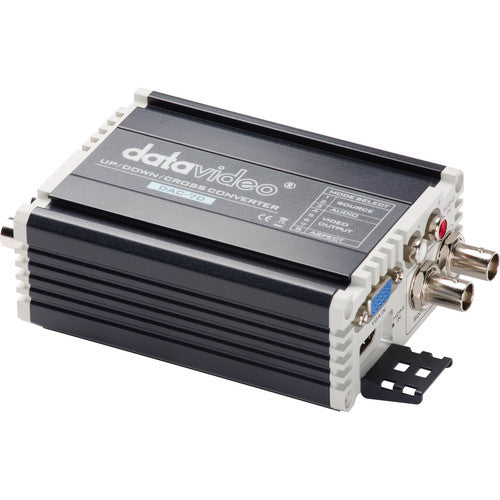

Datavideo DAC-70 SD/HD/3G-SDI Up/Down/Cross Converter
- 10-bit Processing
- SD/HD/3G-SDI, HDMI, & VGA Inputs
- 2x SD/HD/3G-SDI Outputs
- HDMI Output
- SD/HD/3G-SDI Loop-Through
- Analog Stereo Audio Input
- Supports Embedded SDI/HDMI Audio
- Firmware Upgrades via mini-USB Port
The DAC-70 SD/HD/3G-SDI Up/Down/Cross Converter from Datavideo converts between SD, HD, and 3G formats. It supports 10-bit video processing and accepts VGA, HDMI, and SD/HD-3G-SDI video input signals and automatically converts them to the selected output format. The DAC-70 supports resolutions up to 1080p60 and up to 8 channels of embedded SDI or HDMI audio. An analog L/R audio input is also provided. Thanks to a built-in mini-USB port, the converter is firmware upgradeable for support of future video formats. A 12V / 1A power supply and cord comes included.
- Low SDI jitter with long cable lengths
- Compatible with optional RMK-2, for holding multiple converters and distribution amplifiers in a 2RU space
- Compatible with the MB-4 battery adapter
- Compatible with MB-5 strap adapter
Technical Specifications:
|
Supported Input Formats |
3G-SDI: 1080p 50/59.94/60 HD-SDI: 1080p 23.98/24/25/29.97/30 1080i 50/59.94/60 720p 50/59.94/60 SD-SDI: 525i 625i HDMI: 1080p 23.98/24/25/29.97/30/50/59.94/60 1080i 50/59.94/60 720p 50/59.94/60 576p 480p 800×600@60Hz 1024×768@60Hz 1280×1024@60Hz 1366×768@60Hz 1400×1050@60Hz 1600×1200@60Hz VGA: 800×600@60Hz 1024×768@60Hz 1280×1024@60Hz 1366×768@60Hz 1400×1050@60Hz 1600×1200@60Hz |
|
Supported Output Formats |
SDI/HDMI: 1080p 23.98/24/25/29.97/30/50/59.94/60 1080i (50/59.94/60) 720p (50/59.94/60) 525i 625i |
|
Color Spaces Supported |
YUV / RGB |
|
Audio Support |
SDI input: embedded audio up to 8-channel, 48 KHz, PCM audio HDMI input: embedded audio up ot 8-channel, 44.1/48/96 KHz, PCM audio SDI/HDI output: embedded audio up to 8-channel, 48 KHz, PCM audio |
|
Inputs |

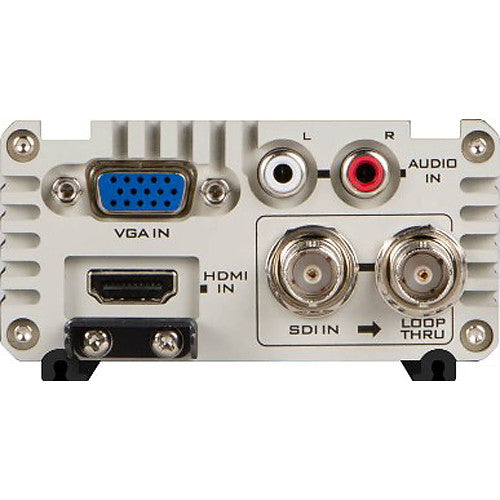

1 x VGA 1 x HDMI 1 x SD/HD/3G-SDI 1 x Analog audio left/right pair |
|
Outputs |

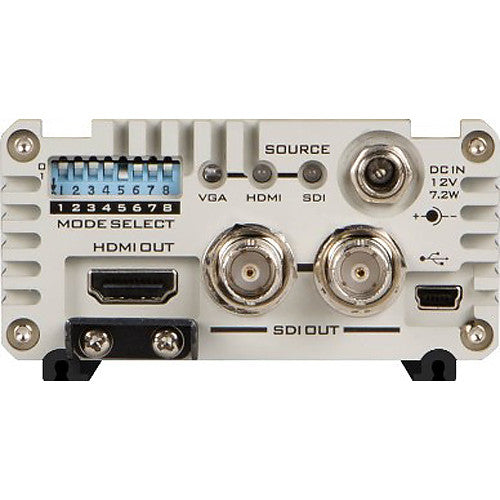

2 x SD/HD/3G-SDI 1 x HDMI 1 x SD/HD/3G-SDI loop-through |
In the Box:
- Datavideo DAC-70 SD/HD/3G-SDI Up/Down/Cross Converter
- 12V / 1A Power Supply and Cord
- Limited 2-Year Manufacturer Warranty
