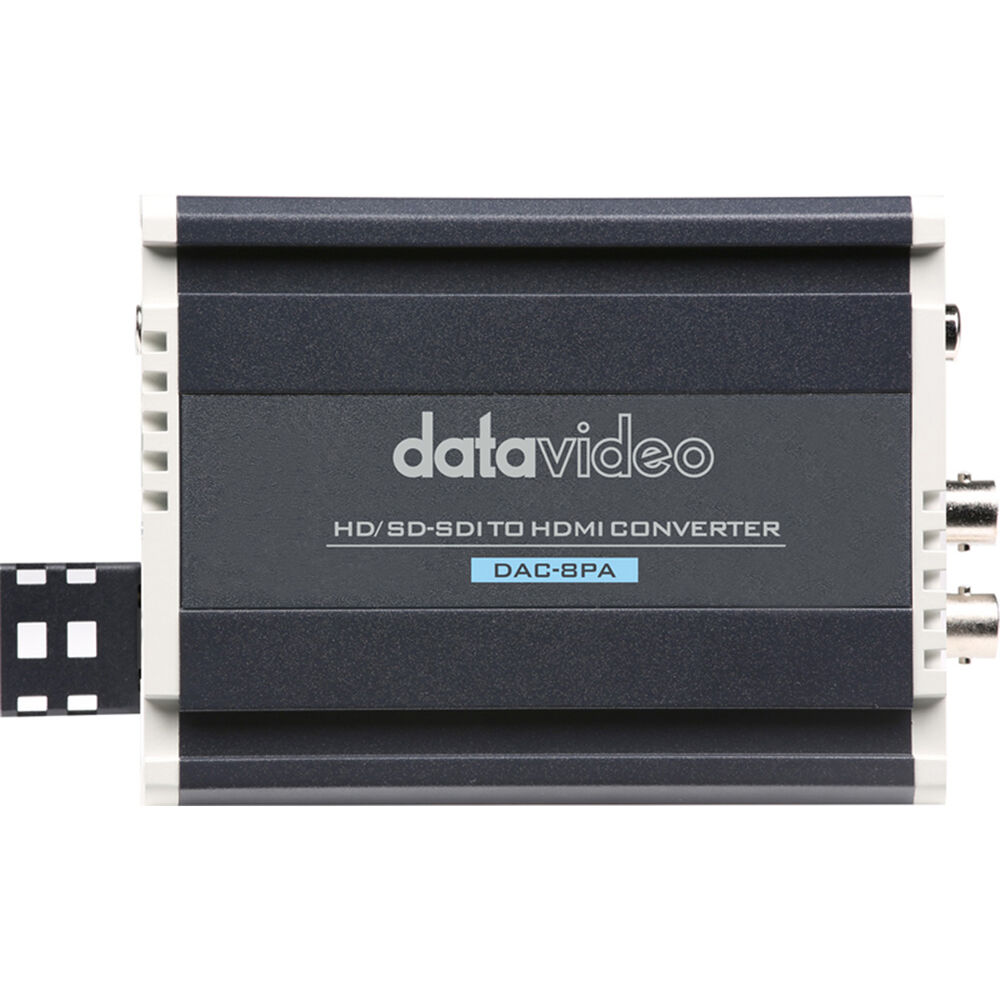

Datavideo DAC-8PA SDI to HDMI Converter
- Converts Video with Embedded Audio
- Converts 3G/HD/SD-SDI to HDMI
- Supports 1080p/60 NTSC and 1080p/50 PAL
- Automatic Signal Detection
- Equalizes and Reclocks Video
- SMPTE/EBU Audio Standard via Software

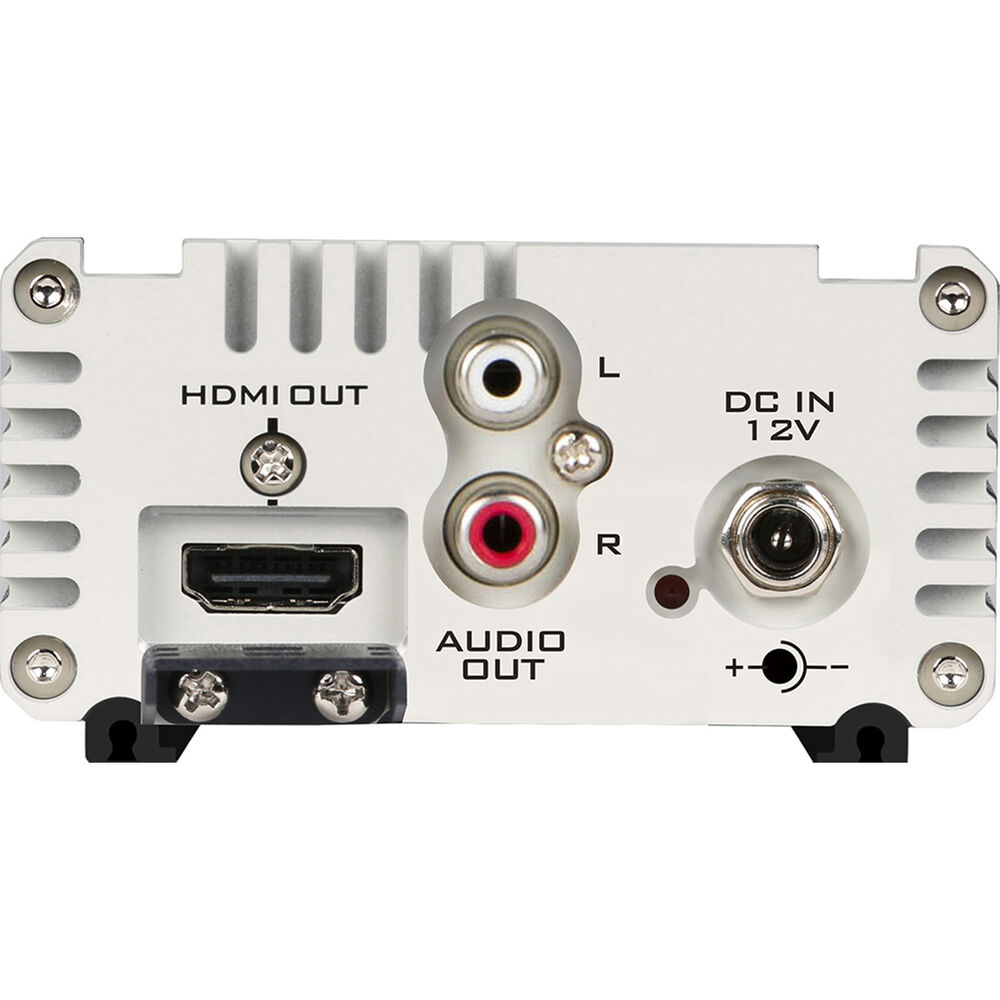

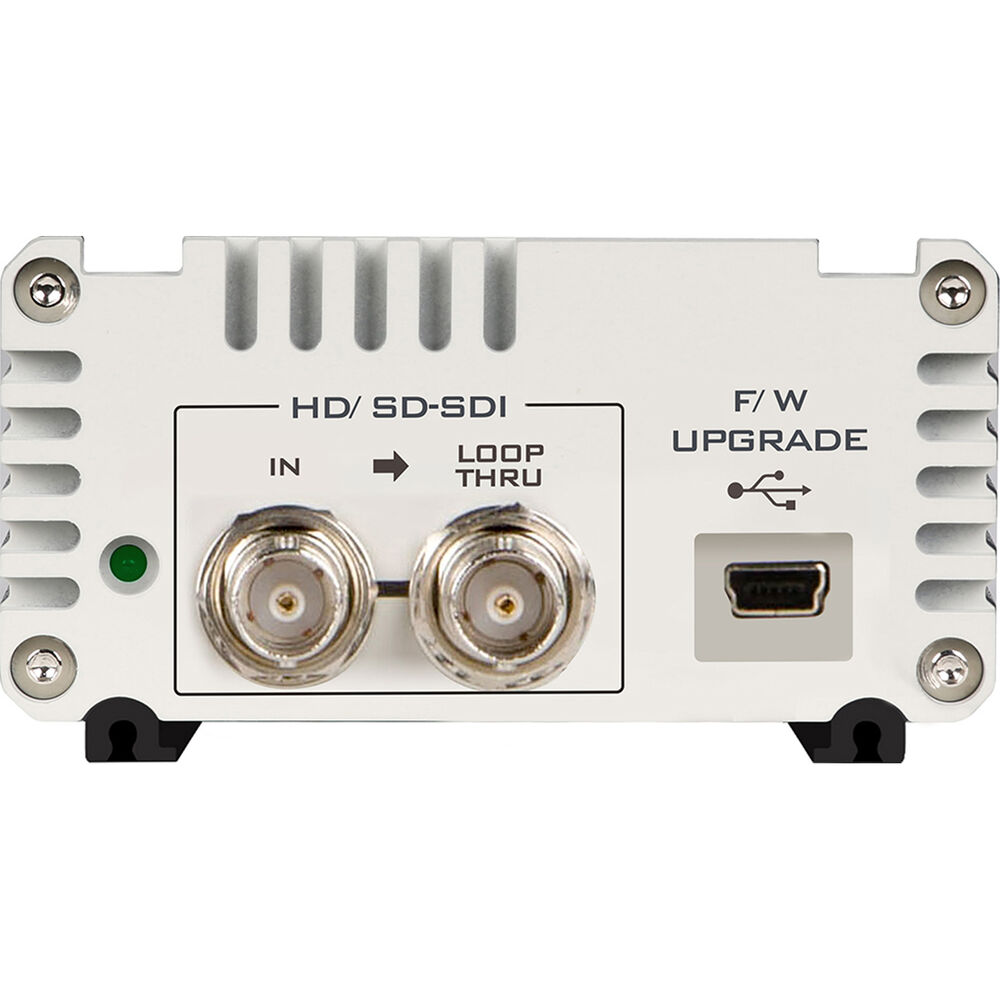

The Datavideo DAC-8PA SDI to HDMI Converter transforms an SDI video signal along with embedded audio for output on an HDMI output port, which has a support tab. It supports both US and European broadcast video standards and features a 3G/HD/SD-SDI input and a 3G/HD/SD-SDI loop-through output for passing the SDI signal without altering it. Audio embedded in the SDI signal is embedded in the output signals, or you can have the converter de-embed the audio for output via 2 x RCA connectors.
The converter supports video up to 1080p60 and features automatic signal detection as well as automatic signal conversion to HDMI. It is a straight converter, video in to video out, and although it converts signals from SDI to HDMI, it does not change frame rate nor resolution. The converter will equalize and reclock the input signal to provide you with a pristine output signal for maximum wired transmission. Downloadable software allows you to select the audio standard between SMPTE and EBU.
- Converts video with embedded audio
- Supports up to 1080p/60 NTSC or 1080p/50 PAL
- Auto-sensing 3G-SDI input and a single HDMI 1.3 output
Technical Specifications:
|
Video Inputs |
1 x BNC (3G-SDI) |
|
Audio Inputs |
None |
|
Video Outputs |
1 x HDMI 1 x BNC (3G-SDI) (Loop Output) |
|
Audio Outputs |
1 x 2RCA |
|
Expansion Slots |
None |
|
Input Video Format |
SDI (4:2:2 YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps 480i / 525 lines 59.94 fps 576i / 625 lines 50 fps |
|
Output Video Format |
HDMI (4:4:4 YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps 480i / 525 lines 59.94 fps 576i / 625 lines 50 fps SDI (4:2:2 YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps 480i / 525 lines 59.94 fps 576i / 625 lines 50 fps |
|
Embedded Audio |
HDMI/SDI: 2-Channel |
|
Power I/O |
1 x Barrel (7 to 17 VDC) Input |
|
Power Consumption |
Device: 4 W |
|
Operating Temperature |
32 to 104°F / 0 to 40°C |
In the Box:
- Datavideo DAC-8PA SDI to HDMI Converter
- Power Supply and Cord
- Limited 1-Year Warranty
