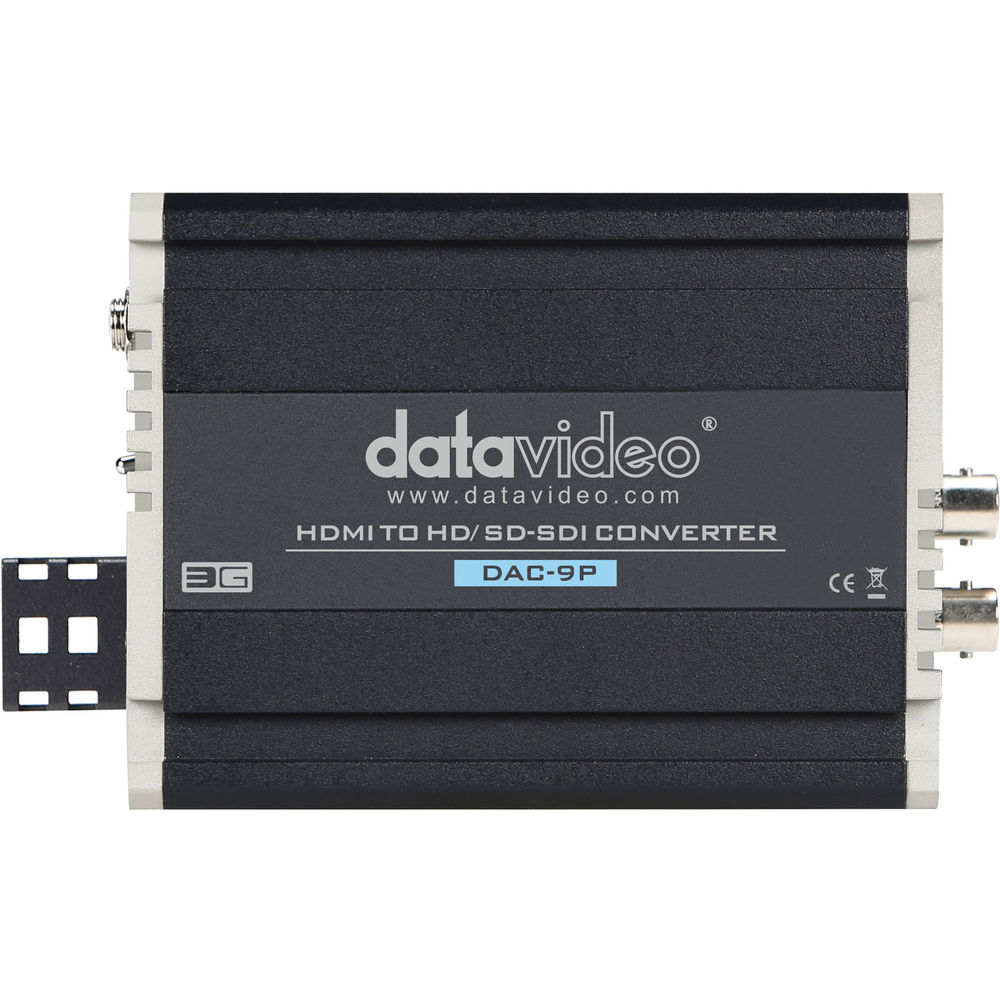

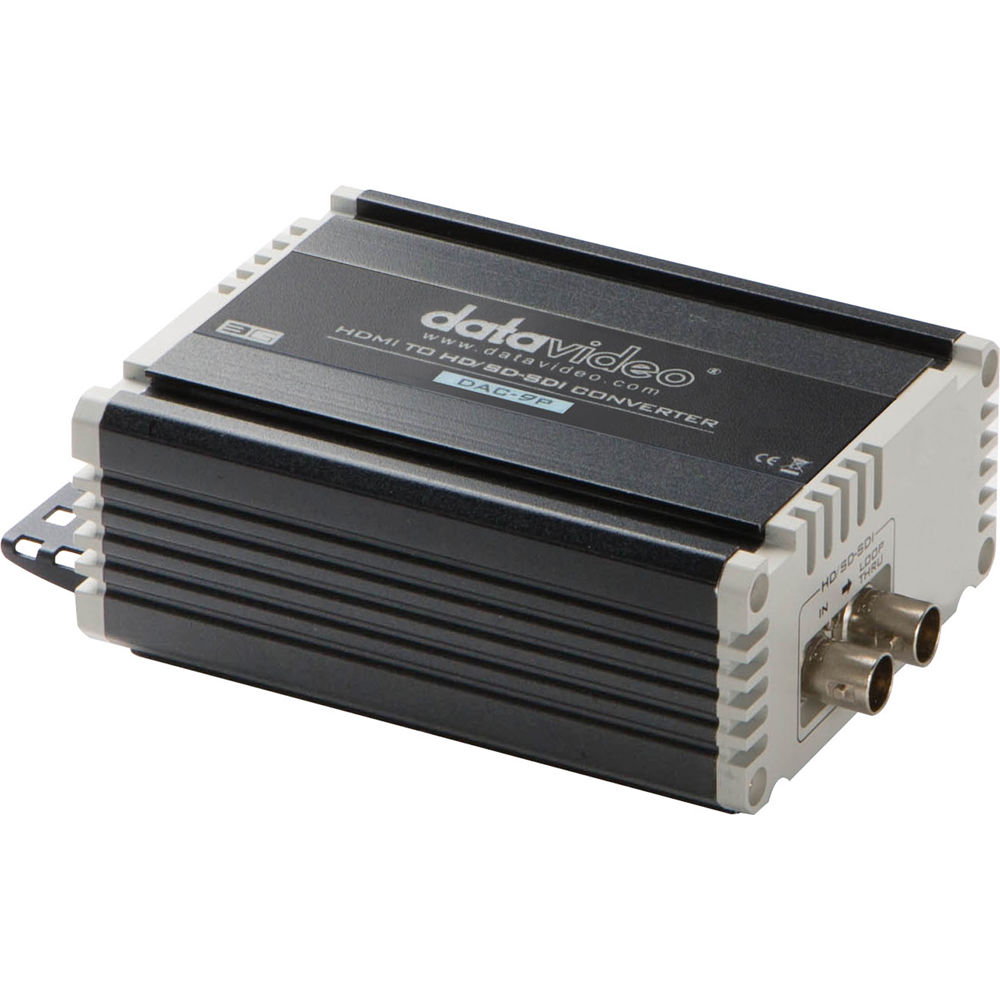

Datavideo DAC-9P HDMI to HD/SD-SDI 1080p/60 Converter
- Converts Video with Embedded Audio
- Supports 1080p/60 NTSC and 1080p/50 PAL

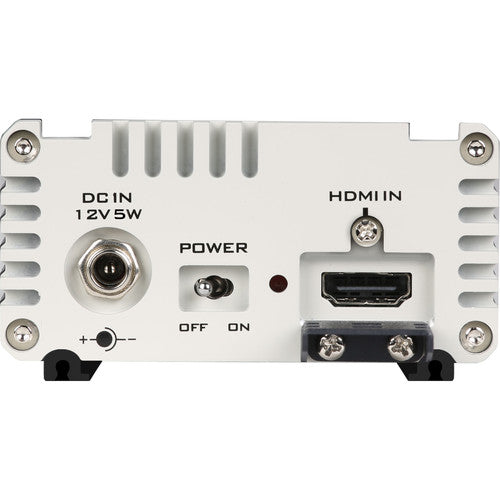

- Auto-Sensing HDMI 1.4 Input

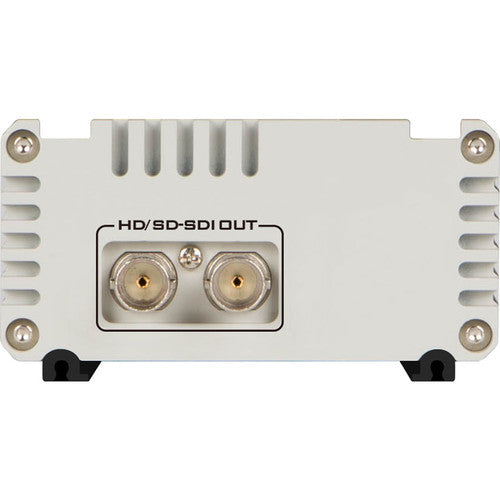

- Dual HD/SD-SDI Outputs
Datavideo's DAC-9P HDMI to HD/SD-SDI 1080p/60 Converter converts an HDMI video signal along with embedded audio for output on two HD/SD-SDI outputs, making possible for an HDMI camera signal to be monitored on professional SDI displays up to 300 ft away. The converter auto-senses the image quality of the HDMI input and outputs it according to this quality as either HD-SDI or SD-SDI. The converter accepts both NTSC and PAL, automatically detects whether the input is one or the other, and supports resolutions up to 1080p/60 NTSC or 1080p/50 PAL.
Please note: DAC-9P is not compatible with the HDMI output from the Sony HDR-FX7 camera.
- Converts video with embedded audio
- Supports up to 1080p/60 NTSC or 1080p/50 PAL
- Auto-sensing HDMI 1.4 input and two HD/SD-SDI outputs
- Outputs as either HD-SDI or SD-SDI based on the image quality of the input
Technical Specifications:
|
Input |
1x HDMI 1.4 Please note: DAC-9P is not compatible with the HDMI output from the Sony HDR-FX7 camera. |
|
Output |
2x HD/SD-SDI |
|
Supported Resolutions |
1080p60 / 1080p59.94 / 1080p50 1080p30 / 1080p29.97 / 1080p25 / 1080p24 / 1080psf23.98 1080psf30 / 1080psf29.97 / 1080psf25 / 1080psf24 / 1080psf23.98 1080p30 / 1080p25 / 1080p24 1080i60 / 1080i59.94 / 1080i50 720p60 / 720p59.94 / 720p50 576i / 480i |
|
Power |
12 V 0.5A 5W 110/220 V |
|
Dimensions |
4 x 3.25 x 1" (10.1 x 8.2 x 2.5 cm) |
|
Weight |
.5 lb (.2 kg) |
In the Box:
- Datavideo DAC-9P HDMI to HD/SD-SDI 1080p/60 Converter
- Power Supply and Cord
- Instruction Manual
- Limited 1-Year Warranty
