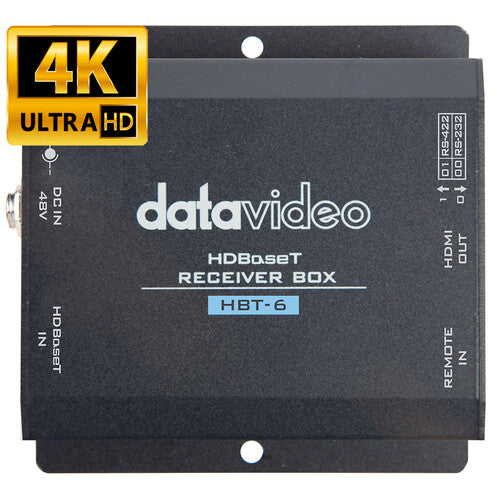

Datavideo HBT-6 HDBaseT to HDMI Receiver
- HDBaseT Input to HDMI Output
- Transmit Full HD Video/Audio up to 196'
- Supports 4K UHD Video/Audio
- RS-232/422 Control
- PoE Support
- Cat 6 Cable Transmission
- EDID, HDCP 2.2/1.4 Compliant
- Includes AC Power Cord & Adapter
Connect your PTZ camera and output its video signal to HDMI display devices using the HBT-6 HDBaseT to HDMI Receiver from Datavideo. The receiver can transmit 1080p video up to 196.9' away and 4K UHD video at 30 fps up to 114.8' over a single Cat 6 cable. Both the video signal and its embedded digital audio can be transmitted by the device.
RS-232 and RS-422 serial connections allow you to control the receiver easily. Power can be delivered to the receiver via PoE or using the included AC cord and DC 48V power adapter. The HBT-6 is compatible with Datavideo's separately available HBT-5 HDBaseT transmitter and PTC-140T PTZ camera.
- Transmit 1080p video up to 196.9' and 4K30 at 114.8' over a Cat 6 cable
- Supports HDMI deep color for improved color depth
- 4K UHD and full HD resolutions with accompanying digital audio
- HDCP 2.2/1.4 compliant for high-clarity video display without interruption
- RS-232/422 control signals
- Supports default EDID and EDID learning from pass-through signal between source and display
- HBT-5 HDBaseT Transmitter
- PTC-140T PTZ Camera
Technical Specifications:
|
Inputs |
1 x RJ45 (HDBaseT) Female |
|
Outputs |
1 x HDMI Female |
|
Embedded Audio Output |
HDMI |
|
Other I/O |
1 x RJ45 RS-232, RS-422 Input |
|
HDCP Support |
Yes |
|
EDID Support |
Yes |
|
Max Transmission Distance |
1080p at 60 Hz: 196.9' / 60 m (via Cat 6) UHD 4K at 30 Hz: 114.8' / 35 m (via Cat 6) |
|
Video Format |
HDMI (8-Bit 4:4:4/4:2:2) UHD 4K: 23.98/24/25/29.97/30 fps 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080i: 50/59.94/60 fps 720p: 50/59.94/60 fps NTSC: 59.94 fps PAL: 50 fps |
|
DTS Compatibility |
DTS-HD High Resolution |
|
Dolby Compatibility |
Dolby Digital, Dolby TrueHD |
|
Supported Cable Types |
Cat 6 |
|
Power Connector |
1 x Mini-DIN 4-Pin (48 VDC) Input |
|
PoE Support |
Yes |
|
Power Consumption |
(30 W) |
|
Operating Temperature |
32 to 72°F / 0 to 40°C |
In the Box:
- Datavideo HBT-6 HDBaseT to HDMI Receiver
- AC Power Cord
- DC 48V Power Adapter
- 2 x Screw
- Limited 1-Year Manufacturer Warranty
