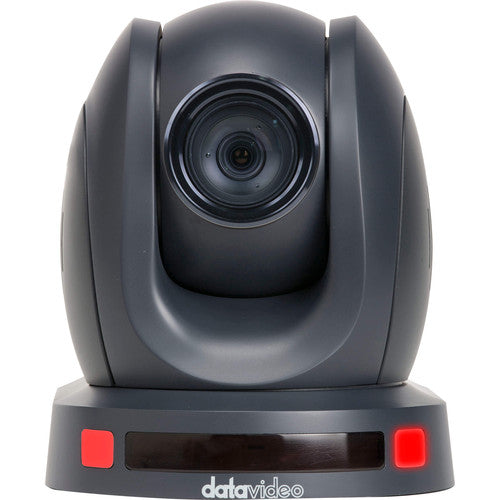

Datavideo HDBaseT PTZ Camera with 20x Optical Zoom (Black)
- 1/2.8" CMOS Sensor
- Resolution up to 1920 x 1080
- 20x Optical, 10x Digital Zoom
- 255 Preset Positions, LAN/HDBaseT Output
- 3.5mm Audio Input, Black Color
- H.264/H.265 Video Compression Support
- AAC, MP3, and PCM Audio Compression
- DVIP and VISCA/Pelco-P/D Serial Control
- Supports RTSP, RTMP Streaming Protocols
- 1/4"-20 Thread, Optional WM-1 Wall Mount
Add a high-resolution PTZ camera to your conference room, education setting, live event, house of worship, or remote video conference with this black HDBaseT PTZ Camera with 20x Optical Zoom from Datavideo. The camera features remote pan, tilt, and zoom control via a remote control or via IP and serial protocols, and its built-in zoom lens offers an optical zoom range of 20x with a 10x digital zoom to view just about any angle in your setting. The camera supports frame rates and resolutions up to 1080p60, allowing you to utilize high-quality video for your broadcasts and internet streams. The camera sends video up to 328' away using Cat 6 cable over its HDBaseT port when paired with a separately available Receiver box. It can also live stream video via the LAN Ethernet port.
With 255 programmable preset positions, you can set the camera to rapidly move between positions using a variety of protocols including DVIP over your LAN, RS-232 using an optional serial controller, or IR control using the included IR remote. The camera compresses using the common, high-quality H.264 and H.265 protocols for streaming over your LAN, and you can simultaneously encode two live video streams using standard RTSP or RTMP protocols that are compatible with a variety of Internet streaming sites. The camera also supports external audio input via its 3.5mm stereo line-level input, and you can mount the camera via the 1/4"-20 threaded mounting thread. There is a red/green tally light on the camera so your room will know whether the camera is on or off.
The camera includes a ceiling mount kit, and you can utilize the separately available WM-1 wall mount kit if you prefer to mount the camera on a wall. In addition to a power supply, safety cable, and UV filter to protect the lens, the camera includes serial cables to get your started.
Technical Specifications:
|
Image Sensor |
1/2.8"-Type CMOS |
|
Sensor Resolution |
Effective: 2.07 Megapixel |
|
IR Cut Filter |
No |
|
Built-In ND Filter |
None |
|
Focus Control |
Autofocus Manual Focus |
|
Shutter Type |
Electronic Rolling Shutter |
|
Gain |
0 to 15 dB |
|
Signal-to-Noise Ratio |
55 dB |
|
Minimum Illumination |
0.5 Lux |
|
Flip / Mirror Support |
Image Flip, Mirror (Vertical) |
|
White Balance |
3000 to 6500K Presets: Auto, Manual, One Push |
|
Focal Length |
5.2 to 98mm |
|
Optical Zoom Ratio |
20x |
|
Max Digital Zoom |
10x |
|
Field of View |
54.7 to 3.3° |
|
Maximum Aperture |
f/1.6 to 3.5 |
|
External Recording Modes |
RJ45 1920 x 1080p at 25/29.97/30.00/50/59.94/60.00 fps 1920 x 1080i at 50/59.94/60.00 fps 1280 x 720 at 50/59.94/60.00 fps |
|
Broadcast Output |
NTSC |
|
IP Streaming |
H.264, H.265, RTMP, RTSP, SRT, TCP 1920 x 1080 1280 x 720 |
|
Presets |
255 via IR, RS-232, VISCA |
|
Move Speed |
Pan: 0.1 to 60°/sec Tilt: 0.1 to 30°/sec |
|
Movement Range |
Pan: 340° Tilt: 120° (-30 to 90°) |
|
Tally Light |
Yes |
|
Supported Control Protocols |
IP IR RS-232 VISCA |
|
Max Cable Length |
328.1' / 100 m (Cat 6) |
|
Video I/O |
1 x RJ45 (HDBaseT) Output 1 x RJ45 Output |
|
Audio I/O |
1 x 1/8" / 3.5 mm TRS Stereo Line Input |
|
Other I/O |
1 x Mini-DIN 8-Pin (RS-232) Input 1 x RJ45 (LAN) Output |
|
Power I/O |
1 x Barrel (12VDC) Input |
|
Power Consumption |
Device: 12 W |
|
Operating Temperature |
32 to 104°F / 0 to 40°C |
|
Mounting |
1 x 1/4"-20 Female 1 x WM-1 for Wall |
|
Mobile App Compatible |
Yes: Android & iOS App Name: DVIP Network Config Functionality: Setup *As of November, 2022: Check with manufacturer for the most up-to-date compatibility |
|
Certifications |
FCC Part 15 *as per Manufacturer |
|
Dimensions (W x H x D) |
6.1 x 7.3 x 7.2" / 15.6 x 18.6 x 18.2 cm |
|
Weight |
56.4 oz / 1.6 kg |
In the Box:
- Datavideo HDBaseT PTZ Camera with 20x Optical Zoom (Black)
- IR Remote Controller
- Ceiling Mount Bracket-A
- Ceiling Mount Bracket -B
- 6 x Ceiling Mount Bracket Screw
- UV Filter
- 12 VDC Power Adapter
- Power Cord
- Safety Cable
- RS-232 DB9 9-Pin to 8-Pin Mini DIN Cable
- RS-485 2-Pin Connector
- Limited 1-Year Manufacturer Warranty
