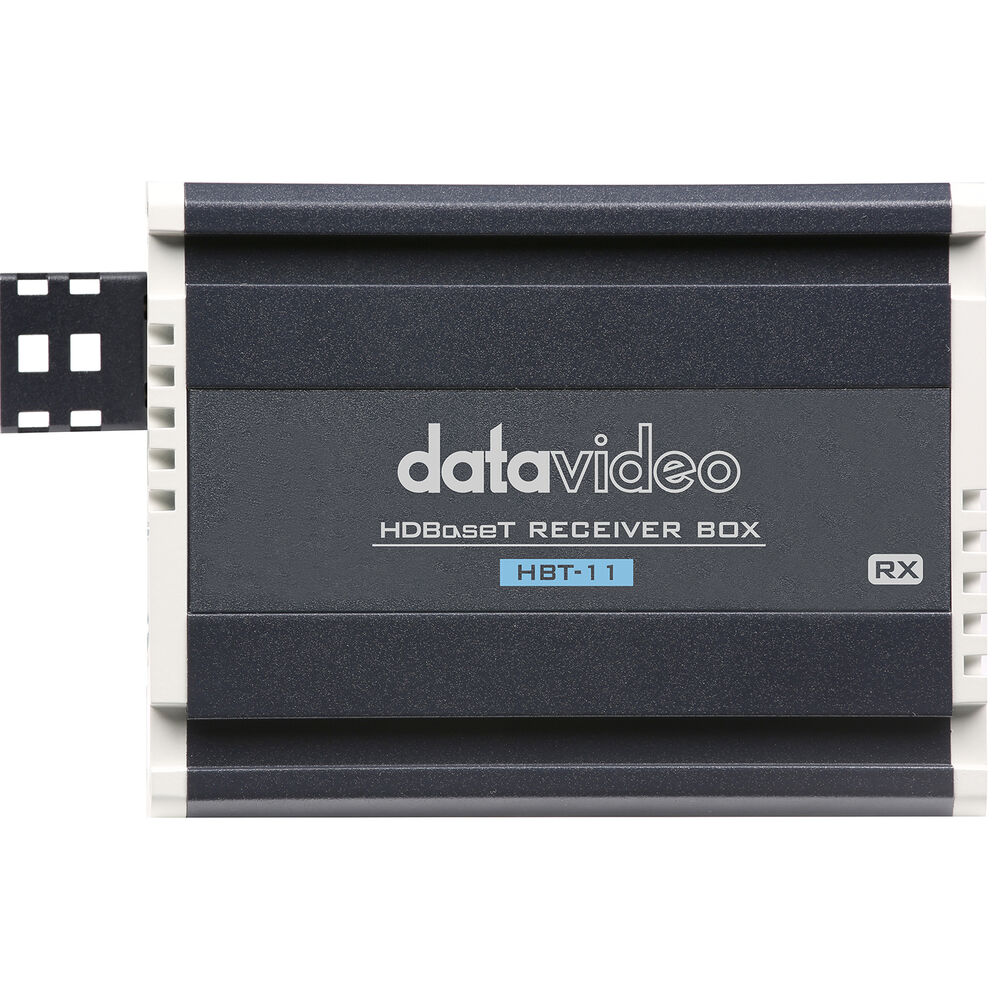

Datavideo HDBaseT to HDMI Receiver
- HDBaseT Input to HDMI Output
- Transmit Full HD Video/Audio up to 328'
- Transmit DVIP & RS-422/RS-232 Control
- PoE (Power-over-Ethernet) Support
- Cat 7/6a/6/5e Cable Support
- Supports 4K Transmission from HBT-10 Tx
Use the HDBaseT to HDMI Receiver from Datavideo to convert an incoming HDBaseT signal from a PTZ camera and output to HDMI to connect it to a display or projector. The receiver supports up to 1080p video from up to 328' away over Cat 7 or 6 cable, and it also supports up to UHD 4K video from the optional HBT-10 transmitter from a shorter distance away.

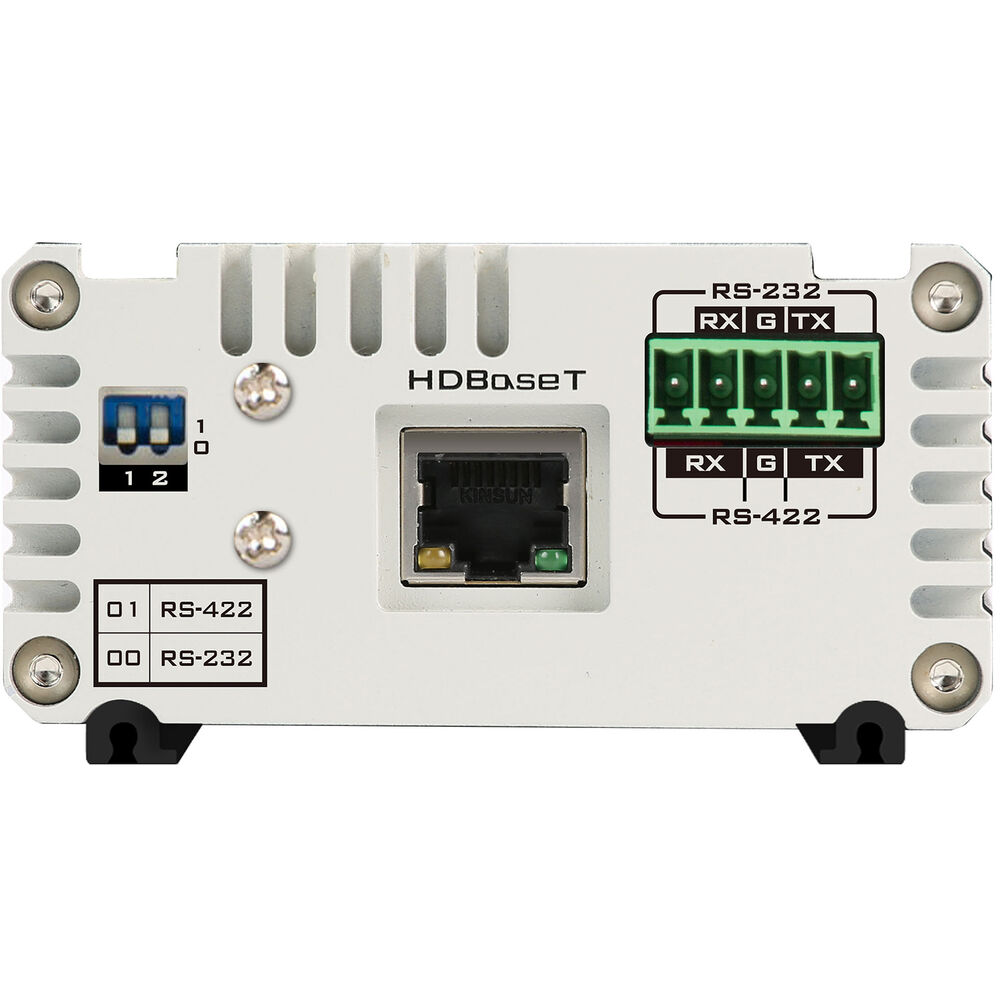

The receiver can pass through DVIP control as well as RS-232 and RS-422 serial control using its serial terminal block interface. A power adapter and power cable comes in the box as well as a terminal block to RJ45 adapter for serial control extension. The receiver also supports PoE/PoH (Power-over-Ethernet/HDBaseT) and is compatible with select Datavideo PTZ cameras to provide power over the Cat 7 or 6 cable.
|
Inputs |
1 x RJ45 (HDBaseT) Female |
|
Outputs |
1 x HDMI Female |
|
Embedded Audio Output |
HDMI |
|
Other I/O |
1 x RJ45 Input/Output |
|
HDCP Support |
None |
|
EDID Support |
None |
|
Max Transmission Distance |
1080p: 328.1' / 100 m (via Cat 5e/6/6a/7) |
|
Video Format |
HDMI Output UHD 4K 1080p RJ45 UHD 4K 1080p |
|
Supported Cable Types |
Cat 5e/6/6a/6e/7 |
|

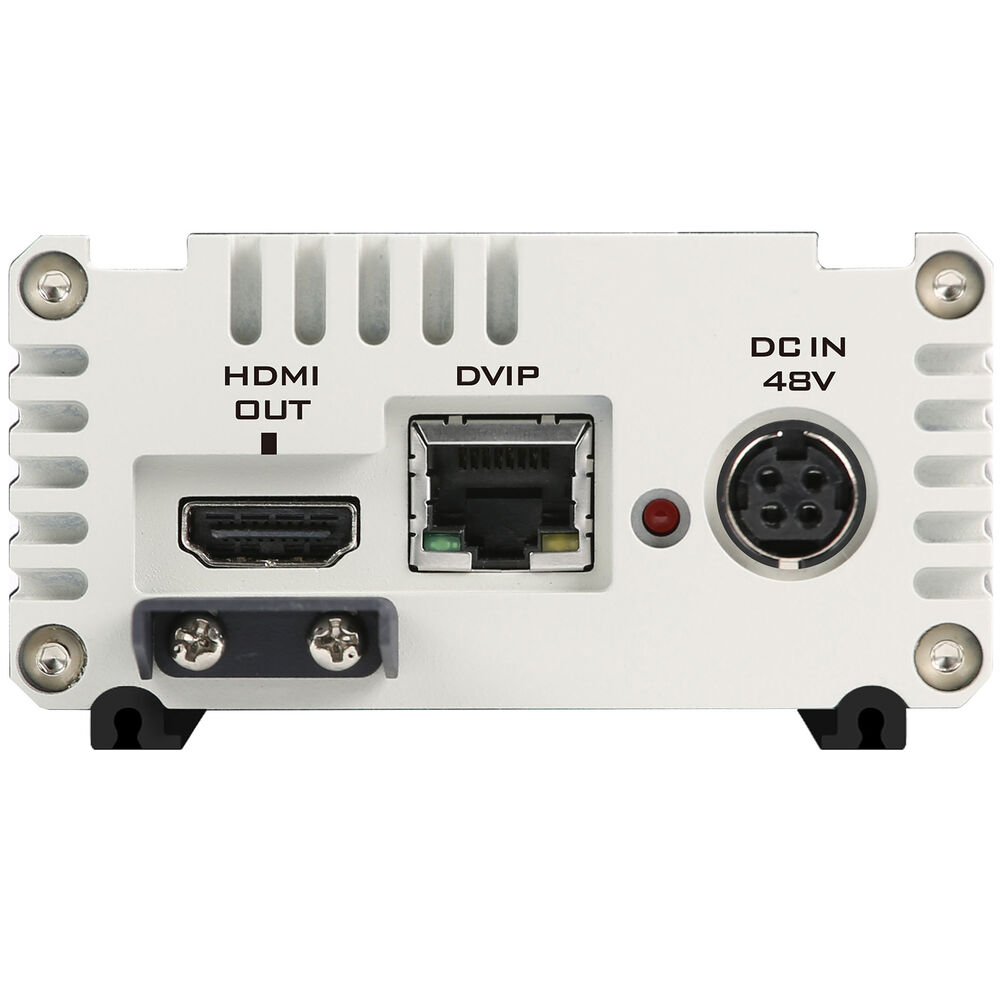

Power Connector |
1 x Mini-DIN 4-Pin (48 VDC) Input |
|
PoE Support |
PoH 802.3at |
|
Operating Temperature |
32 to 104°F / 0 to 40°C |
|
Certifications |
CE, FCC *as per Manufacturer |
|
Dimensions |
5.2 x 3.3 x 1.8" / 132 x 85 x 45 mm |
|
Weight |
14.1 oz / 400 g |
In the Box:
- Datavideo HDBaseT to HDMI Receiver
- Power Adapter
- Power Cable
- Terminal Block to RJ45 Connector
- Limited 1-Year Manufacturer Warranty
