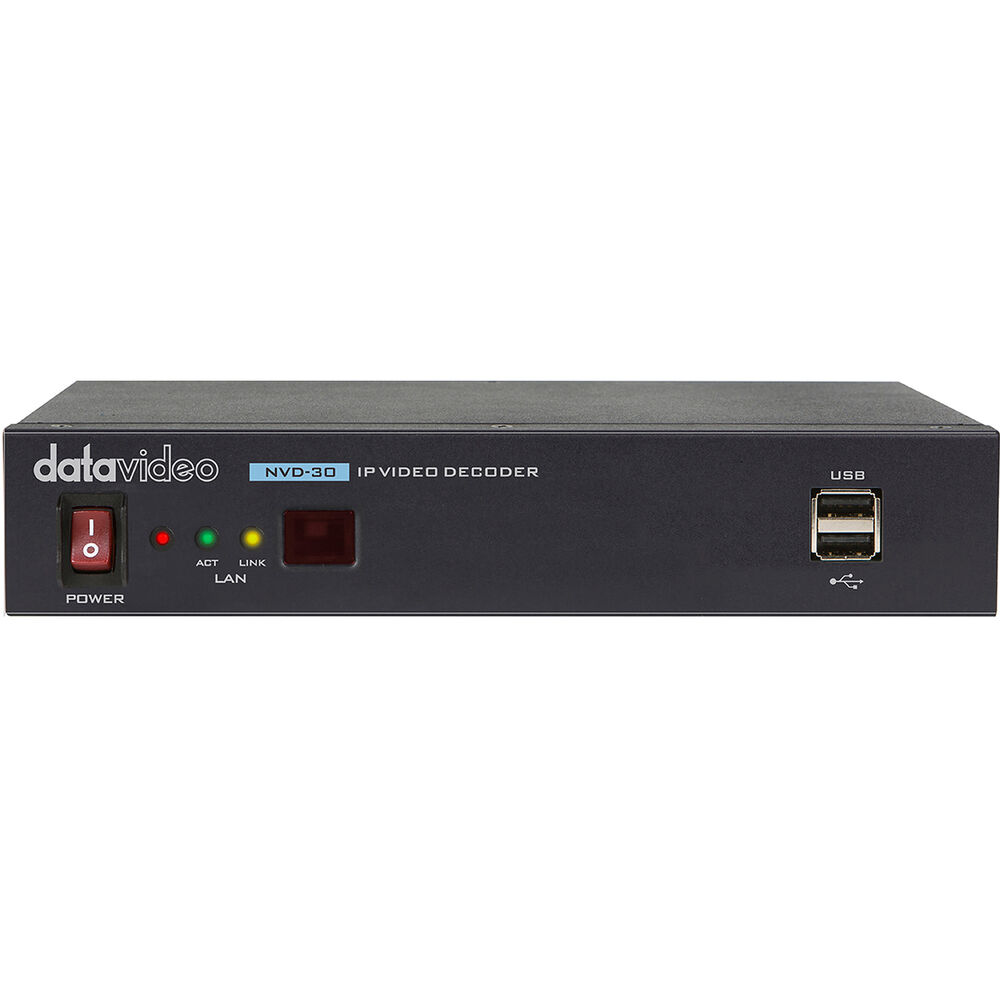

Datavideo NVD-30 Mark II IP Video Decoder

Name: Datavideo NVD-30 Mark II IP Video Decoder
Brand: Datavideo
SKU: NVD-30MK II
Price: 57999 INR
Availability: InStock

Rs. 61,832.00 Rs. 57,999.00

- +

Datavideo ⁄ Datavideo NVD-30 Mark II IP Video Decoder

Key Features:

Supports All Common Streaming Protocols
HDMI and Composite BNC Video Outputs
Up to 1080p60 Resolution Output
Stereo RCA and Embedded Audio Output
Decodes Directly from Popular CDNs
Compatible with Datavideo NVS-33/34/40
Works with dvCloud Streaming Platform
RMC-12 Remote Control Included

Decode streams from the Internet, popular CDNs, and from the dvCloud network with the NVD-30 Mark II IP Video Decoder from Datavideo. The NVD-30 Mark II supports all common protocols such as RTP/RTSP, RTMP, SRT, and UDP, and it outputs up to 1080p60 resolution signals to a local display, set-top box, or switcher. You can decode directly from popular CDNs, such as YouTube Live and UStream, without any third-party advertising.

This decoder is directly compatible with the Datavideo NVS-33, NVS-34, and NVS-40 IP encoders for point-to-point interfacing over Ethernet, Wi-Fi, or the Internet. The decoder can connect to the Datavideo dvCloud Streaming Server, which can send streams to IPTV set-top boxes to access on-demand or live streaming content from anywhere in the world. The decoder features HDMI and composite BNC video outputs as well as RCA stereo and embedded audio output.

Streaming Protocol Support

RTSP over UDP (Unicast / Multicast)
RTSP over TCP
RTSP over HTTP
SRT (Secure Reliable Transport) caller
MPEG-TS over UDP
RTMP Pull
RTMP Push (Internal Server)
UDP raw (Unicast/Multicast)
HLS over HTTP
MPEG-TS over TCP Pull
Video sharing websites

Key Features

Decode videos from Datavideo encoders, YouTube Live, UStream, and other major CDNs.
The NVD-30 Mark II decodes all common streaming protocols, directly from YouTube Live, UStream, Dailymotion, Livestream, Twitch, and other major CDNs, and skips all third-party ads.
The NVD-30 Mark II decodes common streaming protocols including SRT, RTSP, RTMP, UDP, TCP, HTTP, HLS, and MPEG-TS. The SRT streaming protocol now features security, reliability, and low latency, enabling high-quality video streaming with ultra-low latency even in unstable network environments.
The NVD-30 Mark II IP Video Decoder supports HDMI and Composite video output with resolutions up to 1080p50/60. 2RCA analog audio output is also supported.
The NVD-30 Mark II IP Video Decoder is seamlessly compatible with dvCloud, the live streaming platform that creates and manages live or on-demand video channels. When connected to dvCloud, you can control the NVD-30 Mark II from anywhere in the world and use it as an IPTV set-top box.
The NVD-30 Mark II can be matched with Datavideo NVS-33/34/40 and other webcast encoders to create a Full HD video transmission architecture based on Ethernet, WiFi or the Internet.
The NVD-30 Mark II adds real-time video flipping and rotating functions for more flexible video output options.
The RMC-12 remote control is included for more convenient operation.

Technical Specification:

Video Inputs	1 x RJ45 Female
Video Outputs	1 x HDMI 1 x BNC (Composite)
Audio Outputs	1 x 2RCA Stereo
Other I/O	1 x RJ45 LAN 1 x 1/8" / 3.5 mm GPI 2 x Unspecified Interface
Expansion Slots	None
Input Video Format	RJ45 1080p at 24/29.97/30/59.94/60 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps 576i / 625 lines 50 fps 480i / 525 lines 60 fps
Output Video Format	HDMI / Composite 1080p at 24/25/29.97/30/59.94/60 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps 480i / 525 lines 60 fps 576i / 625 lines 50 fps
Embedded Audio	HDMI
HDR Compatibility	None
Video IP Decoding	RTMP, RTP, RTSP, UDP: 1920 x 1080 at 50p, 60p
Power I/O	1 x Barrel (12 VDC at 0.5 A) Input
Power Consumption	Power Supply: 100 to 240 VAC
Operating Temperature	32 to 104°F / 0 to 40°C
Storage Temperature	14 to 140°F / -10 to 60°C
Dimensions	8.7 x 5.6 x 1.9" / 220 x 143 x 47 mm
Weight	2.2 lb / 1 kg
