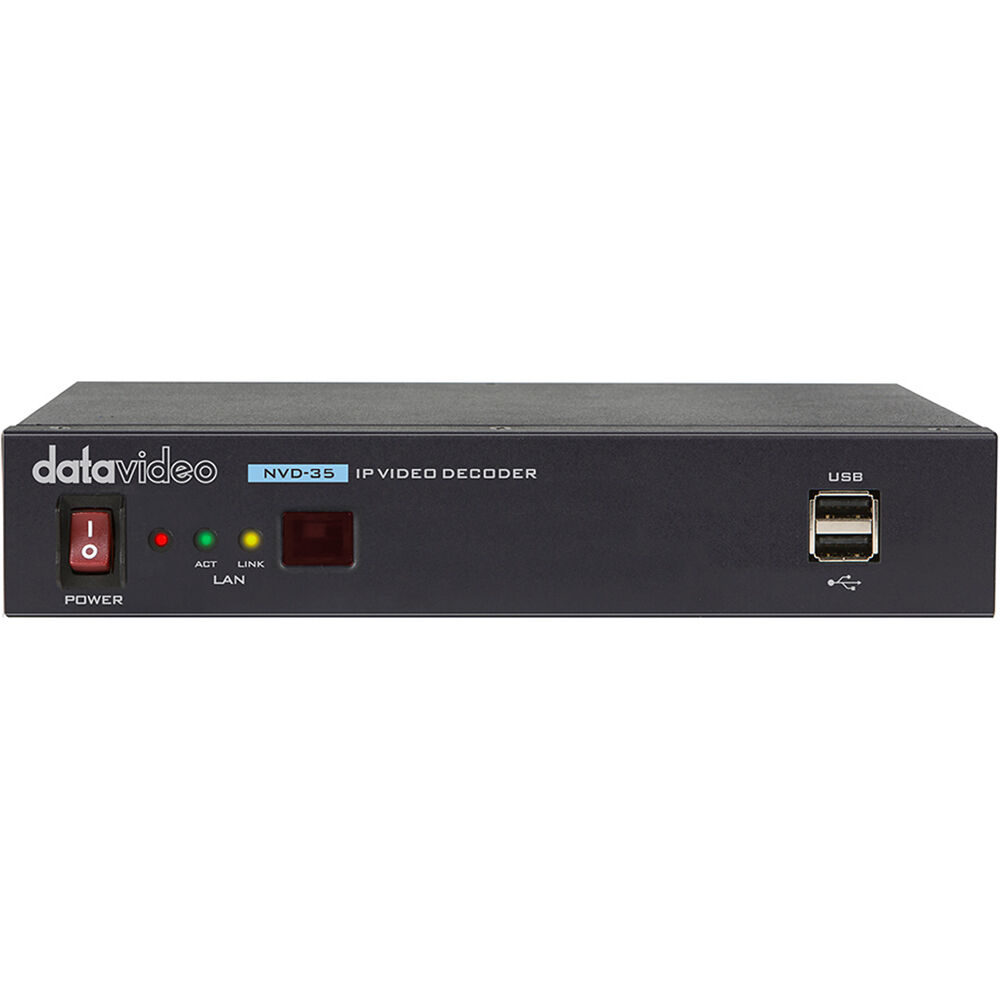

Datavideo NVD-35 Mark II Streaming IP Video Decoder with SDI Output

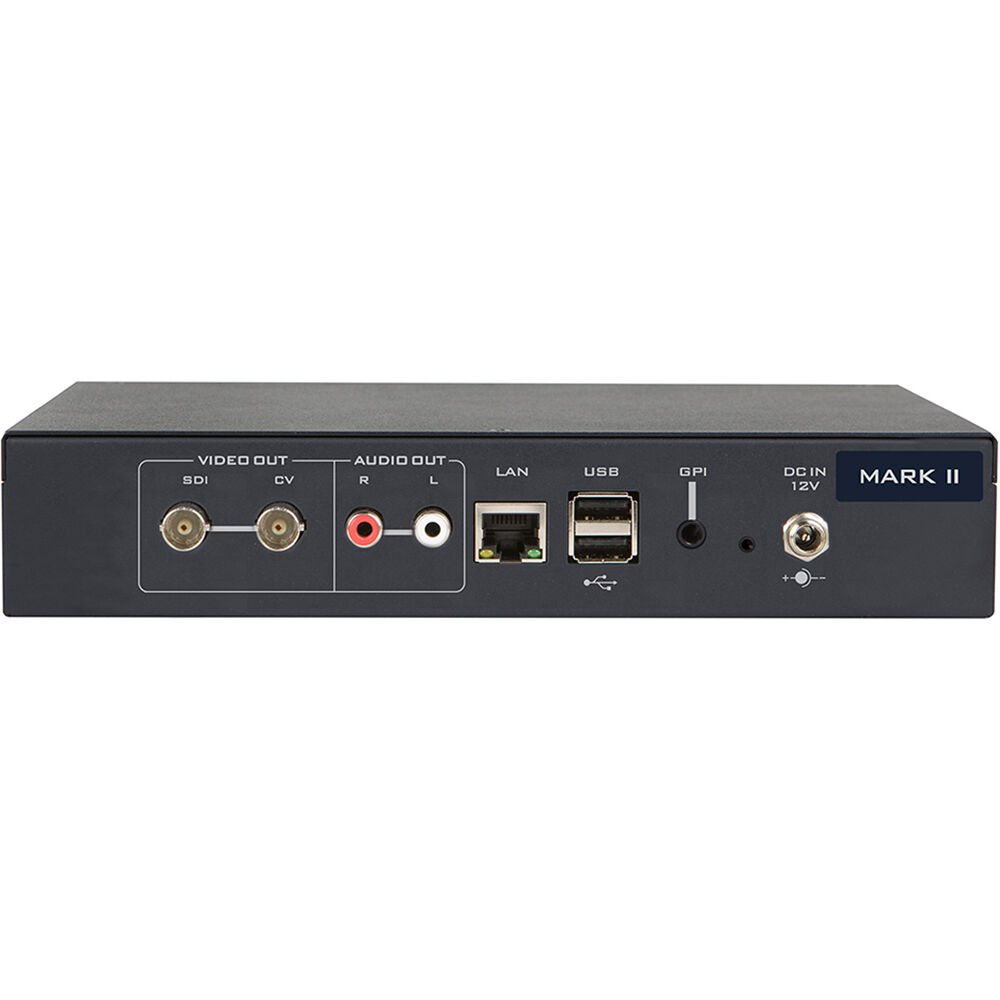

- SDI and Composite BNC Outputs
- Up to 1080p60 Resolution Output
- Stereo RCA and Embedded Audio Output
- Stream via RTMP Push/Pull, SRT & More
- Decodes Directly from Popular CDNs
- Compatible with NVS-40/34/33 Encoders
- Compatible with dvCloud Cloud Server
Decode streams from the Internet, popular CDNs, and from the dvCloud network with the NVD-35 Mark II Streaming IP Video Decoder with SDI Output from Datavideo. The NVD-35 Mark II supports all common protocols such as RTP/RTSP, RTMP, SRT, and UDP, and it outputs up to 1080p60 resolution signals to a local display, set-top box, or switcher. You can decode directly from popular CDNs, such as YouTube Live and UStream, without any third-party advertising.
This decoder is directly compatible with the Datavideo NVS-33, NVS-34, and NVS-40 IP encoders for point-to-point interfacing over Ethernet, Wi-Fi, or the Internet, and it can work alongside the NVS-30 HDMI decoder on the same network. The decoder can connect to the Datavideo dvCloud Streaming Server, which can send streams to IPTV set-top boxes to access on-demand or live streaming content from anywhere in the world. The decoder features BNC SDI video output as well as RCA stereo and embedded audio output.
- RTSP over UDP (Unicast / Multicast)
- RTSP over TCP
- RTSP over HTTP
- SRT (Secure Reliable Transport) caller
- MPEG-TS over UDP
- RTMP Pull
- RTMP Push (Internal Server)
- UDP raw (Unicast/Multicast)
- HLS over HTTP
- MPEG-TS over TCP Pull
- Video sharing websites
- Decode videos from Datavideo encoders, YouTube Live, UStream, and other major CDNs.
- The NVD-35 Mark II decodes all common streaming protocols, directly from YouTube Live, UStream, Dailymotion, Livestream, Twitch, and other major CDNs, and skips all third-party ads.
- The NVD-35 Mark II decodes common streaming protocols including SRT, RTSP, RTMP, UDP, TCP, HTTP, HLS, and MPEG-TS. The SRT streaming protocol now features security, reliability, and low latency, enabling high-quality video streaming with ultra-low latency, even in unstable network environments.
- The NVD-35 Mark II IP Video Decoder supports SDI video output with resolutions up to 1080p50/60. 2RCA analog audio output is also supported.
- The NVD-35 Mark II IP Video Decoder is seamlessly compatible with dvCloud, the live streaming platform that creates and manages live or on-demand video channels. When connected to dvCloud, you can control the NVD-35 Mark II from anywhere in the world and use it as an IPTV set-top box.
- The NVD-35 Mark II can be matched with Datavideo NVS-33/34/40 and other webcast encoders to create a Full HD video transmission architecture based on Ethernet, Wi-Fi, or the Internet.
- The NVD-35 Mark II adds real-time video flipping and rotating functions for more flexible video output options.
- The RMC-12 remote control is included for more convenient operation.
Technical Specifications:
|
Video Inputs |
1 x RJ45 Female |
|
Audio Inputs |
None |
|
Video Outputs |
1 x BNC (3G-SDI) |
|
Audio Outputs |
1 x 2RCA Stereo Analog Female |
|
Other I/O |
1 x RJ45 LAN Input/Output 1 x 1/8" / 3.5 mm GPI Input 2 x Unspecified Interface Input |
|
Expansion Slots |
None |
|
Input Video Format |
RJ45 1080p at 24/29.97/30/59.94/60 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps 576i / 625 lines 50 fps 480i / 525 lines 60 fps |
|
Output Video Format |
SDI 1080p at 24/25/29.97/30/59.94/60 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps 480i / 525 lines 60 fps 576i / 625 lines 50 fps |
|
Embedded Audio |
SDI |
|
HDR Compatibility |
None |
|
Video IP Decoding |
RTMP, RTP, RTSP, UDP: 1920 x 1080 at 50p, 60p |
|
Power I/O |
1 x Barrel (12 VDC at 1 A) Input |
|
Power Consumption |
Power Supply: 100 to 240 VAC |
|
Operating Temperature |
32 to 104°F / 0 to 40°C |
|
Storage Temperature |
14 to 140°F / -10 to 60°C |
|
Dimensions |
8.7 x 5.6 x 1.9" / 220 x 143 x 47 mm |
|
Weight |
2.2 lb / 1 kg |
In the Box:
- Datavideo NVD-35 Mark II Streaming IP Video Decoder with SDI Output
- 12 VDC AD Switch
- Remote Control
- Limited 1-Year Manufacturer Warranty
