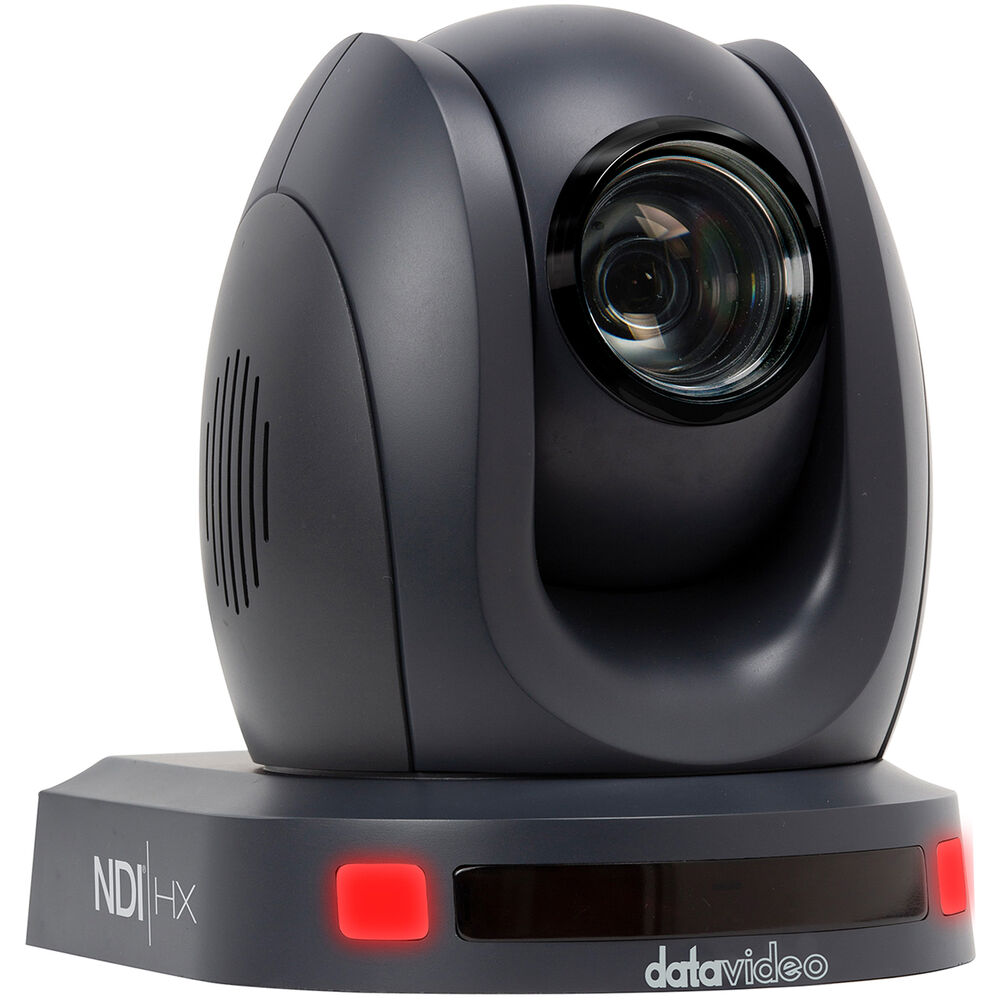

Datavideo PTC-140NDI SDI/HDMI/NDI PTZ Camera with 20x Optical Zoom (Black)

Datavideo PTC-140NDI SDI/HDMI/NDI PTZ Camera with 20x Optical Zoom (Black)

Name: Datavideo PTC-140NDI SDI/HDMI/NDI PTZ Camera with 20x Optical Zoom (Black)
Brand: Datavideo
SKU: PTC-140NDI
Price: 145000 INR
Availability: InStock

Rs. 162,840.00 Rs. 145,000.00

- +

Datavideo ⁄ Datavideo PTC-140NDI SDI/HDMI/NDI PTZ Camera with 20x Optical Zoom (Black)

Key Features:

2.07MP 1/2.8" CMOS Sensor
Video Resolution up to 1920 x 1080p60
20x Optical, 10x Digital Zoom
SDI, HDMI, and NDI|HX Video Output
Supports H.264/H.265 Dual Stream Output
255 Presets, 3.5mm Analog Audio Input
AAC, MP3, and G.711a Audio Compression
Supports Network Protocols RTSP, RTMP
VISCA, Pelco-D/P, DVIP, NDI Control

Add an HD camera with NDI streaming capability to your broadcast, house of worship, corporate, or education environment with this black PTC-140NDI SDI/HDMI/NDI PTZ Camera with 20x Optical Zoom from Datavideo. The versatile PTZ supports frame rates and resolutions up to 1080p60 and features a 1/2.8" CMOS sensor with 2.07 MP resolution. The built-in zoom lens features an optical zoom range of 20x, and you can zoom in even further with the 10x digital zoom. It supports HDMI, SDI, and NDI|HX video output compatible with any standard NDI network or any video streaming platform such as YouTube, Skype, WebEx, Zoom, and many others.

With 255 programmable preset positions, you can set the camera to rapidly move to between positions using DVIP, RS-232 serial, or IR control, and it features a built-in tally light. The camera compresses using either or both the H.264 and H.265, as its onboard encoder is capable of encoding two streams at the same time. You can stream live using RTSP or RTMP protocols as well as stream video and control when on an NDI network using high-quality, low-latency HDI|HX technology. The camera supports external audio via a 3.5mm stereo line-level input as well as embedded audio using AAC, MP3, and G.711a compression formats.

The camera can be powered using the included power adapter or by using PoE (Power-over-Ethernet) to cut down on cabling within your environment.

Suitable for broadcast, worship, video conferencing, corporate, and education environments
Video streaming application support for services such as Skype, GoToMeeting, WebEx, Zoom, and YouTube
Output resolution up to 1920 x 1080p60 with a 2.07MP 1/2.8" CMOS sensor
20x optical zoom, 10x digital zoom; M52 lens filter thread with UV filter and can be removed for optional filters
Single-cable concept helps you to transfer video, audio, power, tally, and control over only one Ethernet cable via NDI|HX and PoE (Power-over-Ethernet)
Advanced 2D/3D noise reduction technology is used to further reduce the noise, ensuring image sharpness
Analog 3.5mm audio input interface; supports AAC, MP3, and PCM audio compression output
Supports compression of resolutions up to 1920 x 1080p60 and 2-channel 1920 x 1080p30
Multiple Network Protocols: RTSP, RTMP protocols and support, easy to link to a streaming media server
RS-232, RS-422, and RS-485 ports to use DVIP and VISCA commands to integrate with larger control systems
Tally lights show the preview and program status
Compatible with optional RMC-180, RMC-300C, and RMC-300A camera control units

Technical Specifications:

Image Sensor	1/2.8"-Type CMOS
Sensor Resolution	Effective: 2.07 Megapixel
IR Cut Filter	No
Built-In ND Filter	None
Focus Control	Autofocus Manual Focus
Shutter Type	Electronic Rolling Shutter
Signal-to-Noise Ratio	55 dB
Minimum Illumination	0.5 Lux
Flip / Mirror Support	Image Flip, Mirror (Vertical)
White Balance	3000 to 6500K Presets: Auto, Manual, One Push
Focal Length	5.2 to 98mm
Optical Zoom Ratio	20x
Max Digital Zoom	10x
Field of View	Horizontal: 54.7 to 3.3°
Maximum Aperture	f/1.6 to 3.5
External Recording Modes	SDI/BNC / HDMI / RJ45 1920 x 1080p at 25/29.97/30.00/50/59.94/60.00 fps 1920 x 1080i at 50/59.94/60.00 fps 1280 x 720 at 50/59.94/60.00 fps
Broadcast Output	NTSC
IP Streaming	H.264, H.265, NDI\|HX, RTMP, RTSP, SRT, TCP 1920 x 1080
Presets	255 via IP, IR, RS-232, VISCA
Move Speed	Pan: 0.1 to 60°/sec Tilt: 0.1 to 30°/sec
Movement Range	Pan: 340° Tilt: 120° (-30 to 90°)
Tally Light	Yes
Supported Control Protocols	IP IR Pelco-D Pelco-P RS-232 VISCA

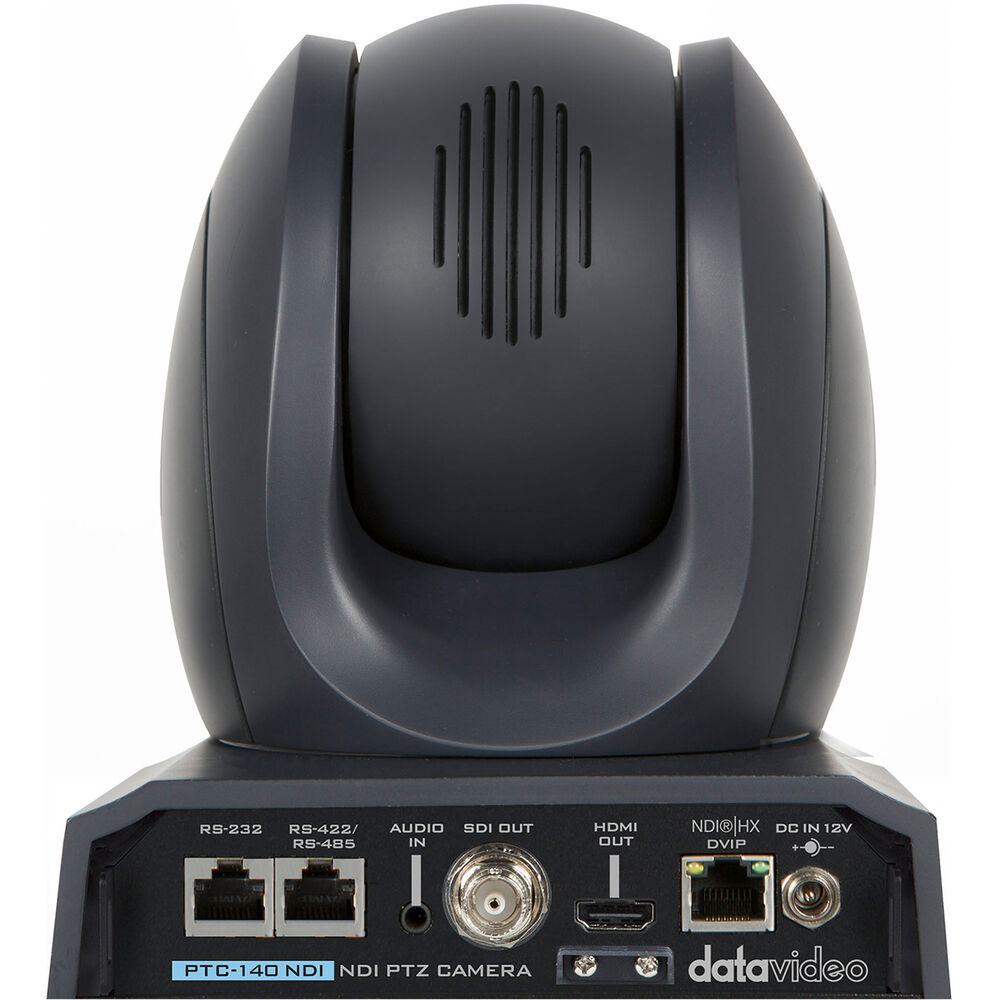

Video I/O	1 x BNC (3G-SDI) Output 1 x HDMI 1.0 Output 1 x RJ45 (NDI) Output
Audio I/O	1 x 1/8" / 3.5 mm TRS Stereo Line Input
Other I/O	1 x RJ45 (Pelco-D, Pelco-P, RS-232, VISCA) Input 1 x RJ45 (RS-422, RS-485) Output 1 x RJ45 (LAN) Control Output
Built-In Speaker	No
PoE Support	PoE 802.3af
Power I/O	1 x Barrel (12VDC) Input
Power Consumption	Device: 12 W
Operating Temperature	32 to 104°F / 0 to 40°C
Mounting	1 x 1/4"-20 Female
Mobile App Compatible	Yes: Android & iOS App Name: DVIP Network Config Functionality: Setup *As of November, 2022: Check with manufacturer for the most up-to-date compatibility
Certifications	FCC Part 15 *as per Manufacturer
Dimensions (W x H x D)	6.1 x 7.3 x 7.2" / 15.6 x 18.6 x 18.2 cm
Weight	56.4 oz / 1.6 kg
