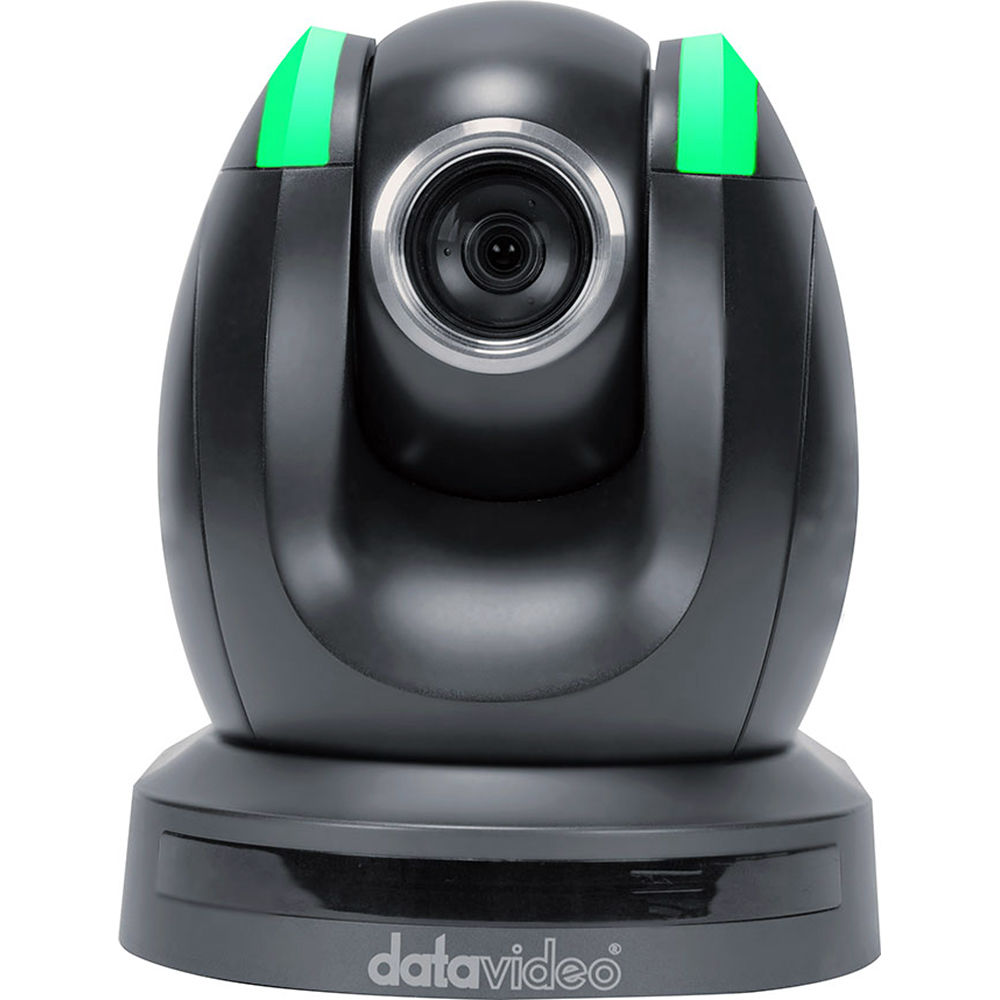

Datavideo PTC-150 HDMI/SDI PTZ Video Camera (Black)
- Capture up to 1080p Video
- Pan/Tilt/Zoom Control, 30x Optical Zoom
- HDMI/SDI/CVBS Video Outputs
- 50 Programmable PTZ Presets
- IR Filter for Low-Light Shooting
- RS-422 VISCA & RJ45 DVIP Control
- Image Rotate/Mirror Function
- Housing in Black
Capture high-resolution video up to 1080p with the black PTC-150 HD/SD PTZ Video Camera from Datavideo. It can be remotely controlled to perform pan, tilt, and zoom operations using the included IR remote control or by using a separately available serial PTZ controller. The camera can be mounted on a wall, ceiling, floor, or tabletop.
The PTC-150 features motorized 30x optical zoom capability, a wide dynamic range, backlight compensation, image mirror and rotation, and a tally light to indicate when the camera is active. Video outputs include 3G-SDI, HDMI, or CVBS ports that can simultaneously output video signals. The lens features a field of view range of 2.3 to 63.7° as well as an M52 filter thread to add a separately available filter. It also features 50 programmable position presets for your pan, tilt, and zoom operations.
A built-in IR cut filter is included to assist with low-light shooting, which then is disabled for daylight shots. The camera supports the VISCA protocol for PTZ control using the serial RS-422 interface and DVIP over the unit's RJ45 port.
- 30x optical zoom
- Position coordinates report in real time per frame
- Dehazing technology allows foggy or hazy images to be clear and sharp
- Simultaneous HD-SDI, CVBS, and HDMI video outputs
- Supports DVIP control protocol using DVIP RJ45 port
- Supports VISCA serial protocol over RS-422 RJ45 port

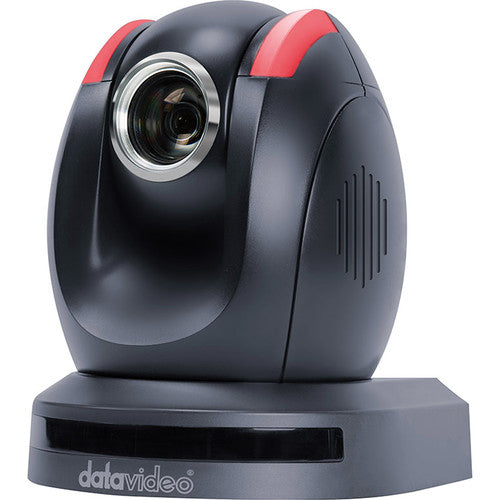

- Built-in tally LED
- Digital Noise Reduction function (DNR) reduces the noise and enables clearer image under low-light conditions
Technical Specifications:
|
Image Sensor |
1/2.8"-Type CMOS |
|
Sensor Resolution |
Effective: 2.14 Megapixel |
|
Built-In ND Filter |
None |
|
Focus Control |
Autofocus Manual Focus |
|
Shutter Type |
Electronic Rolling Shutter |
|
Shutter Speed |
1/1500 to 1/25 Second |
|
Signal-to-Noise Ratio |
50 dB |
|
Minimum Illumination |
0.4 Lux |
|
Flip / Mirror Support |
Image Flip, Mirror (Vertical) |
|
White Balance |
3200 to 6500K Presets: AWB, Fluorescent, Indoors, Manual, One-touch, Outdoors |
|
Focal Length |
4.3 to 129mm |
|
Optical Zoom Ratio |
30x |
|
Field of View |
Horizontal: 63.7 to 2.3° Vertical: 63.7 to 2.3° |
|
Maximum Aperture |
f/1.6 to 4.7 |
|
External Recording Modes |
SDI/BNC / HDMI 1920 x 1080p at 25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 50/59.94 fps 720 x 576i 720 x 480i |
|
Broadcast Output |
NTSC |
|
Presets |
50 via IP, IR, VISCA |
|
Move Speed |
Pan: 1 to 150°/sec Tilt: 1 to 150°/sec |
|
Movement Range |
Pan: 270° Tilt: 110° (-20 to 90°) |
|
Tally Light |
Yes |
|
Supported Control Protocols |
DVIP IP IR RS-422 VISCA |
|
Max Cable Length |
3280.84' / 1000 m (RS-232) 328.08' / 100 m (Cat 6) |
|
Video I/O |

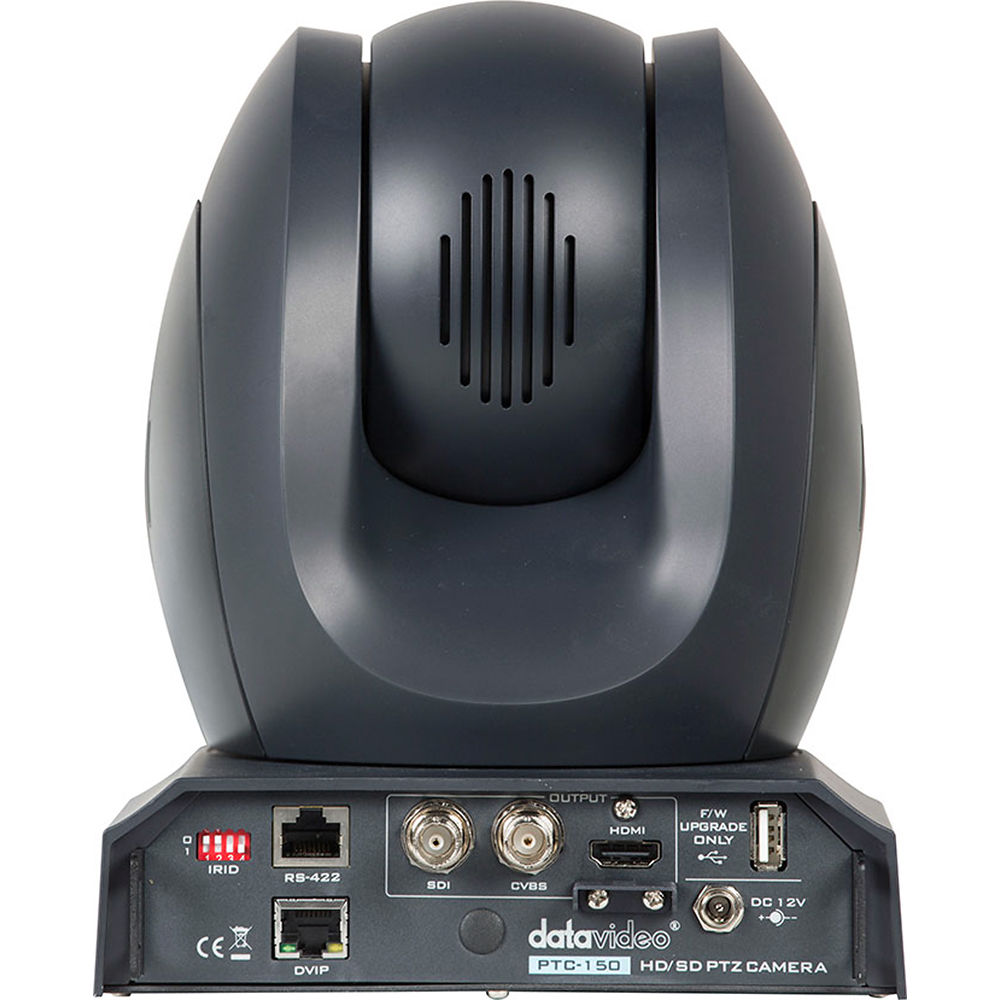

1 x BNC (3G-SDI) Output 1 x HDMI Output 1 x RJ45 Output |
|
Other I/O |
1 x RJ45 (RS-422, VISCA) 1 x USB-A Input |
|
Built-In Speaker |
No |
|
Power I/O |
1 x Barrel (12VDC) Input |
|
Power Consumption |
Device: 29 W |
|
Operating Temperature |
32 to 104°F / 0 to 40°C |
|
Storage Temperature |
14 to 140°F / -10 to 60°C |
|
Operating Humidity |
10 to 80% (Non-Condensing) |
|
Mounting |
1 x 1/4"-20 Female for Tripod |
|
OS Compatibility |
Windows *: Check with manufacturer for the most up-to-date compatibility |
|
Certifications |
FCC Class A, CE *as per Manufacturer |
|
Dimensions (W x H x D) |
6.8 x 8.6 x 7.4" / 17.3 x 21.9 x 18.91 cm |
|
Weight |
95.24 oz / 2.7 kg |
In the Box:
- Datavideo PTC-150 HDMI/SDI PTZ Video Camera (Black)
- IR Remote Controller
- 2 x Camera Mounting Bracket
- M3 Mounting Screw
- 12 VDC Power Adapter
- Power Cable
- Limited 1-Year Manufacturer Warranty
