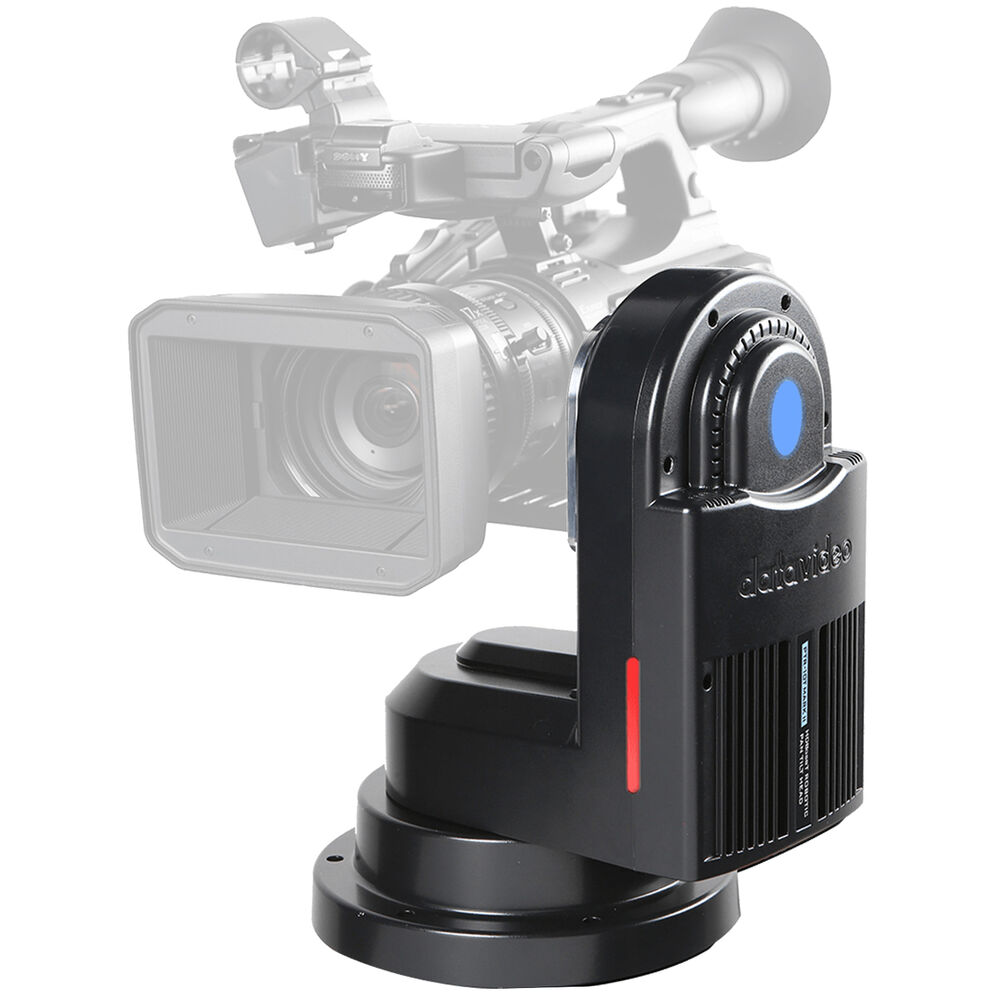

Mount and remotely control a camera rig weighing up to 8.8 lb with the PTR-10T Mark II Robotic Pan and Tilt Head from Datavideo. The head can be mounted onto a tripod, wall, or ceiling, allowing you to maneuver your camera in different positions. It can send and receive video via the HDBaseT port to external video switchers and controllers, such as the RMC-180 series, RMC-300A, or HS-1600T, while also receiving control information for pan and tilt operations. It can also receive video from your camera via the 3G-SDI or HDMI input and send the video via 3G-SDI and HDMI outputs to external devices.The head is equipped with LED indicators, a tally light, and a remote port that allows you to adjust the zoom and focus of select camera lenses. You can also utilize a remote controller using its RS-232 and RS-422 serial control ports, DVIP control via its RJ45 LAN port, or control using an IR remote. It is powered by the included 12 VDC power adapter and can supply power to the attached camera or accessories using its D-Tap output with selectable power voltage.
Technical Specifications:
Video Connectors
Video In:
1 x 3G-SDI
1 x HDMI
Input/Output:
1 x RJ45 HDBaseT Video/Control Port
Video Output Connectors
Serial Connector
1 x RJ45 RS-422 Output Control Port
1 x 9-Pin Sub-D RS-232 Output Control (Not in Use)
Other I/O
1 x Remote Port, Zoom and Focus Camera Control
1 x USB, Firmware Upgrade
1 x 3.5 mm Jack, Tally In
1 x 3.5 mm Jack, Tally Out
Status
4 x LEDs
Output Resolution
2160p: 29.97/25
1080p: 59.94/50
1080i: 59.94/50
720p: 59.94/50
Pan & Tilt Range
Pan: 340°
Tilt: ± 45°
Pan & Tilt Speed
Pan: 0.2 to 15° Seconds
Tilt: 0.1 to 10° Seconds
Control Protocol
Sony VISCA and DVIP
Remote Control Distance
RS-422: 3937' / 1200 m
DVIP: 328' / 100 m
Maximum Load Capacity
8.8 lb / 4 kg
Power Requirements
Without Camera: 12 to 18 VDC, 3 A
With Camera: 12 to 18 VDC, 5 A
Power Output
12, 10, 8.4, 7.4 VDC, 24 W Maximum (Selectable)
Power Input
1 x DC Screw Barrel Jack, 12 VDC Power Input
1 x D-Tap Power Output
RJ45 Power-over-Ethernet
Material of Construction
Aluminum
Temperature
Operating: 32 to 104°F / 0 to 40°C
Storage: 14 to 140°F / -10 to 60°C
Operating Humidity
Operating: 10 to 80%
Storage: 5 to 80%
Dimensions
11.8 x 9.1 x 7.5" / 30 x 23 x 19 cm
Weight
7.5 lb / 3.4 kg
In the Box:
