Datavideo SE-3200 12-Input 1080p Video Switcher
- 1080p (3G) Resolution
- 8 x SDI and 4 x HDMI Video Inputs
- 6 x SDI and 3 x HDMI Video Outputs
- 4 x XLR Analogue Audio Inputs
- 2 x XLR Embedded Analogue Audio Outputs
- USB Port for Firmware Upgrade
- Up to 8 PiP
- 16 Stinger Transitions

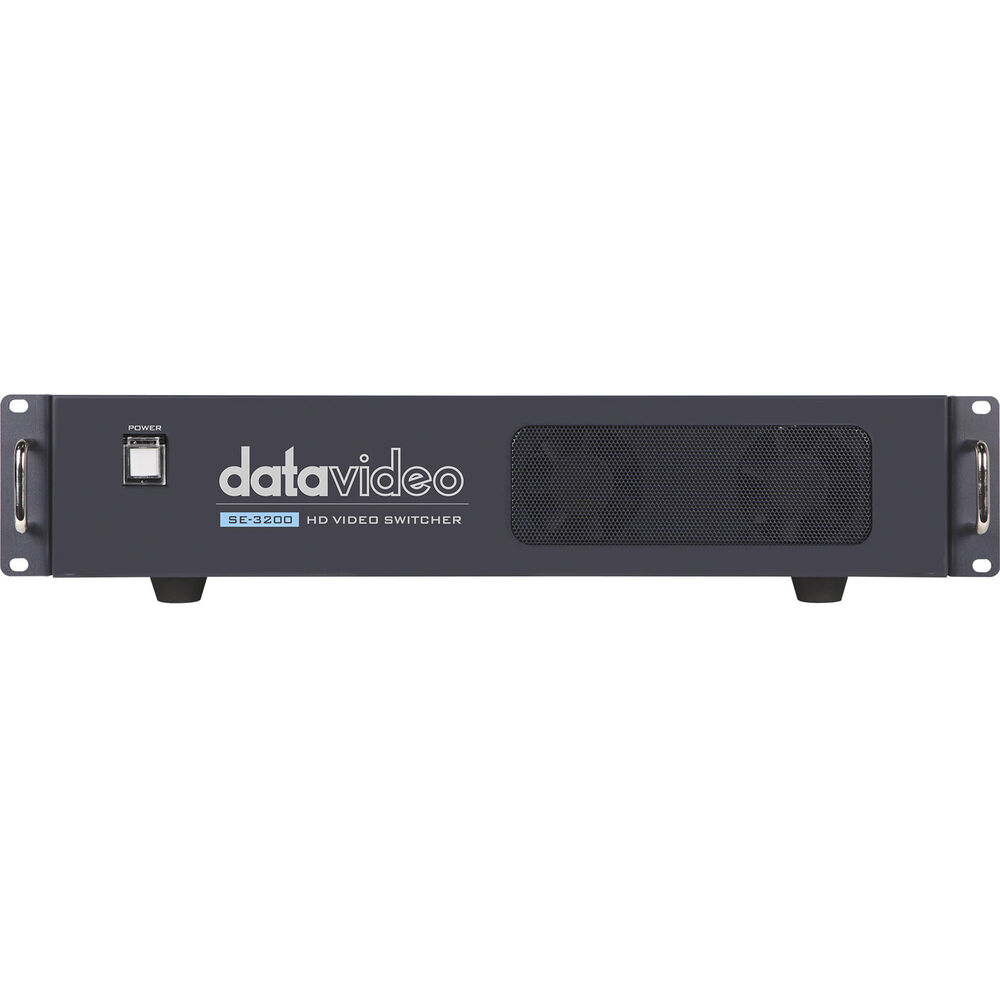

- Main Unit Rack-Mountable on 19" Rack
The Datavideo SE-3200 is a 12-channel digital video switcher with 1080p/60 (3G) high-definition support, 12 digital inputs including 8 x SDI and 4 x HDMI inputs with embedded audio, 6 x SDI plus 3 x HDMI outputs for connecting an HD recorder and external monitors.

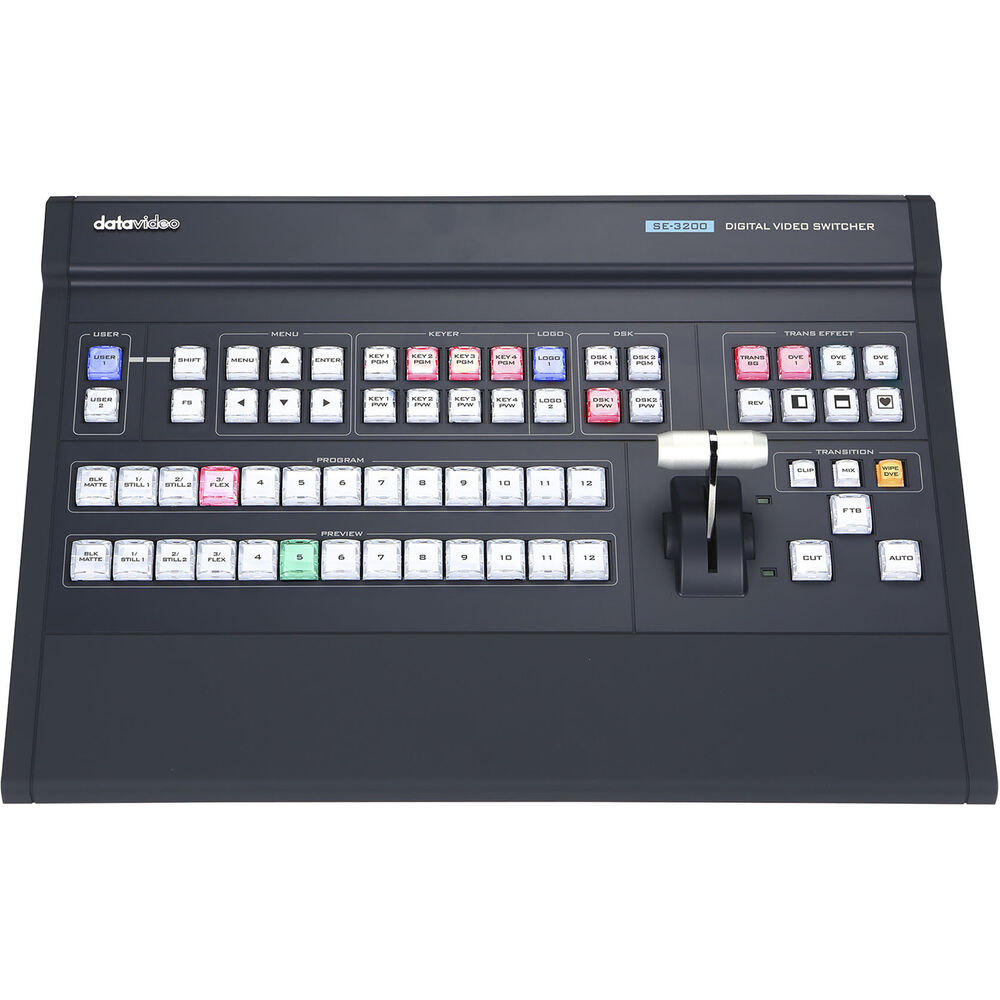

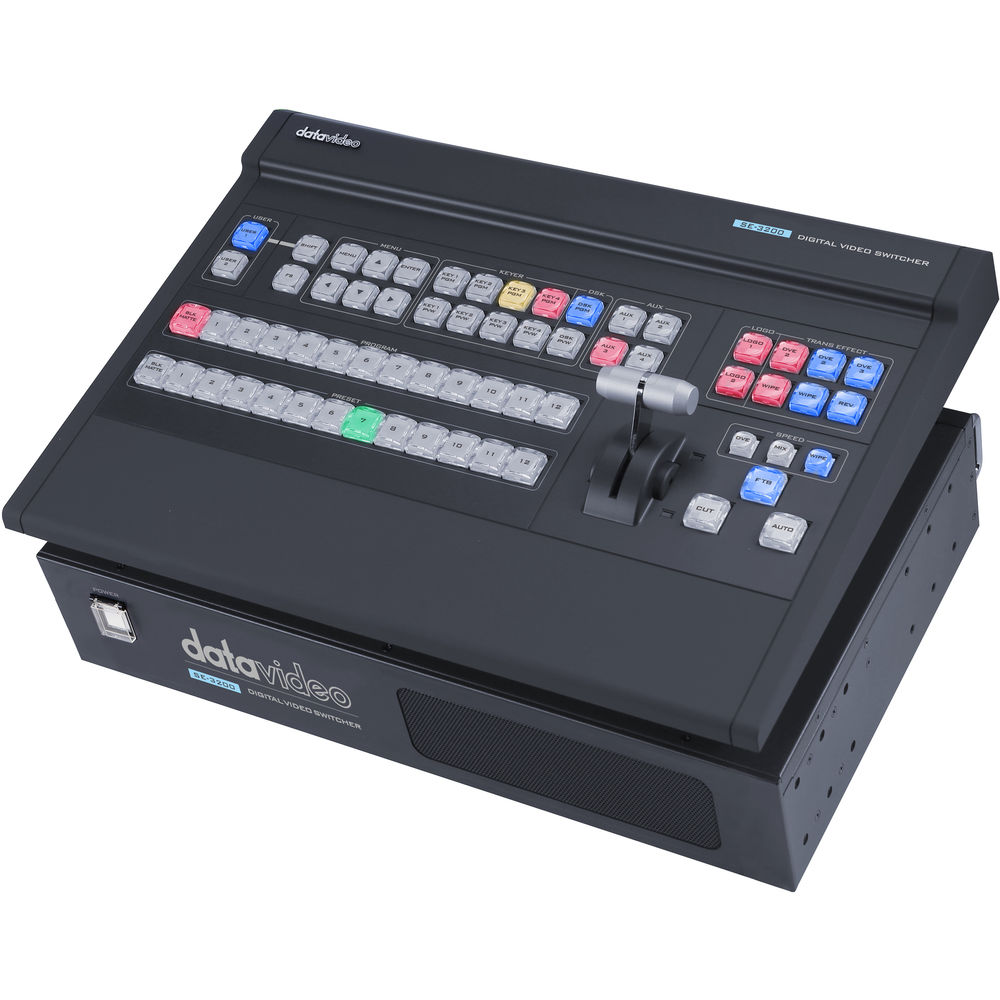

The switcher is lightweight with the main unit mountable on a 19" rack. In addition, the control keyboard panel can be placed on a flat surface or built inside an outdoor broadcast van. The 12-input video switcher also features chroma/ luma keying, DSK, PiP, DVE/wipe generator, still stores, and logo insertion as well as built-in support for Datavideo's CG software.

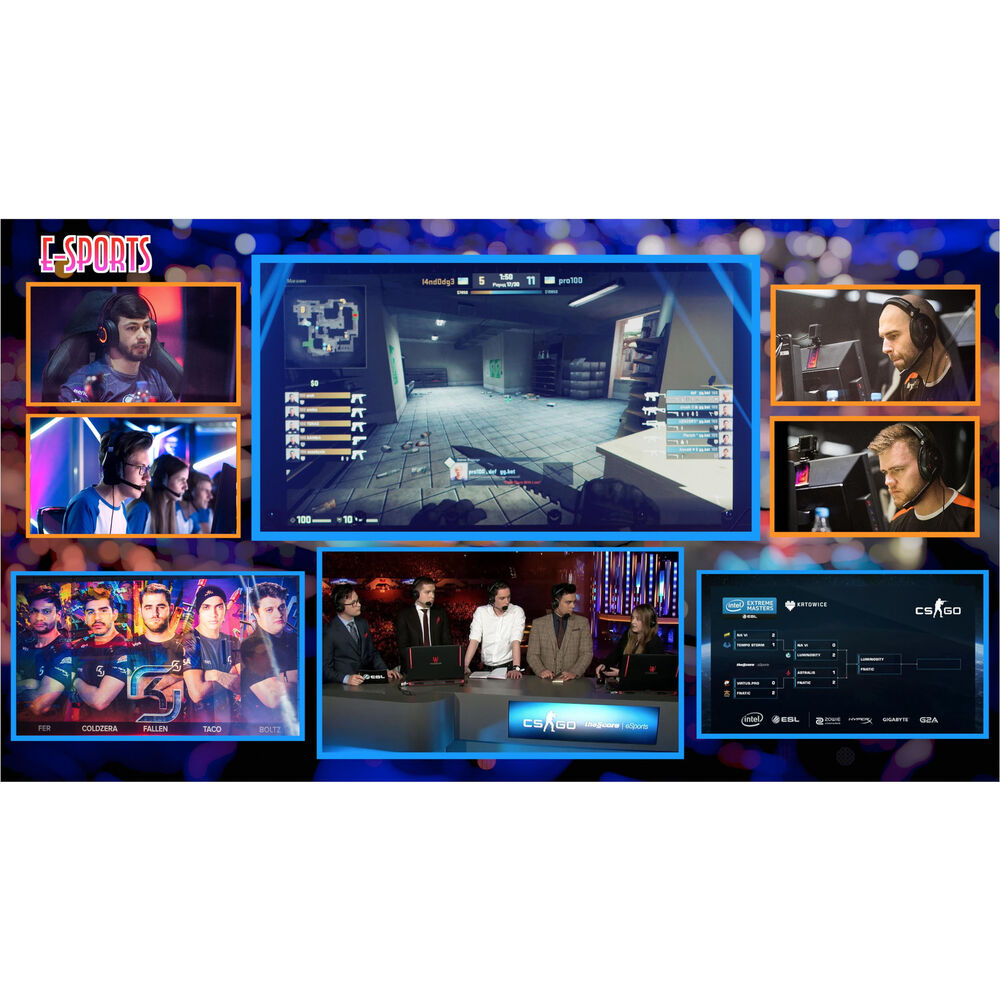

- Up to 8 PIP windows with four displaying FLEX sources
- 4 upstream keyers that support chroma & linear/luma key
- Supports 4 broadcast-quality chromakeyers and 50 virtual studio background images
- 2 logo insertions
- 32 wipe patterns including Circle & Heart and Border & Softness Control
- Clip player (150 frames) for stinger transitions
- The switcher has built-in support for Datavideo CG software. This feature converts a regular HDMI output of a PC or laptop into a fully fledged CG interface for use with Datavideo's CG suites. Free CG-200 software is included.
Technical Specifications:
|
Video Standard |
Full HD |
|
Video Format |
1080p 50/59.94/60 Hz 1080i 50/59.94/60 Hz 720p 50/59.94/60 Hz |
|
Connectors |

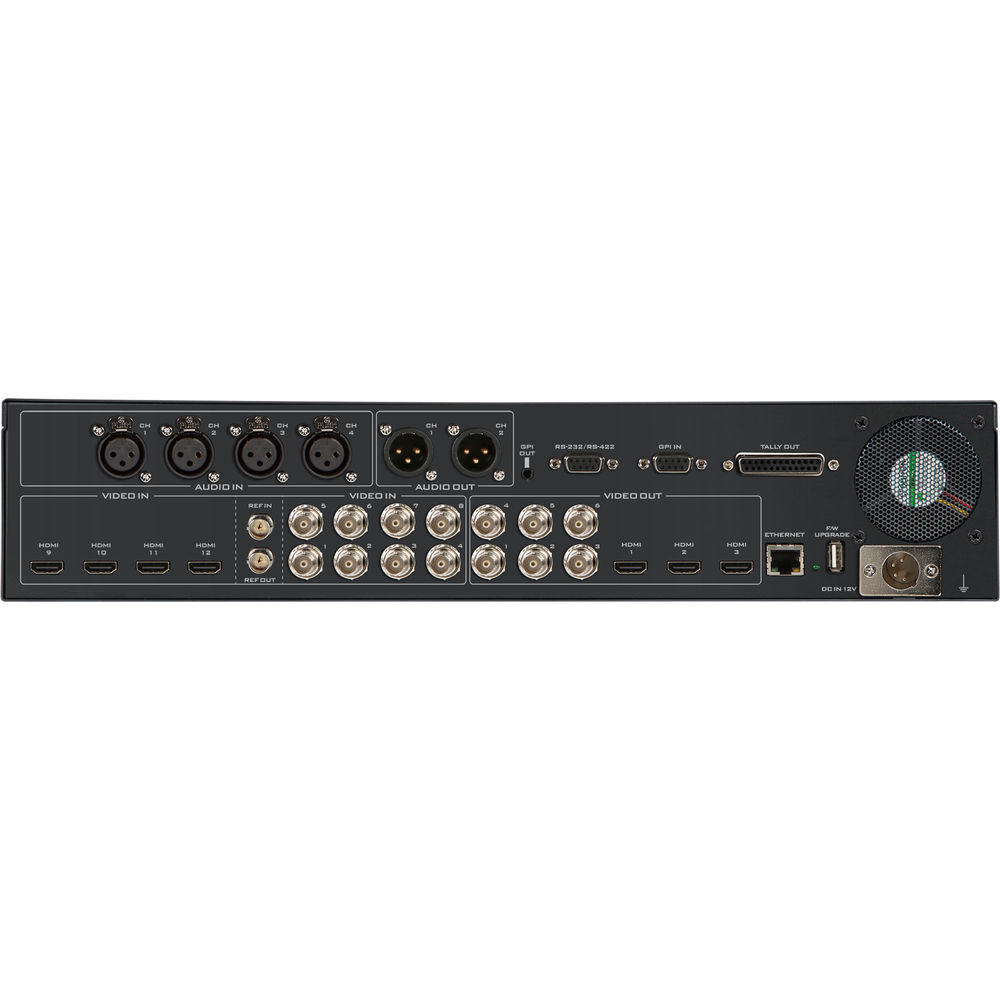

8 x SDI, Video Inputs 4 x HDMI, Video Inputs 6 x SDI, Video Outputs 3 x HDMI, Video Outputs 4 x 3-Pin XLR Balanced, Audio Inputs 2 x 3-Pin XLR Balanced, Audio Outputs 1 x 3.5 mm Jack, GPI Output 1 x 9-Pin RS-232/422, Serial Control 1 x RJ45, Ethernet Port 1 x USB Type-A, Firmware Input 1 x 25-Pin Sub-D, Tally Output 1 x 4-Pin XLR, DC Power Input |
|
Video Processing |
SDI: 4:2:2 HDMI: YUV 4:2:2, RGB: 4:4:4 |
|
Embedded Audio |
4-Ch Audio Output |
|
Audio Delay Calibration |
Up to 16 Fields or 8 Frames per Channel |
|
Power |
12 VDC, 74 W (Main Unit) 16 W (Control Board) |
|
Chassis |
2 RU Rack-Mount Mainframe |
|
Operating Temperature |
32 to 122°F / 0 to 50°C |
|
Storage Humidity |
10 to 80% |
|
Storage Temperature |
14 to 140°F / -10 to 60°C |
|
Certificates |
CE, FCC |
|
Dimensions |
17.0 x 12.2 x 2.9" / 433 x 312 x 76 mm (Switcher) 17.0 x 9.9 x 3.4" / 432 x 252 x 88 mm (Control Board) |
|
Weight |
8.8 lb / 4 kg |
In the Box:
- Datavideo SE-3200 12-Input 1080p Video Switcher
- SE-200 Control Board
- SE-3200 Main Unit
- 2 x 12 VDC Power Supplies
- AC Cord
- DB9-Pin to DB9-Pin Cable
- 12 x Screws
- 2 x 2 RU Ear Racks
- Limited 1-Year Manufacturer Warranty
