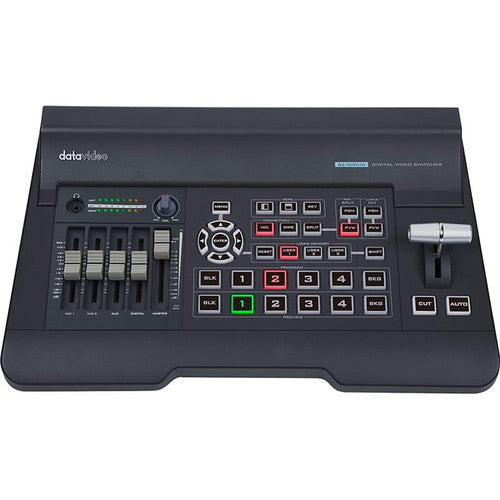

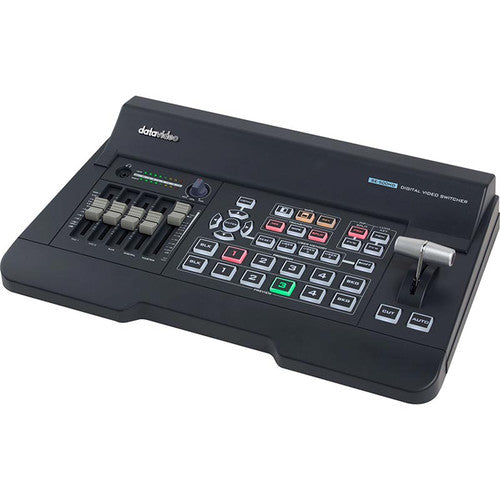

Datavideo SE-500HD 1920 x 1080 4-Channel HDMI Video Switcher
The SE-500HD 1920 x 1080 4-Channel HDMI Video
Switcher from Datavideo features four HDMI inputs and two HDMI outputs, which allow users to connect consumer camcorders, GoPro cameras, HDMI laptops, tablets, and more. It accepts various input resolutions at once, eliminating the need to add converters into the workflow. The SE-500HD switcher is loaded with features such as Luma key for graphic overlays, split screen for podcast interviews, and PIP for PowerPoint presentations. Equipped with a built-in audio mixer, it allows users to plug in microphones and other audio sources directly.
- Computer graphic interface (4 via HDMI)
- 4-channel HD/SD digital video switching
- Supports up to full HD (1920 x 1080) resolution
- 4 x HDMI video input
- 2 x HDMI video output (1 x multiview, 1 x program)
- Audio inputs (1 x stereo RCA, 2 x microphone)
- Audio outputs (1 x stereo RCA, 1 x stereo headphone mini jack)
- Audio mixer (2 x mic, 1 x stereo RCA, 1 x internal digital embedded)
- Audio LED meter
- Transition effects (Wipe, mix, and cut)
- Keyer (Lumakey)
- Picture-in-picture and split functions
- Tally output
- Mix HD & SD source
- Down-converted output
- A+V switching
Technical Specifications:
|
Video Standard |
3D, HD and SD |
|
Video Format |
1080p: 50/59.94/60 Hz 1080i: 50/59.94/60 Hz 720p: 50/59.94/60 Hz 576i: 50 Hz 480i: 59.94 Hz |
|
Video Processing |
HDMI: YUV 4:4:4 10-bit RGB: 4:4:4 |
|

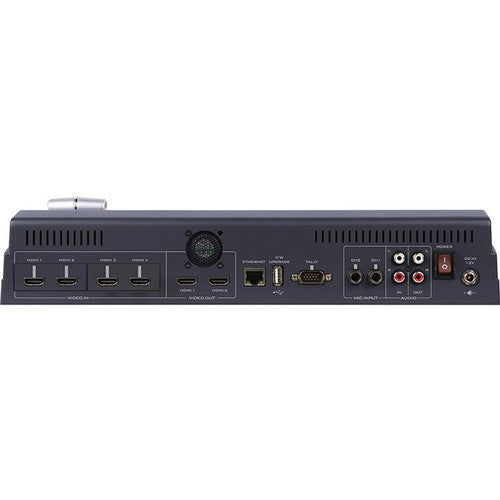

Video Input |
4 x HDMI |
|
Video Output |
2 x HDMI (1 x MV, 1 x PGM) |
|
Monitoring Outputs |
Built-In Multi-View Monitoring Output: HDMI |
|
Audio Input |
1 x Stereo RCA (L/R) 2 x Mono microphone De-embedded digital audio (2-channel) |
|
Audio Output |
1 x Stereo RCA (L/R) 1 x Stereo headphone (mini jack with volume control) Embedded digital audio (2-channel) |
|
Audio Support |
Embedded 2-channel digital/analog audio PCM, LPCM, 2CH, 6CH, 8CH |
|
Tally Output |
1 x D-sub 15-pin, dual color |
|
Firmware Updates |
1 x USB Port |
|
Reference Input & Output Sync |
Built-in genlock (internal) |
|
Effects & Controls |
FTB, cut, mix, wipe with border PIP Split screen Luma Keyer |
|
Audio Mixer |
Built-in four channels |
|
Chassis |
Unibody |
|
Power Requirements |
12 VDC |
|
Operating Temperature |
32°F to 122°F / 0°C to 50°C |
|
Humidity |
10% to 80% |
|
Dimensions |
15.7 x 9.9 x 2.8" / 39.9 x 25.1 x 7.2 cm |
|
Weight |
Not specified by the manufacturer |
In the Box:
- Datavideo SE-500HD 1920 x 1080 4-Channel HDMI Video Switcher
- AD Switch with AC Cord (12 VDC)
- Limited 1-Year Manufacturer Warranty
