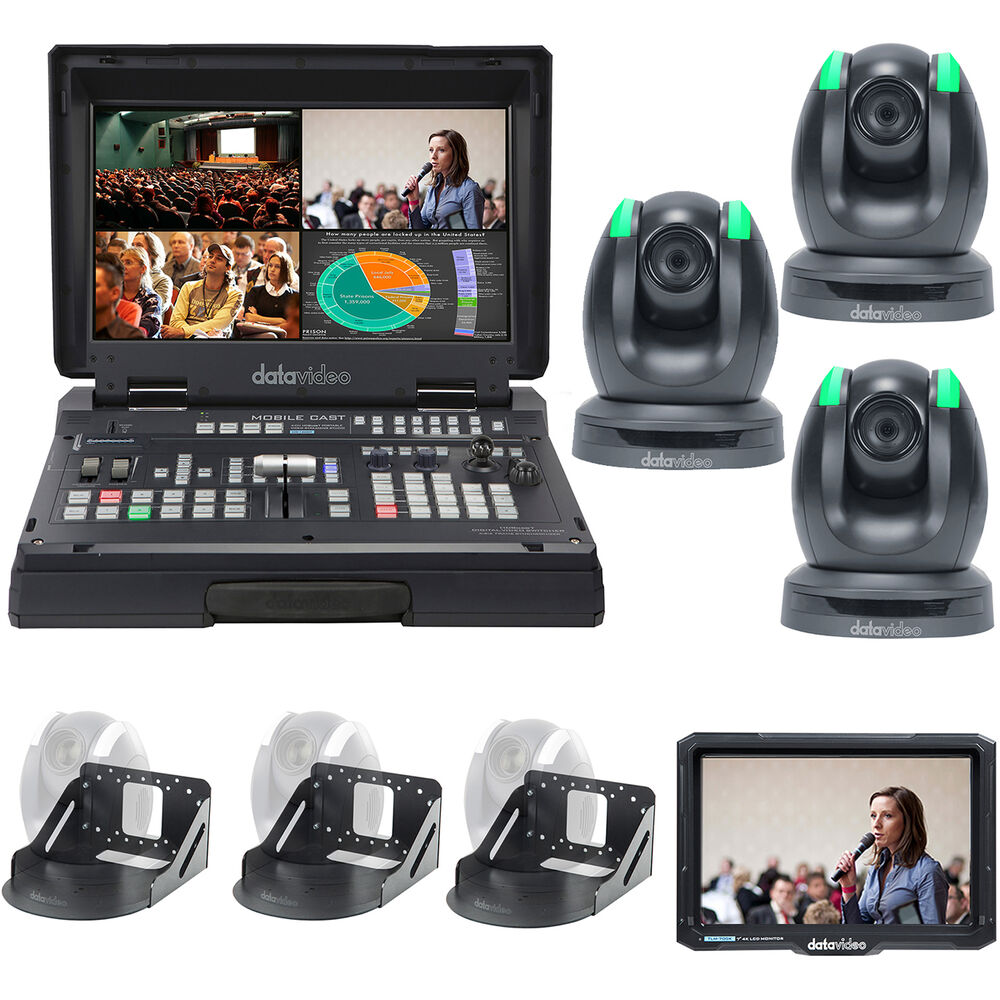

Add a compact PTZ camera streaming solution to your classroom, house of worship, or corporate conference room with this black Streaming Studio Kit with Switcher, 3 x PTZ Cameras, Wall Mounts & Monitor from Datavideo. The HS-1600T Mark II mobile switcher supports three HDBaseT inputs and a single HDMI input, three HDMI outputs and a single HDBaseT output, and a two-channel XLR audio input. Three PTZ cameras, a 7" monitor, and three WM-1 professional wall mounts are also included with the kit.
Bring your broadcast mobile with this HS-1600T Mark II 4-Channel HD/SD/HDBaseT Portable Video Streaming Studio from Datavideo. This mobile studio utilizes HDBaseT technology to control up to three Datavideo PTZ cameras while streaming H.264 video to the web. It features three HDBaseT inputs that can control connected cameras and accept video inputs, as well as one HDMI input to add an additional video source. Three HDMI program outputs allow you to connect to monitors to display your program, one HDMI is for graphics output, and a streaming RJ45 LAN output connector lets you stream live to the Internet using a minimum Cat 6 cable. Depending on the data rate of your stream, you can also record to an optional SD card.The HS-1600T Mark II is built into a suitcase-like form with a 17.3" TFT LCD monitor with 1920 x 1080 resolution built into the lid. The rest of the unit features all the switcher controls, including a T-bar for transitions, a joystick, audio sliders, and a host of buttons for controlling your PTZ cameras, inputs, program outputs, and streaming video. There are also 2RCA and XLR audio inputs to mix analog audio into your program.The monitor supports multiview mode, while the HDMI and streaming output support your program output. The switcher also supports popular mix effects, including picture-in-picture, wipe, mix, and fade, and it incorporates one upstream keyer. It can also send red and green tally signals via the built-in tally connector. The built-in real-time encoder enables live streaming, and you can stream and record your program at the same time.
The black PTC-150TL HD/SD HDBaseT PTZ Camera (No HDBaseT Receiver) from Datavideo captures up to 1080p HD video and features HDBaseT technology for remotely controlling the camera via Cat 6 or above cable. Configured specifically for use with the HS-1500T HDBaseT Production Switcher, the PTC-150TL does not include an HDBaseT receiver.
PTC-150TL video capture functions include wide dynamic range, backlight compensation, and digital noise reduction for detailed imaging. Features include 30x optical zoom, 50 programmable presets, and an IR cut filter for optimal low-light performance. Adjust the camera to your choice of multiple mounting options with the help of the image mirror and rotation functions.For multi-camera shoots, the built-in green/red tally light can be used to signal when the camera is active. Virtual studio applications benefit from the PTC-150TL's support for real-time position reporting on a per frame basis. The PTC-150TL camera supports Sony VISCA protocol for PTZ control using RS-422 interface over the unit's RJ45 port.
The TLM-700K 7" 4K HDMI LCD Monitor from Datavideo is a 16:9 aspect ratio LCD monitor designed for professional DSLRs and camcorders. This 7" Full HD monitor features 1920 x 1200 resolution and HDMI input and loop-through output. The mini-USB port is used exclusively for firmware updates. The monitor operates via its internal rechargeable battery or by the included external power supply. The TLM-700K monitor offers a wide range of professional features including focus assist (peaking), false color filters, a variety of screen markers, underscan mode, check field, and pixel-to-pixel mode.
The black WM-1 Professional Wall Mount from Datavideo is designed for installing a PTC series PTZ camera. This three-piece mount is constructed of durable steel and can be attached right side up or upside down as desired.
Effect Types
3 x Graphic, Transition, Luma Key
Audio Mixing
4-Channel Mixing
Switching Type
Pushbutton, T-Bar
Audio Processing
48 kHz / 16-Bit
Number of Video Input Sources
4
Video Inputs
1 x HDMI Female
3 x RJ45 (HDBaseT) Female
Input Video Format
HDMI / RJ45
1080p at 50/59.94/60 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
576i / 625 lines 50 fps
480i / 525 lines 59.94 fps
Audio Inputs
2 x XLR 3-Pin Stereo Analog Female
1 x 2RCA Stereo Analog Female
Input Audio Format
Analog: 48 kHz / 16-Bit
Embedded Audio Input
HDMI: 2-Channel (per Input)
RJ45: 2-Channel (per Input)
Video Output Channels
Video Outputs
3 x HDMI Female (Program)
1 x RJ45 (HDBaseT) Female
1 x RJ45 Female
Output Video Format
Audio Outputs
1 x 1/8" / 3.5 mm TRS Stereo Analog Female
Output Audio Format
Embedded Audio Output
HDMI: 2-Channel
RJ45: 2-Channel
Multiview Output
Yes
Other I/O
1 x DE-15/DB-15 Tally Output
HDCP Support
None
IP Video
H.264:
1920 x 1080 at 60p (10 Mb/s) Encoding
IP Audio
AAC-LC: 32 to 384 Kb/s Encoding
Transport Protocols
TCP/IP, RTMP, RTMPS, RTSP, TCP, UDP
Simultaneous Streams
1 Streams
Recording Media
1 x SDXC, SDHC (UHS-I [104 MB/s])
Recording Modes
1920 x 1080p (MP4 via H.264/AVC)
Display Size
17.3"
Screen Resolution
1920 x 1080
Wi-Fi
Bluetooth
Power I/O
1 x XLR 4-Pin (48 VDC at 4.1 A) Input
Operating Temperature
32 to 72°F / 0 to 40°C
Dimensions
17.9 x 14 x 5.3" / 45.5 x 35.5 x 13.4 cm
Weight
17.2 lb / 7.8 kg
Datavideo PTC-150TL HD/SD-SDI HDBaseT PTZ Camera (No Receiver, Black) Specs Interface
3G/HD/SD-SDI: 1 x BNC
Composite: 1 x BNC
HDMI: 1 x HDMI type A (HDMI 1.3)
HDBaseT: 1 x RJ45
Control: 1 x RS-422
Other Connectors
USB: 1 x Type-A (updates only)
DC In: 1 x barrel (12 V, 29 W)
Control
1 x RJ45, RS-422
1 x RJ45, DVIP
Supported Formats
1080p: 59.94/50/29.97/25
1080i: 59.94/50
720p: 59.94/50
480i, 576i: Via composite
Image Sensor
1/2.8" type CMOS sensor
Effective Pixels
2.14 MP
S/N Ratio
50 dB
Minimum Illumination
Color: 0.4 lx
Black/White: 0.03 lx
(f/1.6, 1/30 sec, 50 IRE, high gain)
Electronic Shutter
1/25, 1/30, 1/50, 1/60, 1/75, 1/90 sec
1/100, 1/120, 1/125, 1/150, 1/180, 1/215, 1/250 sec
1/300, 1/350, 1/425, 1/500 sec
1/600, 1/725, 1/1000, 1/1250, 1/1500 sec
Gamma
Off, Normal, Standard Modes 1-4
Iris Control
Auto/Manual
Digital Noise Reduction (DNR)
On Screen Display
English
White Balance
AWB / MWB / One-Push WB / Outdoor / Indoor / Fluorescent
Gain Control
Max. Gain Limit
Flip / Mirror
Focus Modes
Type
30x optical zoom
Focal Length
4.3 to 129mm
Aperture Range
f/1.6 to 4.7
Field of View
Horizontal, Wide: 63.7 to 2.3°
Filter Thread
UV protection
M52 x 0.75 thread
Pan Range
270°
Tilt Range
90 to -20°
Pan/Tilt Speed
Manual: 1 to 150°/sec
Swing: 1 to 150°/sec
Preset
50 positions
Remote Control Distance
Maximum:
RS-422: 3281' / 1000 m
HDBaseT (RJ45) / DVIP: 328' / 100 m
8.6 x 6.8 x 1.8" / 218.9 x 173 x 46.6 mm
Not specified by manufacturer
Datavideo 7" 4K HDMI LCD Monitor For Professional DSLR And Camcorder Specs Display
Panel Type
TFT LCD
7.0" / 17.8 cm
Aspect Ratio
16:9
Viewing Angle
Horizontal: 170°
Vertical: 170°
Touchscreen
No
Maximum Brightness
450 nits / cd/m2
Contrast Ratio
1000:1
Pixels Per Inch (ppi)
323 ppi
Image Controls
Check Field, Color Temperature Selection, False Color, Focus Assist, Focus Peaking, Histogram, Image Flip, Marker Color, Pixel-to-Pixel Zoom, Scaling, Screen Markers, Underscan, Waveform
Video
1 x HDMI Type A (HDMI 1.4b) Input
1 x HDMI Type A (HDMI 1.4b) Loop Output
Yes, Version 1.4
Embedded Audio
HDMI
Audio I/O
1 x 1/8" / 3.5 mm Headphone Output
Built-In Speaker
1 x Barrel (12 VDC) Input
1 x Mini-USB (Serial)
Card Slot
Video Format
DCI 4K: 24
UHD 4K: 30/29.97/25/24/23.98
DCI 2K: 60/59.94/50
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50/30/29.97/25/24/23.98
576i: 50
576p: 50
480i: 60/59.94
480p: 60/59.94
Battery Type
1 x L-Series
Power Consumption
12 W
Certifications
CE, FCC, as per Manufacturer
5.1 x 1.5 x 7.2" / 129 x 37 x 182 mm, Including
10.58 oz / 300 g, Including
Warranty Length
Limited 1-Year Warranty
