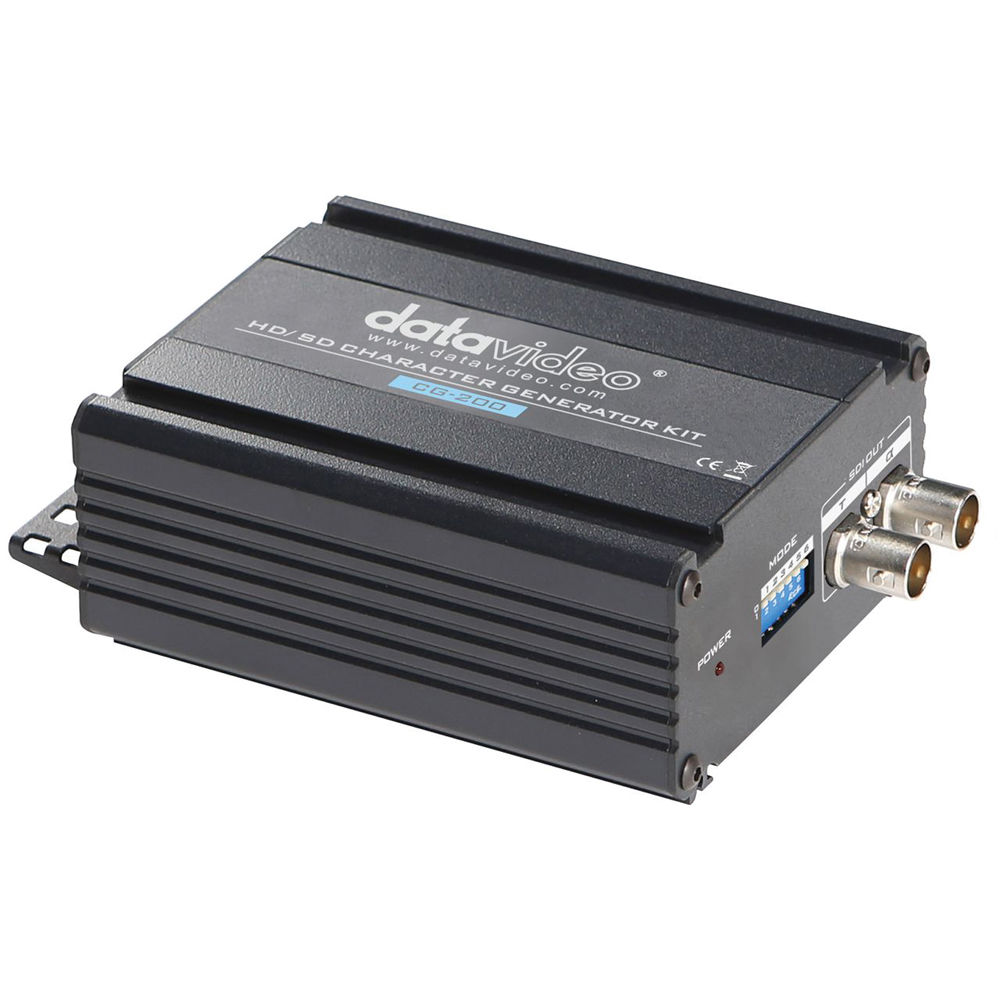

Datavideo TC-200 & CG-200 HD/SD Character Generator Kit

Rs. 89,680.00 Rs. 82,000.00
On Special Order (Expected shipping: 2-4 weeks)
Key Features:
  • TC-200 Overlay Box + CG-200 CG Software
  • On-Screen Graphics and Titling Solution
  • Supports Mixers with and Without DSK
  • Minimal PC Processing Power Required
  • SDI Input Supports Overlay Mode
  • 2x SDI Outputs Supporting DSK Fill & Key
  • No PCI Card, No SDI Adapter Required
  • Overlay Mode Substitutes for Lack of DSK
  • Supports 7.2V and 14.4V DV Batteries
  • Compatible with Windows 7/8

The Datavideo TC-200 & CG-200 HD/SD Character Generator Kit combines the TC-200 Overlay Box with the CG-200 CG software into an on-screen graphics and titling solution that requires minimal PC processing power. Using a standard laptop, you can create and deliver striking on-screen graphics and titles in real-time, ideal for mobile broadcasting and live video presentations. All your laptop requires, beyond common standard specs, is an HDMI input.

The TC-200 offers an SDI input supporting Overlay mode and two SDI outputs supporting DSK (down-stream keyer) Fill and Key signals, allowing you to forego the use of an SDI adapter installed into your computer, and in turn allowing you to use a laptop on-the-go. This kit supports vision mixers with and without a DSK. In cases without a DSK, the TC-200 Overlay Box's Title Overlay mode substitutes for the lack of it.

The TC-200 works on 7-15V of operating voltage. It supports 7.2V and 14.4V DV batteries using an optional Datavideo MB-4 Battery Adapter (required).

Key Features:
  • Live Title Generator
  • No additional PCI card required
  • Supports SDI overlay function or DSK function via HDMI
  • Support HD/SD SDI input and output in Overlay mode
  • Supports 1080i60/59.94/50, 720p60/59.94/50, 576i50, and 480i59.94
  • Title editing on laptop
  • Compatible with Windows 7/8 and supports all Windows fonts
  • Multi-language support
  • Supports animations including JPG, TAG, GIF, BMP, PNG
  • Supports scrolling
  • Title editing patterns include Slide and Reveal
  • Easy logo setups
  • User definable clock display
  • TC-200 Overlay Box features a 7-15V working voltage and can be used with 7.2V and 14.4V batteries (an optional Datavideo MB-4 battery adapter is required)
DSK Mode
The TC-200 and CG-200 can be used with a vision mixer equipped with a DSK (down-stream keyer). In such a setup, they can be set up as the key source or fill source. Any vision mixer with a DSK is supported, such as the Datavideo SE-2800 and SE-3000.

Overlay Mode
When no DSK is being used, the Title Overlay mode substitutes for the lack of it. Using the TC-200 Overlay Box, the HDMI output from a laptop is embedded with the SDI output from a camcorder, VTR, or vision mixer.

Text & Animation Tool
This tool allows you to edit color, size, transparency, board, location, and alignment.

Scrolling Function
Puts all the contents you need in text frame. Scrolling speeds can be preset.

The CG-200 software adapts UNICODE and supports all fonts in Windows.

Overlay Function
The TC-200 combines CG from the laptop's HDMI port with the SDI video signal and overlays graphics in real-time.

Text File Loading
The CG-200 software is capable of directly importing text files.

Technical Specifications:

Text Sources

Frame text, clock, text file, CSV file

File Format


Animation Formats

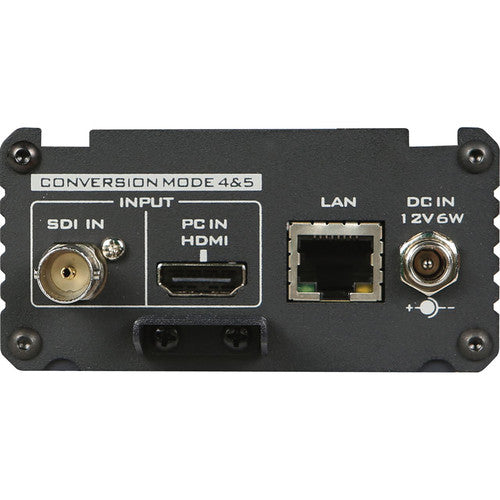

Input / Output

1x HDMI input

1x HD-SDI input

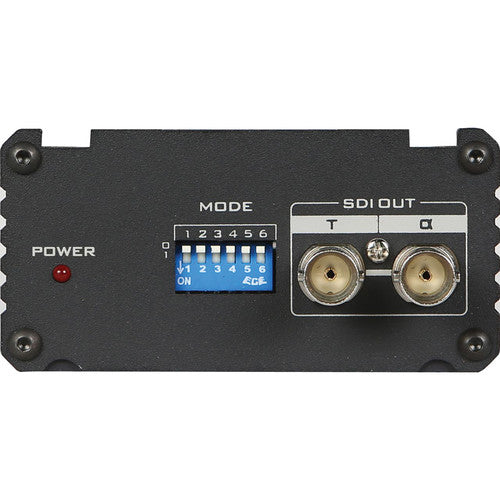

2x HD-SDI outputs

1x LAN port

Input Formats

1920 x 1080i / 60 Hz

1920 x 1080i / 59.94 Hz

1920 x 1080i / 50 Hz

1280 x 720p / 60 Hz

1280 x 720p / 59.94 Hz

1280 x 720p / 50 Hz

720 x 576i / 50 Hz

720 x 480i / 59.94 Hz

Input Modes

CG Overlay:

HDMI input is CG; SDI input is Live Video

Genlock Mode:

HDMI input is CG; SDI input is Reference Signal

Reference with Internal Signal:

HDMI input is CG; SDI input isn't in use

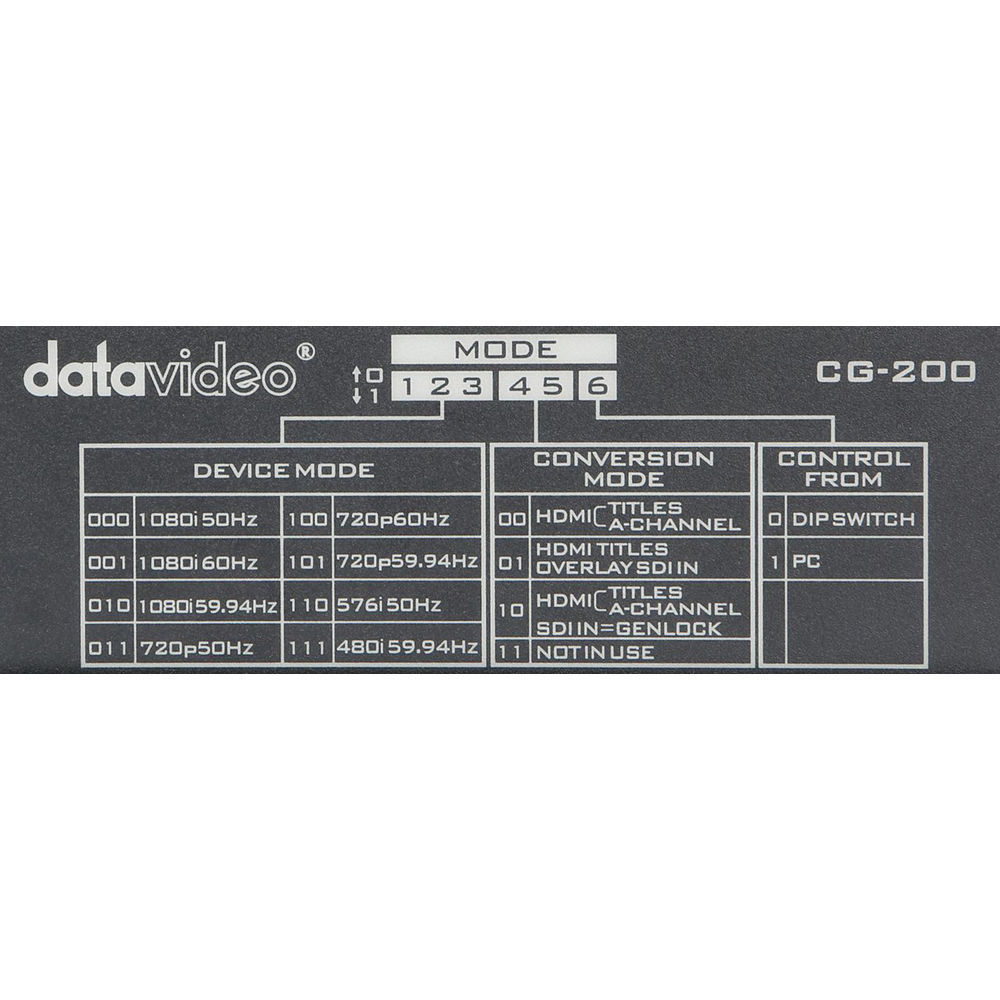

Conversion Modes

HDMI signal is split into titles and alpha channel

HDMI signal is split into titles and alpha channel with Genlock

HDMI titles overlay over the input SDI signal


Dip switch; PC

Voltage Range

7-15 VDC (most of battery is 7.2V, 12V & 14.4V so will need to cover it)

Firmware Upgrade


System Requirements

Windows 7, 8 operating system; 3 GHz processor; 2 GB RAM


In the Box:

  • Datavideo TC-200 & CG-200 HD/SD Character Generator Kit
  • Power Supply for TC-200
  • Installation Disc for CG-200
  • User Manual
  • 1-Year Limited Warranty
