Datavideo Universal Remote Control Panel for Datavideo PTZ & Block Cameras

Rs. 151,040.00 Rs. 140,000.00
On Special Order (Expected shipping: 2-4 weeks)
Key Features:
  • Remote Control 24 Cameras via DVIP
  • Remote Control 8 Cameras via RS-422
  • Integrated 5" Touchscreen Display
  • Panel Keys, Zoom Knob, Pan/Tilt Joystick
  • Control Camera, Switcher, and Recorder
  • Brightness Slider of Keyboard Brightness

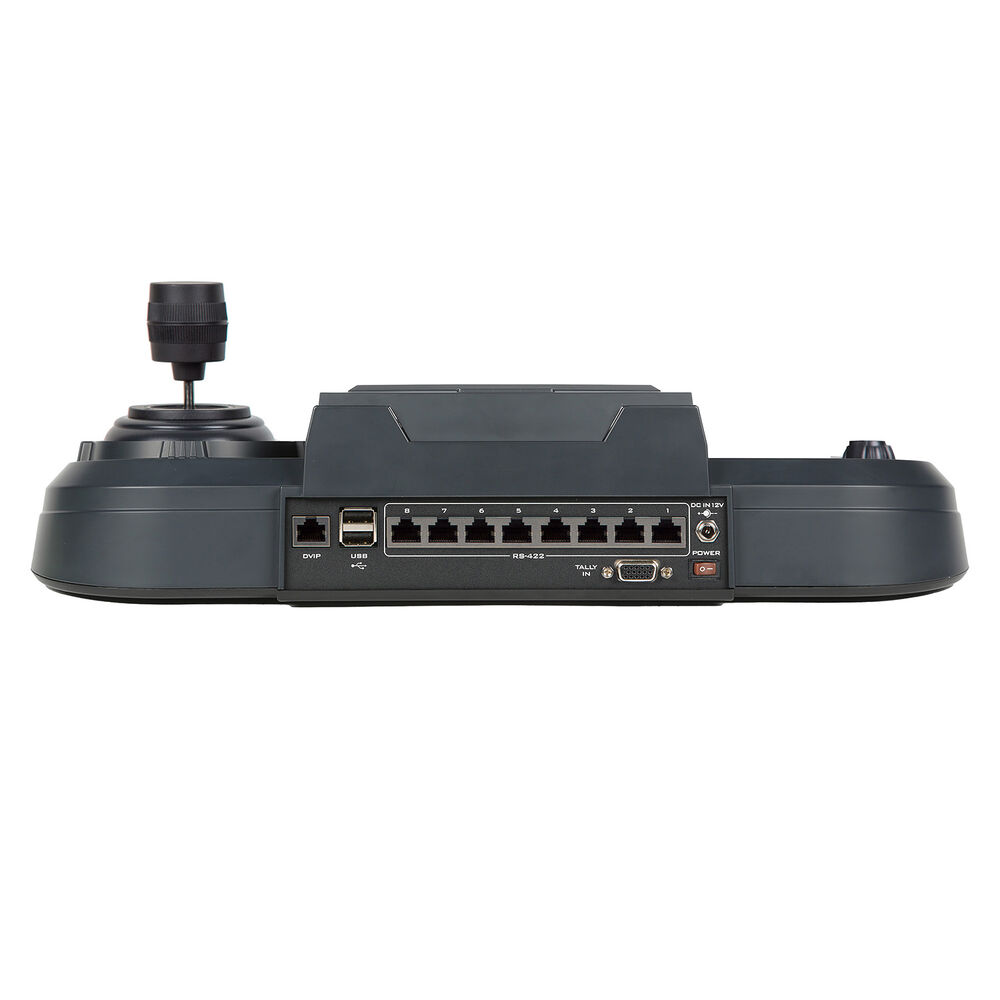

Well suited for EFP as well as house of worship, education, and corporate productions, the Datavideo Universal Remote Control Panel for PTZ and block cameras is a lightweight, portable control panel that is big on features. The back panel features 8 x RJ45 connectors that support RS-422 to control your compatible PTZ cameras (up to 8); an additional RJ45 connector supports DVIP protocol and allows you to control up to 24 cameras/devices (optional network router required). A D-sub 15-pin female connector outputs tally signals to connected cameras—red indicates On-air and Green indicates next camera source. A USB 2.0 port for firmware upgrades as well as a power switch and power connector complement the controler's back panel.

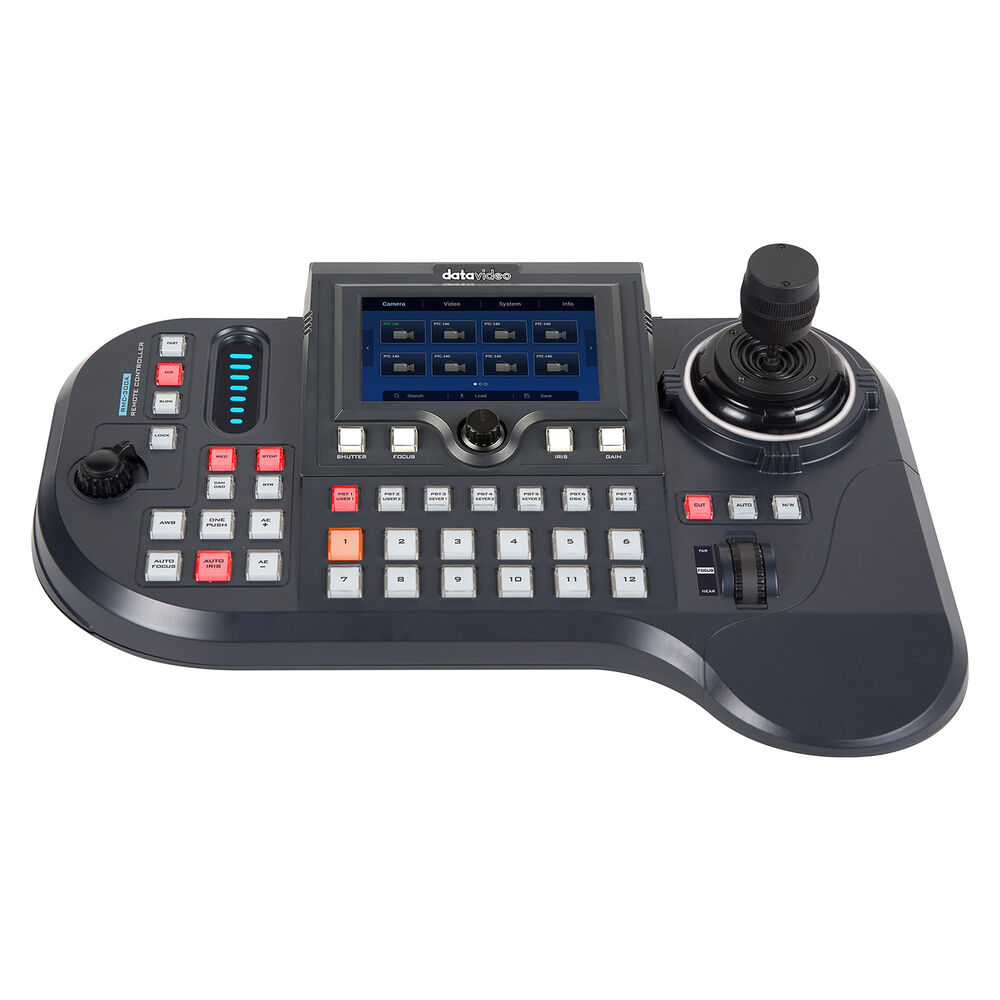

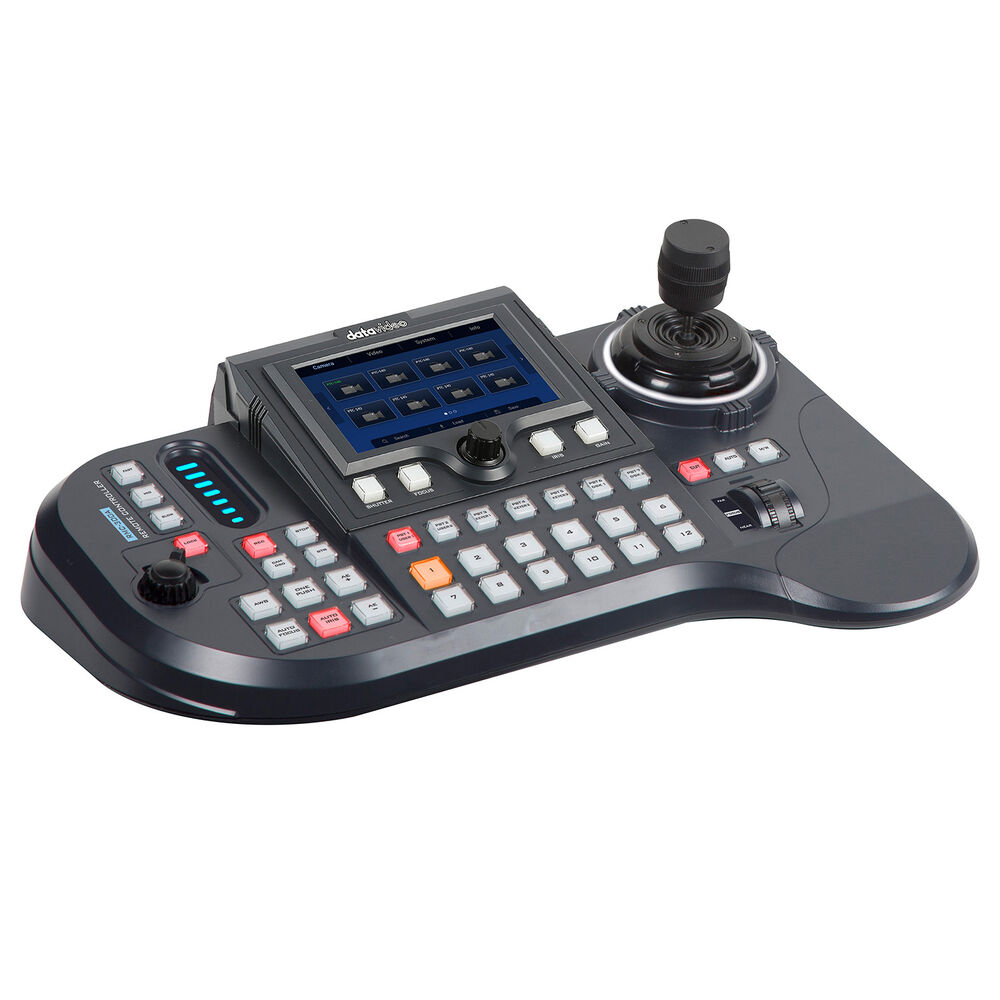

The RMC-300A features an integrated 5" touchscreen for setup, control, and data input using a keyboard mode. The panel also features a transition scroll wheel and push buttons for dedicated functions such as shutter, iris, focus, and gain for camera control as well as switcher functions such as cut and mix/wipe. Standard camera tools including a zoom knob and pan/tilt joystick are built into the panel. You can create up to 7 presets for each connected camera and easily trigger them via the built-in programable preset buttons.

The panel buttons are color illuminated and a slider control lets you adjust the brightness. The unit ships with a 12 VDC power adapter.

General:
  • Remote control via RS-422 or DVIP port
  • Control up to 24 Datavideo PTZ/block cameras with 7 presets for each camera
  • RGB keyboard for easy identification of keyboard functions
  • User-friendly UI on 5" touchscreen for easy camera setup
  • Zoom knob and pan/tilt joystick for adjusting the zoom ratio and lens position
  • Easy-to-use and high precision
  • Control camera, switcher, and recorder from a remote location
  • Firmware upgradable via USB 2.0 port
Touchscreen Control
The 5" touchscreen allows you to select from camera, switcher, recorder, and control panel tabs for fine control of settings and functions

PTZ Control
Control PTZ speed for zoom, pan, and tilt as well as camera position, and set up to 7 x preset positions for each camera

Technical Specifications:

Number of Supported Cameras

24 Channels via IP

8 Channels via RS-422

Supported Control Protocols

DVIP

RS-422

Control I/O

8 x RJ45 (RS-422)

1 x RJ45 (DVIP)

Other I/O

1 x DE-15/DB-15 (Tally)

2 x USB Type-A

Presets

7

Size

5"

Resolution

1280 x 720

Touchscreen

Yes

PoE Support

None

Power Connectors

1 x Barrel / Coaxial

Power Consumption

<19 W

DC Input Power

12 VDC

Operating Temperature

32 to 72°F / 0 to 40°C

Storage Temperature

14 to 140°F / -10 to 60°C

Operating Humidity

10 to 80%

Security Lock Support

None

Dimensions

16.5 x 11.6 x 5.3" / 420 x 294 x 134 mm

Weight

3.31 lb / 1.5 kg



In the Box:

  • Datavideo Universal Remote Control Panel for Datavideo PTZ & Block Cameras
  • 12 VDC Power Adapter
  • Limited 1-Year Manufacturer Warranty
