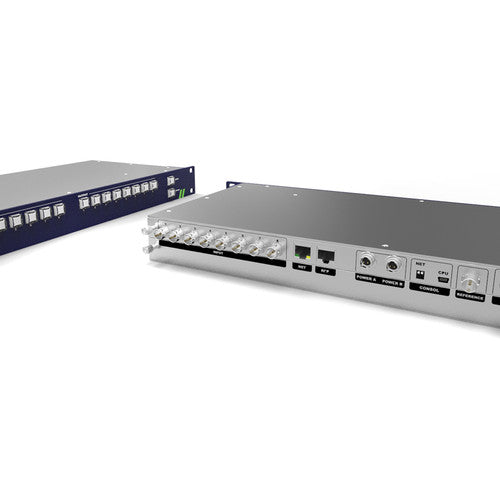

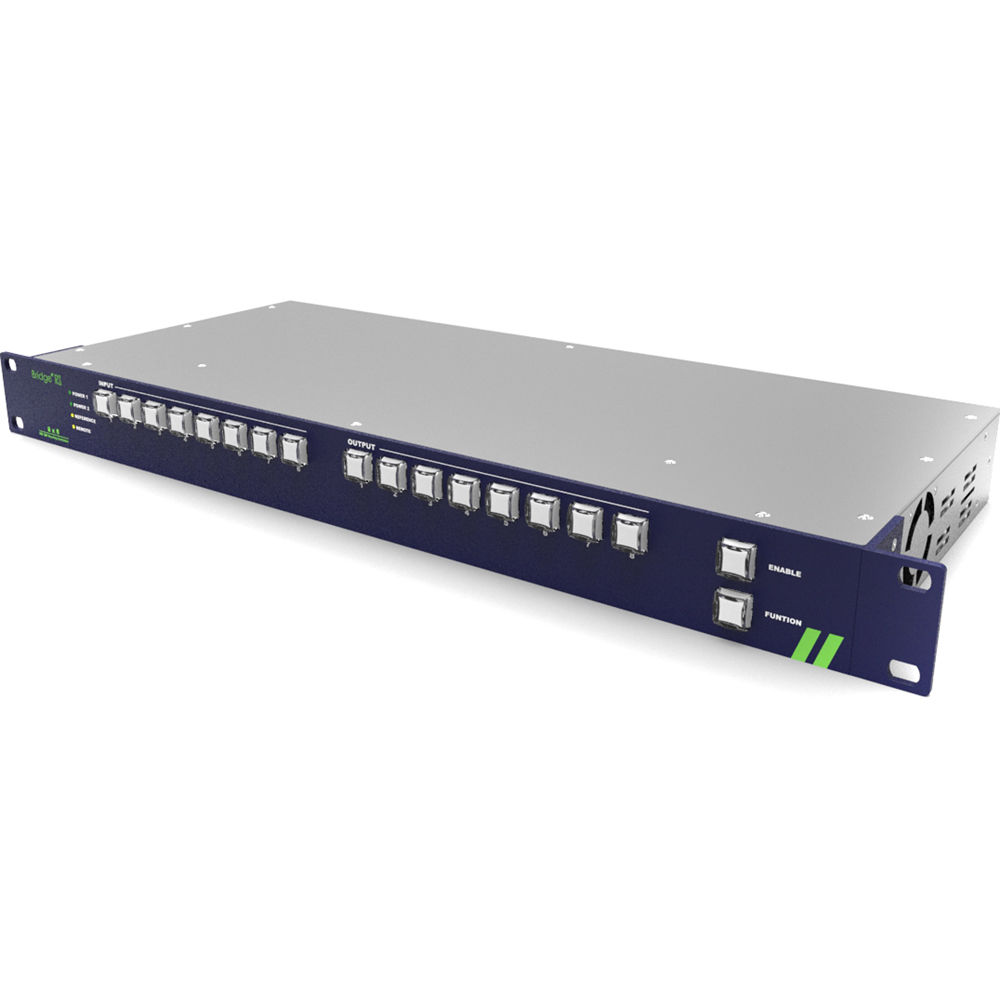

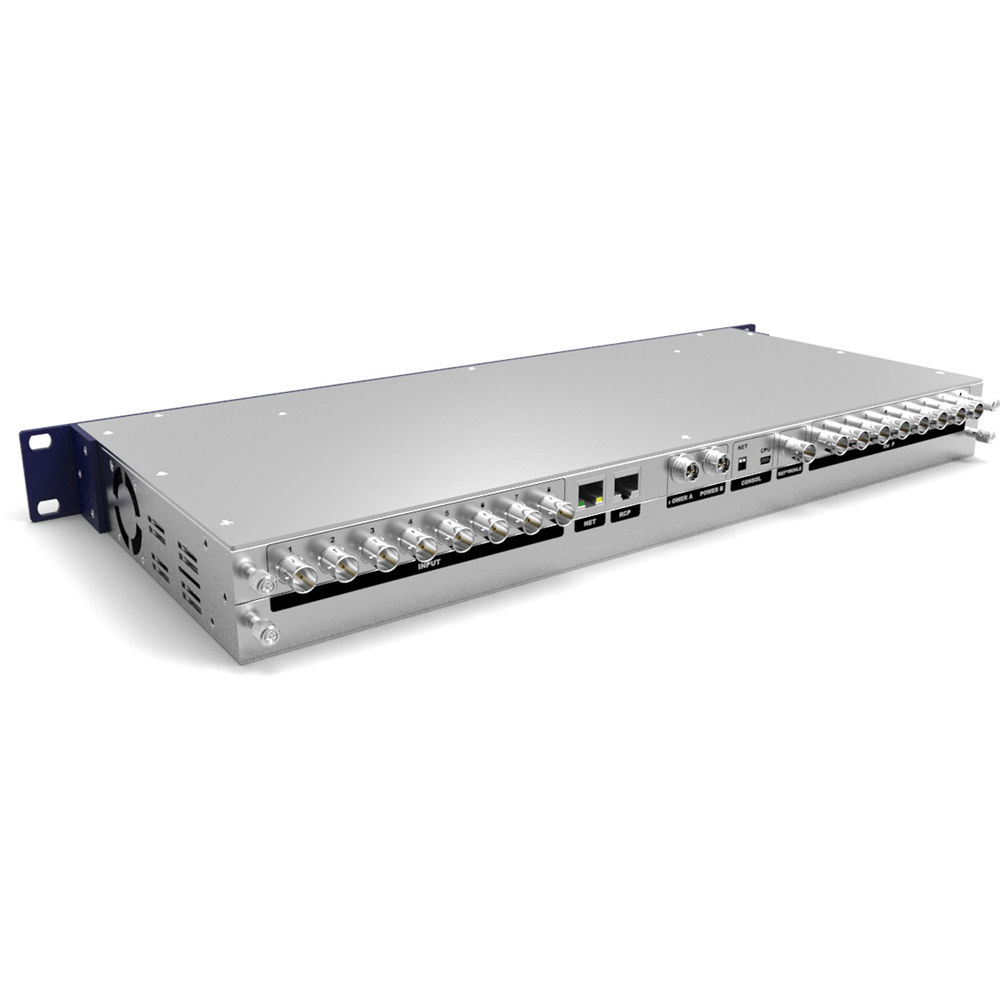

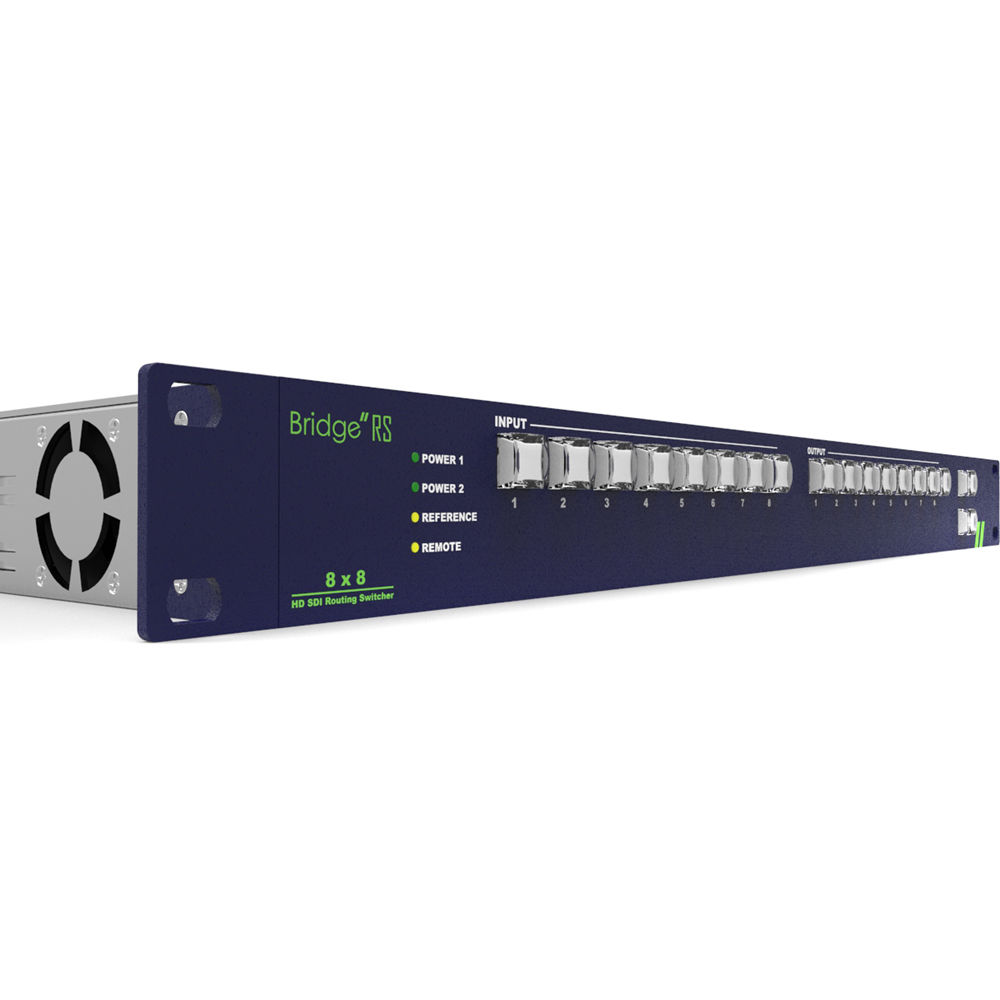

DIGITAL FORECAST 8x8 3G-HD-SD/SDI Routing Switcher
This product is Out of stock
The DIGITAL FORECAST 8x8 3G-HD-SD/SDI Routing Switcher supports 8x8 SDI video input/outputs. It recognizes SD, HD and 3 Gb/s SDI signals automatically and offers reclocked SDI output. It runs on 12 VDC/3A dual power supply. The switcher also provides vertical synchronization of the reference signal. In addition, it also comes with the APC function, RCP, Preset Set, and a button to provide added convenience to the user.
- HD/SD SDI inputs
- Network control APC function
- Network EMS support via Livenet
- Reclock SDI output
- Dipswitch configuration
- State LED expression
- Dual 12 VDC/3A power supply
Technical Specifications:
|
Type |
8x8 |
|
Inputs |
8 x HD/SD/ASI input (SD/SD/3G) 8 x HD/SD/ASI input (SD/SD/3G) |
|
LED |
Front status |
|
Remote |
Remote controller via RS422 port |
|
Power Supply |
Dual 12 VDC, 3 A |
|
Formats |
NTSC (480i 59.94), PAL (576i 50), 720p (60/59.94/50), 1080i (60/59.94/50), 1080p (30/29.97/25/24/23.98), 1080p (60/59.94) 3G |
|
Dimensions |
19 x 3.5 x 1.7" (483 x 91 x 44 mm) |
|
Weight |
4.4 lb (2 kg) |
In the Box:
- DIGITAL FORECAST 8x8 3G-HD-SD/SDI Routing Switcher
- Limited 2-Year Manufacturer Warranty
