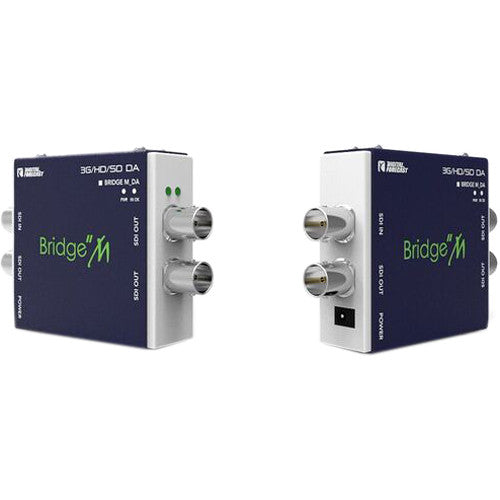

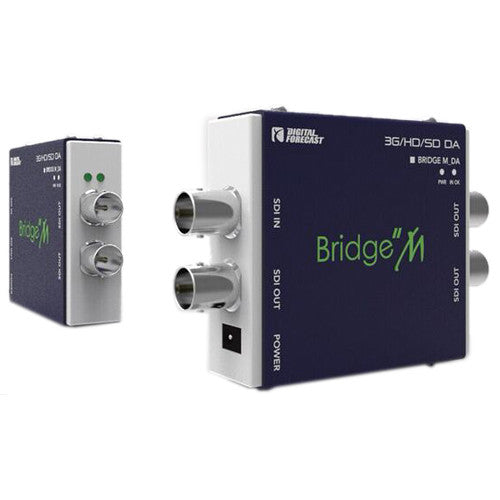

The M-DA is part of the Digital Forecast Bridge M Series (Micro Type Converters) and is a Serial Digital video distribution amplifier that allows you take a single SDI signal and send it out to up to three devices. SD, HD, and 3G-SDI standards are supported. The M-DA distributes SDI SMPTE standard signals supporting formats up to 1080p60. There is a built-in re-clocker and cable equalizer - ensuring accuracy up to 100m/328ft in HD.

• Features:

  • HD/SDI distribution amplifier
  • Inside cable equalizer & re-clocker
  • Up to 100m (HD grade) , Up to 60m (3G grade)
  • 1 HD/SDI input ( SD/HD/3G all standard format )
  • 3 HD-SDI out ( SD/HD/3G all standard format )
  • DC 5V ~ 24V wide operating range


• Specifications:

  • Physical
  • Dimension (H x W x D): 68 x 59.2 x 20 mm (2.7" x 2.3" x 1")
  • Weight: 90g (3.2 oz)
  • Power Level: +12 VDC
  • Power Consumption: 3.0Watts (Max : 4Watts)
  • Operating Temperature: -20° ~ 70°
  • Humidity: 0 to 95% RH, non-condensing
  • Data Rate: 3 Gbps
  • Signal Level: 800mVp-p +/- 50m

    Digital Video Specs
  • Supports multi-rate SDI formats
  • SMPTE 125M: NTSC (480i 59.94), PAL (576i 50)
  • SMPTE 296M: 720p (60/59.94/50)
  • SMPTE-274M,SMPTE-292M: 1080i (60/59.94/50) 1080p (30/29.97/25/24/23.98)
  • SMPTE-424M: 1080p (60/59.94) 3G


• Warranty:

  • 2 Years

In the Box:

• DIGITAL FORECAST Bridge Micro 3G/HD/SD-SDI Recloking 1x3 Video Distribution Amplifier
