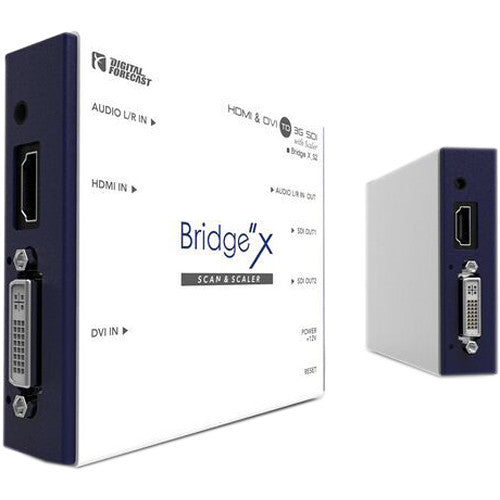

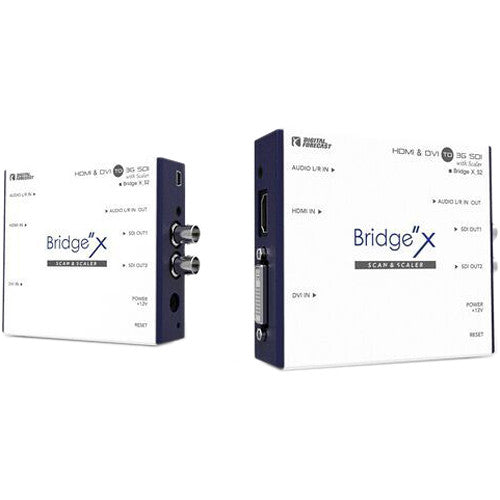

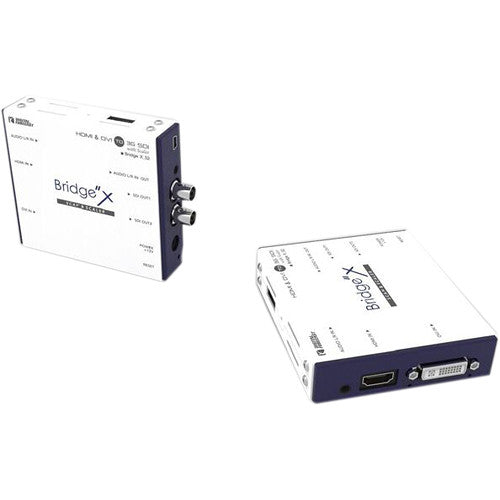

The DIGITAL FORECAST Bridge X Series HDMI & DVI to 3G-SDI Converter converts HDMI / DVI signals into SDI SMPTE-standard signals. It can support formats up to 1080p60 and features a selectable mux audio source between embedded HDMI and analog L/R. The converter also allows you to set the output in a specific format. In addition, it also comes with a built-in scaler.
- HDMI or DVI to SDI converter
- PC DVI format support
- Video scaler function inside high video processing engine
- Normal bypass mode or fixed scan converter mode for standard 1080i50/1080i59.94 broadcast formats
- Fixed format setting with USB serial (default: 1080i)
Technical Specifications:
|
Inputs |
1 x HDMI 1 x DVI 1 L/R stereo audio (stereo audio jack) |
|
Output |
2 x HD-SDI out (SD/HD/3G all standard formats) |
|
Formats |
Supports HDMI v1.3 Supports DVI format Supports multi-rate SDI formats SMPTE 125M: NTSC (480i 59.94), PAL (576i 50) SMPTE 296M: 720p (60/59.94/50) SMPTE-274M, SMPTE-292M: 1080i (60/59.94/50) 1080p (30/29.97/25/24/23.98) SMPTE-424M: 1080p (60/59.94/50) 3G |
|
Input Voltage |
12 VDC |
|
Power Consumption |
5.28 W Maximum: 6 W |
|
Operating Temperature |
-4 to 158°F (-20 to 70°C) |
|
Humidity |
0 to 95% RH, non-condensing |
|
Dimensions |
4.13 x 3.7 x 0.98" (105 x 94 x 25 mm) |
|
Weight |
5.8 oz (165 g) |
In the Box:
- DIGITAL FORECAST Bridge X Series HDMI & DVI to 3G-SDI Converter with Scaler
