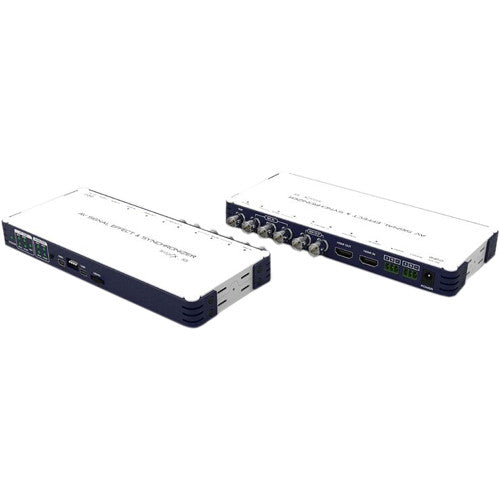

DIGITAL FORECAST Bridge X_SDI AV Signal Effect and Synchronizer Premium Converter
The DIGITAL FORECAST Bridge X_SDI AV Signal Effect and Synchronizer Premium Converter features 1 Reference, 1 HDMI, and 3 SDI inputs, and 2 SDI and 1 HDMI outputs. It has built-in frame-sync and audio delay functions, and it also supports an optional single keyer and logo generator.
- SDI / HDMI Cross Converter
- Analog audio Mux / Demux
- Users can choose output from SDI or HDMI input using Toggle button
- Audio processing with delay
- Frame synchronizing
- Menu OSD function
Technical Specifications:
|
Inputs |
3 x SDI 1 x HDMI 1 x Reference |
|
Outputs |
2 x SDI 1 x HDMI |
|
Video Formats |
HDMI v1.3 DVI Multi-rate SDI SMPTE 125M: NTSC (480i 59.94), PAL (576i 50) SMPTE 296M: 720p (60/59.94/50) SMPTE-274M, SMPTE-292M: 1080i (60/59.94/50), 1080p (30/29.97/25/24/23.98) SMPTE-424M: 1080p (60/59.94/50) 3G |
|
Power |
Power Level: +12 VDC |
|
Power Consumption |
7.73 W |
|
Operating Temperature |
-4 to 158°F / -20 to 70°c |
|
Humidity |
0 to 95% RH, non-condensing |
|
Dimensions |
8.26 x 3.54 x 0.8" / 210 x 90 x 22 mm |
|
Weight |
11.1 oz / 315 g |
In the Box:
- DIGITAL FORECAST Bridge X_SDI AV Signal Effect and Synchronizer Premium Converter
- Limited 2-Year Manufacturer Warranty
