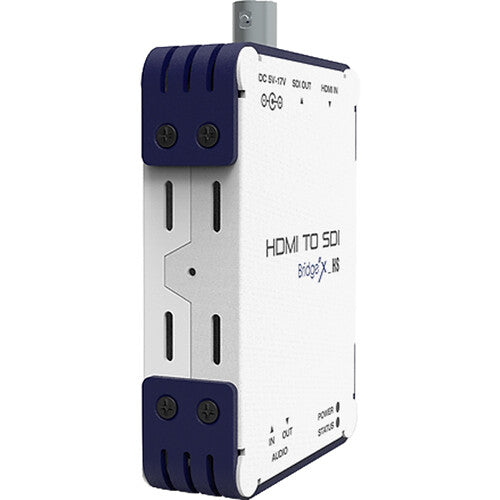

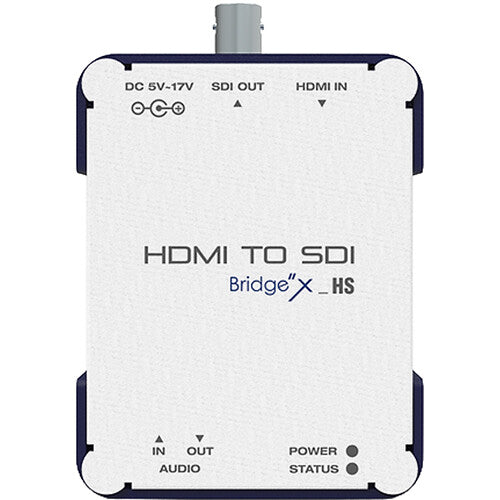

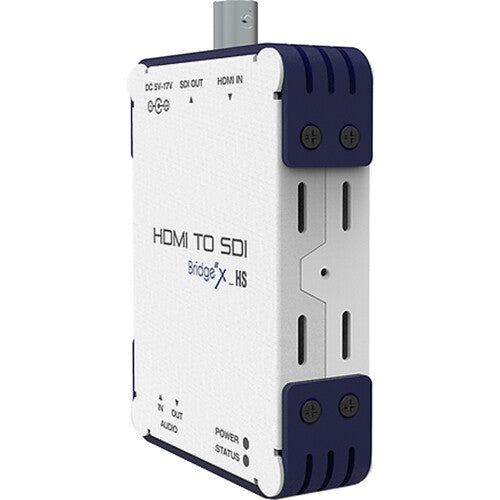

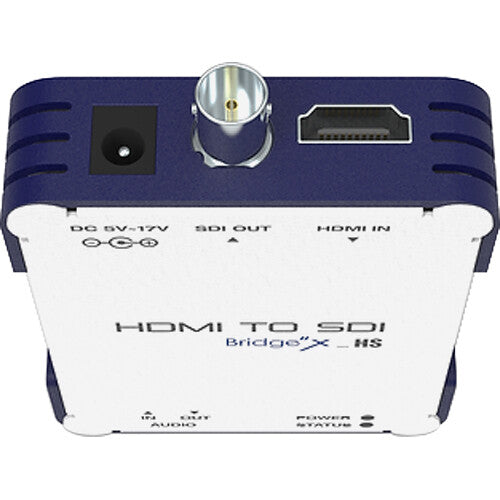

DIGITAL FORECAST HDMI to SDI Premium Converter
This product is Out of stock
The HDMI to SDI Premium Converter from DIGITAL FORECAST can convert a HDMI signal to a SDI signal of SMPTE standards. It can support formats up to 1080p60 and PC formats up to 1600 x 1200. In addition, the converter can insert an analog audio into a SDI signal (Mux) and extract audio from a HDMI signal (Demux).
- HDMI to SDI converter
- One HDMI input (SD/HD/FHD all standard format)
- One SDI output (SD/HD/FHD all standard format)
- Selectable mux audio source between embedded HDMI and analog audio
- Supports rackmount frame (1U, maximum 6 units)
- Supports HDMI v1.3
- Supports multi-rate SDI formats
Technical Specifications:
|
Inputs/Outputs |
1 x HDMI 1 x External stereo audio input/output 1 x SDI |
|
Data Rate |
3G |
|
Supported Formats |
SMPTE 125M: NTSC (480i 59.94), PAL (576i 50) SMPTE 296M: 720p (60/59.94/50) SMPTE-274M, SMPTE-292M: 1080i (60/59.94/50), 1080p (30/29.97/25/24/23.98) SMPTE-424M: 1080p (60/59.94) 3G |
|
Signal Level |
800 mV p-p ±164' (50 m) |
|
Power |
5 to 17 VDC |
|
Power Consumption |
3.5 W (maximum 4 W) |
|
Operating Temperature |
-4 to 158°F (-20 to 70°C) |
|
Dimensions |
2.7 x 3.5 x 0.8" (70 x 90 x 22 mm) |
|
Weight |
4.2 oz (120 g) |
In the Box
- DIGITAL FORECAST HDMI to SDI Premium Converter
