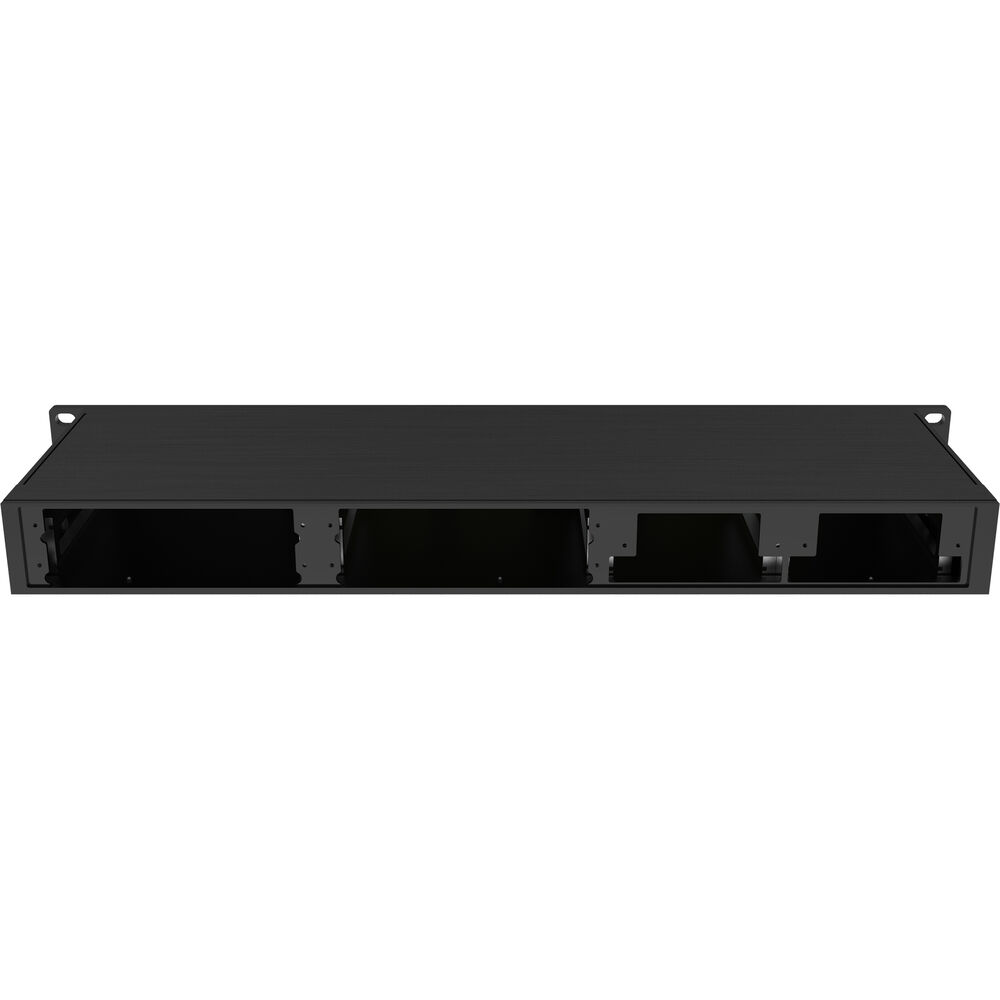

The 1 RU Kiloview Cradle 4-Channel Redundant Power Rackmount Unit is a rack-mounted frame that can be freely mixed with four channels using optional codec modules. It comes with redundant power modules and centralized heat dissipation, ensuring longtime stable operation, and it benefits your IP video deployments of any size and complexity. With Cradle, you can design four encoder and decoder modules in a 1 RU chassis to make them work perfectly in your environment.

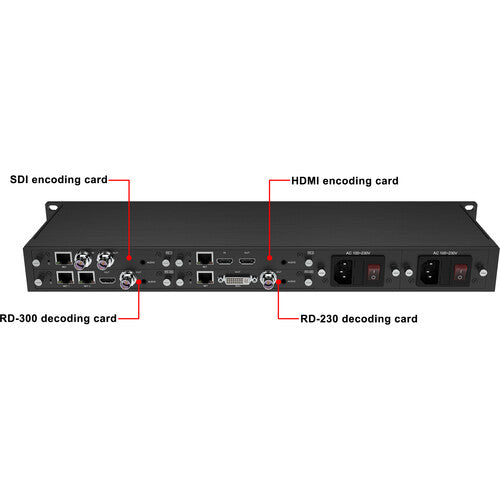

The optional encoding and decoding modules support SDI/HDMI plus 3.5mm audio and the decoding module supports HD or 4K video output. Cradle supports most IP media protocols like SRT/RTMP/RTSP/UDP/HTTP/HLS and benefits NDI|HX version optional. All codec modules support SRT, RTMP, RTSP, UDP, HTTP, HLS, and other protocols.

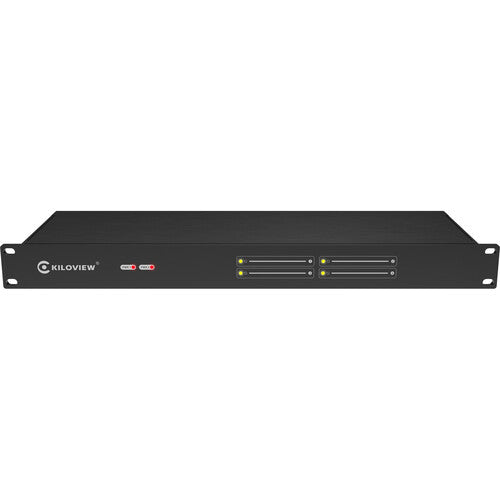

Dual cooling fans give Cradle intelligent temperature control for automatic heat dissipation, ensuring stable and 24-hour continuous operating. For convenient use, Cradle offers a power indicator light and operation indicator light to monitor working status. Cradle adopts a plug-in card structure to make sure card installation and replacement are as easy as possible. You are free to mix and insert encoding and decoding modules with flexible application and replacement.
Technical Specifications:
Compatibility
Kiloview RD-300 Decoding Card
Kiloview RD-230 Decoding Card
Kiloview HDMI Encoding Card
Kiloview SDI Encoding Card
Power Source
AC Input
AC Input Power
100 to 230 VAC, 50 / 60 Hz
Power Consumption
24 W
In the Box:
