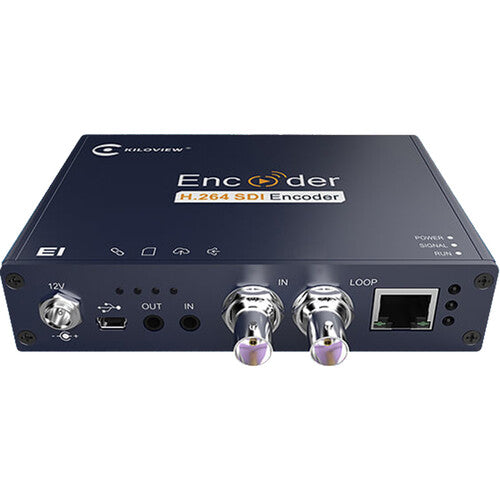

Kiloview HD/3G-SDI Wired Video Encoder
- Main and Sub, Dual-Stream Output
- Convert 3G-SDI to IP Stream
- Simultaneously Stream to 16 Platforms
- Supports up to 1080p60
- Low Latency
- microSD Card Slot
- Web-Based Interface
- Support for 8 Pairs of Audio Channels
- 3.5mm Audio Input and Output Ports
- Portable Form Factor
Get video from your camera directly to the internet with the HD/3G-SDI Wired Video Encoder from Kiloview. This portable encoder instantly compresses your 3G-SDI device signal to IP for simultaneous streaming to as many as 16 platforms at up to 1080p60 and with support for a dual stream, main and sub output with very-low latency.
An integrated microSD card slot provides local storage for recording your video or you can opt to record on optional USB media. A web-based interface gives you the ability to remotely manage and control the device, with a multitude of streaming media protocols at your fingertips, including SRT/RTMP/RTP/RTMPS/HLS/TS over UDP/RTSP. Embedded digital audio with up to eight channel pairs and analog audio, via 3.5mm input and output ports are also supported.
- Real-Time Loop
- The SDI loop-through output allows for instant viewing or monitoring on a professional display.
- Intercom Software Integration
- The 3.5mm analog audio connectivity provides functionality with optional Kiloview software that allows you to manage a real-time voice intercom setup.
- Image Overlay Support
- Self-defined text, time, or logo images integrate easily as overlays on your video.
Technical Specifications:
|
Video Inputs |
1 x BNC (3G-SDI) Female |
|
Audio Inputs |
1 x 1/8" / 3.5 mm TRS Analog Female |
|
Video Outputs |
1 x BNC (3G-SDI) Female (Loop Output) |
|
Audio Outputs |
1 x 1/8" / 3.5 mm TRS Analog Female |
|
Other I/O |
1 x RJ45 LAN Input/Output 1 x Mini-USB Input/Output 2 x USB-A Input/Output |
|
Expansion Slots |
None |
|
Latency |
to 67 ms |
|
Input Video Format |
SDI 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i 59.94/60 fps 720p 23.98/24/25/29.97/30/50/59.94/60 fps |
|
Input Audio Format |
Analog |
|
Output Video Format |
SDI 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i 59.94/60 fps 720p 23.98/24/25/29.97/30/50/59.94/60 fps |
|
Output Audio Format |
Analog |
|
Embedded Audio |
SDI |
|
HDR Compatibility |
Not Specified by Manufacturer |
|
Video IP Encoding |
H.264, HLS, MJPEG, RTMP, RTP, RTSP, SRT, TS, UDP: x |
|
Audio IP Encoding |
AAC, G.711 |
|
Tally Light |
Yes |
|
Media Card Reader |
1 x microSD (Unspecified Type) |
|
Power I/O |
1 x Barrel Input |
|
Power Consumption |
Device: 12 VDC at 1 A (4 W) |
|
Operating Temperature |
12 to 92°F / -20 to 60°C |
In the Box:
- Kiloview HD/3G-SDI Wired Video Encoder
- USB Tally
- Power Adapter
- Limited 1-Year Manufacturer Warranty
