Kiloview N3-S 3G-SDI and NDI Bidirectional Converter
- 3G-SDI Video Input, 3G-SDI Loop Output
- Bidirectional 3G-SDI to NDI Converter
- Supports up to 1080p60 Video
- 3.5mm Audio Line Input/Output
- Uses PoE or 5-18 VDC Power Adapter

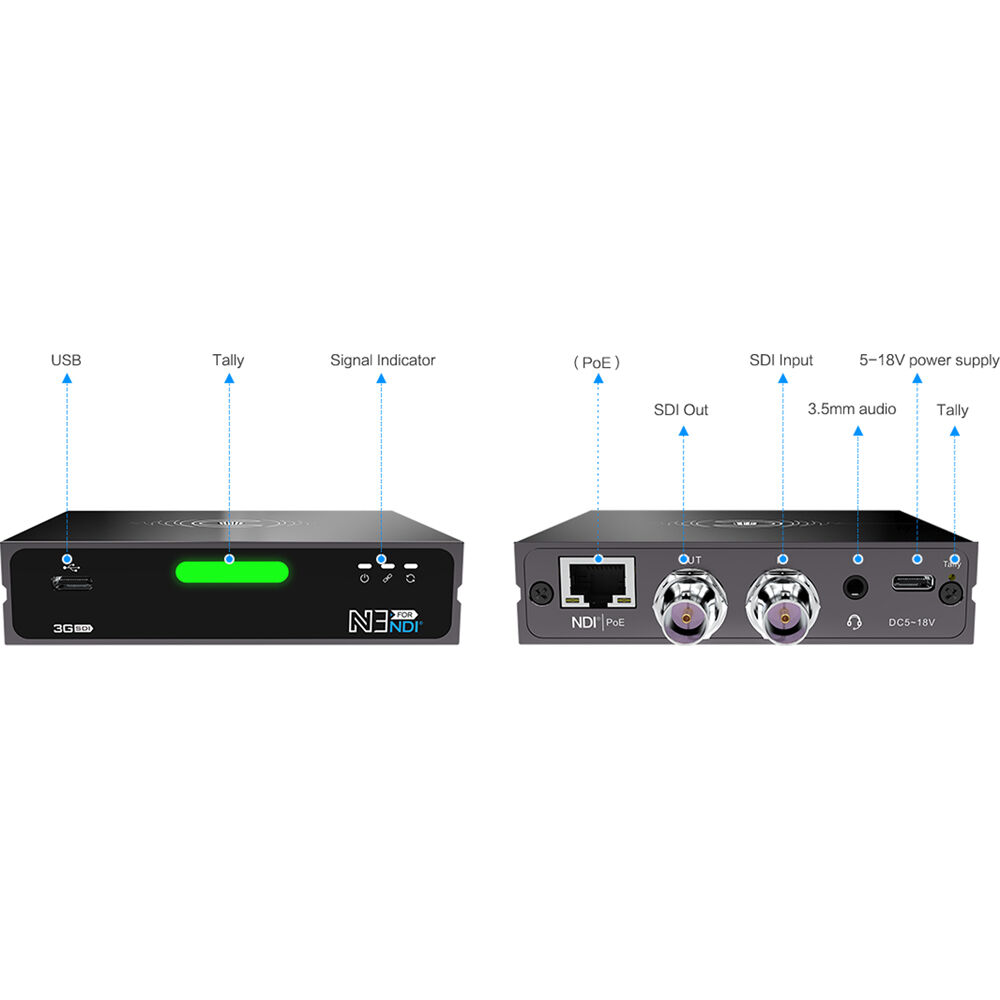

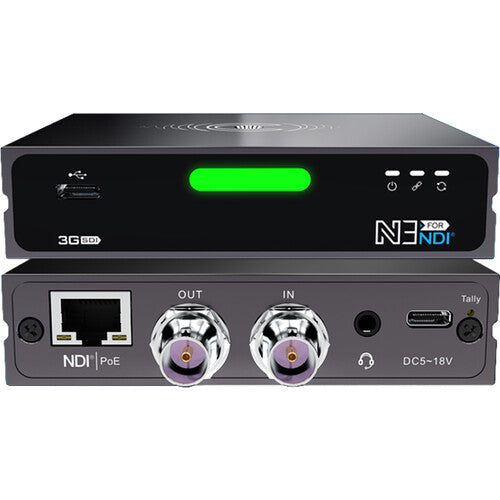

The N3-S 3G-SDI and NDI Bidirectional Converter from Kiloview is a bidirectional encoder/decoder that supports 3G-SDI video input to full NDI with 3G-SDI loop output or 3G-SDI video output from a full NDI input. This converter features a large, integrated tally light, 3.5mm audio line input and output, PoE, and comes with a DC power adapter.
Technical Specifications:
|
Video Inputs |
1 x BNC (3G-SDI) |
|
Input Video Format |
SDI 1080p up to 60 fps |
|
Audio Inputs |
1 x 1/8" / 3.5 mm TRS |
|
Video Outputs |
1 x BNC (3G-SDI) (Loop Output) |
|
Output Video Format |
SDI 1080p up to 60 fps |
|
Audio Outputs |
1 x 1/8" / 3.5 mm TS |
|
HDR Compatibility |
Not Specified by Manufacturer |
|
Other I/O |
1 x RJ45 NDI Input/Output 1 x USB-C |
|
Expansion Slots |
None |
|
Tally Light |
Yes |
|
Power I/O |
1 x USB-C (5 to 18 VDC) Input |
|
PoE Support |
PoE 802.3af |
|
Dimensions |
3.9 x 3.1 x 0.9" / 100 x 80 x 24 mm |
|
Weight |
7.1 oz / 200 g |
In the Box:
- Kiloview N3-S 3G-SDI and NDI Bidirectional Converter
- Power Supply
- Cold Shoe Adapter
- USB-C to USB-A Adapter
- Limited 1-Year Manufacturer Warranty
