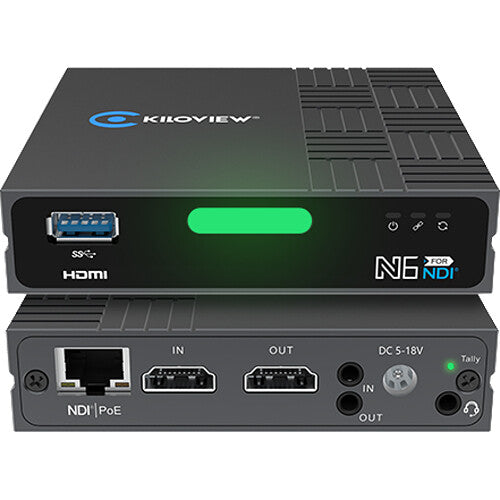

Kiloview N6 HDMI to NDI & NDI|HX Bidirectional Converter
- Share Video to Your NDI IP Workflow
- Convert HDMI to NDI & NDI|HX
- Convert NDI & NDI|HX to HDMI
- NDI 5.0 for Reliable UDP & NDI Bridging
- Supports 1080p60, 1080i60, and 720p60
- Large Preview/Program Tally Display
- Lag-Free Switching, Web-Based GUI
- Embedded & 3.5mm Audio In/Out
- USB Keypad Control in Decoder Mode
- Supports External Power and PoE
Transmit video at resolutions up to 1080p60 over an NDI IP network using the N6 HDMI to NDI & NDI|HX Bidirectional Converter from Kiloview. Ideal for using with HDMI-output cameras, this compact unit both encodes HDMI signals for NDI/NDI|HX distribution and decodes NDI/NDI|HX signals for HDMI monitoring. The N6 unit features NDI 5.0 with NDI Bridge support, WebRTC-based NDI remote control, improved UDP reliability, and ARM support.
This converter features PTZ control, PoE, over Ethernet, both embedded and 3.5mm multichannel audio support, and intercom functions. A large LED tally display on the front indicates whether your camera is in program or preview.
- Encodes HDMI signals for NDI/NDI|HX distribution
- Decodes DI/NDI|HX signals for HDMI monitoring
- NDI Bridge supports secure connections between NDI networks in any location via LAN, WAN, or Wi-Fi
- WebRTC-based NDI remote control via URL
- Improved UDP reliability for more resilient connection
- ARM support
- 3.5mm analog audio input and output ports
- Embedded audio support
- Voice intercom support between Kiloview devices
|
Video Input Connectors |
1 x HDMI Female |
|
Input Video Format |
HDMI 1080p at 23.98/24/25/50/59.94/60 fps 720p 30/50/59.94/60 fps |
|
Audio Input Connectors |
1 x 1/8" / 3.5 mm TRS Stereo Analog Female |
|
Input Audio Format |
Analog |
|
Embedded Audio Input |
HDMI |
|
Video Output Connectors |
1 x RJ45 (NDI) Female 1 x HDMI Female (Loop Output) |
|
Output Video Format |
HDMI / RJ45 1080p at 23.98/24/25 fps 720p 23.98/24/25/29.97/30/50/59.94/60 fps |
|
Audio Output Connectors |
1 x 1/8" / 3.5 mm TRS Stereo Analog Female (Loop Output) |
|
Embedded Audio Output |
HDMI |
|
HDCP Support |
Version 1.4 |
|
HDR Compatibility |
None |
|
Other I/O |
1 x RJ45 LAN 1 x USB Type-A Firmware Input/Output |
|
Expansion Slots |
None |
|
Video IP Encoding |
H.264: 1920 x 1080 (90 to 125 Mb/s) |
|
Video IP Decoding |
H.264: 1920 x 1080 (90 to 125 Mb/s) |
|
Tally Light |
Yes |
|
Wi-Fi Support |
Yes |
|
Power Connector |
1 x Barrel (5 to 18 VDC) Input |
|
PoE Support |
PoE 802.3af |
|
Power Consumption |
6 W |
|
Operating Temperature |
-4 to 113°F / -20 to 45°C |
|
Storage Temperature |
-4 to 158°F / -20 to 70°C |
|
Certifications |
CE, FCC, as per Manufacturer |
|
Dimensions |
3.9 x 3.1 x 0.9" / 100 x 80 x 24 mm |
|
Weight |
9.6 oz / 272 g |
In the Box:
- Kiloview N6 HDMI to NDI & NDI|HX Bidirectional Converter
- 12 VDC Power Adapter
- Limited 1-Year Manufacturer Warranty
