Kiloview Portable SDI to NDI|HX Encoder with Wi-Fi & Battery Power

Rs. 63,555.00
Key Features:
  • SDI to NDI|HX Video Encoder/Converter
  • Resolution Support up to 1080p60 Video
  • Dual-Stream Output, Lossless Quality
  • Enabled with Wi-Fi & USB/Wired Ethernet
  • Portable Form Factor, Built-In Battery
  • microSD Card H.264/AVC/MJPEG Recording
  • USB Tally, USB-to-RJ45 Adapter Included
  • Shoe Adapter & Mount Included

Transmit your SDI video over an NDI IP network with the Portable SDI to NDI|HX Encoder with Wi-Fi & Battery Power from Kiloview. The portable unit inputs SDI video up to 1080p60 and outputs the signal over Wi-Fi, or by Ethernet using the included USB expansion adapter, for use in your streaming NDI video workflow. It supports NDI|HX/RTMP/RTSP/SRT/HLS/TS over UDP streaming media protocols and H.264/AVC/MJPEG compression, allowing it to work with a variety of platforms with very-low latency.

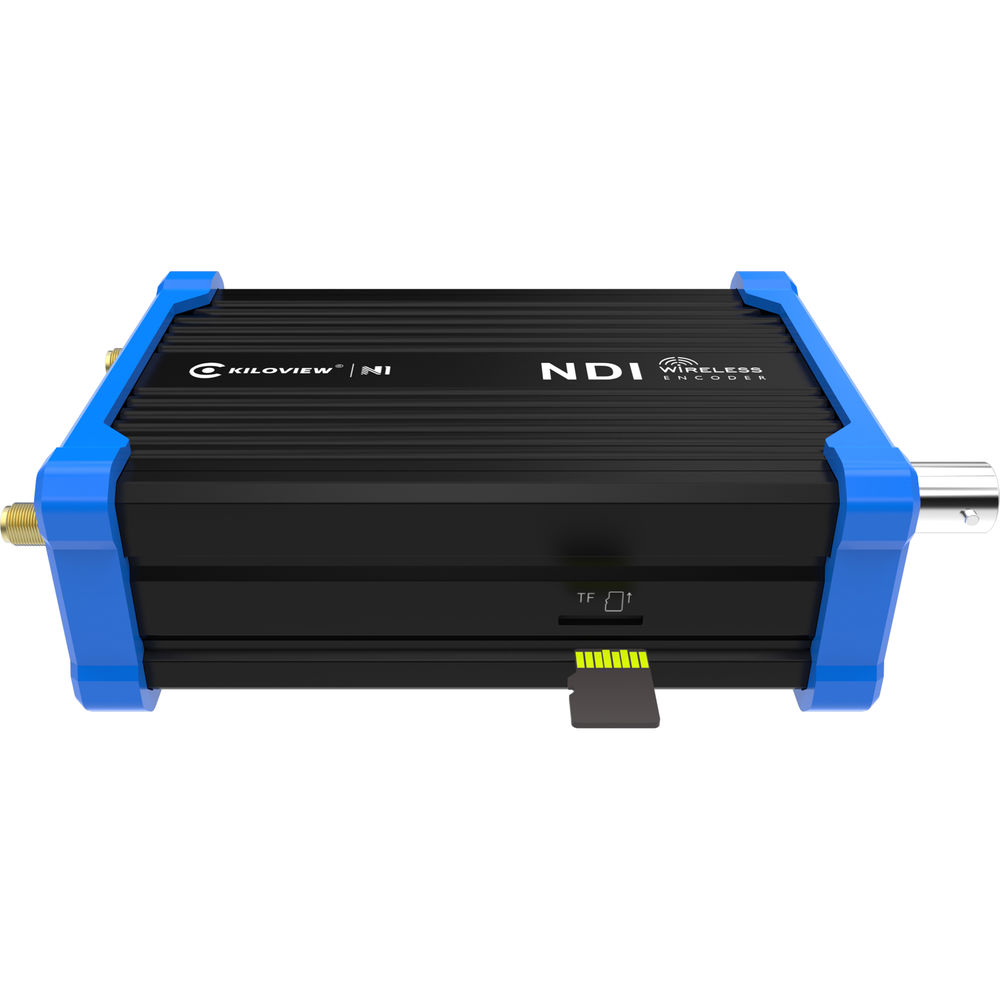

The N1 features a TF/microSD card slot to record video while you are streaming, or it can be configured to record to a NAS over a LAN. Recording formats include TS, MP4, MKV, AVI, and MOV, and it encodes embedded audio in AAC or G.711 format. It can be controlled and configured using an Android app, via a web GUI, or by using an IMS remote management application. A second USB port also allows you to control the unit via serial control using a separately available USB to serial adapter, or to use the included USB tally light.

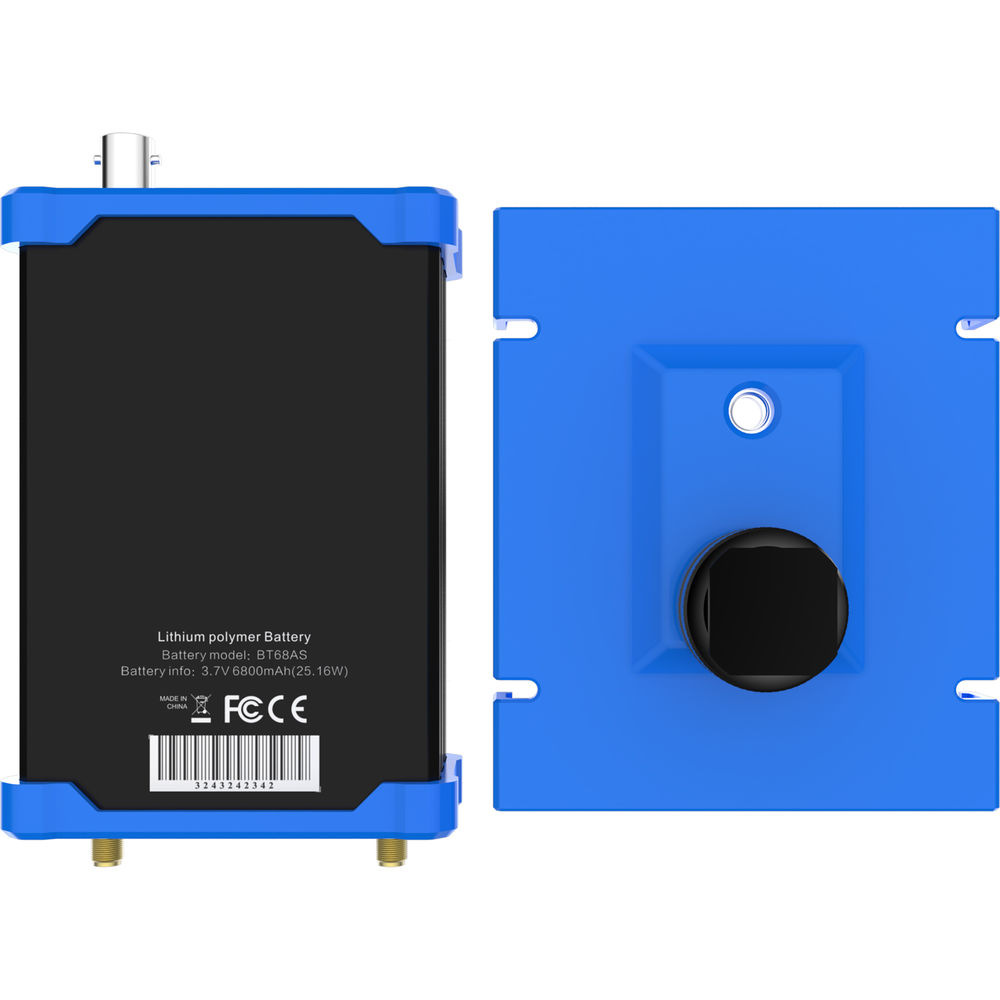

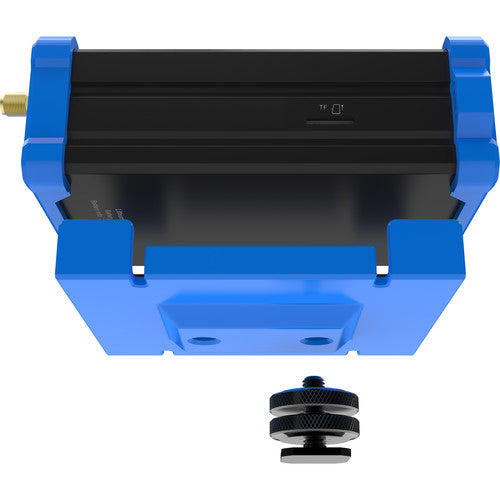

The unit is powered using its internal 6800mAh battery, so you can avoid cabling while it's in use. There are two mounting threads on the bottom and a shoe mount with removable shoe adapter are included to mount onto any standard shoe mount. A power adapter is included to charge the battery.

Technical Specifications:

Video Inputs

1 x BNC (3G-SDI) Female

Audio Inputs

None

Video Outputs

1 x RJ45 (HX/NDI) Female

Audio Outputs

None

Other I/O

2 x USB-A Control, LAN Input/Output

Expansion Slots

None

Latency

SDI Input: to 150 ms

Input Video Format

SDI

1080p at 23.98/24/25/29.97/30/50/59.94/60 fps

1080i 50/59.94/60 fps

720p 24/25/29.97/30/50/59.94/60 fps

Output Video Format

RJ45 / USB-A / Wireless

1080p at 23.98/24/25/29.97/30/50/59.94/60 fps

1080i 50/59.94/60 fps

720p 24/25/29.97/30/50/59.94/60 fps

Embedded Audio

LAN (RJ45)/SDI/Wireless

HDR Compatibility

Not Specified by Manufacturer

Video IP Encoding

H.264, MJPEG, MP4, NDI: 1280 x 720 to 1920 x 1080 at 60p

Audio IP Encoding

AAC, G.711

Media Card Reader

1 x microSD (Unspecified Type)

OS Compatibility

Android

Built-In Battery

6800 mAh

Power I/O

1 x Barrel (12 VDC at 1 A) Input

Power Consumption

Device: 3.7 VDC (6.5 W)

Operating Temperature

-4 to 113°F / -20 to 45°C

Dimensions

4.5 x 3 x 1.4" / 115 x 75 x 35 mm

Weight

13.4 oz / 380 g



In the Box:

  • Kiloview Portable SDI to NDI|HX Encoder with Wi-Fi & Battery Power
  • Power Adapter
  • DC Cable
  • 2 x Wi-Fi Antenna
  • USB to RJ45 Converter
  • USB Tally
  • Shoe Mount
  • Shoe Adapter
  • Limited 1-Year Manufacturer Warranty
