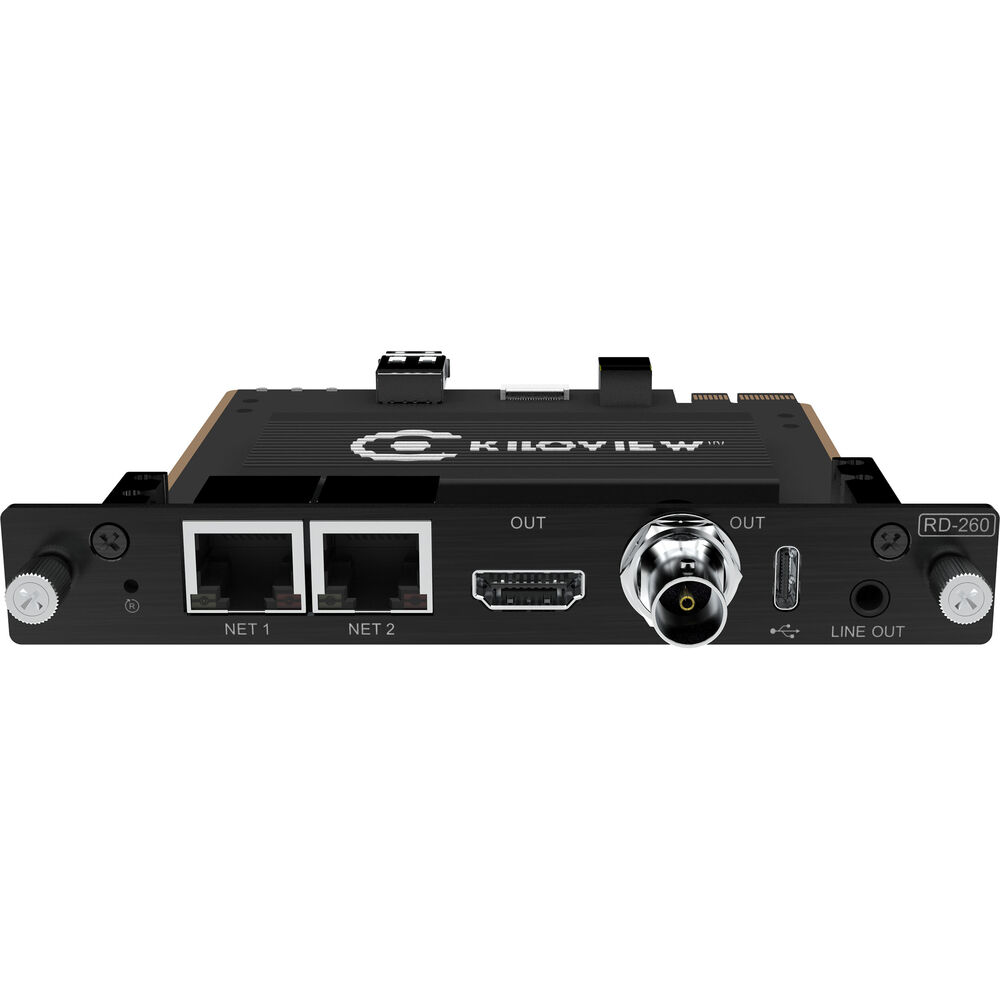

Kiloview RD-260 Decoding Card for Cradle Series Rackmount
- Works with 1 or 3 RU Rackmount Chassis
- Decode up to 4 x Channels up to 1080p30
- 2 x RJ45 Gigabit Ethernet Ports
- HDMI & 3G-SDI Output
- AAC Embedded Audio & 3.5mm Analog Output
- H.265/H.264 Decoding
- Decode 2 x Channels up to 1080p60
- NDI/SRT/RTMP/RTMPS/HLS/TS Support
Add this RD-260 Decoding Card from Kiloview to your Cradle Series 1 or 3 RU rackmount chassis to add IP to HDMI/SDI decoding to your broadcast, media playback, remote education, or videoconferencing environment. The card features two Gigabit Ethernet ports that support up to four 1080p30 input streams or up to two 1080p60 input streams using the H.265/H.264 codec using NDI, NDI|HX, SRT, RTMP, RTMPS, HLS, or TS protocols. The streams are then output via the SDI or HDMI outputs with embedded AAC/G.711 audio, or you can extract the audio for analog output via the 3.5mm port.
|
System Connection |
Proprietary |
|
Video Inputs |
2 x RJ45 (HX/NDI/RTMP/RTSP/SRT) Female |
|
Audio Inputs |
None |
|
Video Outputs |
1 x BNC (3G-SDI) Female 1 x HDMI Female |
|
Audio Outputs |
1 x 1/8" / 3.5 mm TRS Analog Female |
|
Other I/O |
1 x USB-C Input |
|
Input Video Format |
RJ45 1080p 30/60 fps |
|
Output Video Format |
HDMI / SDI 1080p up to 30/60 fps |
|
Output Audio Format |
Analog |
|
Embedded Audio |
HDMI/LAN(RJ45)/SDI |
In the Box:
- Kiloview RD-260 Decoding Card for Cradle Series Rackmount
- Limited 1-Year Manufacturer Warranty
