Kiloview U40 4K60p HDMI to NDI Converter

Rs. 44,555.00
Key Features:
  • 4K60p Input Supported
  • HDMI or USB to NDI High Bandwidth
  • Converts IP Streams into NDI|HX
  • PTZ Control
  • DC Out to Power Your Camera/Monitor
  • Dual Network Ports for DataTransfer

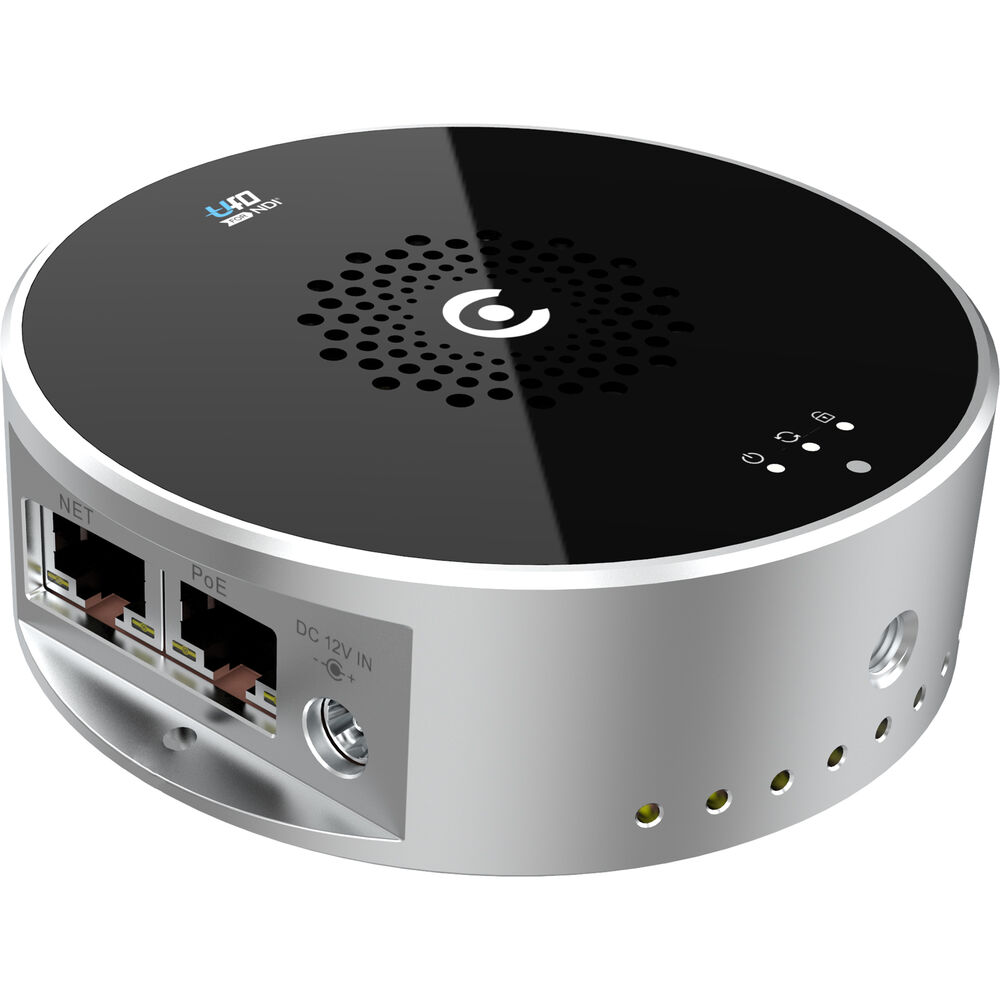

Add NDI connectivity to your existing camera as well as control your PTZ camera over an NDI or NDI|HX network with the Kiloview U40 4K60p HDMI to NDI Converter. The U40 is a disk like device, just over 3" in diameter and 1" tall, that packs quite a few features to simplify working with NDI|HX network. At that size, it's small enough to mount on your camera, using the included mounting shoe adapter, and it features an HDMI 2.0 input supporting 4K60p signals and converting them for connection to an NDI|HX network. The U40 also features two Ethernet ports which allow you to convert input IP streams into NDI|HX on your network.

The U40 supports PTZ control protocols, allowing you to use it to control your non-NDI|HX PTZ camera from your NDI|HX network, and you can also utilize the USB port for PTZ control via RS-232, RS-422, RS-485. A built-in tally light comes in handy to identify which camera you are controlling. It supports PoE power and has a handy power out feature, allowing you to power a camera or monitor.

  • Convert 4Kp60 HDMI to NDI
  • Support 3.5mm analog audio embedded in NDI
  • It also supports voice intercom based on optional Kiloview Intercom software
  • PoE with DC out, allowing you to power the U40, and at the same time, power other devices such as monitors, recorders, or cameras
  • Supports PTZ control USB to serial RS232/485/422
  • Supports Sony Visca / Visca (Laia) / Visca (Kato) / PELCO-D/PELCO-P protocols
  • USB video to NDI (future feature)
  • Convert IP streams such as RTSP/RTMP/SRT/TS-UDP/HLS to NDI|HX/SRT/RTSP/RTMP/TS-UDP
  •

    Technical Specifications:

    Video Inputs

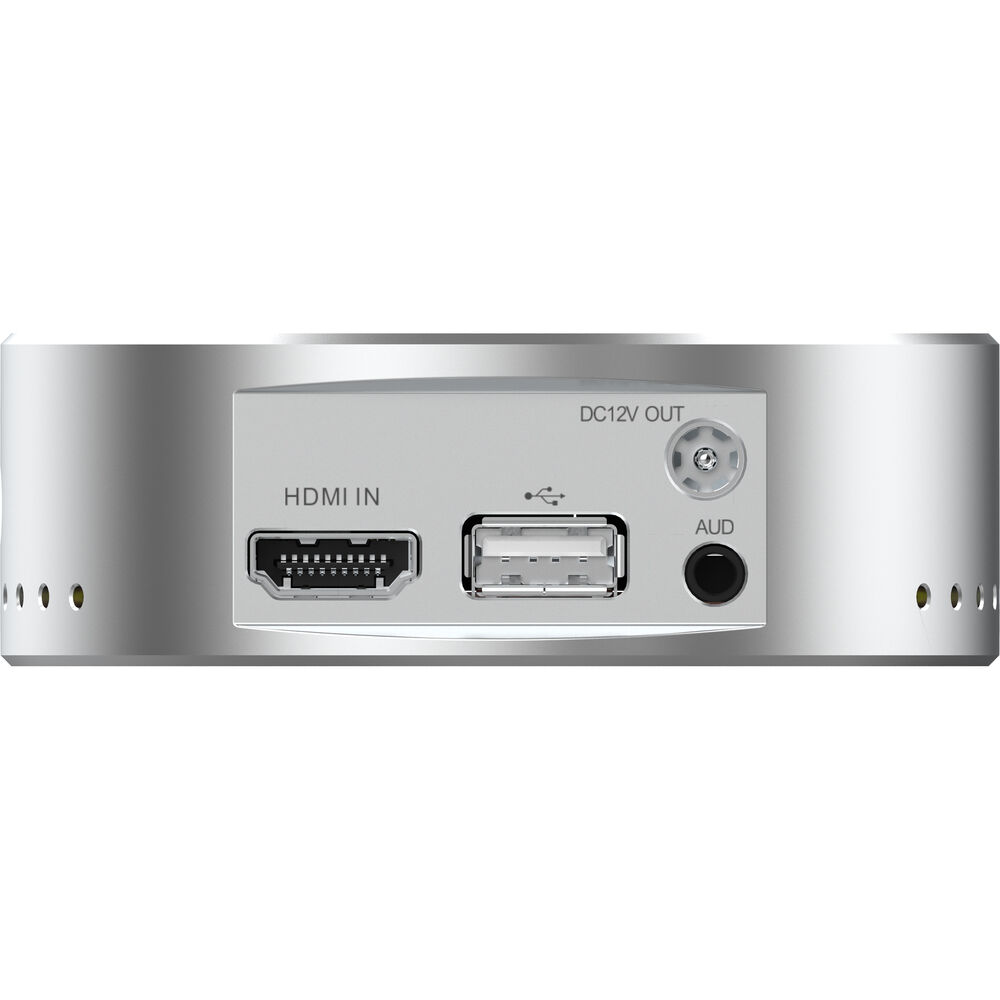

    1 x HDMI (HDMI 2.0)

    Input Video Format

    HDMI

    UHD 4K at 60 fps

    Audio Inputs

    1 x 1/8" / 3.5 mm TRS Analog

    Video Outputs

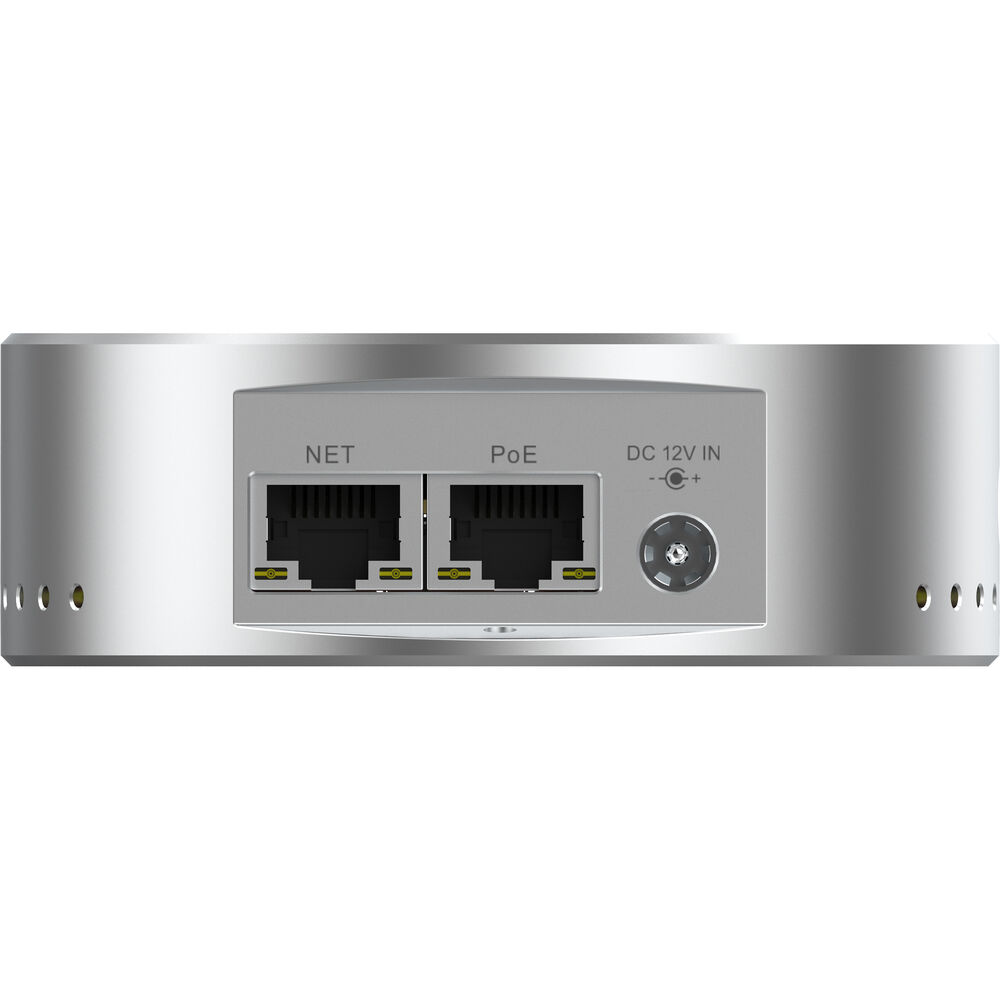

    2 x RJ45

    Audio Output Connectors

    None

    HDR Compatibility

    Not Specified by Manufacturer

    Other I/O

    1 x USB-A

    Expansion Slots

    None

    Video IP Encoding

    RTMP, RTSP, UDP: x

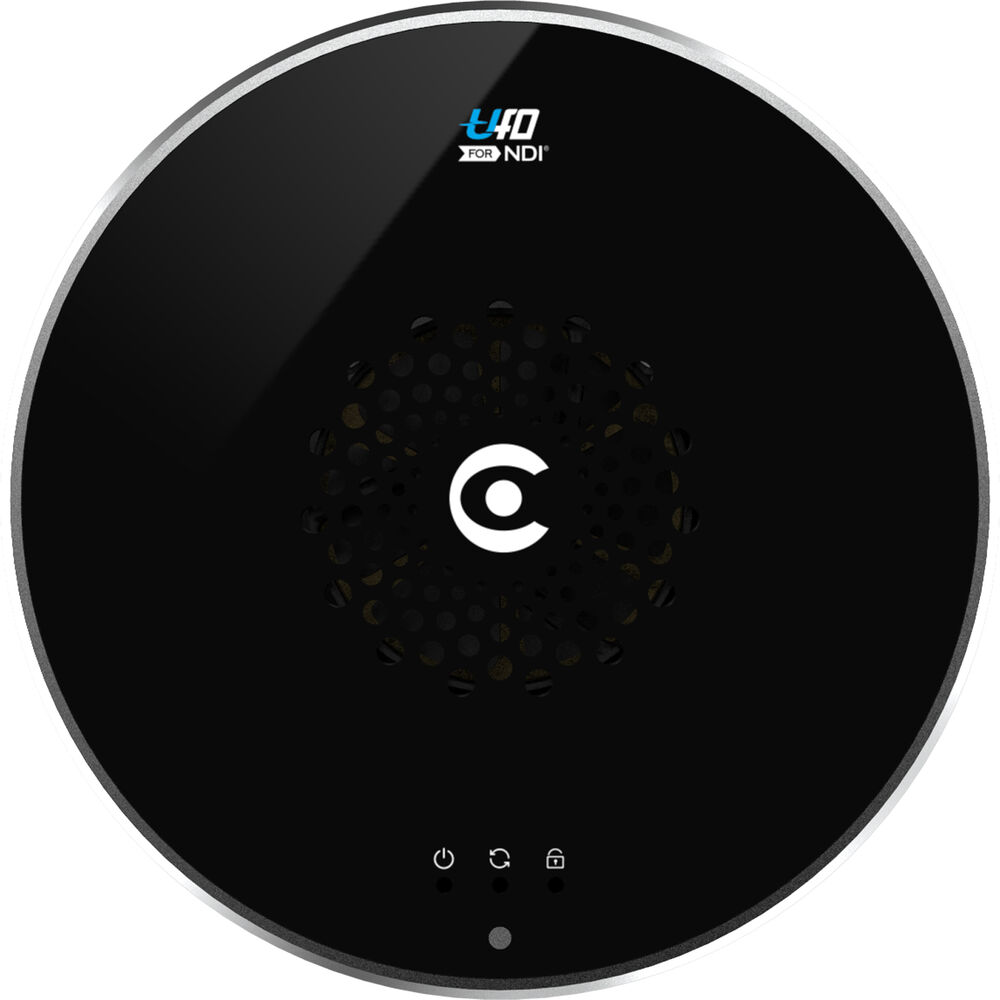

    Tally Light

    Yes

    Power I/O

    1 x Barrel Input

    Power Consumption

    Power Supply: 12 VDC at 1 A

    Dimensions

    3.5 x 3.5 x 1.2" / 90 x 90 x 30 mm

    Weight

    10.9 oz / 310 g



    In the Box:

    • Kiloview U40 4K60p HDMI to NDI Converter
    • 12 VDC 1A Power Adapter
    • Cold Shoe
    • Limited 1-Year Manufacturer Warranty
