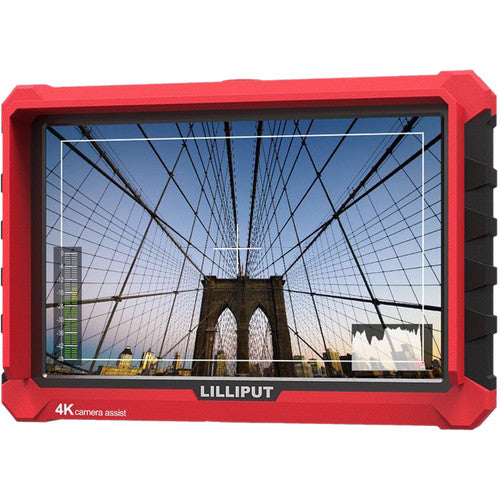

Lilliput A7S 7" Full HD Monitor with 4K Support
- 1920 x 1200 Native Resolution
- 500 cd/m² Brightness
- 1000:1 Contrast Ratio
- 170° Viewing Angle
- Red Silicone Rubber Case
- Peaking / False Color / Histogram
- Exposure / Level Meter / Image Flip
- 1/4"-20 and VESA 75 Mounting Options

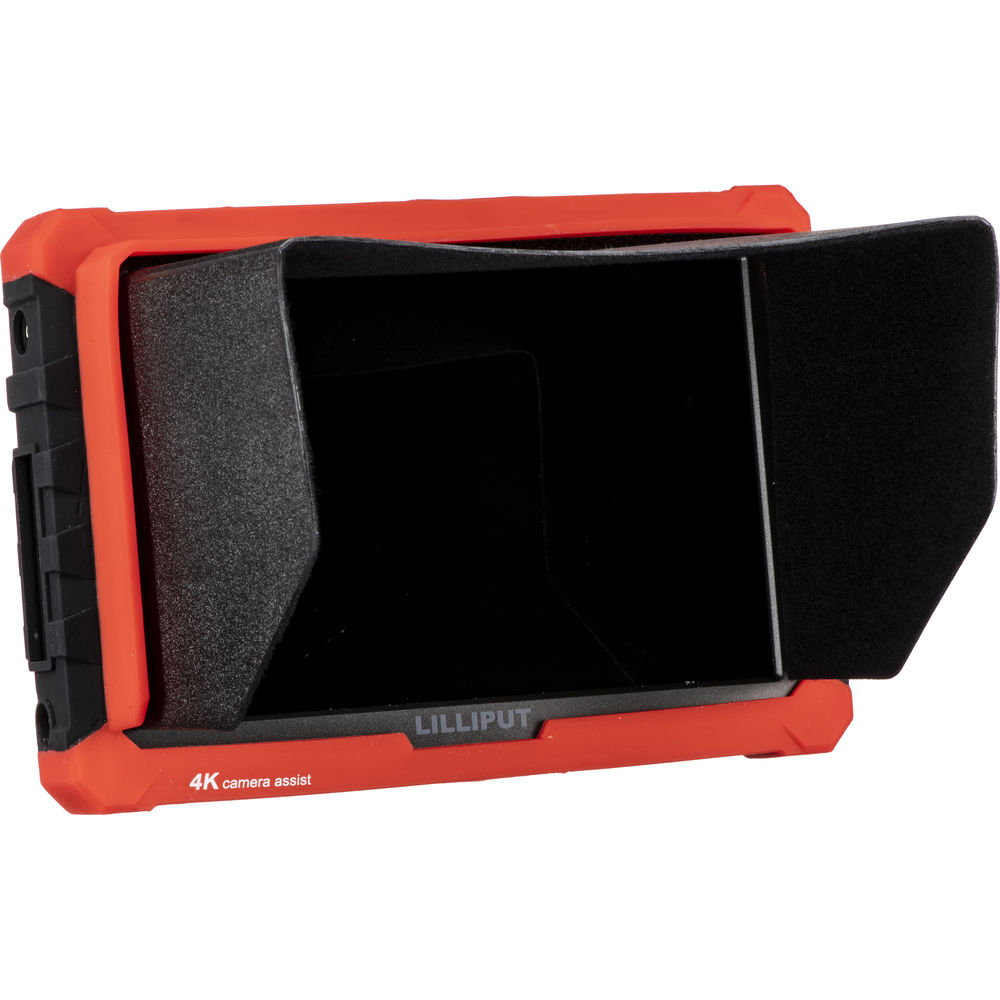

- Sun Hood Included

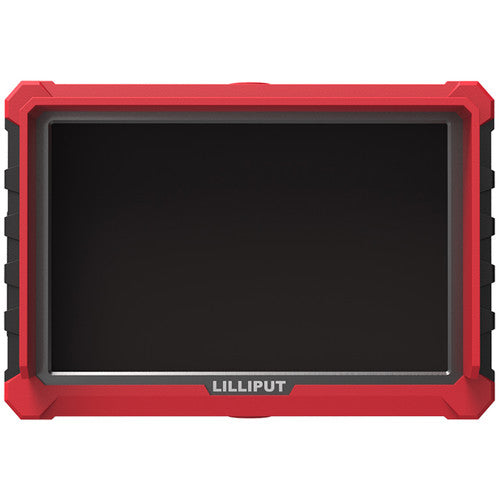

The A7S 7" Full HD Monitor with red rubber case from Lilliput features an HDMI 1.4 input, making it suitable for UHD 4K filmmaking and photography. With a 16:10 aspect ratio and 1000:1 contrast ratio, the LCD panel displays Full HD images. The HDMI loop-through function allows you to output via HDMI to any other compatible device.

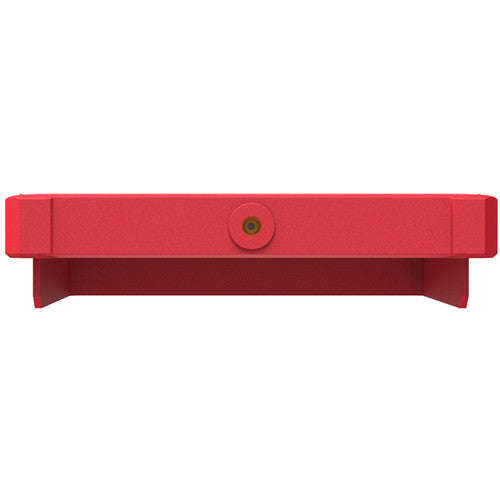

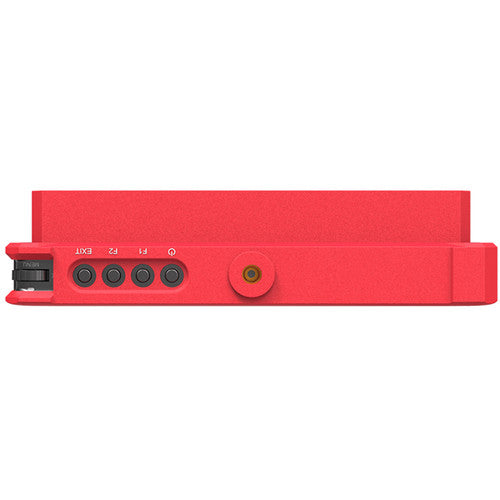

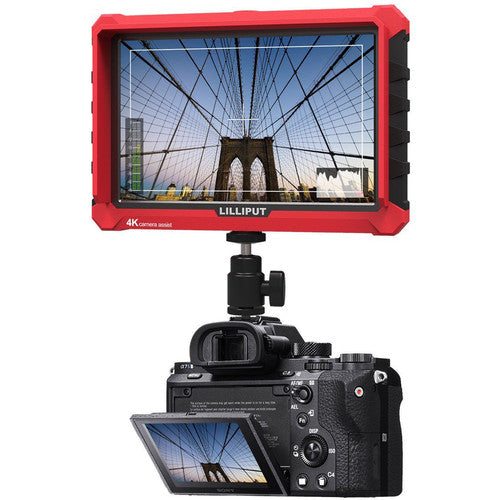

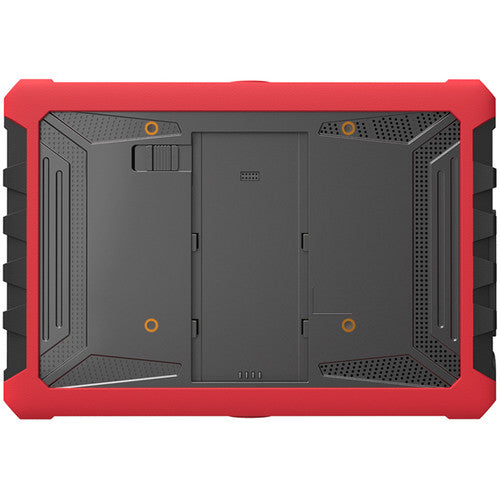

If you have upgraded to the 4K workspace, the A7S offers control over your shooting workflow both in the field and studio. You can create shortcuts to your favorite and most used monitor functions using the two customizable function keys. You can mount the monitor onto your camera by attaching the included shoe mount adapter to the 1/4"-20 threads at the bottom. You can also use the VESA 75 hole at the back to attach the A7S to other mounts.
- UHD 4K compatible
- Advanced functions such as timecode, columnar YRGB, pixel zoom, vectorscope, audio level meters, peaking, false color, histogram, exposure, check fields, color bars, pixel-to-pixel, and image flip
- Includes battery plates for Canon LP-E6 and Sony F-970
- Includes AC adapter
Technical Specifications:
|
Panel Type |
IPS-Type LCD |
|
Display Size |
7.0" / 17.8 cm |
|
Screen Area |
5.94 x 3.74" / 15.1 x 9.5 cm |
|
Resolution |
1920 x 1200 |
|
Aspect Ratio |
16:10 |
|
Viewing Angle |
Horizontal: 170° Vertical: 170° |
|
Touchscreen |
No |
|
Maximum Brightness |
500 nits / cd/m2 |
|
Contrast Ratio |
1000:1 |
|
Dot Pitch |
26.25 x 78.75 µm |
|
Pixels Per Inch (ppi) |
324 ppi |
|
Real-Time LUT Monitoring |
No |
|
Image Controls |
Color Temperature Selection, False Color, Histogram, Image Flip, Marker Color, Pixel-to-Pixel Zoom, Screen Markers, Underscan |
|

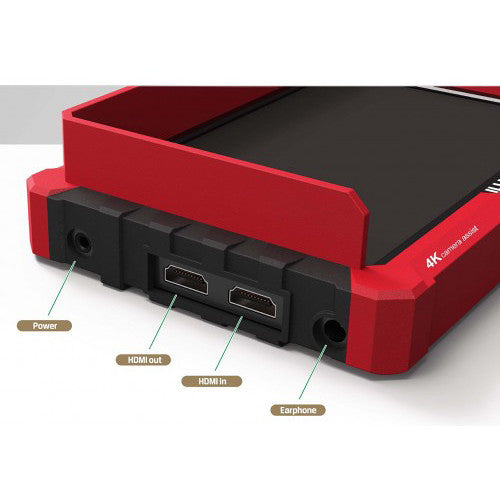

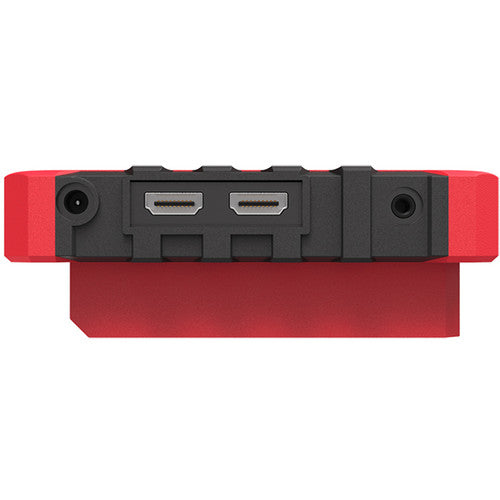

Video I/O |
1 x HDMI 1.4 Input 1 x HDMI 1.4 Output |
|
Audio I/O |
1 x 1/8" / 3.5 mm Headphone Input |
|
Built-In Speaker |
1 x 1 W |
|
Other I/O |
None |
|
Media/Memory Card Slot |
None |
|
Video Format |
HDMIRGB UHD 4K: 30 |
|
PC Resolutions |
3840 x 2160 4096 x 2160 |
|
DC Input Power |
7 to 24 VDC |
|
Battery Type |
None |
|
Power Consumption |
12 W (Maximum) |
|
Mounting-Hole Pattern |
75 x 75 mm |
|
Mounting |
1 x 1/4"-20 Female |
|
Operating Temperature |
12 to 92°F / -20 to 60°C |
|
Operating Humidity |
0 to 90% |
|
Storage Temperature |
-22 to 158°F / -30 to 70°C |
|
Dimensions |
7.2 x 0.8 x 4.9" / 18.3 x 2 x 12.4 cm |
|
Weight |
11.3 oz / 320 g |
In the Box:
- Lilliput A7S 7" Full HD Monitor with 4K Support
- Sony F-970 Type Battery Plate
- Shoe Mount Adapter
- Mini-HDMI to HDMI Cable
- AC Adapter
- Sun Hood
- Red Silicone Rubber Case
- Limited 1-Year Manufacturer Warranty
