Lilliput BM150-4KS Carry-On 4K Broadcast Monitor

Rs. 96,990.00
This product is Out of stock
Key Features:
  • 15.6" 3840 x 2160 8-Bit LCD
  • Supports up to DCI 4K Input
  • HDR Support, Load Custom 3D LUTs via USB
  • HDMI, SDI, DVI, VGA, USB, Tally Inputs
  • 176° H/V Viewing Angle
  • 330 cd/m² Brightness, 1000:1 Contrast
  • On-Screen Markers, Focus Peaking
  • Built-In Gold Mount Plate
  • Hard Case Enclosure
  • XLR 4-Pin 12-24 VDC Power Input

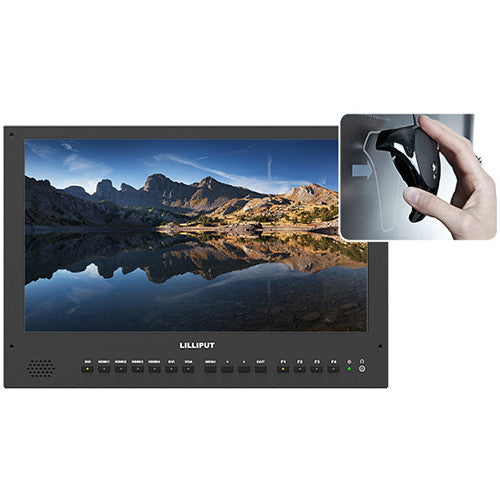

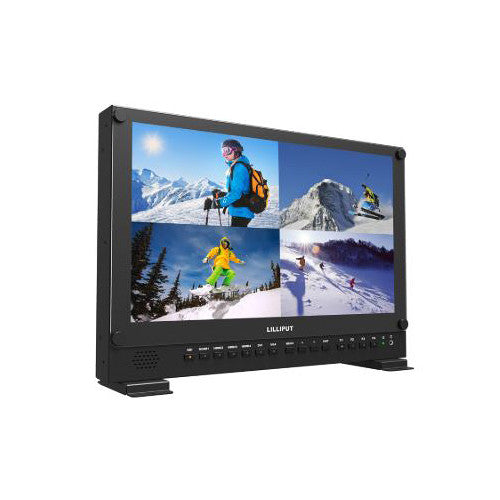

Built into a hard case, the Lilliput BM150-4KS Carry-On 4K Broadcast Monitor is a 15.6" native UHD 4K monitor with a Gold mount battery plate, useful for both studio and field situations. The full capacity of the 3840 x 2160 UHD resolution 8-bit panel can be driven at up to 30 fps by any of the three HDMI 1.4 inputs, via one HDMI 2.0 input with up to DCI 4K sources, or via SDI input with up to 1080p60 sources.

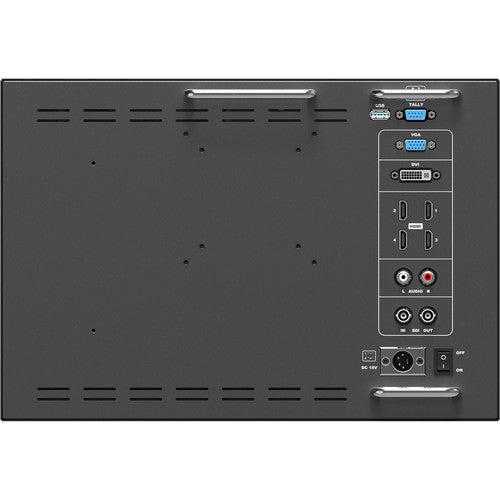

In addition to the four HDMI inputs available on the back panel, HD and SD sources include one 3G-SDI, one DVI, and one VGA port, and there is one loop-through SDI output. Video signals input via any of these ports will be properly scaled to fit the entire screen. Analog audio from the RCA inputs or embedded digital audio from video inputs can be heard using the monitor's built-in speakers or the 3.5mm headphone output. There is a tally input, and a DB-9 tally adapter is included to utilize tally information on the monitor. The monitor also supports adjustable HDR color spaces and you can choose built-in presets or load custom 3D LUTs via its USB port.

For power, this monitor accepts a wide range of voltages ranging from 12 to 24 VDC. In the studio, the included power supply plugs the BM150-4KS into the wall, and the 75/100mm VESA mount can be utilized for mounting on a stand. The included tally connector passes tally information through to the monitor when connected to a switcher. While in the field, the monitor will accept battery power via the built-in Gold mount plate. It can stand up vertically using the rubber feet built into the monitor's hard case, and a sunshade is included for increased visibility outdoors.

Features:
Monitoring Tools
  • Peaking
  • Check field
  • Image rotation/flip
  • Overscan
  • Underscan
  • Image freeze
  • Pixel to pixel
  • False color
  • Exposure (SDI-only)
  • Histogram (SDI-only)
  • Timecode (SDI-only)
  • Aspect ratio selection
  • Screen markers
  • Color space
  • HDR
  • Color temperature adjustment

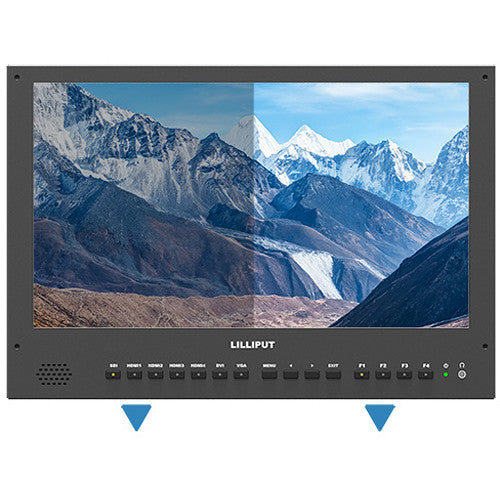

HDR and 3D LUTs
When HDR is activated, the display reproduces a greater dynamic range of luminosity, allowing for colors and lighter and darker details to be displayed more clearly. You can use preset Logs or load your own custom LUTs via the USB port.

Assignable Buttons
Using the four assignable buttons on the front panel, you can quickly turn any four essential monitoring tools on and off without venturing into the monitor's menu system.

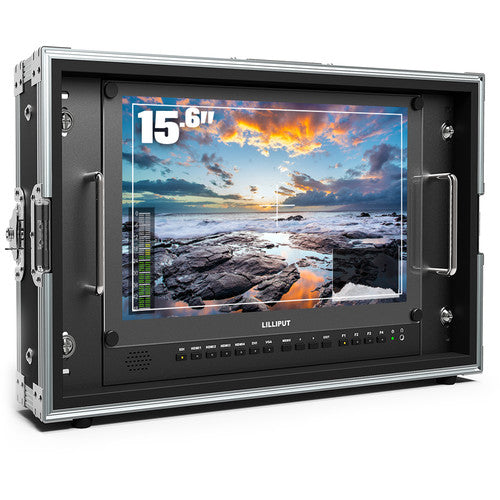

Carry-On Enclosure
The included hard case/enclosure improves the robustness of the monitor's metal chassis, useful when venturing outside controlled environments. A rear opening gives easy access to all the monitor's ports and accessory mounts.

Supports Wireless HDMI (WHDI) Technology
With a separately available WHDI receiver, the BM150-4KS can accept wireless HDMI signals up to 1080p60 from up to 164' away for a hassle-free cordless connection. With the WHDI system in place, one transmitter can broadcast to multiple receivers, so no splitter is required for multi-monitor viewing.

Technical Specifications:

Panel Type

IPS-Type LCD

Display Size

15.6" / 39.6 cm

Resolution

3840 x 2160

Aspect Ratio

16:9

Viewing Angle

Horizontal: 176°

Vertical: 176°

Touchscreen

No

Maximum Brightness

330 nits / cd/m2

Contrast Ratio

1000:1

Bit Depth / Color Support

8-Bit+FRC (1.07 Billion Colors)

Real-Time LUT Monitoring

HDR

Image Controls

Check Field, Color Temperature Selection, False Color, Focus Peaking, Histogram, Pixel-to-Pixel Zoom, Scaling, Screen Markers, Underscan

Video I/O

1 x HDMI 2.0 Input

3 x HDMI 1.4 Input

1 x BNC (3G-SDI) Input

1 x BNC (3G-SDI) Output

1 x DVI-I Dual-Link Input

1 x DE-15/DB-15 (VGA) Input

Audio I/O

1 x 2RCA Line Input

1 x 1/8" / 3.5 mm Headphone Output

Built-In Speaker

1

Power I/O

1 x XLR 4-Pin Input

Other I/O

1 x DE-9/DB-9 (Tally)

Media/Memory Card Slot

None

Video Format

HDMI (8-Bit)

DCI 4K

UHD 4K

1080p

1080i

720p

480p

SDI (8-Bit)

1080p: 60/59.94/50/30/29.97/25/24/23.98

1080PsF: 24/23.98

1080i: 60/59.94/50/29.97/25/24/23.98

720p: 60/59.94/50/30/29.97/25/24/23.98

576i: 50

480i: 59.94

DC Input Power

12 to 24 VDC at 1.2 A

Battery Type

1 x Gold Mount

Power Consumption

18 W

Mounting-Hole Pattern

100 x 100 mm, 75 x 75 mm

Mounting

None

Operating Temperature

32 to 140°F / 0 to 60°C

Storage Temperature

-4 to 140°F / -20 to 60°C

Dimensions

20.6 x 12 x 6.7" / 52.4 x 30.5 x 17 cm, Including Case

15.3 x 10.5 x 1.5" / 38.9 x 26.7 x 3.8 cm

Weight

26.46 lb / 12 kg, Including Case

7.50 lb / 3.4 kg



In the Box:

  • Lilliput BM150-4KS Carry-On 4K Broadcast Monitor (Gold Mount)
  • Sun Hood
  • Mounting Plate
  • Power Adapter
  • 2 x Power Adapter Fixing Belt
  • Tally Connector
  • Hard Carry Case
  • Limited 1-Year Manufacturer Warranty
