Lilliput H7S 7" 4K HDMI/3G-SDI Ultra-Bright On-Camera Monitor

Rs. 29,990.00
This product is Out of stock
Key Features:
  • 1920 x 1200 Native, 2840 x 2160 Maximum
  • 1800 cd/m² Brightness, HDR Support
  • 1200:1 Contrast Ratio, 16:10 Aspect
  • HDMI/3G-SDI Inputs/Outputs, Tally Input
  • Hot-Swap Dual L-Series Battery Plate
  • HDR Support, Load 3D LUTs via USB
  • 1 x Speaker, 1 x Headphone Jack
  • 3 x 1/4"-20 Mounting Threads
  • 180° Tilting Shoe Mount

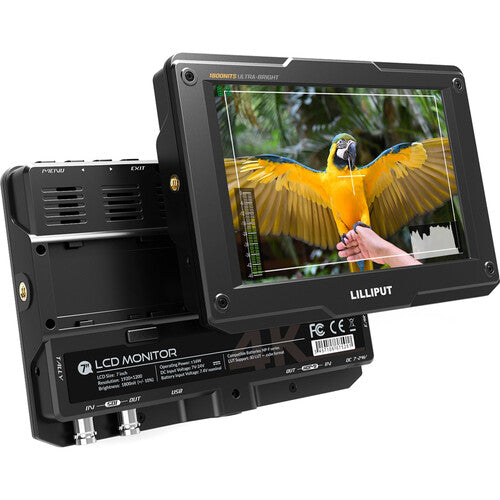

Monitor your 4K camera images with the H7S 7" 4K HDMI/3G-SDI Ultra-Bright On-Camera Monitor from Lilliput. The H7S features 3G-SDI and HDMI 1.4 inputs, making it suitable for DCI 4K24 and UHD 4K filmmaking and photography. With a 16:10 aspect ratio, an ultra-bright 1800 cd/m² display, and a 1200:1 contrast ratio, the LCD panel displays Full HD images natively in 1920 x 1200, up to a maximum resolution of 2840 x 2160. The HDMI loop-through output function allows you to output via 3G-SDI or HDMI to any other compatible device.

The H7S supports loading 3D LUTs via the USB port on the bottom, and it supports HDR image input with the ability to display a wide dynamic range such as ST2084-300, ST2084-1000, ST2084-10000, and HLG (Hybrid Log Gamma). On the back of the monitor is a dual L-series battery plate so you can power the monitor for a long shoot. The batteries are also hot-swappable so you can charge one battery and then swap out the other while the monitor is in use, without having to power it down.

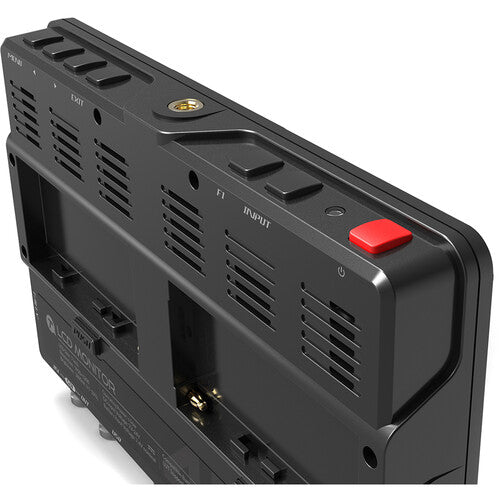

The monitor features a speaker, a headphone jack, a tally input, and numerous control and function buttons around the display. You can create shortcuts to your favorite and most used monitor functions using the two customizable function keys. You can mount the monitor onto your camera by attaching the included shoe mount adapter to the 1/4"-20, or with threads on the bottom or sides. An HDMI type A to type C cable, a tally cable, a power adapter, and a carry bag are also included in the box.

  • 7" bright 1800 cd/m² display; 1200:1 contrast ratio
  • DCI and UHD 4K compatible; HDR support
  • Support for 3D LUTs, which are loaded via the USB port on the bottom
  • HDMI and 3G-SDI input and output; tally input
  • Advanced functions such as pixel zoom, level meter, peaking, false color, histogram, H/V delay, exposure, check field, image flip, pixel-to-pixel, markers, aspect ratio, and freeze

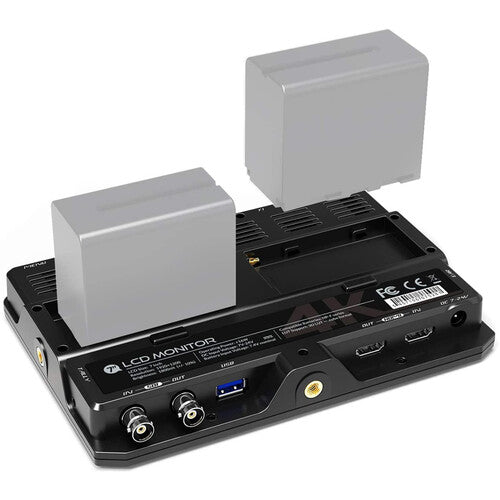

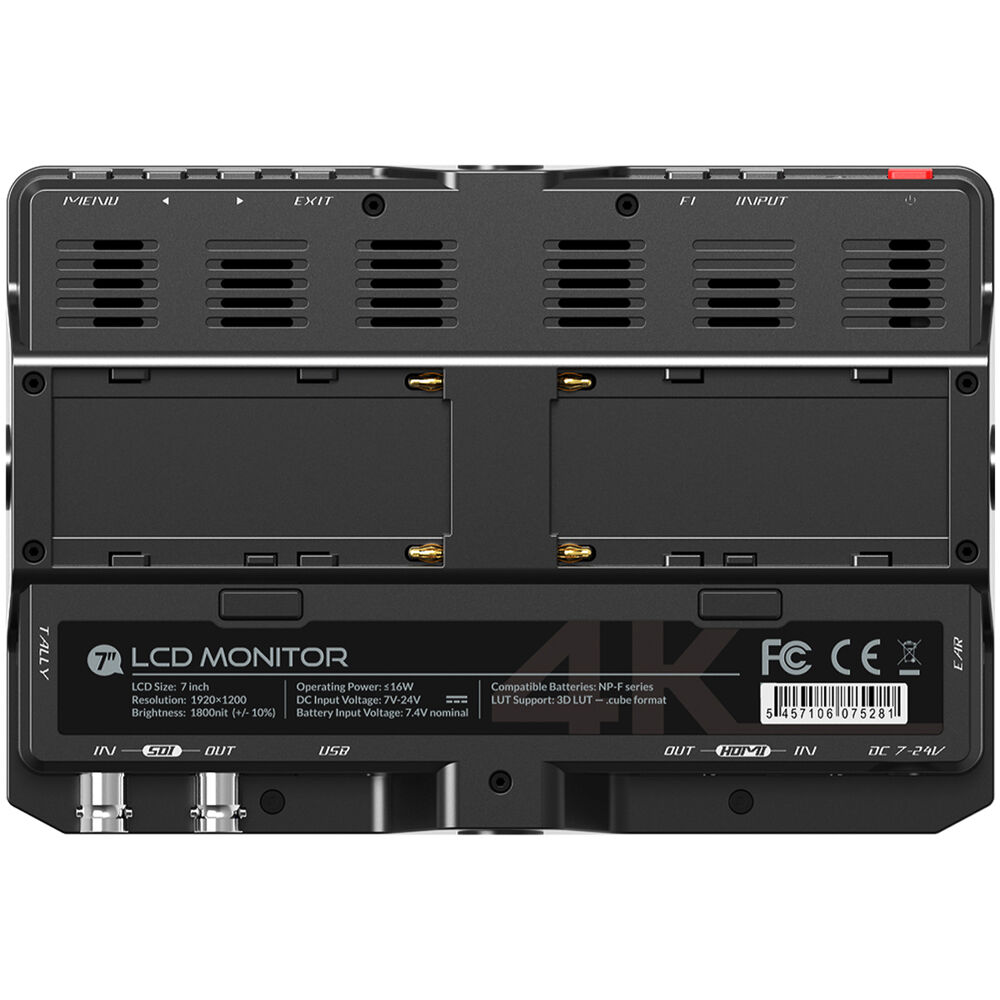

  • Dual-battery Sony L-series/F-970 battery plate on back; batteries are hot-swappable

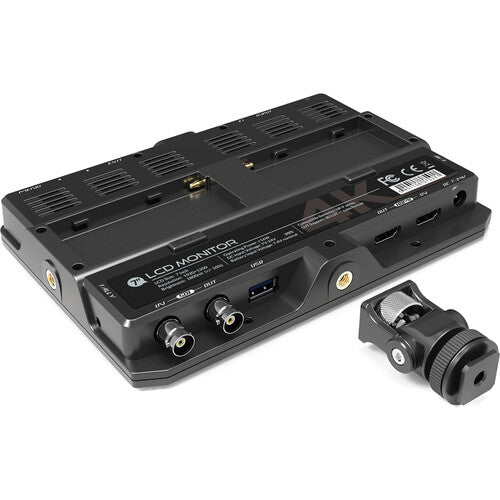

  • Includes shoe mount adapter tilts 180° and rotates 360°

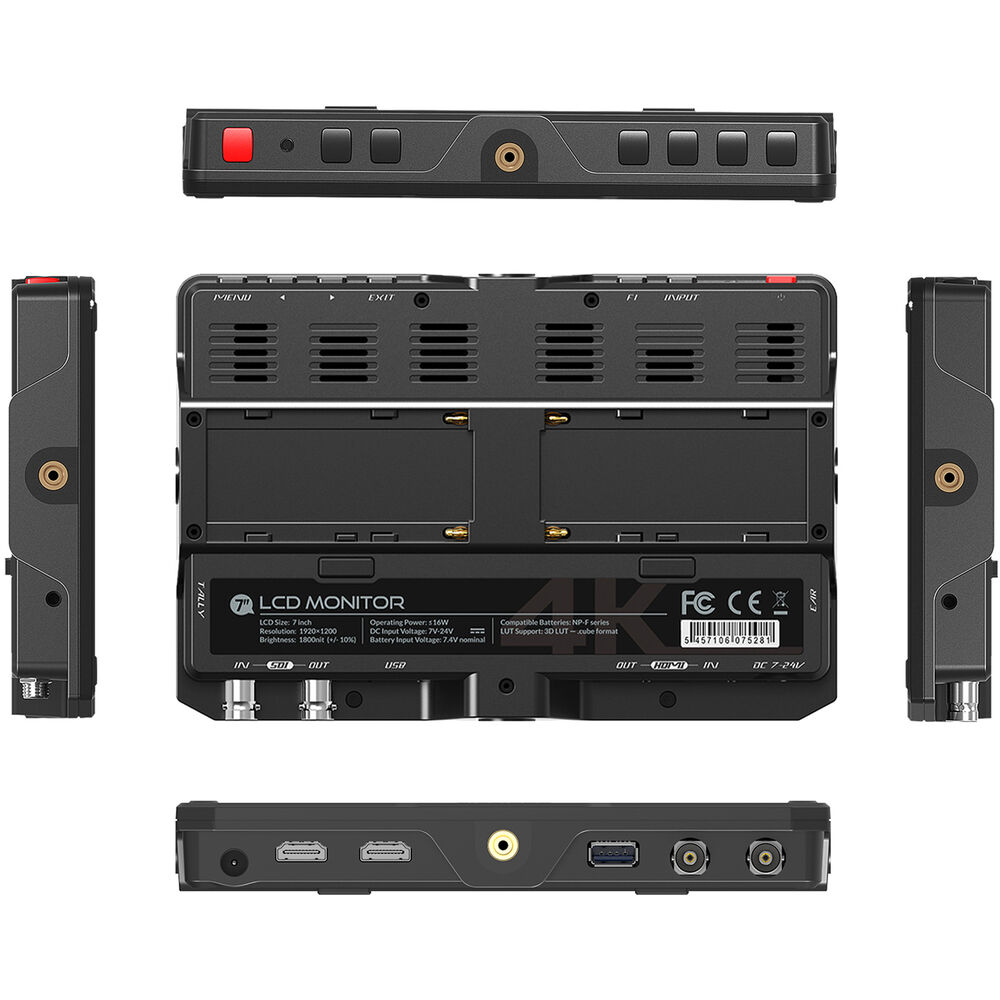

  • Three 1/4"-20 mounting threads on bottom and sides

Technical Specifications:

Panel Type


Display Size

7.0" / 17.8 cm


1920 x 1200

Aspect Ratio


Viewing Angle

Horizontal: 160°

Vertical: 60°



Maximum Brightness

1800 nits / cd/m2

Contrast Ratio


Dot Pitch

0.07870 x 0.07875 mm

Pixels Per Inch (ppi)

323 ppi

Real-Time LUT Monitoring

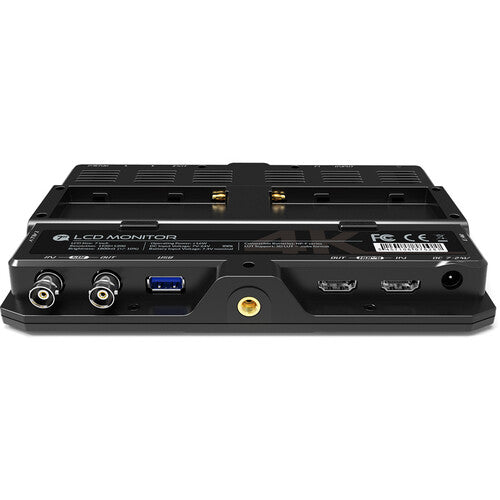

Video I/O

1 x HDMI 1.4b Input

1 x HDMI 1.4b Output

1 x BNC (3G-SDI) Input

1 x BNC (3G-SDI) Output

Audio I/O

1 x 1/8" / 3.5 mm Headphone Input

Built-In Speaker

1 x 1 W

Other I/O

1 x BNC (Tally) Input

1 x USB-A 2.0 Input

Media/Memory Card Slot




Video Format


DCI 4K: 24

UHD 4K: 30/24



DC Input Power

7 to 24 VDC

Battery Type

2 x L-Series

Power Consumption

16 W (Maximum)


3 x 1/4"-20 Female

Operating Temperature

32 to 92°F / 0 to 60°C

Operating Humidity

0 to 90%

Storage Temperature

14 to 140°F / -10 to 60°C


8.9 x 6.1 x 0.9" / 225 x 155 x 23 mm


19.40 oz / 550 g


In the Box:

  • Lilliput H7S 7" 4K HDMI/3G-SDI Ultra-Bright On-Camera Monitor
  • Tilting Shoe Mount Adapter
  • Tally Cable
  • HDMI Type A to Type C Cable
  • Power Adapter

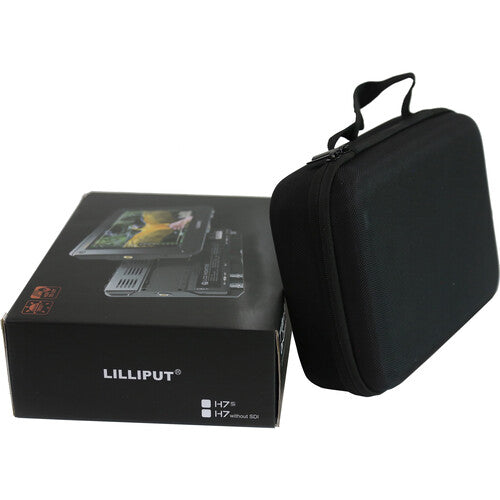

  • Carry Bag
  • Limited 1-Year Manufacturer Warranty
