• Connects 2 HDMI cables
• Supports 4K@60Hz resolution
• Straight, passive coupling connects 2 cables to overcome distance limitations

Easily connect two HDMI cables to work over greater distances.
The Manhattan HDMI Adapter is ideal for joining two HDMI cables to give additional length to a cable, passively. This HDMI Coupler allows 4K resolution and a bandwidth of 10.2 Gbps at 340 MHz.

• Connects 2 HDMI cables
• Supports 4K@60Hz resolution
• Straight, passive coupling connects 2 cables to overcome distance limitations
• Gold-plated contacts for best performance
• Intended for use with Manhattan HDMI cables
• Lifetime Warranty

Technical Specification:

Standards and Certifications:

• RoHS2
• ISO 9002

General:

• Bandwidth: 10.2 Gbps
• 340 MHz
• Meets or exceeds existing HDMI standards
• Length: 3 cm (1.1 in.)

Connectors:

• HDMI A female, 19-pin gold-plated
• HDMI A female, 19-pin gold-plated

Electrical:

• Current rating: 0.5 ADC
• Withstanding voltage: 300 VDC
• Insulation resistance: 5 MΩ
• Conductive resistance: 2 Ω

Physical:

• Length (overall): 28.5 x 11.2 x 22 mm (1.1 x 0.4 x 0.9 in.)
• Weight: 10 g (0.35 oz.)
• Molded PVC

Package Contents:

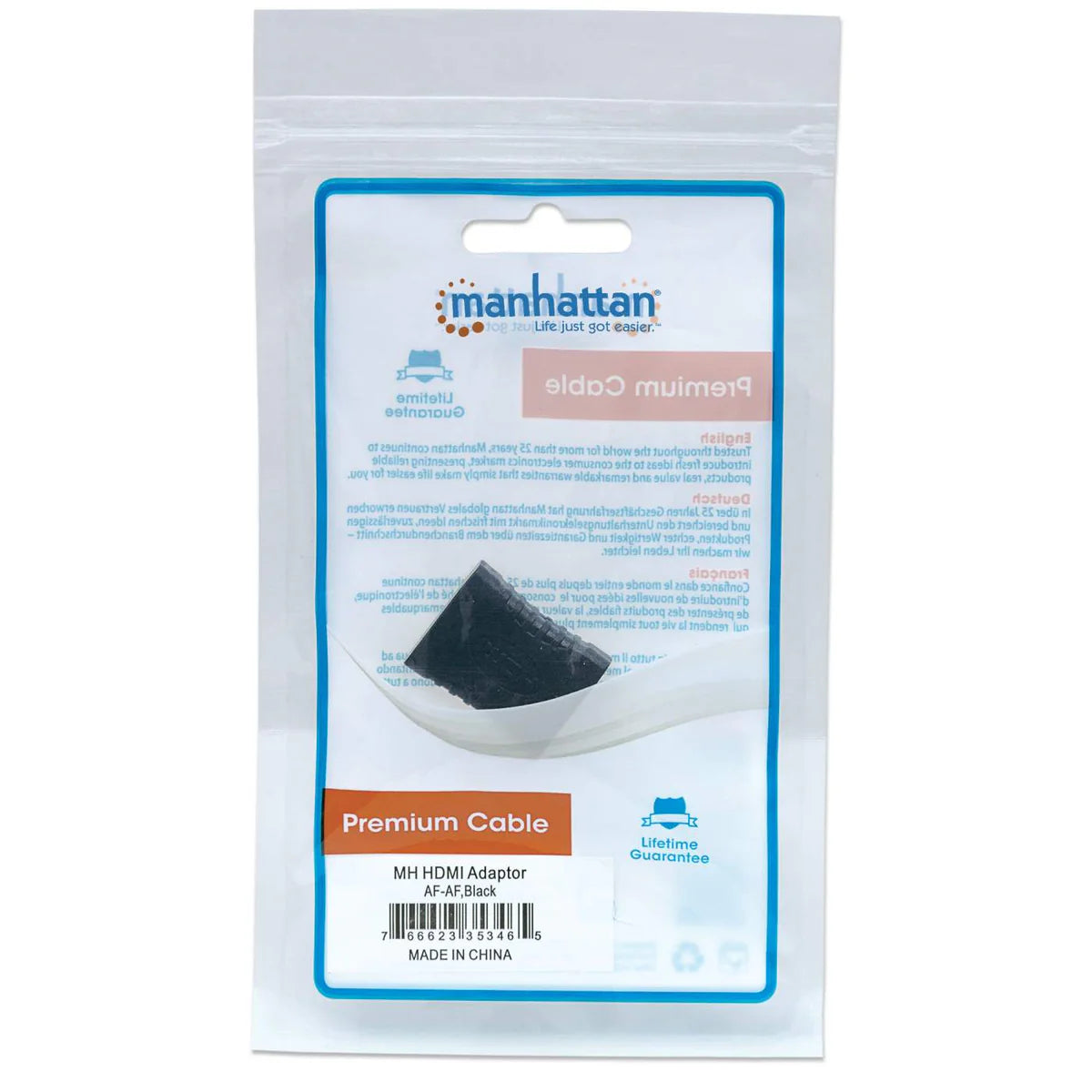

• HDMI Adapter, A to A

• Physical Specifications

• Product net weight: 0.01 kg
• Product gross weight: 0.01 kg
• Dimensions: 28.5 (L) x 11.2 (W) x 22 (H) [mm]
