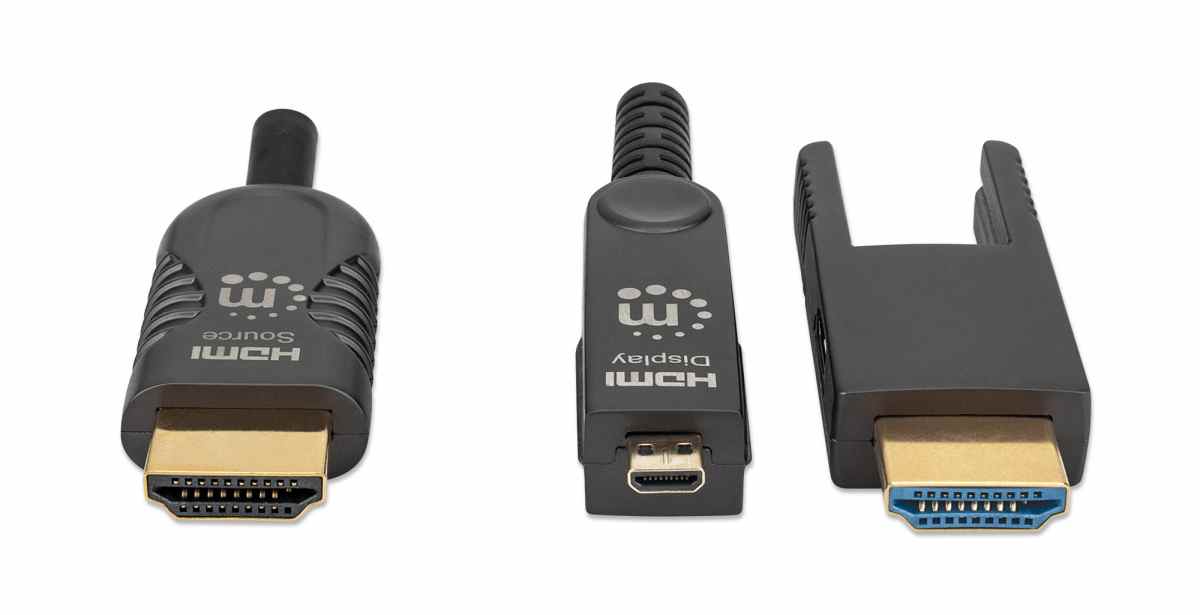

Standard HDMI connector (type A) to Micro HDMI (type D) for a narrower connection through walls; includes HDMI type-A adapter for traditional source-to-display connection
HDMI Active Optical Cable - enjoy Ultra-High-Definition (UHD) performance over extra-long distances with flexible connections and no interference

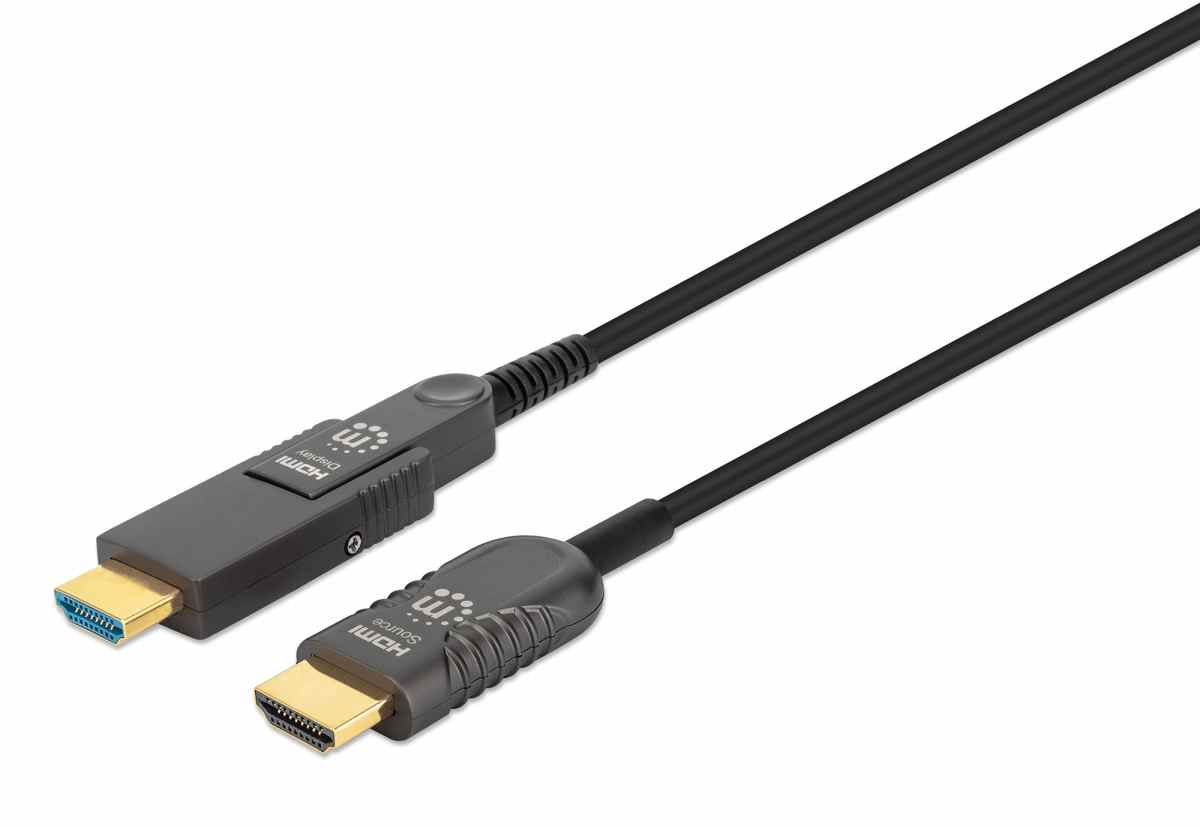

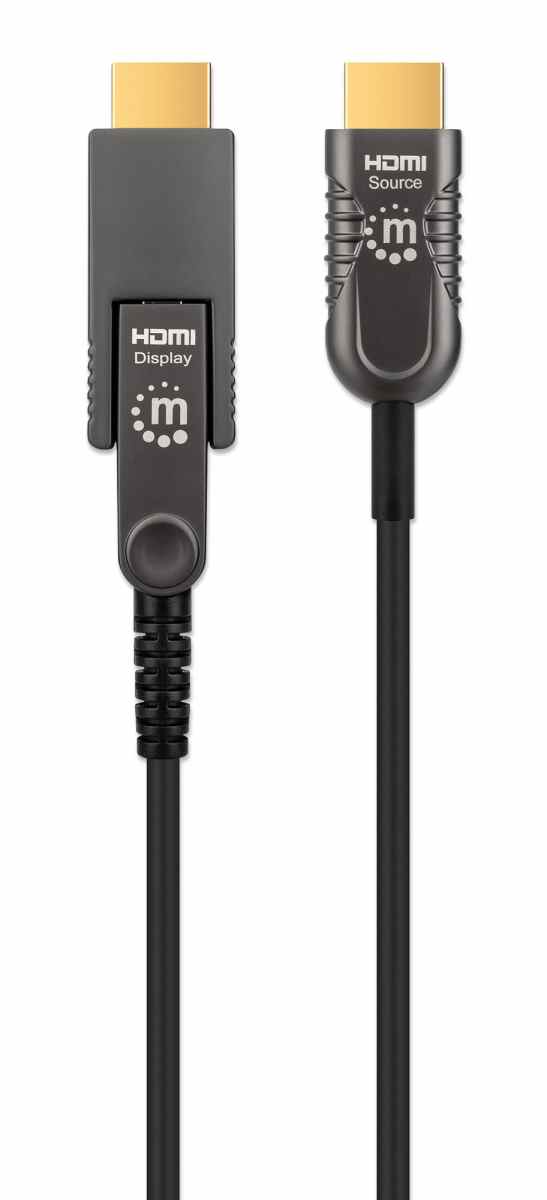

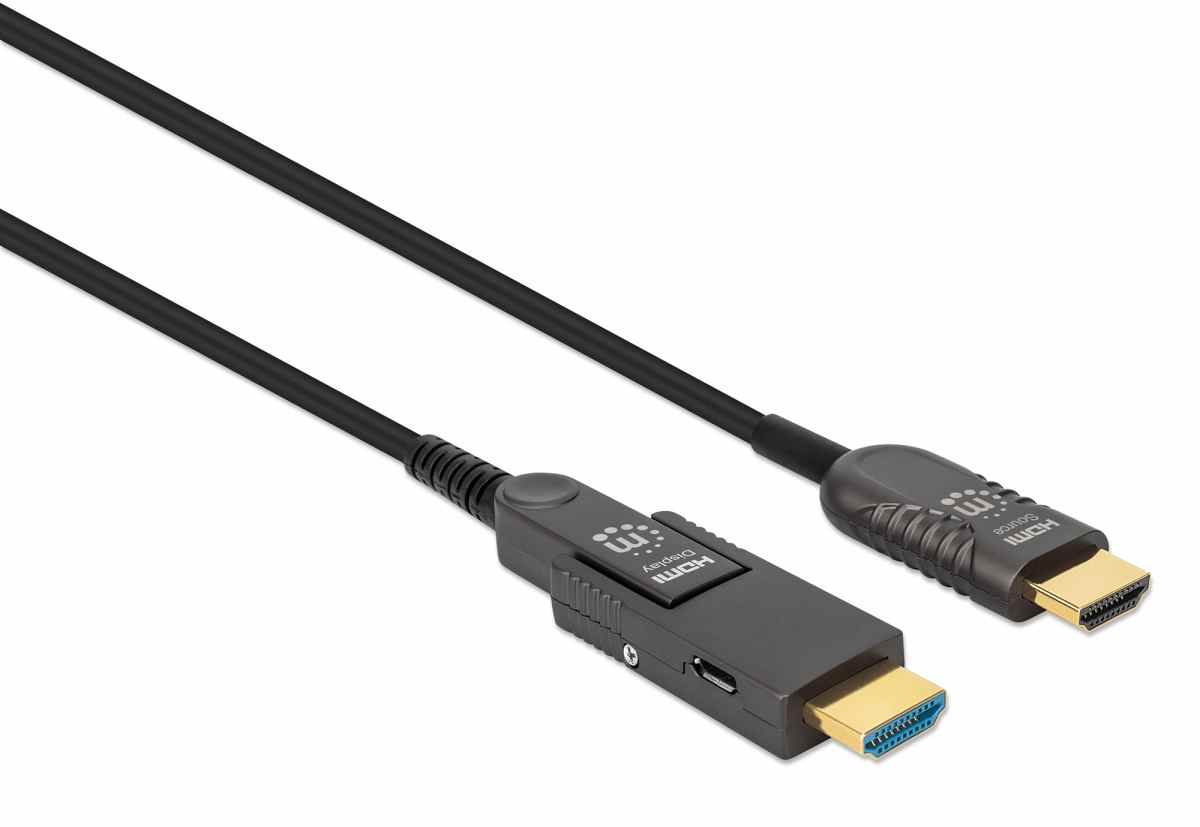

The Manhattan High-Speed HDMI Active Optical Cable with Detachable Connector is the perfect solution for delivering an HDMI signal to a desired location such as a classroom, conference room, healthcare facility, trade show or another commercial environment. Active Optical Cable (AOC) technology offers several advantages over standard HDMI cables. Its smaller cable diameter ensures greater flexibility and maneuverability during installation into tight spaces and features a Micro HDMI type-D connector for a narrower connection through walls. You can attach the included HDMI type-A adapter for your traditional, full-scale source-to-display connection and enjoy your videos in ultra-sharp, smooth 4K@60Hz. Its construction from fiber strands eliminates the risk of electromagnetic/radio frequency interference to give the best performance, stability and reliability when is use. The AOC is an excellent choice for high-interference environments such as data centers, surgical theaters, DJ events or manufacturing facilities where high resolution and consistent display are critical.
Extends an HDMI signal over long distances without an external repeater, signal loss or interference
Standard HDMI connector (type A) to Micro HDMI (type D) for a narrower connection through walls; includes HDMI type-A adapter for traditional source-to-display connection
Fiber and copper-wire hybrid for a thinner cable; ideal for in-wall installations and narrow spaces
Immune to EMI (electromagnetic interference) and RFI (radio frequency interference)
Gold-plated contacts for corrosion-free connections
High Dynamic Range (HDR) for superior contrast and brilliant colors
Supports HDMI Ethernet Channel (HEC)
Supports HDCP 2.2, CEC and ARC
Compatible with Dolby, Dolby Atmos, DTS and PCM audio formats
Supports bandwidth up to 18 Gbps
Plug and Play; requires no external power supply
Built-in, active amplifier circuitry
Three-year warranty
Specifications:
Standards and Certifications
RoHS
CE
FCC
General
Fiber: OM3
4K (3840 × 2160) at 60 Hz resolution
Bandwidth: 18 Gbps
HDCP 2.2 support
CEC support
HDR support
ARC support
Length: 30 m (100 ft.)
Weight: 900 g (1.98 lbs.)
Chipsets
Output: SL82817
Input: SL82827
VCSEL II-VI
Operating voltage: 5 V
Operating current: 50 mA
Power consumption: 250 mW
Connectors
One HDMI 19-pin male, type A

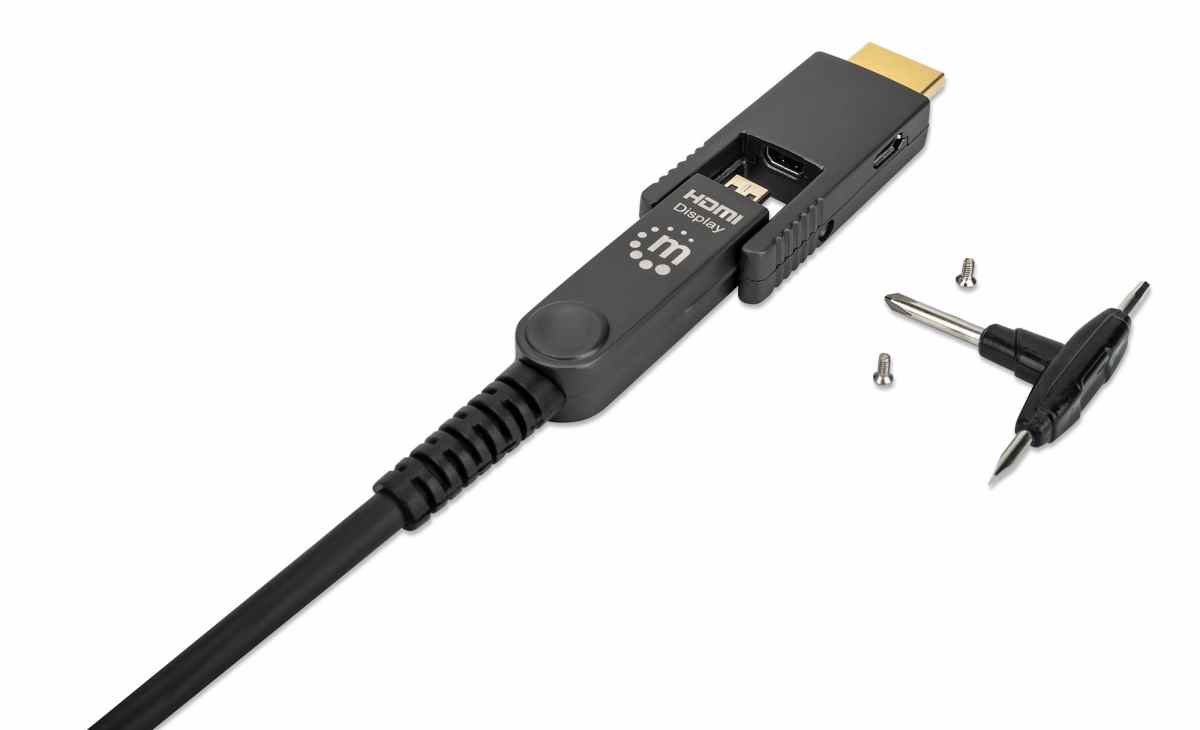

One Micro HDMI 19-pin male, type D (with detachable HDMI 19-pin male adapter, type A)
USB Micro-B input: DC 5 V (optional)
Gold-plated contacts
Zinc diecast connectors
Cable
28 AWG cable
OD: 4.5 mm, ± 0.2 mm
Bend radius: 20 mm
Fiber pulling/tensile strength: 25 kg (250 N)
Operating Environment
Operation temperature: 0 - 75°C (32 - 167°F)
Storage temperature: -20 - 70°C (-4 - 158°F)
Humidity (noncondensing): 10 - 85%
Package Contents
High-Speed HDMI Active Optical Cable with Detachable Connector

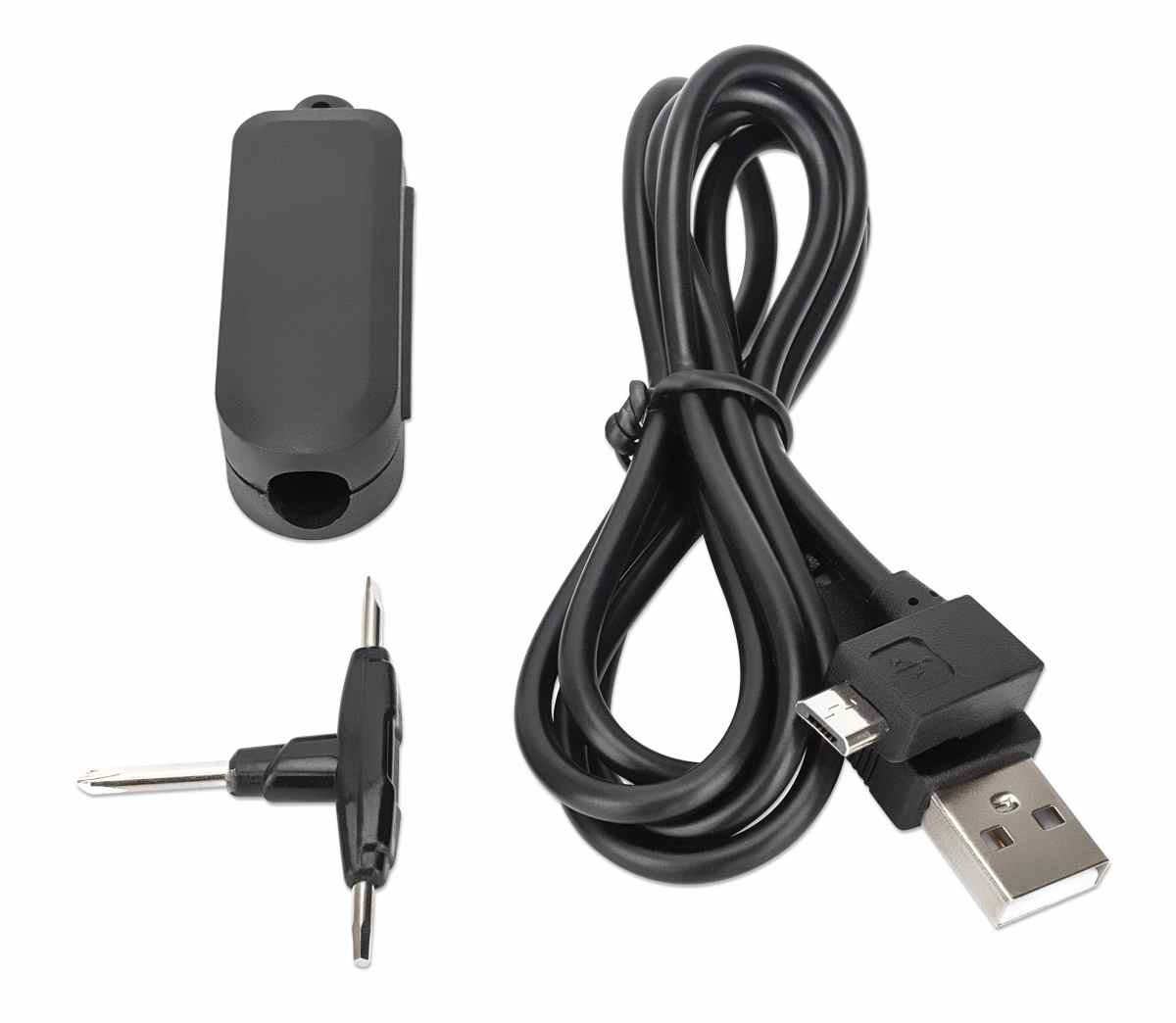

USB Micro-B male to USB-A male power cable, 0.7 m (2.3 ft.)
