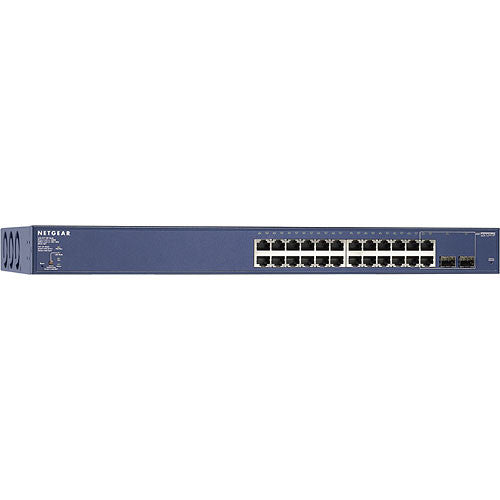

The ProSafe 24-Port 10/100/1000 Smart PoE Switch from Netgear is a switch with 24 10/100/1000 Mbps Gigabit Ethernet ports, all of which can provide Power over Ethernet (PoE). The switch also has 2 shared SFP slots for fiber Gigabit expansion. It provides web-based management and SNMP for customization, but is ready to use out of the box. It is an ideal solution for businesses that require more power than a simple switch can provide, but don't require the enterprise features found in Layer 2 and Layer 3 managed switches.
Performance |
|
Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3af Power over Ethernet |
Protocols |
Standard Network Protocols |
Ports |
24x 10/100/1000 Mbps Gigabit Ethernet with PoE RJ-45 2x Shared SFP Slots |
Speed |
10/100/1000 Mbps |
MAC Address Table Size |
4k |
Switching Method |
Store-and-Forward |
VLANs |
128 groups, static |
Management |
IEEE 802.1Q static VLAN (128 groups, static), Voice VLAN, IEEE 802.1p Class of Service (CoS), Port-based QoS, DSCP-based QoS, IEEE802.3ad link aggregation (manual or LACP), IEEE 802.1D Spanning Tree Protocol, IEEE 802.1w Rapid Spanning Tree Protocol, SNMP v1, v2c, v3, RFC 1213 MIB II, RFC 1643 Ethernet interface MIB, RFC 1493 bridge MIB, RMON group 1, 2, 3, 9, RFC 2131 DHCP client, IEEE 802.1x, Jumbo frame support, Port-based security by locked, MAC addresses, Layers 2-4 based ACL, Storm control for broadcast, multicast and unknown unicast packets, IGMP snooping v1/v2, Port-based ingress rate limiting, SNTP, Port mirroring support (many to one), Web-based configuration, Configuration backup/restore, Password access control, RADIUS support, TACACS+ support, Syslog, Firmware upgradeable |
General |
|
Form Factor |
Rackmount |
System Requirements |
Category-5 Network Cables Network card for each PC Network Software (eg, Windows) |
Environmental Requirements |
Operating Temperature: 32-104°F (0-40°C) Humidity: 0-90%, non-condensing Altitude: 10,000' (3000 m) Storage Temperature: -4-158°F (-20-70°C) Humidity: 0-95%, non-condensing Altitude: 10,000' (3000 m) |
Power Requirements |
AC: 100-240 VAC, 50-60 Hz Consumption: 225W; 192W PoE budget |
Dimensions |
17.3 x 1.6 x 10.1" (44 x 4.3 x 25.7 cm) |
Weight |
8.1 (3.7 kg) |
In the Box:
- Netgear ProSafe 24-Port 10/100/1000 Smart PoE Switch
- Rubber Footpads
- Power Cord
- Rackmount Kit
- Resource CD
- Installation Guide
