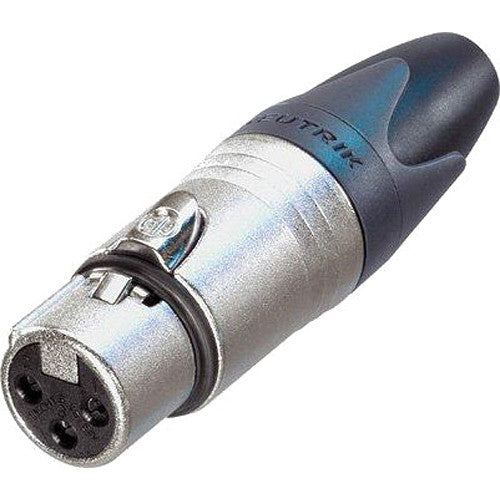

Neutrik NC3FXX Female 3-Pin XLR Connector

Rs. 300.00
This product is Out of stock

3 pole female cable connector with Nickel housing and silver contacts.

The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.

Features & Benefits:

  • Unique cage design of female contact for low contact resistance and high integrity
  • Female contact incorporates a solder barrier to prevent solder running into the contact mating area
  • Female connector with improved solid metal latch which is larger and easier to handle
  • Additional ground spring contacts for better shell ground continuity
  • Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
  • Boot with polyurethane gland gives high protection to cable bending stresses
  • Colored rings and boots available for coding or identification
  • Sleek and ergonomic design - valuable and handy
  • Rugged zinc diecast shell, longlasting and dependable
  • Internal thread on shell is well protected against any damage

Technical Specifications:

Product


Title

NC3FXX

Connection Type

XLR

Gender

female

Electrical


Capacitance between contacts

≤ 4 pF

Contact resistance

≤ 3 mΩ

Dielectric strength

1,5 kVdc

Insulation resistance

> 10 GΩ (initial)

Rated current per contact

16 A

Rated voltage

< 50 V

Mechanical


Cable O.D.

3.5 - 8.0 mm

Insertion force

≤ 20 N

Withdrawal force

≤ 20 N

Lifetime

> 1000 mating cycles

Wiresize

max. 2.5 mm²

Wiresize

max. 14 AWG

Locking device

Latch lock

Material


Boot

Polyurethan

Contact plating

2 µm Ag

Contacts

Bronze (CuSn8)

Insert

Polyamide (PA66)

Locking element

Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)

Shell

Zinc diecast (ZnAl4Cu1)

Shell plating

Nickel

Strain relief

Polyacetal (POM)

Environmental


Flammability

UL 94 V-0

Standard compliance

IEC 61076-2-103

Protection class

IP 40

Solderability

Complies with IEC 68-2-20

Temperature range

-30 °C to +80 °C

    In the Box:

    • Neutrik NC3FXX Female 3-Pin XLR Connector
    • Limited 6-Month Warranty
