Neutrik NL4FX Locking Four-Pole High-Load Speakon Connector- Grey

Rs. 450.00
This product is Out of stock

4 pole cable connector, chuck type strain relief, dark grey bushing

The industry-standard for loudspeaker connections offer extremely reliable and robust cable connectors with a reliable locking system. They feature solid contacts with screw-type terminals including a stranded wire protection which offer also solder termination.

Features & Benefits:

  • Current rating 40 A rms continuous
  • Up to 50 A audio signal, duty cycle 50%

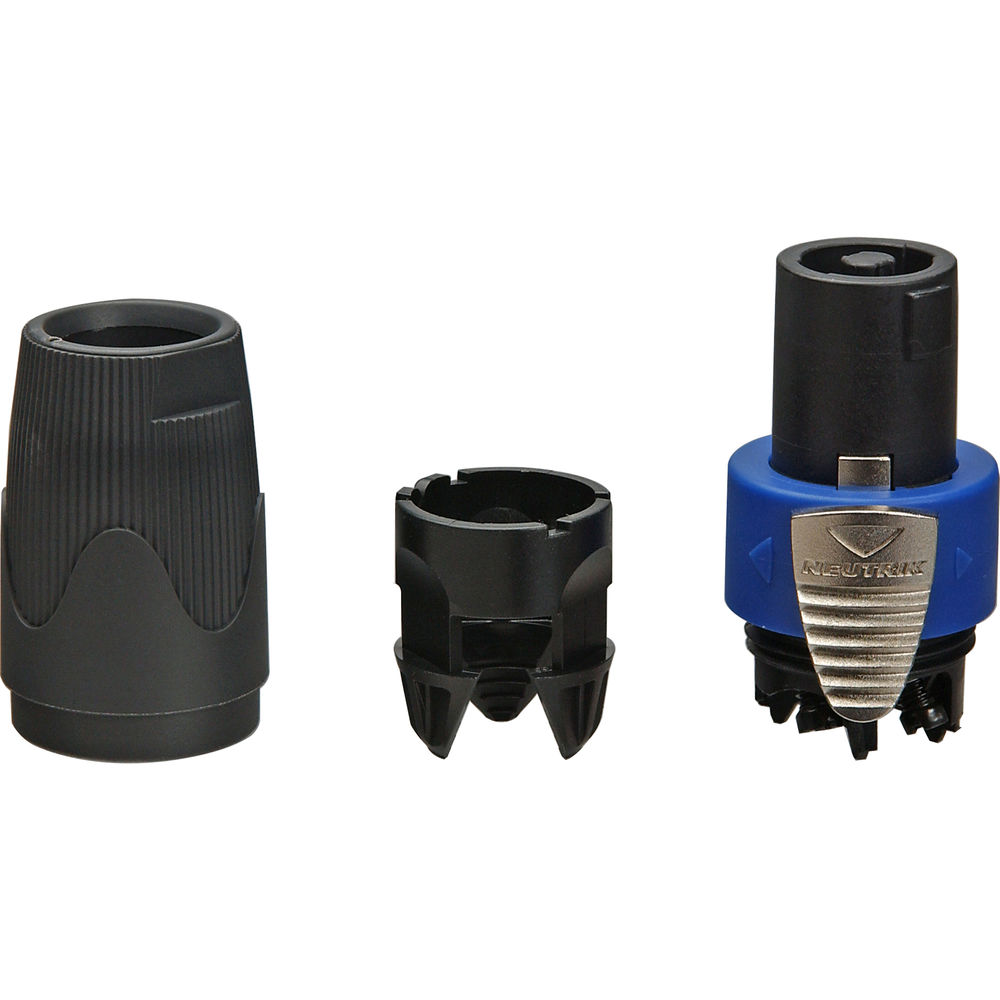

  • Only 3 parts, easy to assemble
  • High impact materials - long-lasting and reliable
  • Easy and extremely precise locking system "Quick Lock"
  • Improved grip on latch
  • 1 piece strain relief, chuck for 7 to 14.5 mm cable O.D.
  • Color coding possible
  • Improved screw-type termination for highest pull-out force
  • Integrated design guarantees "Made by Neutrik®"

Technical Specifications:

Product


Title

NL4FX

Connection Type

speakON

Gender

female

Electrical


Contact resistance

< 2 mΩ (after lifetime)

Dielectric strength

4 kVdc (peak)

Insulation resistance

> 1 GΩ (after dampheat)

Rated current per contact

40 A rms continuous

Rated current per contact

50 A audiosignal, duty cycle 50 %

Rated voltage

250 V ac

Attention

speakON is NOT to be used as an AC mains or power supply connector!

Mechanical


Cable O.D.

7 - 14.5 mm

Cable retention

≥ 220 N (subject to cable O.D. and material)

Lifetime

> 5000 mating cycles

Wiresize

4 mm² / 6 mm² (screw type terminals/soldering)

Wiresize

12 AWG / 10 AWG

Wiring

screw type terminals or soldering

Locking device

Quick Lock (latch)

Material


Contact plating

4 µm Ag

Contacts

Brass (CuZn39Pb3)

Insert

PBTP 20 % GR

Locking element

Zinc diecast (ZnAl4Cu1)

Shell

PBTP 20 % GR

Strain relief

Polyacetal (POM)

Environmental


Flammability

UL 94 HB

Solderability

Complies with IEC 68-2-20

Temperature range

-30 °C to +80 °C


In the Box:

  • Neutrik NL4FX Locking Four-Pole High-Load Speakon Connector- Grey

  • Limited 6-Month Warranty
