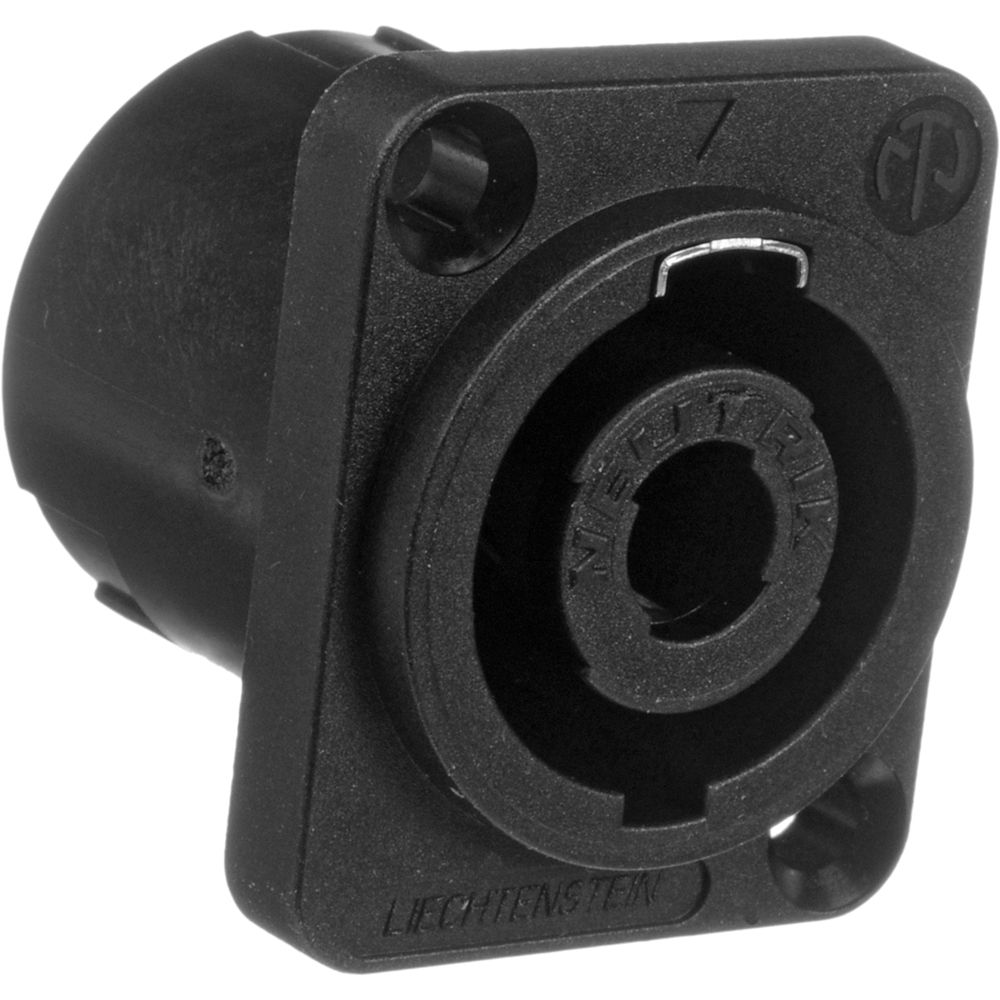

Neutrik NL4MP 4-Pole Chassis Connector
4 pole chassis connector, black D-size flange, countersunk thru holes, 3/16" flat tabs
The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feature a unique metal locking system, making contact only once fully locked. The speakON receptacles are robust, versatile and easy to terminate.
Features & Benefits:
- Current rating 30 A rms
- Glass reinforced materials make it extremely robust and dependable
- Precise keyway for secure mating
- Accurate twist lock latching system
- Metal insert in locking area
- Airtight design - optimized for speaker applications
Technical Specifications:
|
Product |
|
|
Title |
NL4MP |
|
Connection Type |
speakON |
|
Gender |
male |
|
Electrical |
|
|
Contact resistance |
≤ 3 mΩ (after lifetime) |
|
Dielectric strength |
4 kVdc (peak) |
|
Insulation resistance |
> 1 GΩ (after dampheat) |
|
Rated current per contact |
30 A rms continuous |
|
Rated current per contact |
40 A audiosignal, duty cycle 50 % |
|
Rated voltage |
250 V ac |
|
Attention |
speakON is NOT to be used as an AC mains or power supply connector! |
|
Mechanical |
|
|
Lifetime |
> 5000 mating cycles |
|
Wiresize |
|
|
Locking device |
Quick Lock |
|
Chassis shape |
D |
|
Layout |
standard hole position, thru holes |
|
Material |
|
|
Contact plating |
4 µm Ag |
|
Contacts |
Bronze (CuSn6) |
|
Shell |
Polyamide (PA 6 30 % GR) black |
|
Environmental |
|
|
Flammability |
UL 94 HB |
|
Solderability |
Complies with IEC 68-2-20 |
|
Temperature range |
-30 °C to +80 °C |
In the Box:
- Neutrik NL4MP 4-Pole Chassis Connector
- Limited 90-Day Warranty
