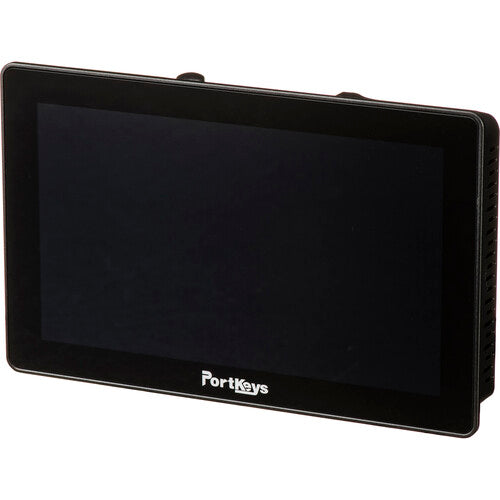

PORTKEYS LH5P II 5.5" Touchscreen Monitor
Delivery timeline 7-10 business days.

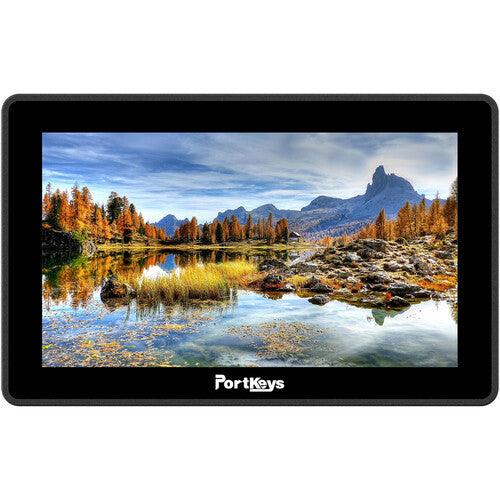

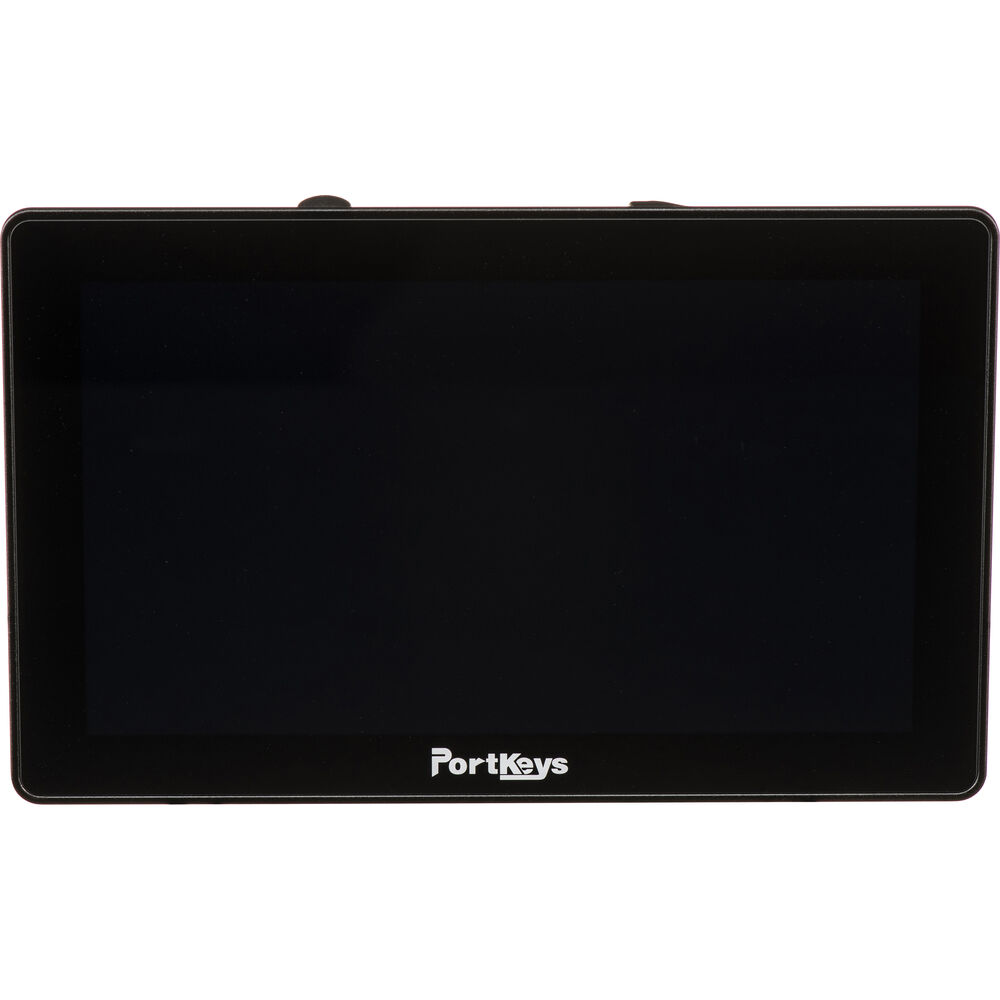

The Portkeys LH5P II is the most affordable 5.5-inch Wide Color Gamut on-camera monitor with a stunning maximum brightness of 2,000nits and wired/wireless camera control capabilities. This HDMI-only monitor features a rugged and durable design entirely made of aluminum with a complete set of professional monitoring tools ready for your next creative adventures.
Key features:
- 5.5-inch, 10-bit panel with a resolution of 1920 x 1080 and a 1000:1 contrast ratio.
- Daylight-viewable with a maximum brightness of 2,000nits.

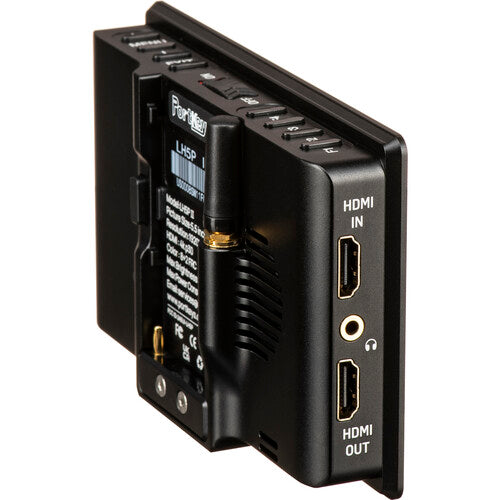

- 1 x HDMI input, 1 x HDMI output, 1 x 3.5mm audio output.
- Maximum input resolution: 4K DCI at 24p or 4K UHD at 30p.
- Professional monitoring tools: Waveform, Peaking, ARRI False Color.
- 3D LUT monitoring. Monitoring tools can be set before or after the 3D LUT.
- Wireless camera control for most Sony and Blackmagic Design cameras.
- Touchscreen autofocus (wireless) feature is available for select Sony cameras, including the FX3, a7S III, and A7C.
- Wired camera control for Sony, Canon, Panasonic, BMD, and ZCAM E2.
- TILTA Nucleus N/M wireless follow focus wired control.

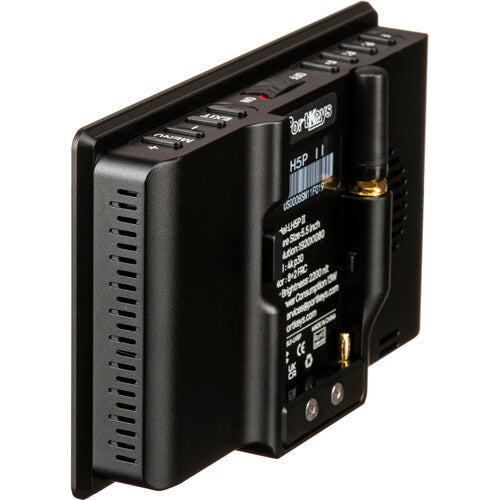

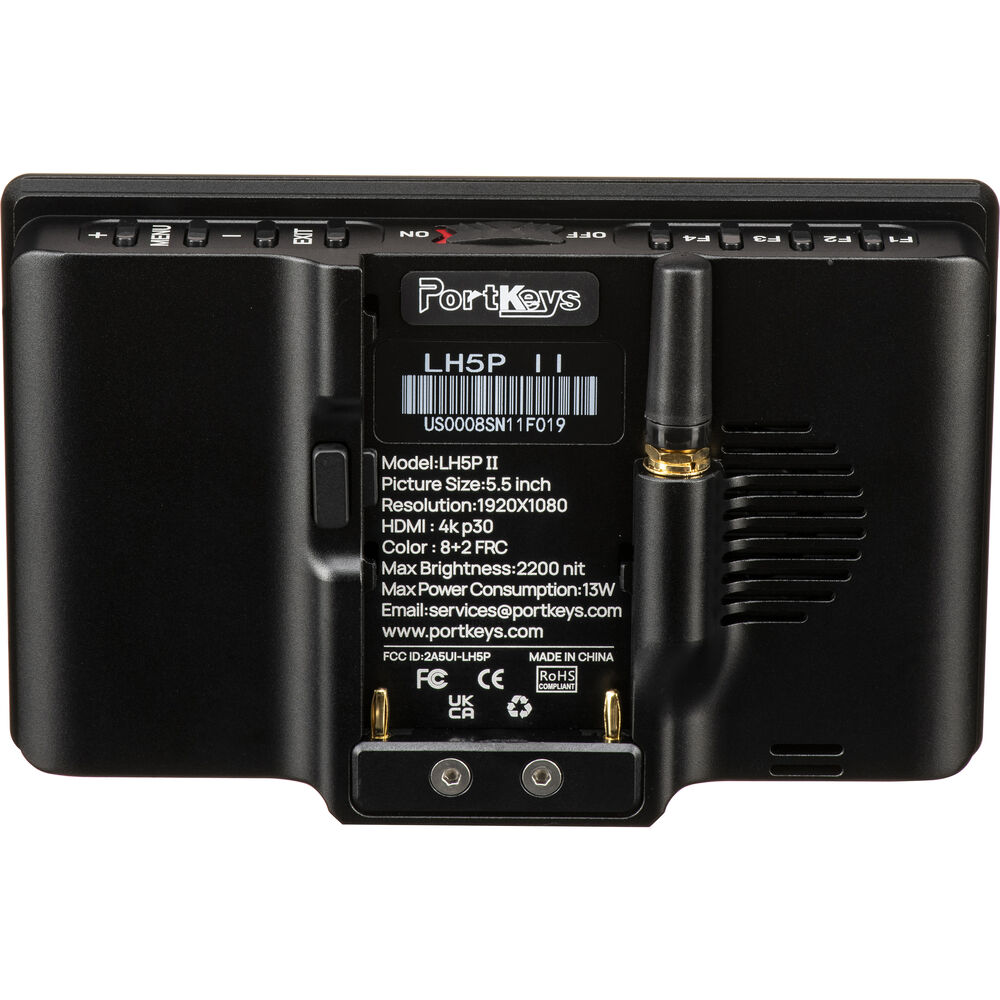

- Built-in Sony NP-F style battery plate.
- 5-pin 7.4V-24V power input for external power .
- Lightweight and rugged aluminum housing: only 285g/10.05oz

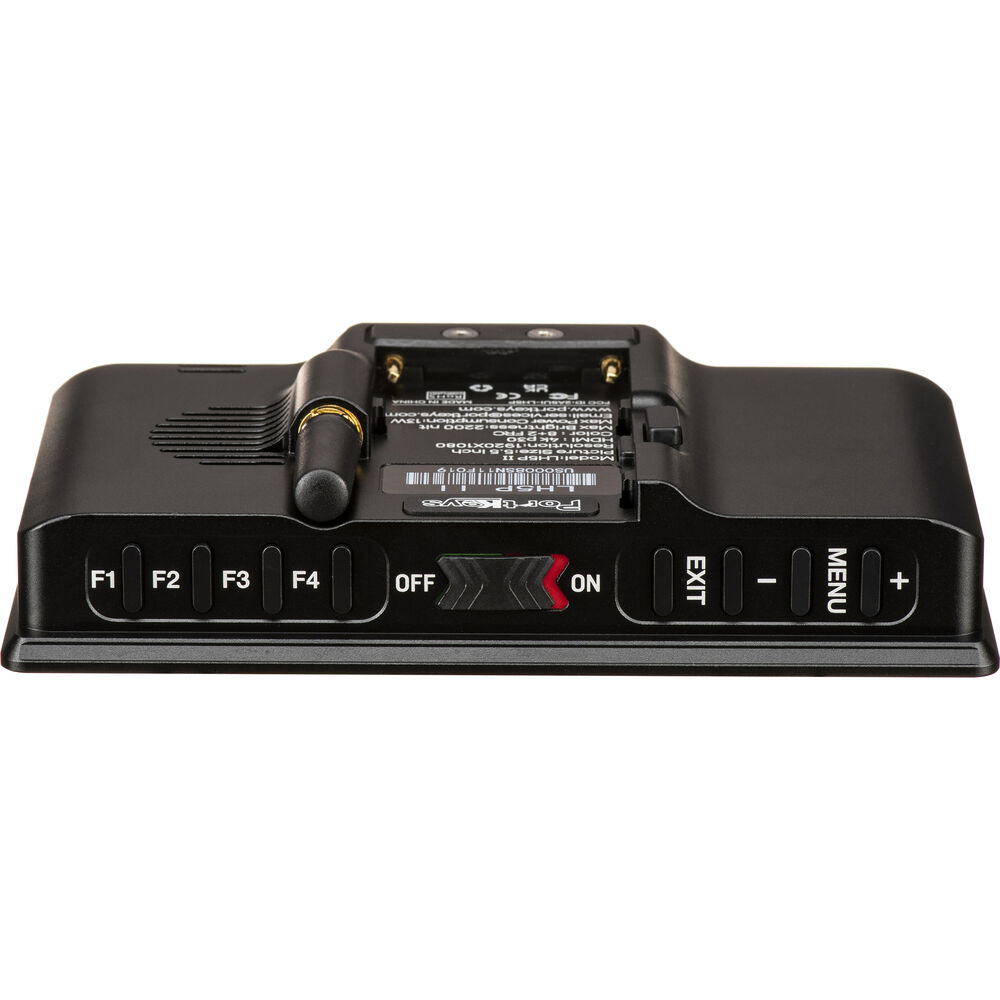

The Portkeys LH5P II is our 5.5-inch on-camera entry-level model into the world of wired and wireless camera control. However, no corners have been cut with a bulletproof all-aluminum housing and toughened glass in front of the display, a daylight-viewable touchscreen, four user-assignable function buttons that can even start/stop camera recording, and a full suite of professional monitoring tools. With a weight of only 285g/10.05oz (without battery), the LH5P II is a lightweight addition to your camera rig, but it adds many useful features to make your life on set easier.
Technical Specifications:
|
Basic Parameters |
|
|
Screen Size |
5.5″ |
|
Dimension |
144*90*30.8mm |
|
Viewing Angle |
178°H/178°V |
|
Brightness |
2000nit |
|
Resolution |
1920*1080 |
|
Contrast Ratio |
1000:1 |
|
Weight |
285g |
|
Color Depth |
10bit(8+2 FRC) |
|
Maximum Power |
13W |
|
Material |
Aluminum alloy + Toughened glass |
|
Input Voltage |
DC 7-24V |
|
Output Voltage |
4pin Aviation Connector OUT 7.4V(NPF) |
|
Video Signal Input |
4K HDMI |
|
Video Signal Output |
4K HDMI |
|
Support Barrery Model |
SONY NP-F970/F960/F750/F550 |
|

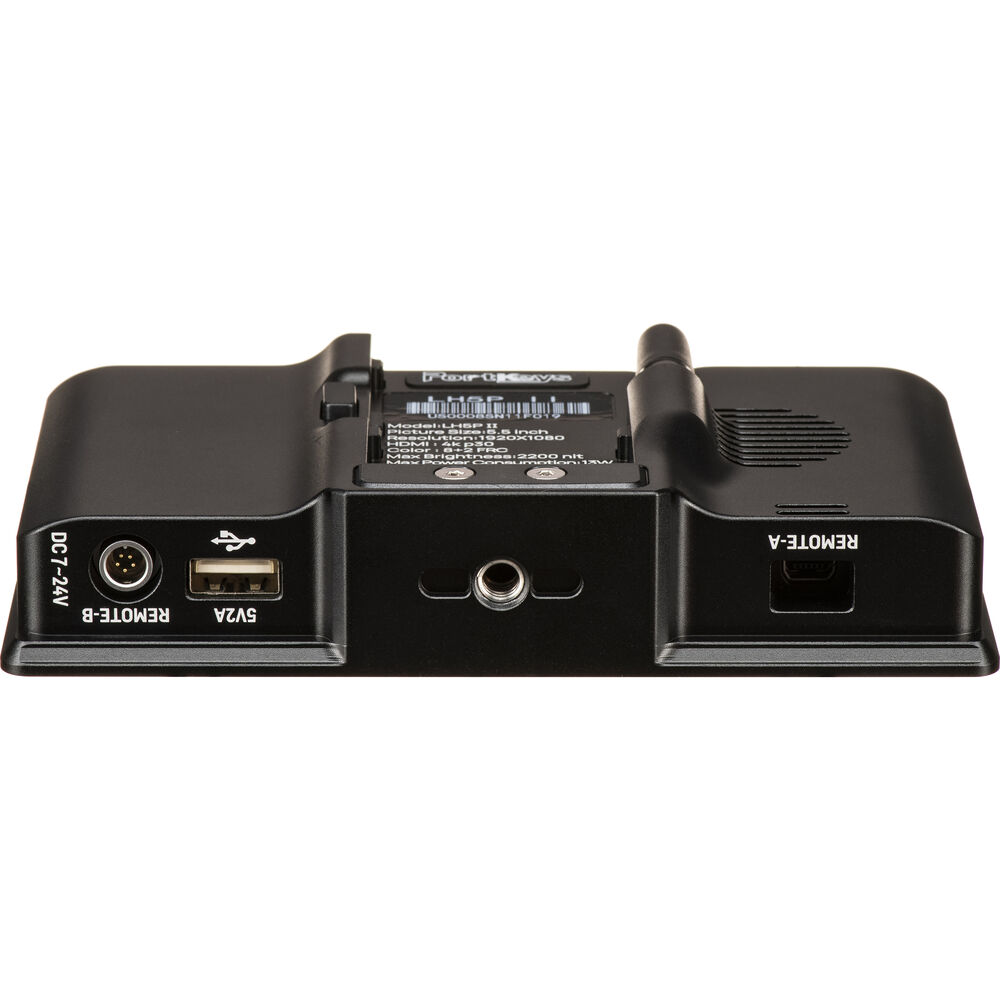

5pin Aviation Power Input |
Available 7-24V power supply or NPF |
|
5pin Aviation Power Output |
Can output 5V1A voltage to power other devices |
|
Audio Output |
3.5mm Headphone Jack |
|
USB-A |
Firmware Update / 3D LUT |
|
Fan |
Yes |
In The Box:
1x LH5P II Monitor
1x 5 pin Aviation to D-Tap Type B Power Cable
2x 2.4 Straight Head Antenna
1x LANC Control Cable
1x Type-C Control Cable
1x Warm Prompt Card

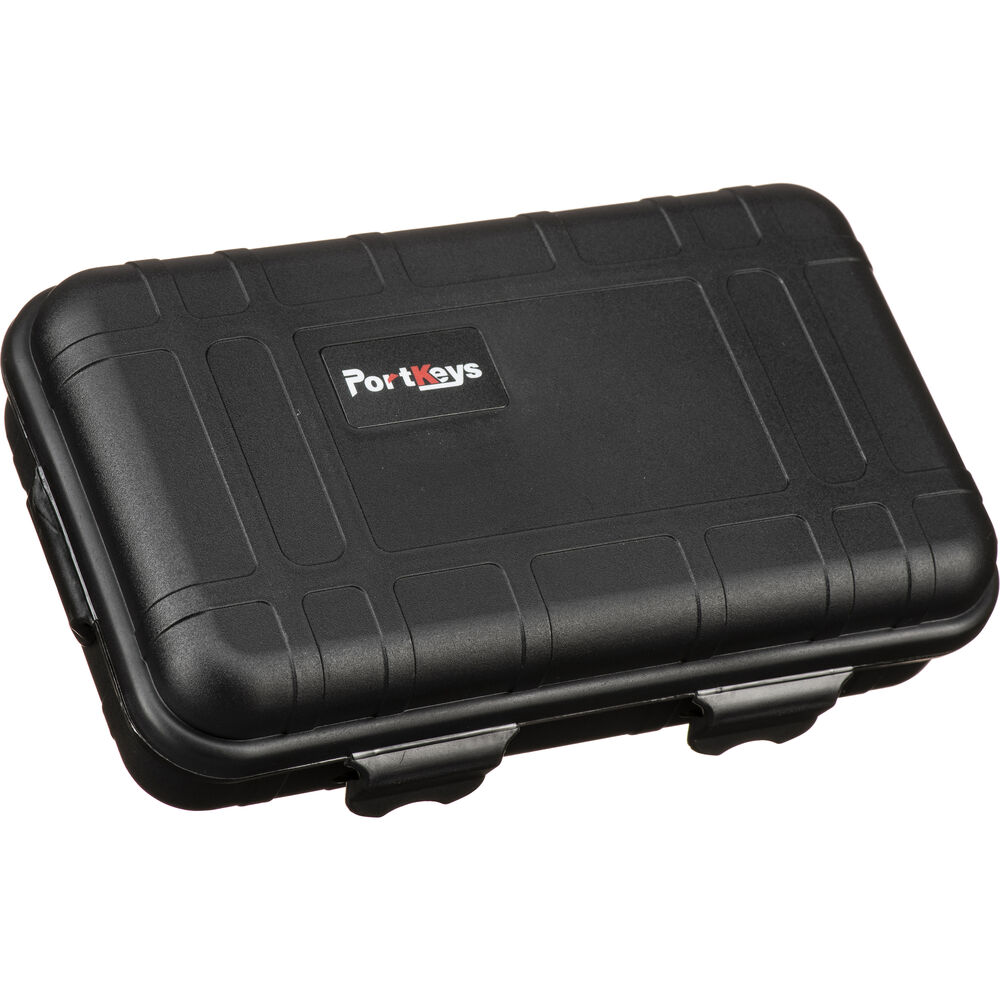

1x Safety Box
1x U Disk
1x After Sales Service Card
