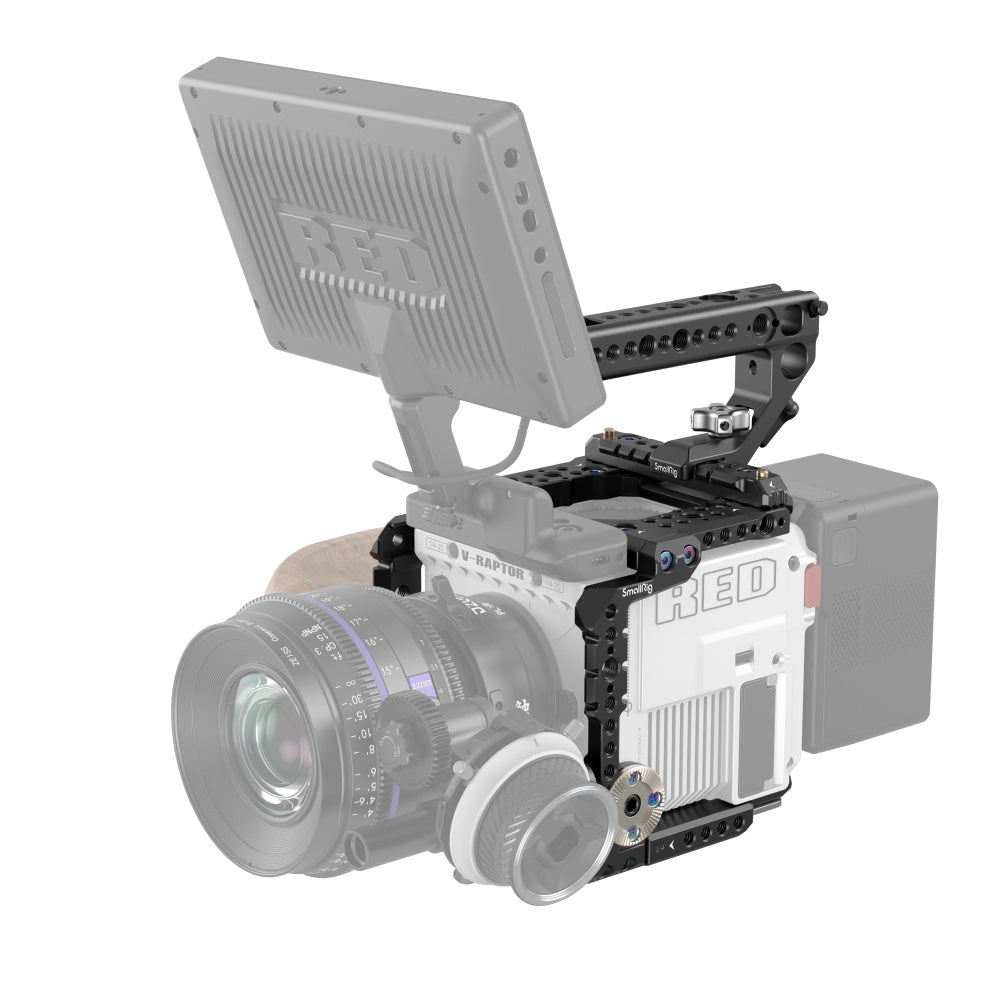

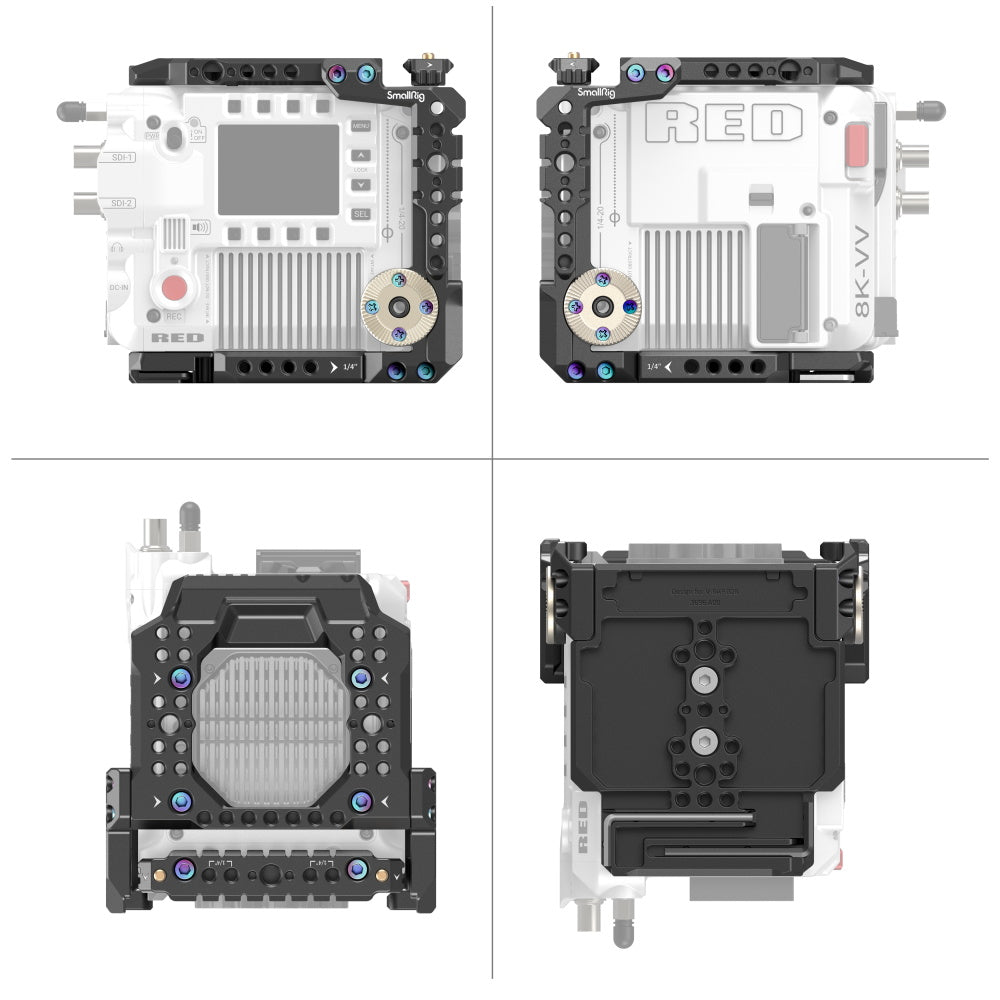

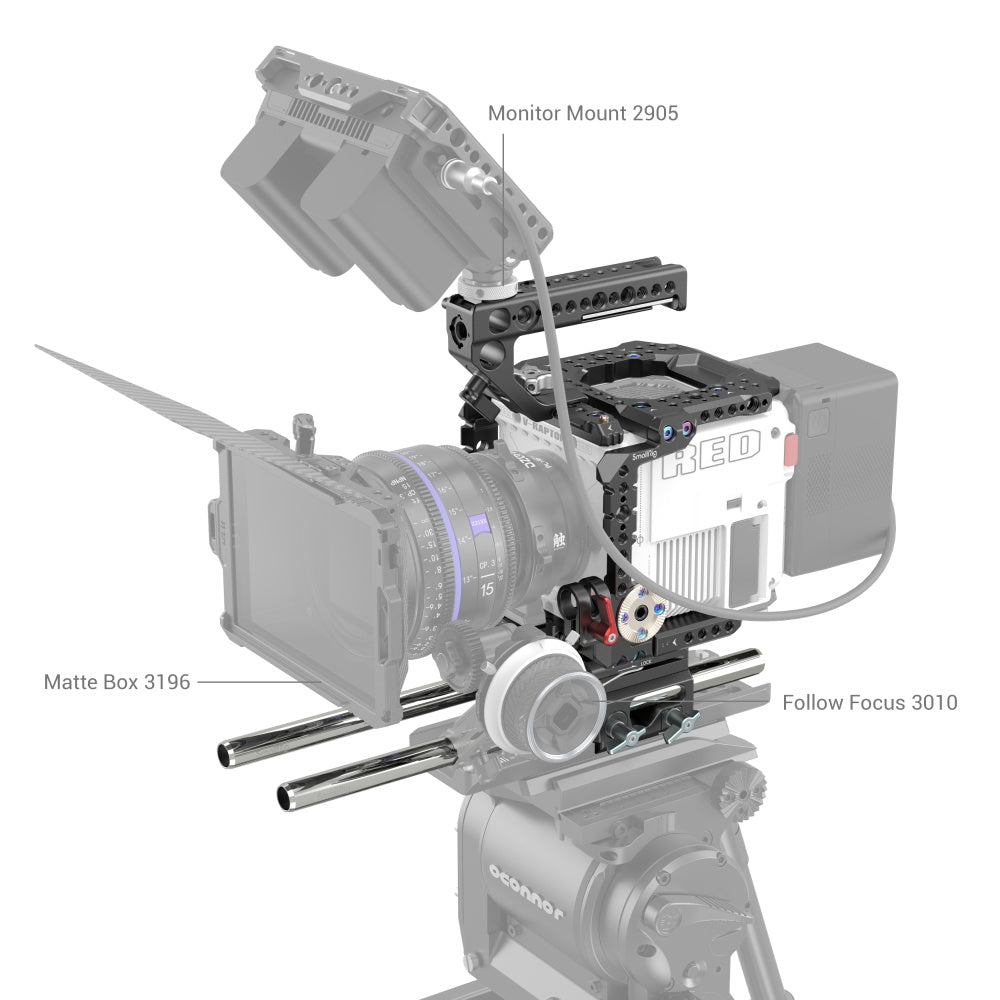

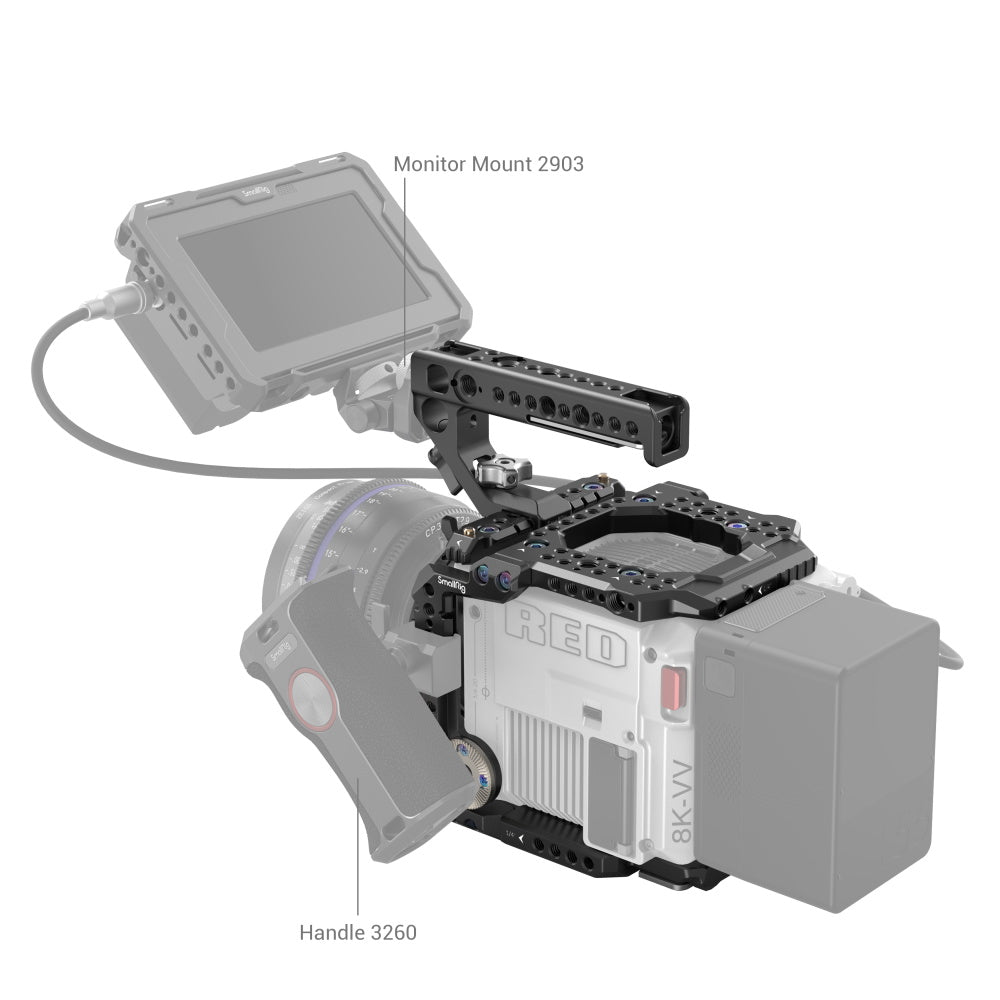

SmallRig Cage Kit for RED V-RAPTOR 3696 is designed to attach accessories and protect the camera. With a modular design, either the top plate or bottom plate works independently, providing a lightweight videoing solution. Its top NATO rail can be removed to allow installing DSMC3™ RED® Touch 7”LCD, the original monitor. The kit comes with such accessory mounts as 1/4"-20 threaded holes, 3/8"-16 threaded holes, ARRI 3/8" -16 locating holes, NATO rails, cold shoe mounts, ARRI rosettes, 15mm rod clamps for Monitor Mount 2905, Side Grip with ARRI Rosette 1941/1891, etc. for professional video production. The NATO top handle with 15mm rod clamp supports the original monitor.

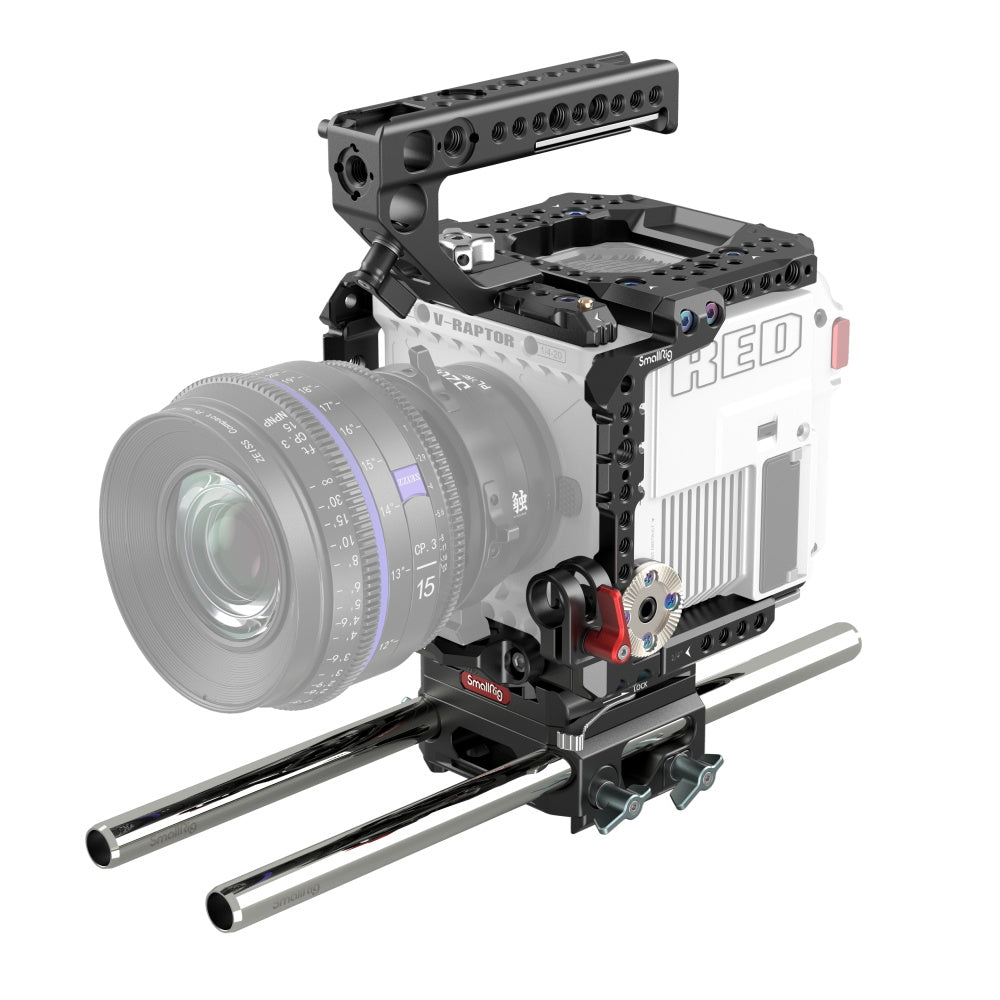

Among other accessories, the 15mm Manfrotto to ARRI baseplate allows switching scenes and adjusting center of gravity; 15mm stainless steel rod works with mini Follow Focus 3010 and mini Matte Box 3196 to achieve more professional shooting experience; 15mm rod clamp offers a lightweight focus solution; and the adapter ring support protects camera interfaces. Also, an Allen Wrench is included in the bottom plate for easy assembly an disassembly.

Designer: Nico Robin

Note:

1. Adapter RingSupport is compatible with DZOFilm PL Lens to Canon RF-Mount Adapter.
2. Please refer to user manual.

Compatibility

RED V-RAPTOR

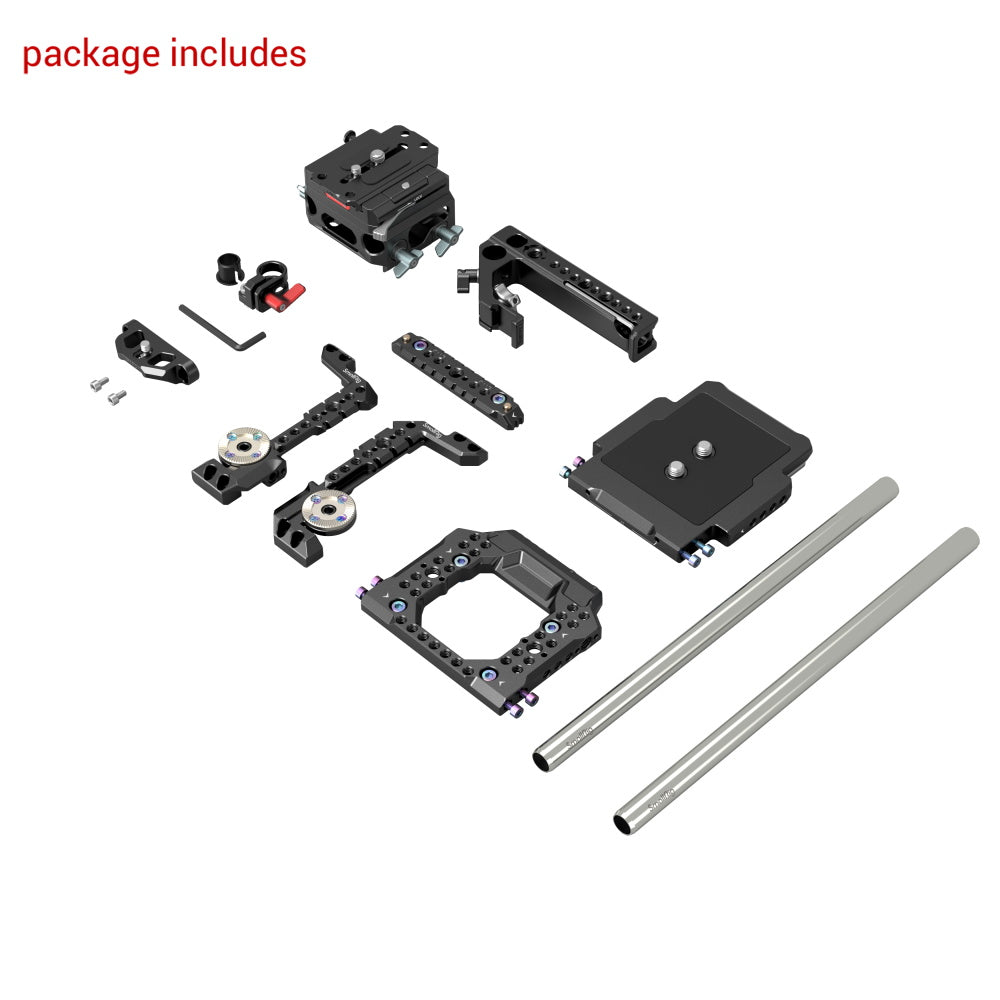

In the Box

1 x Top Plate

1 x NATO Top Plate

2 x Side Plate

1 x Baseplate

1 x Lens Adapter Support

1 x NATO Top Handle HTN2439

1 x Baseplate with Dual 15mm Rod Clamp 3067

1 x Rod Clamp 3276

1 x Rod 3682

2 x M4 Screw

1 x User Manual

Specifications

Product Dimensions: 252 x 125 x 136mm

Package Dimensions: 330 x 194 x 96mm

Product Weight: 1287g±5g

Package Weight: 1737g±5g

Material(s): Aluminum Alloy, Stainless Steel
