Teradek Bolt 6 RX 1500 Monitor Module for Smart 7 Series

Rs. 423,500.00
Key Features:
  • Receive HD Video from up to 1500' LoS
  • Receive up to 4K30 Video, Zero Delay
  • V-Mount Battery Plate
  • For SmallHD Cine 7/Indie 7/702 Touch
  • Output up to 4K30 Video via HDMI
  • Compatible with Any Bolt 4K Transmitter
  • AES-256 Encryption, 5 x Antennas
  • Bluetooth Mobile App, Spectrum Analyzer

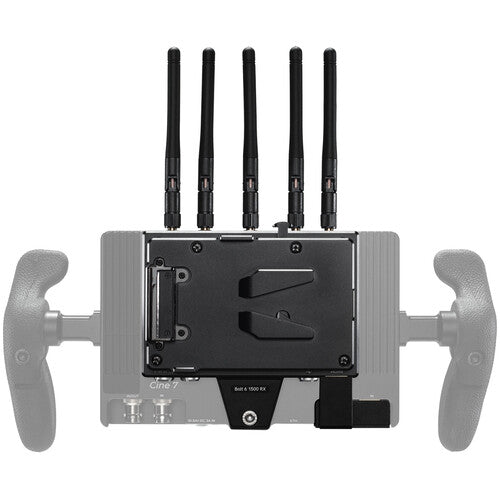

Receive lossless HD video from up to 1500' line-of-sight with the Bolt 6 RX 1500 Monitor Module from Teradek. The module mounts onto the back of a SmallHD Cine 7, Indie 7, or 702 Touch monitor and can wirelessly receive up to UHD 4K30 HDR video with 10-bit 4:2:2 HDR support and outputs video via one HDMI port. A V-mount battery plate is included to power the receiver using a professional V-mount battery.

The receiver module supports transmissions of up to 4K30 video from any Bolt 6 or Bolt 4K series transmitter, which can simultaneously transmit to up to six receivers. It features improved metadata, range, and compatibility over its predecessors. The built-in AES-256 encryption with RSA 1024 key pairing protects your video from prying eyes, while noise rejection keeps your video clean no matter how many devices are using the wireless spectrum. The Bolt 6 system also supports the transmission of timecode and start/stop triggers from the camera.

Though it can receive visually lossless video from any Bolt 4K series transmitter with zero delay using the 5 GHz band, it requires a Bolt 6 device to receive over the 6 GHz band. The module also supports a desktop Bolt Manager software application or the Bolt app for iOS or Android that easily connects via Bluetooth, which both provide a spectrum analyzer, channel selection tools, and remote configuration.

Key Features
  • Supports the newly available 6 GHz wireless frequency band
  • Cross-compatible with all Bolt 4K and 4K LT 5G series transmitters
  • Mounts on the back of a SmallHD Cine 7, Indie 7, or 702 Touch monitor
  • Wirelessly receive up to 4K30 video and output up to 4K30 via HDMI port
  • V-mount battery plate included
  • Supports Rec 2020 HDR in 10-bit 4:2:2 color gamut
  • Smaller and lighter chassis design than other Bolt receivers
  • The receiver features five antennas
  • AES-256 encryption and RSA 1024 key pairing support
  • Wireless Android/iOS app via Bluetooth features a spectrum analyzer and remote configuration

Technical Specifications:

Video I/O

1 x HDMI 1.4b Output

Embedded Audio

HDMI: 2-Channel

Audio I/O

No

Power I/O

1 x LEMO 2-Pin (18 VDC) Input

Other I/O

2 x LEMO 5-Pin 2.0 Output

Encryption

256-Bit AES

Wireless Range

1500' / 457.2 m (Line-of-Sight)

Channel Bandwidth

40 MHz

Frequency Range

Non-DFS Frequencies

US: 5.94 to 6.42 GHz

US: 5.19 to 5.23 GHz

US: 5.75 to 5.79 GHz

DFS Frequencies

US: 5.27 to 5.67 GHz

Latency

< 0.01 ms

RF Power

21 dBm

Wi-Fi

No

Bluetooth

Yes

Video Format

HDMI/Wireless (8/10-Bit 4:4:4/4:2:2 RGB, YCC)

UHD 4K: 30/29.97/25/24/23.98

1080p: 60/59.94/50/30/29.97/25/24/23.98

1080i: 60/59.94/50

720p: 60/59.94/50

576p: 50

576i: 50

480p: 60/59.94

480i: 59.94

Audio Format

2-Channel 24-Bit 48 kHz LPCM Audio

Timecode Support

Yes

DC Input Power

6 to 18 VDC

Battery Type

1 x V-Mount

Power Consumption

6 W

Environmental Protection

No

Operating Temperature

32 to 72°F / 0 to 40°C

Material of Construction

Aluminum, Plastic

Dimensions

4.8 x 3.7 x 1.1" / 122 x 94 x 27 mm

Weight

10.3 oz / 292 g



In the Box:

  • Teradek Bolt 6 RX 1500 Monitor Module for Smart 7 Series (V-Mount)
  • V-Mount Battery Plate
  • 5 x Antenna
  • HDMI to HDMI Block Adapter
  • 1/4"-20 Light Stand Adapter
  • Hex Wrench Set
  • Screw Socket Head Set
