YoloLiv Instream Vertical Live Streaming Encoder and Monitor

Rs. 132,839.00 Rs. 77,000.00
This product is Out of stock
Key Features:
  • Encoder, Monitor, Recorder, Switcher
  • Intuitive 7" Touchscreen LCD Display
  • Stream via Ethernet, Wi-Fi, 4G LTE
  • Stream at up to 1080p60, Supports H.264
  • 2 x HDMI, 1 x USB In, 1 x SD Card Input
  • Supports H.264/MP4 up to 1080p Video
  • Built-In Chroma Key
  • Lower-Thirds/Graphic Overlays/Countdown
  • Picture-in-Picture & Transition Effects
  • Add Logos/Comments to the Stream

Add multi-camera streaming to your Instagram, TikTok, and other livestream services with the YoloBox Instream Vertical Live Streaming Encoder and Monitor from YoloLiv. The Instream features native integration with Instagram and TikTok, and it is designed to allow you to use external cameras when streaming, which you cannot normally do when streaming from the Instagram app on your phone as the app doesn't allow it. However, the Instream allows you to select and switch between three external cameras while using the Instagram app.

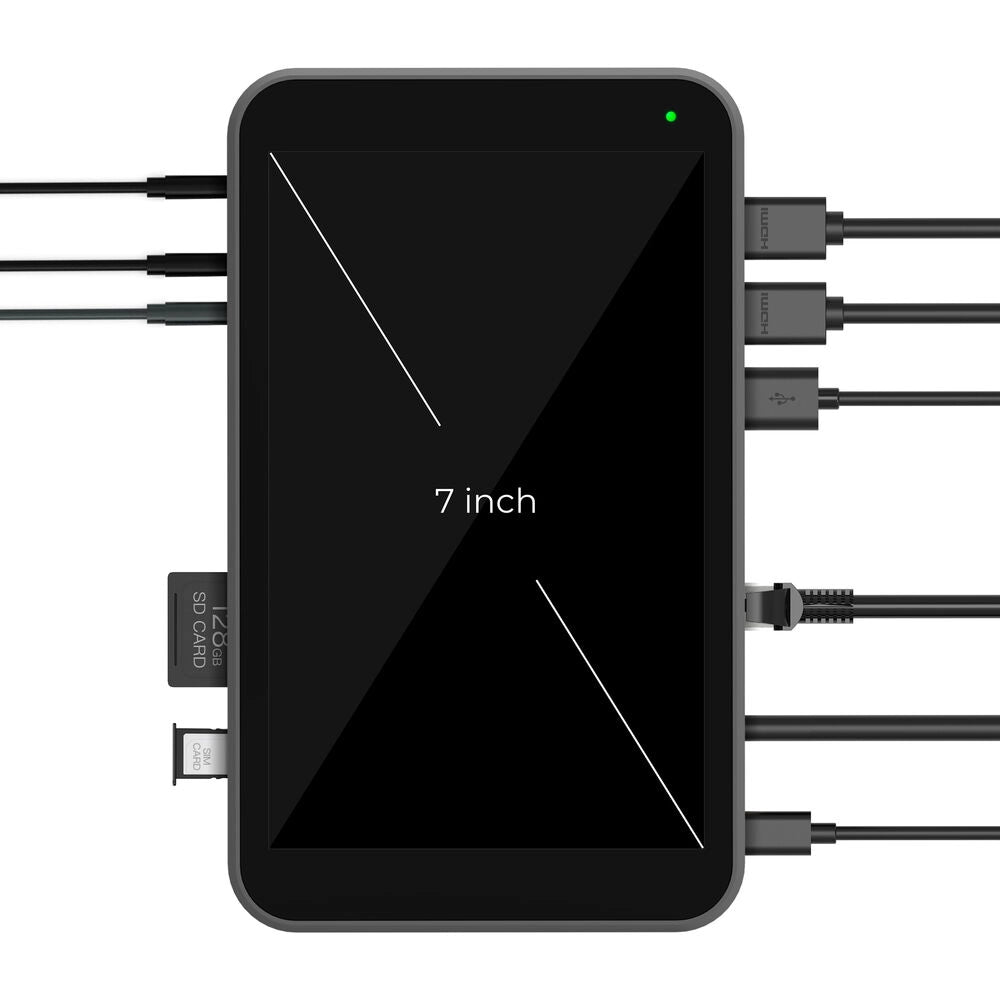

In addition to multi-cam streaming over a variety of platforms, the Instream allows you to add graphic overlays, picture-in-picture, chroma key, and use transition effects when switching camera inputs. Stream at up to 1080p60 using the H.264 codec and record to an optional SD card. Featuring a 7" LCD touchscreen display, two HDMI and one USB-A input, and one HDMI output for viewing your stream on a local device. The Instream doesn't neglect audio as it has a line-level audio input as well as mic input and a headphone jack for direct audio monitoring.

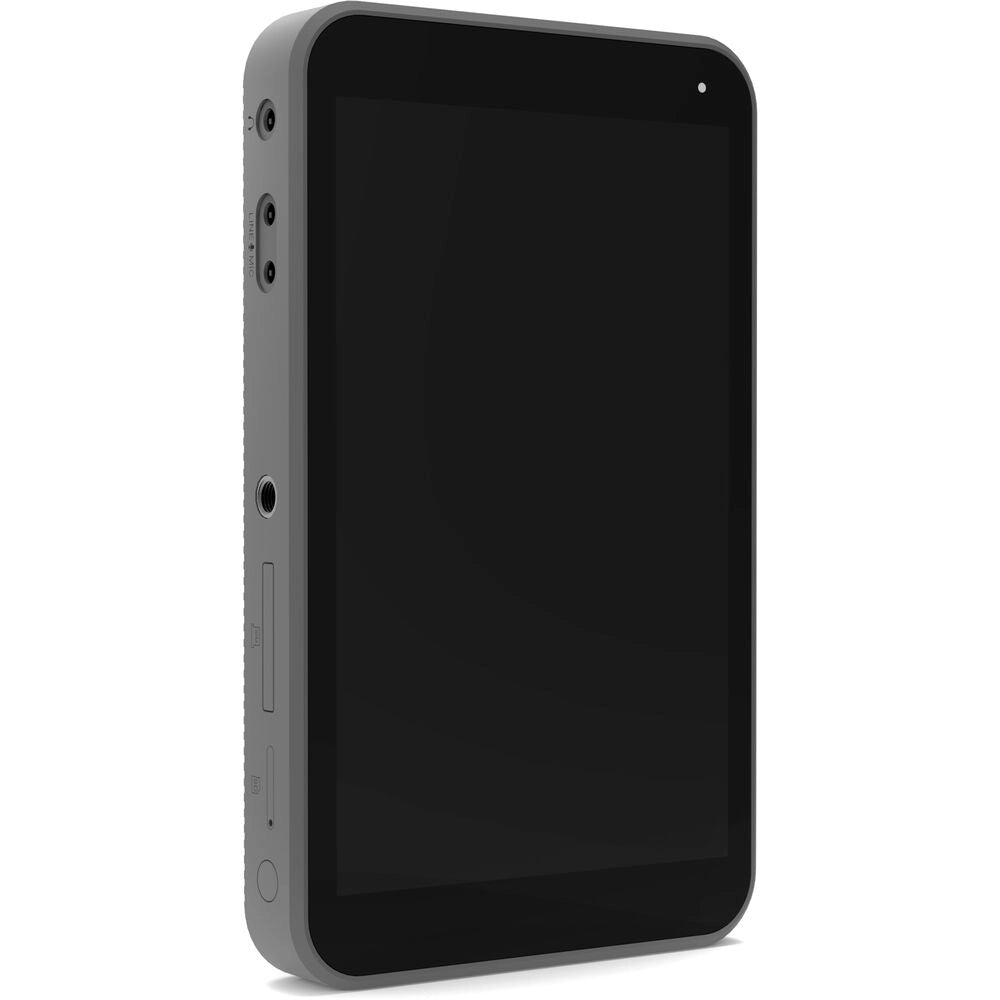

Touchscreen Control
The Instream provides you with a touchscreen interface for easy streaming and control.

Streaming Platforms
Major streaming platforms such as Instagram & TikTok are directly integrated in the Instream device. You can simply login to your social account and stream. The Instream supports RTMP and RTMPS streaming for compatibility with many livestreaming services.

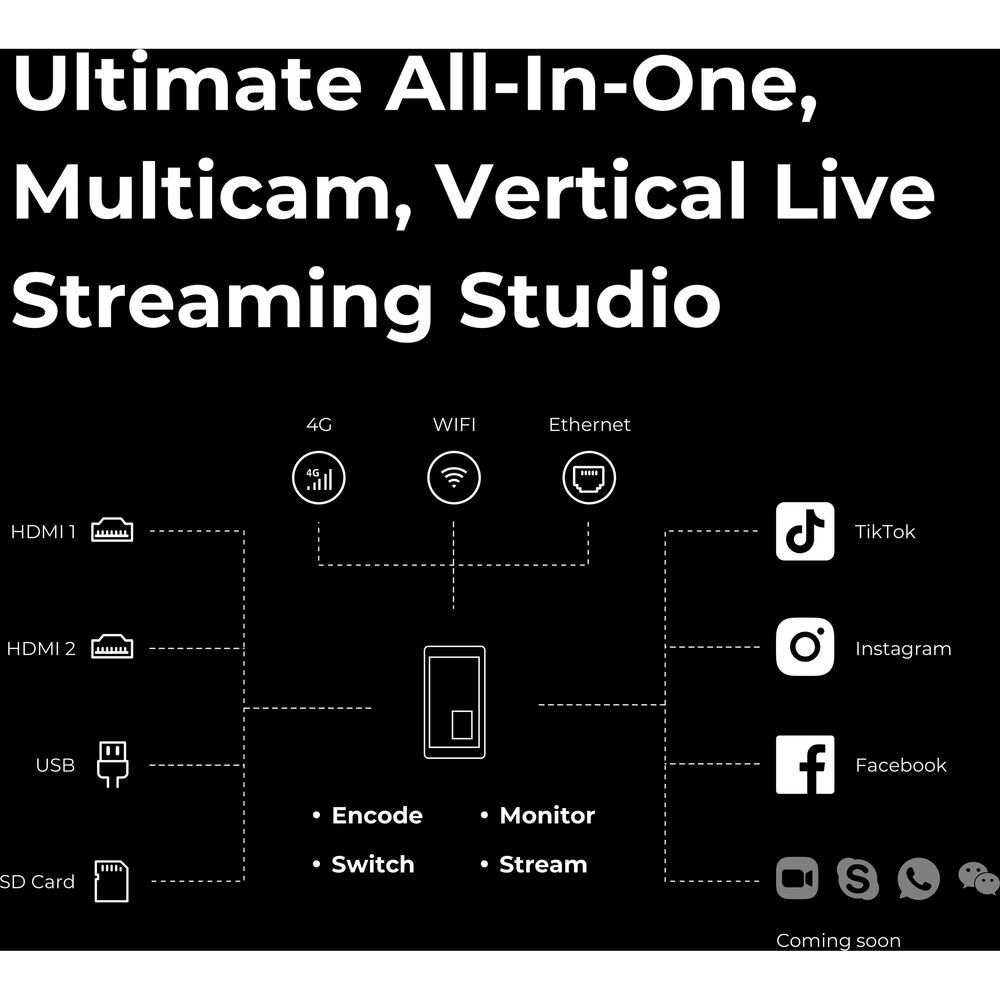

The Instream works as a switcher with a variety of picture-in-picture templates as well as graphic layers. It has a built-in encoder that allows for live streaming, and it can record to optional SD cards.

Three Ways to Connect
  • Wi-Fi
  • 4G LTE
  • Ethernet
  • You can brand your livestream by adding logos/watermarks/rolling captions
  • Customized PiP options allow you to bring a unique look and feel to your stream
  • Engage with your audience in real time via feature comment overlays
  • Supports Chroma Keying
  • Built-in lower-thirds & animated countdown templates can be edited or you can add your own
SD Card Input
Roll in pre-recorded videos for intro, countdown, B-rolls, or special segments from an SD media card.

Use Only as a Monitor & Recorder
You can use the Instream, even when you are not live streaming. Record, switch, add overlays and transitions to level up your video production efficiency.

The 10,000mAh internal battery can power your Instream for approximately 3 hours. The Instream charges via the USB-C connection, which is used for power only.

Technical Specifications:

IP Video


720 x 480 to 1920 x 1080 Encoding

IP Audio

AAC-LC: Encoding

Transport Protocols


Simultaneous Streams

1 Streams

Compatible Services

Instagram, TikToK


2.4/5 GHz

SIM Card Slots

1 x Nano SIM

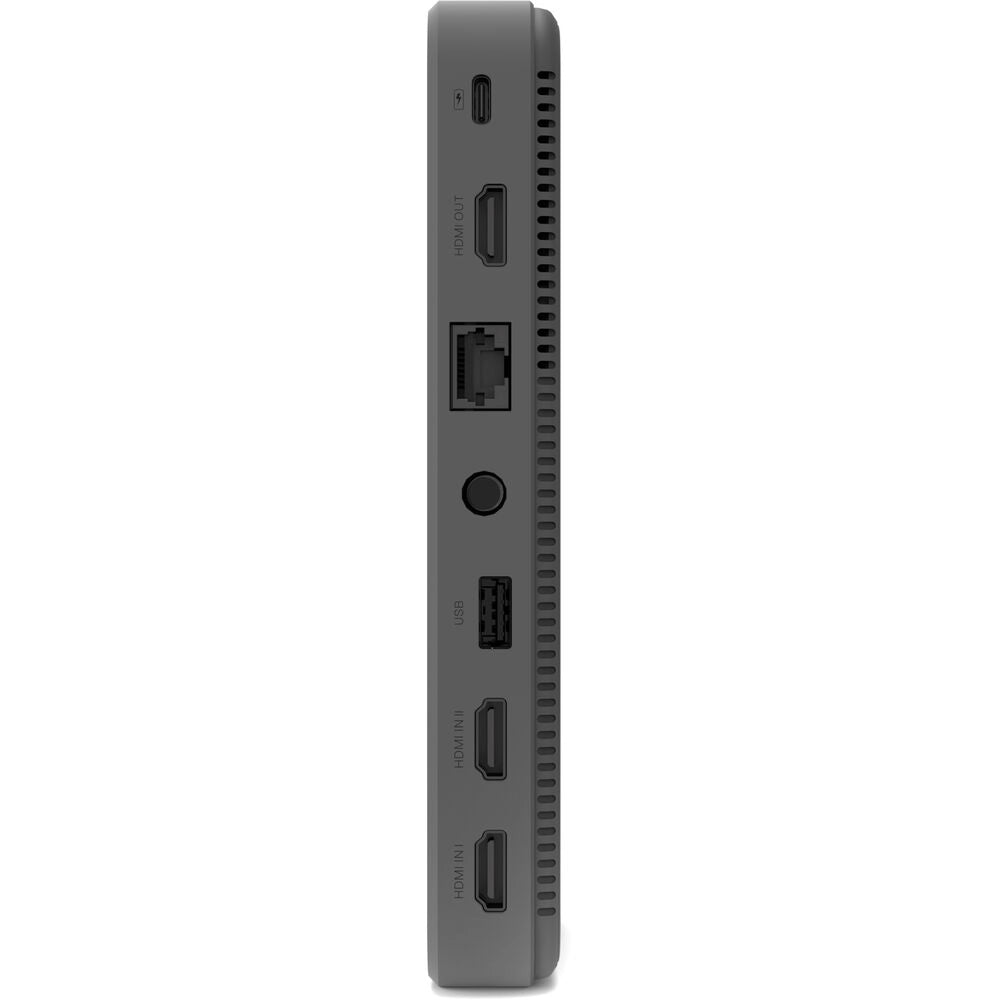

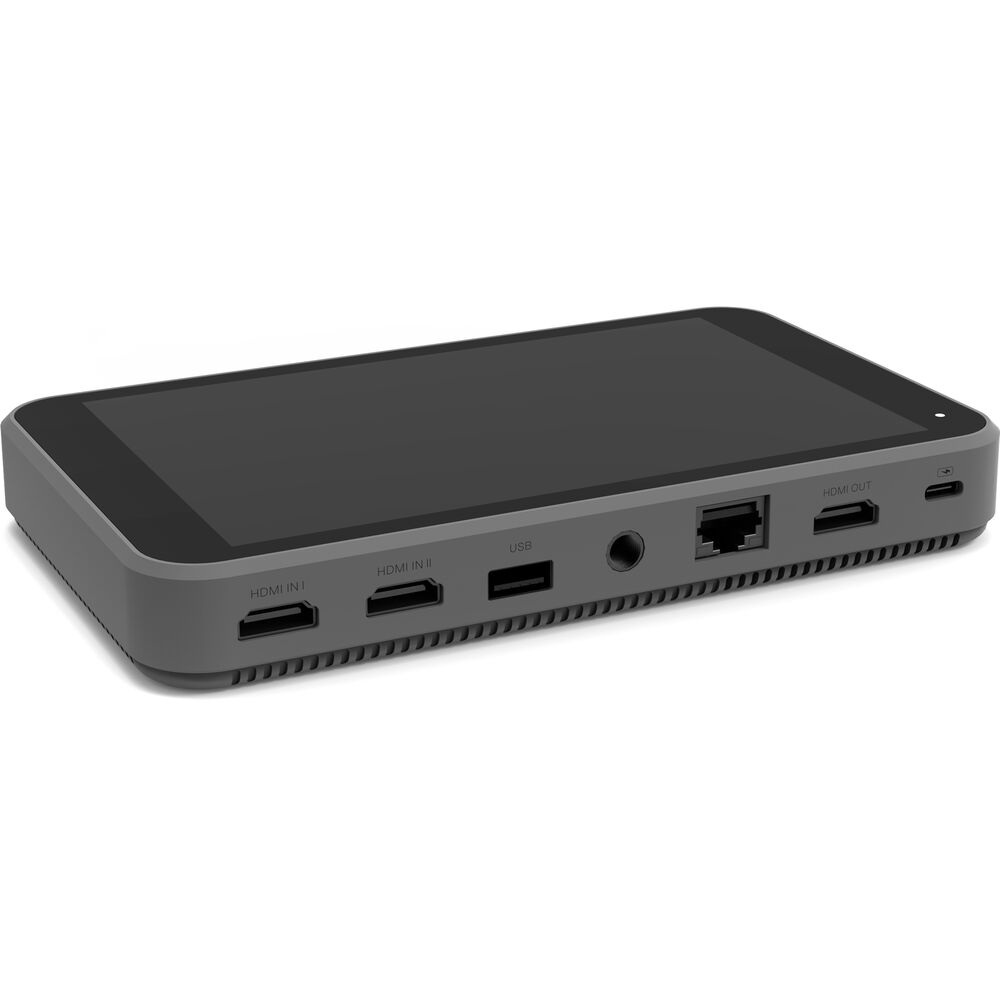

Video Connectors

2 x HDMI Input

1 x HDMI Output

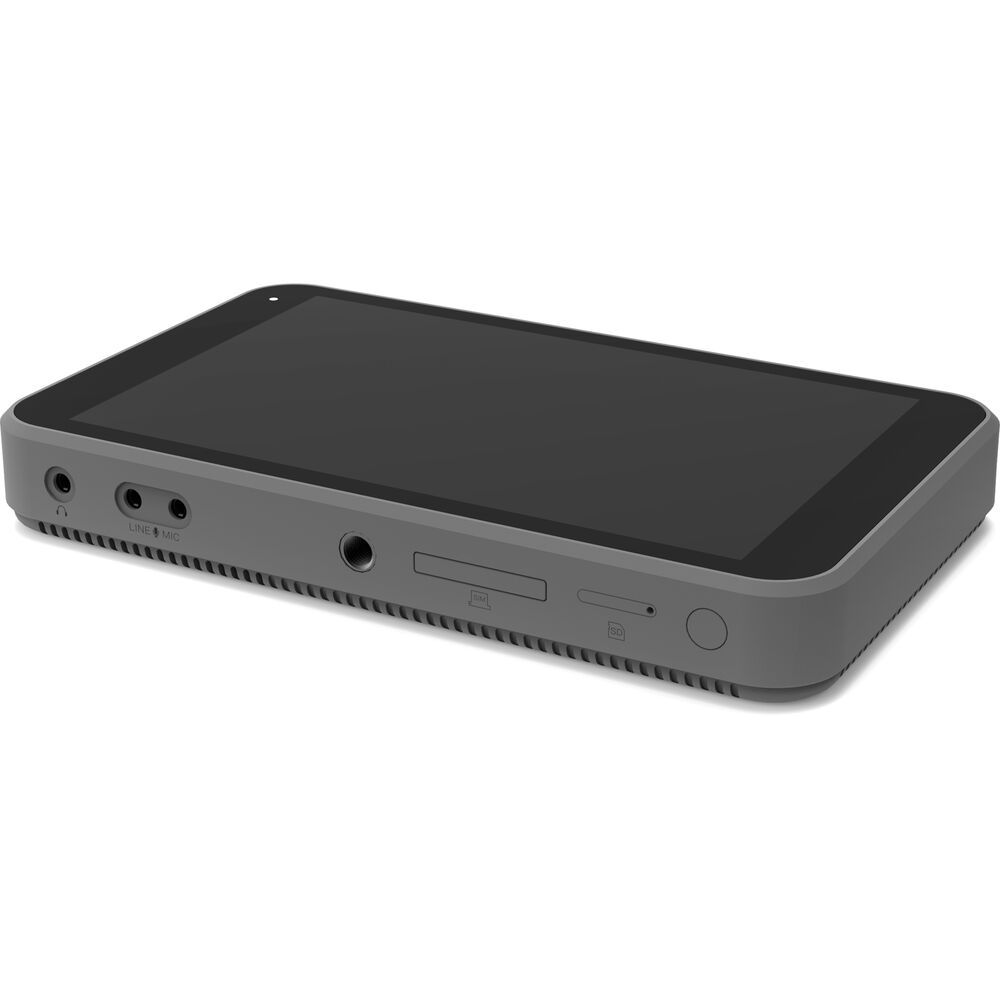

Audio Connectors

1 x 1/8" / 3.5 mm TRS Stereo Analog Input

1 x 1/8" / 3.5 mm TRS Mono Analog Input

1 x 1/8" / 3.5 mm TRS Stereo Analog Output

Other I/O

1 x RJ45 10/100 Ethernet Input/Output

1 x USB Type-A USB 3.1 Gen 1 Input

Embedded Audio

HDMI: 2-Channel

Recording Media

1 x SD (Unspecified Type)

Recording Modes

1920 x 1080p up to 60 fps

Built-In Battery

10,000 mAh

Power Connector

1 x USB Type-C (5 to 12 VDC at 1.5 A) Input

Operating Temperature

14 to 104°F / -10 to 40°C

Storage Temperature

41 to 104°F / 5 to 40°C




7.4 x 4.4 x 1" / 188 x 112.5 x 25 mm


21.2 oz / 600 g

Package Weight

2.64 lb

Box Dimensions (LxWxH)

10.5 x 6.7 x 3.2"


In the Box:

  • YoloLiv Instream Vertical Live Streaming Encoder and Monitor
  • 2 x USB Type-C Cable
  • Shoe Mount
  • SIM Card Eject Pin
  • Limited 1-Year Warranty
