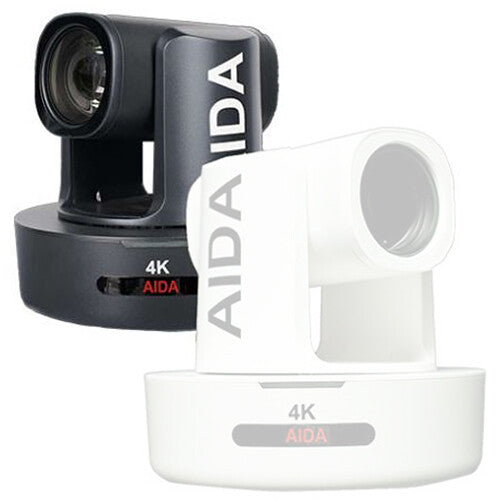

AIDA Imaging 4K NDI HX IP/HDMI Broadcast PTZ Camera with 30x Optical Zoom (Black)

Name: AIDA Imaging 4K NDI HX IP/HDMI Broadcast PTZ Camera with 30x Optical Zoom (Black)
Brand: AIDA Imaging
SKU: PTZ4K-NDI-X30B
Price: 233507 INR
Availability: InStock

Rs. 268,533.00 Rs. 233,507.00

- +

AIDA Imaging ⁄ AIDA Imaging 4K NDI HX IP/HDMI Broadcast PTZ Camera with 30x Optical Zoom (Black)

Key Features:

For Broadcast & Conference Applications
Capture up to UHD 4K Resolution
IP, HDMI, USB-C Outputs; NDI|HX Support
30x Optical Zoom at 4K
RS-232, VISCA over IP, NDI Control
Up to 128 Presets via IP/Serial Control
Motion-Compensated Noise Reduction
Power Adapter & PoE+ Support

Add the black 4K NDI|HX IP/HDMI Broadcast PTZ Camera with 30x Optical Zoom from AIDA to your NDI network, which offers simultaneous video outputs as well as NDI|HX workflows over IP. You can output/stream up to UHD 4K60 via HDMI and IP/NDI|HX, and simultaneously output up to UHD 4K60 via HDMI and USB-C 3.0. The camera features a 30x optical zoom, and pan, tilt, and zoom functions can be controlled via IP, NDI, serial control, or by using the included remote control.

The camera features RS-232 input/output for serial control as well as the VISCA control protocol over IP and streaming video via RTSP/RTMP protocols. Up to 10 presets can be assigned and managed via the included IR remote controller, and up to 128 can be managed over serial control. Other features include a motion-compensated temporal noise reduction filter, which allows for noise reduction without blur. The camera is powered via the included power adapter or by PoE+ on a supported network.

Key Features

Simultaneous SDI, HDMI, USB, and NDI|HX output
Up to UHD 4K resolution video output
30x optical zoom
NDI|HX, RTSP, RTMP, SRT streaming
RS-232 input/output
VISCA-over-IP control protocol
10 presets via included IR remote controller, 128 presets over IP/serial control
Motion-compensated temporal noise reduction filter allows for noise reduction without blur
Built-in OSD controls
4:2:2 (YCbCr) 10-bit color space

Technical Specifications:

Image Sensor	1/1.8"-Type CMOS
Sensor Resolution	Effective: 2.07 Megapixel
Built-In ND Filter	No
Focus Control	Autofocus Manual Focus
Shutter Type	Mechanical Focal Plane Shutter and Electronic Rolling Shutter
Shutter Speed	1 to 1/10,000 Seconds
Minimum Illumination	0.1 Lux
Focal Length	6.9 to 214.6mm
Optical Zoom Ratio	30x
Field of View	Horizontal: 59 to 1.98°
External Recording Modes	4:2:2 10-Bit via HDMI / RJ45 / USB 3840 x 2160 at 23.98/24.00/25/29.97/30.00/50/59.94/60.00 fps 1920 x 1080p at 23.98/24.00/25/29.97/30.00/50/59.94/60.00 fps 1920 x 1080i at 50/59.94/60.00 fps 1280 x 720 at 25/29.97/30.00/50/59.94/60.00 fps
Broadcast Output	NTSC/PAL
IP Streaming	NDI\|HX, RTMP, RTSP, SRT 1280 x 720 to 3840 x 2160 at 60p
Presets	10 via IR 128 via RS-232, VISCA
Move Speed	Pan: 0 to 120°/sec Tilt: 0 to 80°/sec
Movement Range	Pan: 340° Tilt: 120° (-30 to 90°)
Supported Control Protocols	IR NDI RS-232 VISCA
Video I/O	1 x HDMI (Unspecified Signal) Output 1 x RJ45 (Unspecified Signal) Output 1 x USB-C (Unspecified Signal) Output
Audio I/O	1 x 1/8" / 3.5 mm TRS Stereo Line Input on Camera Body
Other I/O	1 x D-Sub 8-Pin (RS-232) Input 1 x D-Sub 8-Pin (RS-232) Output
PoE Support	PoE+ 802.3at
Power I/O	1 x DC (12VDC) Input
Operating Temperature	32 to 104°F / 0 to 40°C

In the Box:

AIDA Imaging 4K NDI HX IP/HDMI Broadcast PTZ Camera with 30x Optical Zoom (Black)
Remote Control
Mounting Bracket
Safety Harness
Power Adapter
Power Cord
Limited 2-Year Manufacturer Warranty
