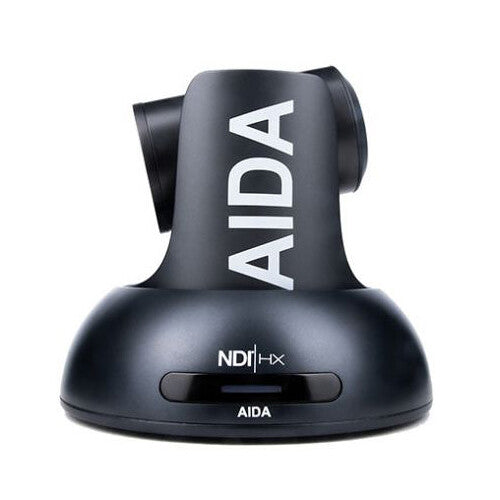

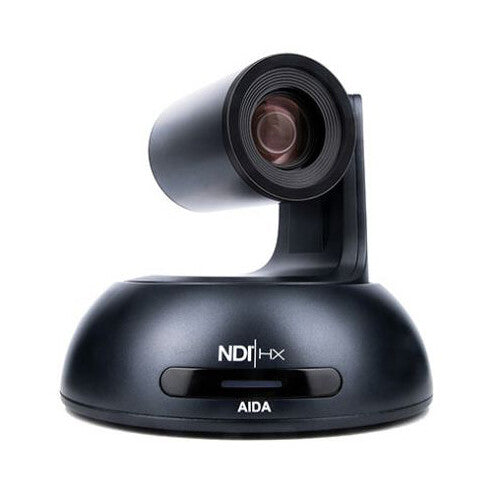

AIDA Imaging Full HD NDI|HX Broadcast PTZ Camera with 18x Optical Zoom (Black)

AIDA Imaging Full HD NDI|HX Broadcast PTZ Camera with 18x Optical Zoom (Black)

Name: AIDA Imaging Full HD NDI|HX Broadcast PTZ Camera with 18x Optical Zoom (Black)
Brand: AIDA Imaging
SKU: PTZ-NDI-X18B
Price: 90362 INR
Availability: InStock

Rs. 103,915.00 Rs. 90,362.00

- +

AIDA Imaging ⁄ AIDA Imaging Full HD NDI|HX Broadcast PTZ Camera with 18x Optical Zoom (Black)

Key Features:

Full HD CMOS 1/3" Sensor
Simultaneous HDMI, NDI|HX, IP Outputs
Up to 1080p Video at 60 fps
18x Optical Zoom
RS-232, VISCA, VISCA over IP Control
Up to 128 Presets over Serial Control
Remote Control with 10 Presets
Motion-Compensated Noise Reduction
3.5mm Line In

Incorporate this black Full HD NDI|HX Broadcast PTZ Camera with 18x Optical Zoom from AIDA Imaging into your live-streaming environment for simultaneous HDMI, IP, and NDI|HX streaming with a single device. A 1/3" CMOS sensor captures up to 1080p video at 60 fps with vivid color in different light conditions. An RS-232 input and output support serial, VISCA, and VISCA over IP control while streaming video via RTSP and RTMP protocols.

10 preset positions can be assigned and managed with the included remote, and 128 preset positions can be managed with serial control. Other settings like pan, tilt, and the 18x optical zoom can also be adjusted with low latency for smooth, silent movement. Motion-compensated noise reduction ensures your image is crisp and without motion blur. A 3.5mm line-in prevents audio/video delay over IP/NDI protocols for improved sync.

Features at a Glance:

Low-latency streaming and PTZ control
Sensor captures sharp and vivid color under different light conditions
Motion-compensated temporal noise reduction filter for motion video without blur
3.5mm line in for no audio/video delays over IP/NDI protocols
Equipped with discreet tally light
White balance: auto, manual, auto tracking, one push, indoor, outdoor

Control:

Physical remote control with 10 presets
Control via web UI interface, VISCA, VISCA over IP, and NDI
Built-in OSD controls for customizable image settings

Technical Specifications:

Shutter Type	Electronic Rolling Shutter
Shutter Speed	1/10000 to 1 Second
Precise Scan Rate Control	No
Minimum Illumination	0.1 Lux
Flip / Mirror Support	Image Flip, Mirror (Vertical)
White Balance	Presets: Auto, Indoors, Manual, One Push, Outdoors
Focal Length	5.2 to 93mm
Optical Zoom Ratio	18x
Field of View	60 to 4°
Maximum Aperture	f/1.5 to 3
External Recording Modes	HDMI / RJ45 1920 x 1080p at 23.98/24.00/25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 25/29.97/50/59.94 fps
Audio Recording	Yes
Broadcast Output	NTSC
IP Streaming	RTMP, RTSP, SRT, UDP 1920 x 1080 1280 x 720
Presets	128 via IP 10 via IR
Move Speed	Pan: 0 to 120°/sec Tilt: 0 to 80°/sec
Movement Range	Pan: 340° Tilt: 120° (-30 to 90°)
Tally Light	Yes
Supported Control Protocols	NDI RS-232 VISCA

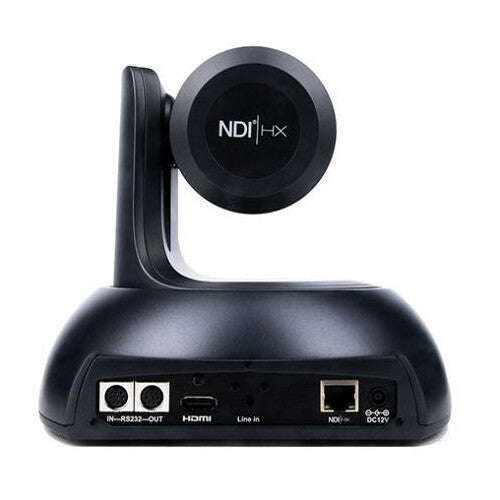

Video I/O	1 x HDMI Output 1 x RJ45 (NDI) Output
Audio I/O	1 x 1/8" / 3.5 mm TRS Stereo Input
Other I/O	1 x Mini-DIN 8-Pin (RS-232) Input 1 x Mini-DIN 8-Pin (RS-232) Output
PoE Support	PoE+ 802.3at
Power I/O	1 x Barrel (9 to 15VDC) Input
Operating Temperature	32 to 104°F / 0 to 40°C
Dimensions (W x H x D)	7.8 x 6.9 x 7.5" / 196.9 x 176.5 x 190 mm
Weight	3.1 lb / 1.4 kg
