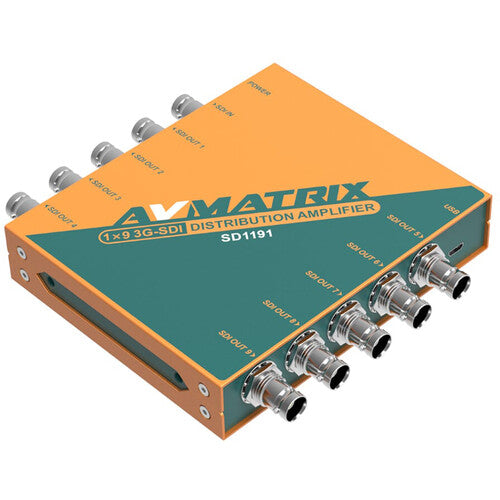

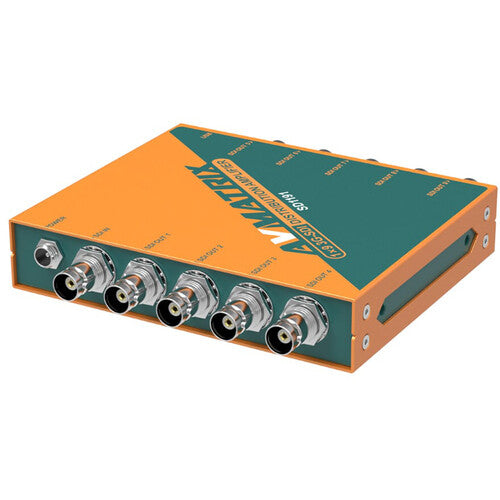

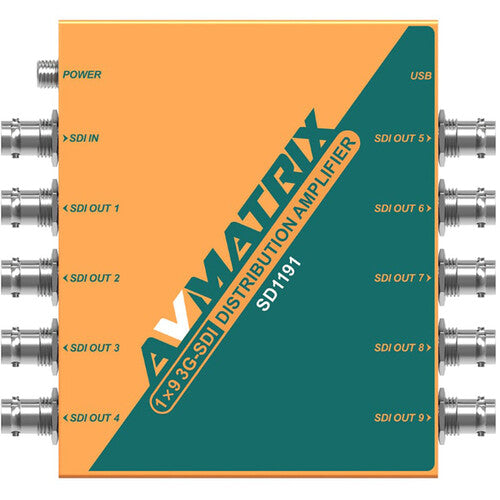

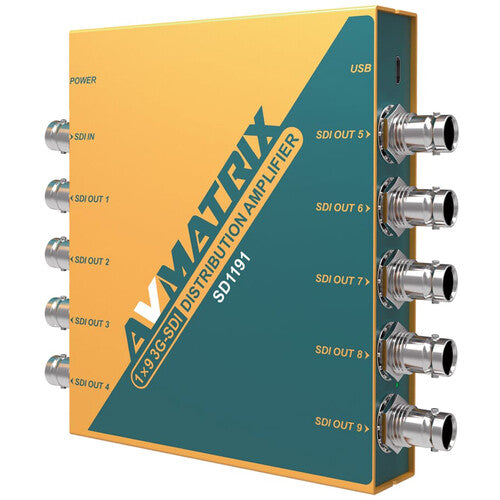

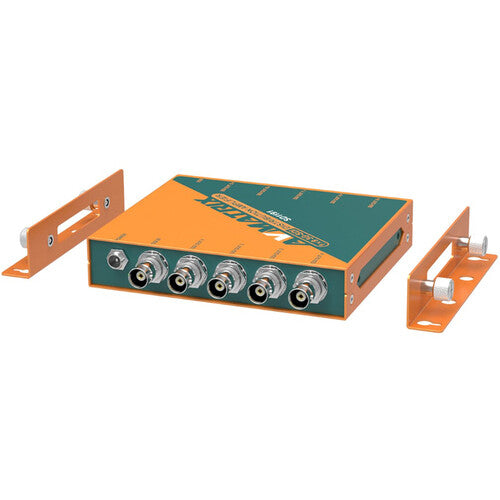

The 1x9 3G-SDI Reclocking Distribution Amplifier from AVMATRIX features a compact, all-metal design that can be mounted on a wall or attached to the bottom of a desktop. It employs reclocking and cable equalization that allow cable lengths up to 394' for 3G-SDI signals, 656' for HD-SDI, and 1312' for SD-SDI. The automatic reclocking and equalization process regenerates the input, reduces jitter, and improves the SDI eye pattern, allowing for the longer cable runs.The single input auto-detects 3G/HD/SD signals, and you get nine automatically buffered and reclocked outputs in up to 1080p60 resolution. The input and all outputs also offer DVB-ASI compatibility.
Technical Specifications:
Input
1 x BNC (3G-SDI / HD-SDI / SD-SDI / DVB-ASI)
Embedded Audio
HDMI
Output
9 x BNC (3G-SDI / HD-SDI / SD-SDI / DVB-ASI)
Other I/O
1 x Micro-USB
Video Standard Compliance
SMPTE 259M/292M/296M/372M/424M/425M-A/425M-B
Reclocking
Yes
HDR Compatibility
No
HDCP Support
EDID Support
Video Format
SDI (10/12-Bit 4:4:4/4:2:2 RGB, YUV)
1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
1080i: 50/59.94/60 fps
1080PsF: 23.98/24/25/29.97/30 fps
720p: 23.98/24/25/29.97/30/50/59.94/60 fps
NTSC
PAL
Power Connector
1 x Barrel (5 to 17 VDC) Input
Power Consumption
(1 W)
ESD Protection
Operating Temperature
12 to 92°F / -20 to 60°C
Storage Temperature
-22 to 158°F / -30 to 70°C
Operating Humidity
0 to 90%
